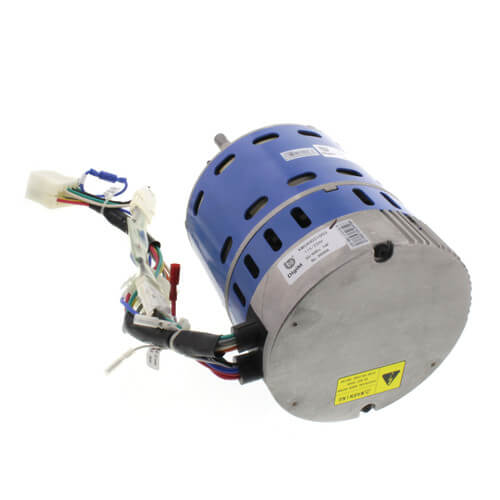

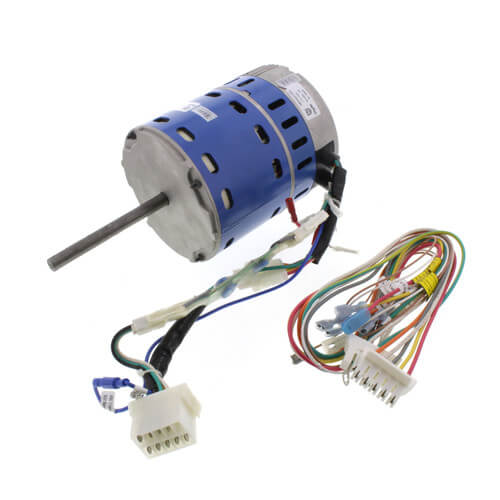

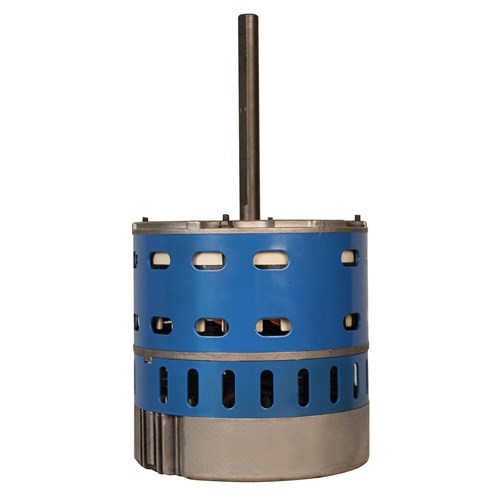

Mars M10861 Azure Digi-Motor 1/2 - 1 HP, 115/230V, 1075 RPM

Product Description

The MARS M10861 Azure Digi-Motor is a high efficiency variable speed direct drive blower motor suitable for many applications. This motor is a replacement for standard PSC and Genteq X-13 motors. It features an auto sizing learn mode, measuring external static pressure to self-program to the correct horsepower. An optional hand held programmer (MARS No. 08502) can be used for speed adjustments.

• Outboard replaceable surge protector
• Adjustable speeds (with optional MARS No. 08502)
• 4 speeds plus 625 RPM constant fan mode

Product Highlights

This Digi-Motor features reversible rotation, high efficiency, multi-horsepower, and dual voltage capabilities. It also has a belly band mount.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: M10861
• Country of Origin: CHN

Technical Specifications

• Horse Power: 3/4, 1, 1/2 HP
• RPM: 1075
• Voltage: 115/230V
• Bearings: Ball
• Enclosure Type: Open Air Over
• Rotation: Reversible
• Insulation Class: B
• 48 Frame: true
• Thermal overload protected: true
• Operating Temperature Range: -20�C to 55�C (-4�F to 131�F)
• UL Recognized: true
• Number of Speeds: 5
• Frequency Rating: 50/60 Hertz
• Mounting: Belly Band
• Shaft Diameter: 0.5" (1/2")
• Shaft Length: 4.94"
• Application: Blower
• Motor FLA: 11.5/7 Amp
• Power Rating: 1 HP
• Approval: UL, CUL
• Ambient Temperature: -20 to 55 Deg C
• Amperage Rating: 11.5/7 A Full Load
• Phase: 1
• Shaft Size: 0.5 in Dia x 4.94 in L
• Special Features: ECM Motors
• Speed: 350 to 1400 rpm
• Temperature Rating: -20 to 55 deg C
• Voltage Rating: 120/240 V AC
• Frame: 48
• Cycle/Hertz: 50/60 Hz
• Duty: (S1) Continuous Running Duty
• Motor HP: 1
• Motor Type: ECM (Electronically Commutated Motor)
• NEMA Frame: 48
• Poles: 6
• Basis Of Rotation View: Shaft End
• Motor Enclosure: Open Drip Proof (ODP)
• Mounting Type: Belly Band/ Torsion Flex
• Approvals: CSA Certified; CUL Listed; UL Listed; UL Recognized
