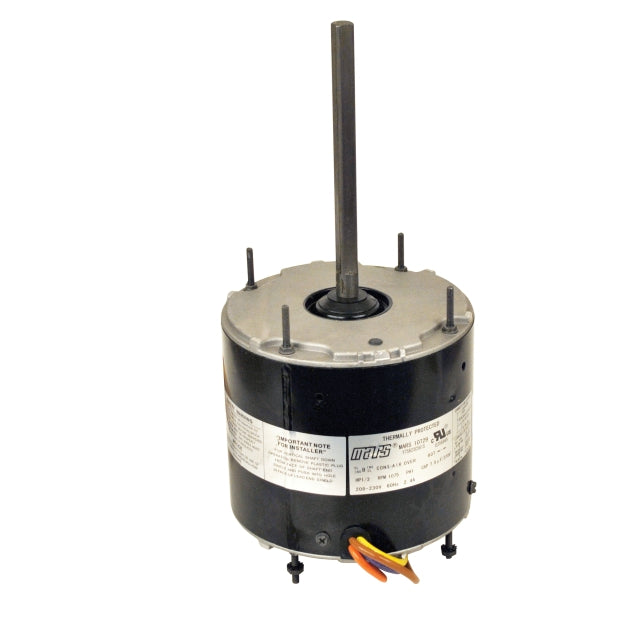

Mars M10731 Condenser Fan Motor 3/4hp 208/230V 1075 RPM

Product Description

The MARS M10731 condenser fan motor is a 3/4 HP motor designed for outdoor applications. This motor operates at 208 to 230 VAC, 60 Hz, single-phase, with a speed of 1075 RPM. It features a TEAO enclosure and is suitable for air conditioning or heat pump applications. The motor is designed for all-angle mounting with a 5-1/2" diameter.

• Designed for shaft-up or shaft-down applications.
• End shields are enclosed for weather protection.
• Weep hole provided in each end shield to allow condensate to drain.

Product Highlights

The MARS condenser fan motor is thermally protected and features a reversible design, ball bearing, and all-angle mounting for versatile use in various HVAC systems.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: M10731

Technical Specifications

• Enclosure Type: TEAO
• Power Rating: 3/4 HP
• Voltage Rating: 208 to 230 Volt AC 1-Phase
• Frequency Rating: 60 Hertz
• Motor FLA: 5.2 Amp
• Number of Speeds: 1
• Speed Rating: 1075 RPM
• Reversible: Yes
• NEMA Frame Size: 48
• Insulation Class: B
• Mounting: All Angle
• Application: Air Conditioner, Heat Pump
• Approval: UL, CUL
• Motor Type: PSC
• Bearing Type: Ball
• Shaft Size: 1/2 Inch Diameter x 6.5 Inch Length
• Lead Length: 36 Inch
• Thermal Protection: Auto
• Ambient Temperature Rating: 60 Deg C
• Motor Thermal Protection: Auto
• Rotation: Clockwise, Counter Clock Wise
• RPM Range: 1001-1100
• Shaft Diameter: 1/2
• Shaft Position: All Angle, Horizontal, Vertical Shaft Down, Vertical Shaft Up
• Type: Condenser Fan Motor
• Variety: PSC
• Voltage: 208/230V
• Ambient: 60 °C
• Frequency: 60Hz
• Full Load Amps: 4.7
• Motor Phase: 1
• Motor RPM: 1075
• Run Capacitor: 10/370
• Shaft Length: 6.5 in
• UL Listed: False
• UL Recognized: False
