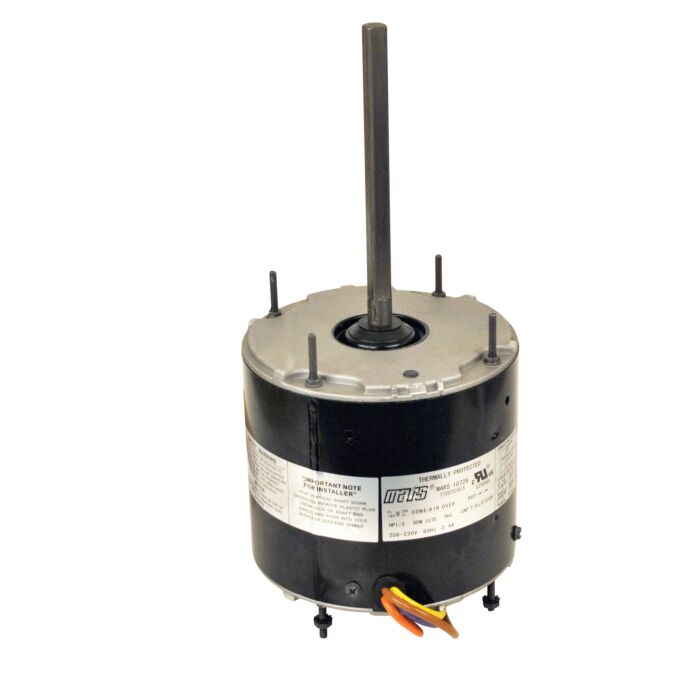

Mars M10730 Condenser Fan Motor 1/2hp 1075/1 208/230v

Product Description

The MARS M10730 Azure® by Mars® Condenser Fan Motor is designed for condenser fan motor applications. This 1/2 hp motor operates at 208 to 230 VAC, 3.5 FLA, and 60 Hz at 1075 rpm. It features a totally enclosed air over design and is suitable for air conditioning or heat pump applications.

• All-angle sleeve or ball bearing
• Rheem® mounting holes with screws installed
• Water slinger on shaft

Product Highlights

Designed for either vertical shaft-up or shaft-down applications with enclosed shell and end shields for weather protection. A weep hole is provided in each end shield to allow condensate to drain.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: M10730

Technical Specifications

• Amperage Rating: 3.5 FLA
• Application Type: Condenser Fan Motors
• Approval: cUL Listed
• Bearing Type: Sleeve
• Capacitor: 10 uF at 370 VAC
• Enclosure Type: Totally Enclosed Air Over
• Frame Style: NEMA 48
• Frequency Rating: 60 Hz
• Horsepower: 1/2
• Insulation Class: Class B
• Motor Type: All Angle
• Number of Speeds: 1
• Phase: 1
• Rotation Type: Reversible
• Series: 100
• Shaft Size: 1/2 in Dia x 6-1/2 in L
• Speed: 1075
• Temperature Rating: 60 deg C
• Voltage: 208 to 230 VAC
• Frame Size: 48
• Manufacturer: Mars
• Manufacturer Part Number: M10730
• RPM: 1075
• Speeds: 1
