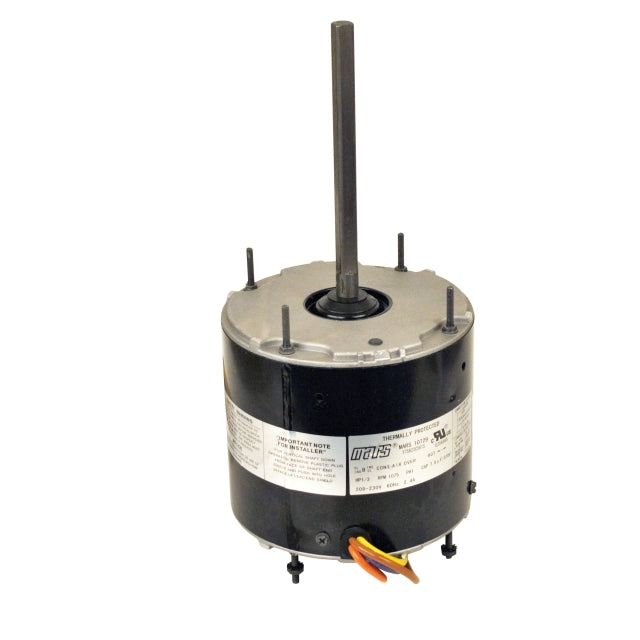

Mars M10729 Condenser Fan Motor 1/3HP 208-230V 1075RPM

Product Description

The MARS M10729 is an outdoor condenser fan motor operating at 208 to 230 VAC. This 1/3 HP motor features a speed of 1075 RPM and a reversible design. Suitable for HVAC, outdoor, and heat pump applications, it includes Rheem mounting holes with screws installed and a water slinger on the shaft.

• Vertical shaft up or shaft down mounting capability
• Weep hole in each end shield
• All angle mounting with sleeve bearing
• Auto thermal protection

Product Highlights

This condenser fan motor is designed for outdoor use and offers versatile mounting options.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: M10729

Technical Specifications

• Enclosure Type: TEAO
• Power Rating: 1/3 HP
• Voltage Rating: 208 to 230 Volt AC 1-Phase
• Frequency Rating: 60 Hertz
• Motor FLA: 2.4 Amp
• Number of Speeds: 1
• Speed Rating: 1075 RPM
• Reversible: Yes
• NEMA Frame Size: 48
• Insulation Class: B
• Mounting: All Angle
• Application: HVAC, Outdoor, Heat Pump
• Approval: UL, CUL
• Type: Permanent Split Capacitor
• Bearing Type: Sleeve
• Diameter: 5-1/2 Inch
• Shaft Size: 1/2 Inch Diameter x 6.5 Inch Length
• Lead Length: 36 Inch
• Ambient Temperature Rating: 60 Deg C
• Brand: MARS
• Rotation: Clockwise, Counter Clockwise
• RPM Range: 1001-1100
• Shaft Diameter: 1/2
• Shaft Position: All Angle, Horizontal, Vertical Shaft Down, Vertical Shaft Up
• Variety: PSC
• Voltage: 208/230V
• Ambient: 60 °C
• Frequency: 60Hz
• Full Load Amps: 2.4
• Motor Phase: 1
• Motor RPM: 1075
• Run Capacitor: 7.5/370
• Shaft Length: 6.5 in
• UL Listed: False
• UL Recognized: False
