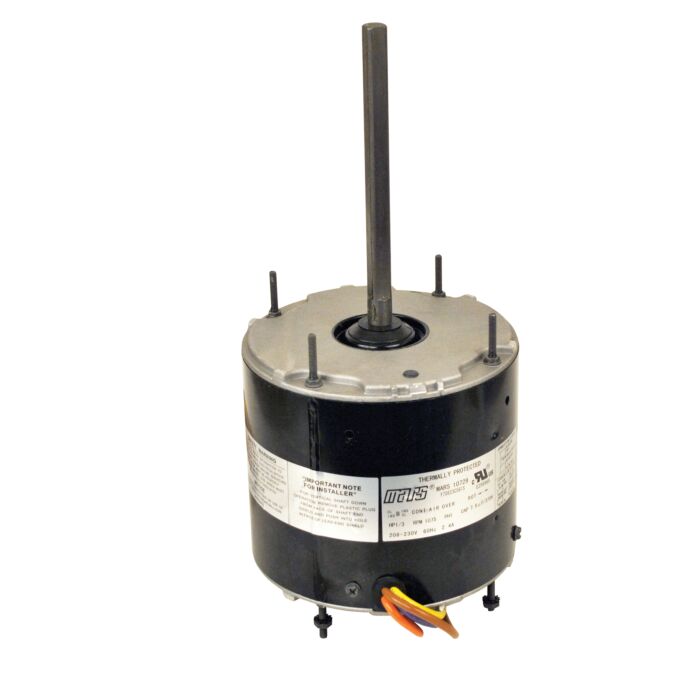

Mars M10728 Condenser Fan Motor 1/4HP 208-230V 1075RPM

Product Description

The MARS M10728 condenser fan motor is designed for outdoor use in either shaft-up or shaft-down applications. This 1/4 HP motor operates at 208 to 230 VAC and 1075 RPM. It features enclosed end shields for weather protection and a weep hole in each end shield for condensate drainage. Suitable for air conditioning or heat pump applications.

• Designed for shaft-up or shaft-down applications
• Features enclosed end shields for weather protection
• Weep hole in each end shield allows for condensate drainage

Product Highlights

Outdoor condenser fan motor suitable for air conditioning or heat pump applications. Features all angle mount and reversible rotation.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: M10728

Technical Specifications

• Enclosure Type: TEAO
• Power Rating: 1/4 HP
• Voltage Rating: 208 to 230 Volt AC 1-Phase
• Frequency Rating: 60 Hertz
• Motor FLA: 1.8 Amp
• Number of Speeds: 1
• Speed Rating: 1075 RPM
• Reversible: Yes
• NEMA Frame Size: 48
• Insulation Class: B
• Mounting: All Angle
• Application: HVAC, Outdoor, Heat Pump
• Approval: UL, CUL
• Type: Permanent Split Capacitor
• Bearing Type: Sleeve
• Diameter: 5-1/2 Inch
• Shaft Size: 1/2 Inch Diameter x 6.5 Inch Length
• Lead Length: 36 Inch
• Ambient Temperature Rating: 60 Deg C
• Excludes Capacitor: true
• Motor Thermal Protection: Auto
• Rotation: Clockwise, Counter Clock Wise
• RPM Range: 1001-1100
• Shaft Position: All Angle, Horizontal, Vertical Shaft Down, Vertical Shaft Up
• Variety: PSC
• Voltage: 208/230V
• Ambient: 60 °C
• Frequency: 60Hz
• Full Load Amps: 1.8
• Motor Phase: 1
• Motor RPM: 1075
• Run Capacitor: 5/370
• Shaft Length: 6.5 in
• UL Listed: False
• UL Recognized: False
• Manufacturer: Mars
• Manufacturer Part Number: M10728
• Motor Type: PSC
• RPM: 1075
• Speeds: 1
• UPC: 685744107286
• HP: 1/4
• Frame Size: 48
• Shaft Diameter: 1/2
