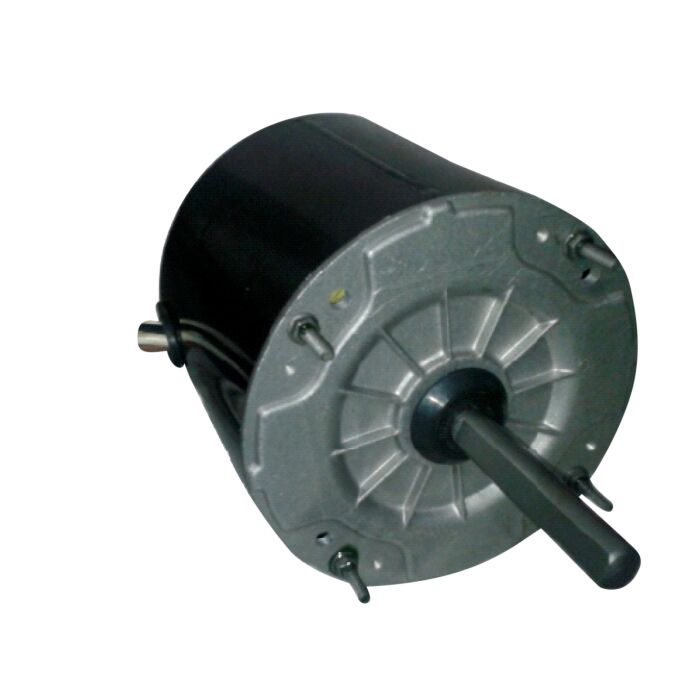

Mars M10722 Condenser Fan Motor 1/8 hp All Angle/Thru-Bolt Mount

Product Description

The MARS M10722 condenser fan motor is a 42 frame Super-Fit™ motor ideal for truck stock. This motor is rated at 1/8 hp, 208 to 230 V AC, 60 Hz, and 1 phase. It features a TEAO enclosure, reversible rotation, and all angle/thru-bolt mounting. It operates at 1075 rpm.

• Super-Fit™ mounting holes for Trane® 4.33, 4.42 and 4.62 bolt circle mounting
• Capacitor requirement noted on motor label
• Flatted shaft

Product Highlights

This condenser fan motor is multi-rated and suitable for continuous duty applications. Capacitor is not included, 5 uF at 370 VAC capacitor required.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: M10722

Technical Specifications

• Amperage Rating: 0.75 A Full Load
• Application Type: Condenser Fan Motors
• Bearing Type: Ball
• Enclosure Type: TEAO
• Frame: 42
• Frequency Rating: 60 Hz
• Horsepower: 1/8 hp
• Insulation Class: Class B
• Mounting Type: All Angle/Thru-Bolt
• Number of Speeds: 1
• Phase: 1
• Rotation: Reversible
• Shaft Size: 1/2 in Dia x 3 in L
• Speed: 1075 rpm
• Temperature Rating: 60 deg C
• Voltage Rating: 208 to 230 V AC
• Manufacturer: Mars
• Manufacturer Part Number: M10722
• Motor Type: PSC
• RPM: 1075
• Speeds: 1
• UPC: 685744107224
• Voltage: 208-230V/1 Phase
• Ambient Temperature Rating: 60C
• Enclosure: Totally Enclosed
