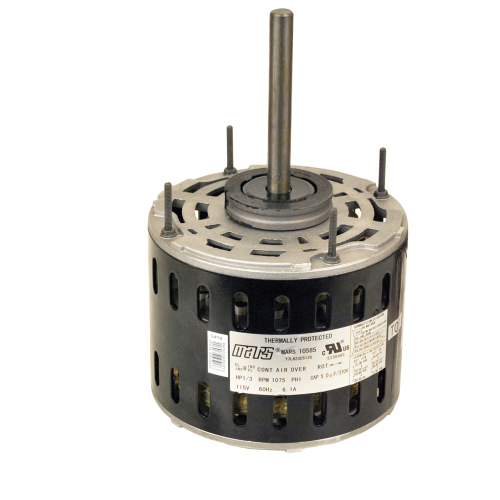

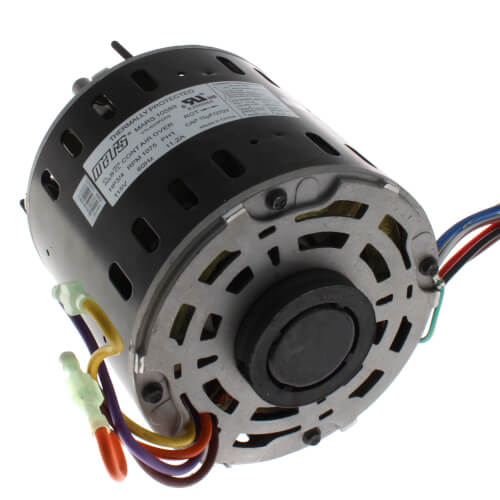

Mars M10589 5.5 inches 3 Speed Direct Drive Furnace Blower Motor 3/4 hp 115V 1075 RPM

Product Description

The MARS M10589 direct drive furnace blower motor is a three-speed standard efficiency model. It is electrically reversible and includes 2 1/4 inch resilient rings for base mounting. This model features all angle sleeve bearings and an open air over enclosure. It operates at 115V, 1075 RPM, and 3/4 HP.

• All angle sleeve bearing
• Rheem mounting holes
• 3 speeds

Product Highlights

This motor is designed for fan duty, continuous operation, and air over applications. It has Class B insulation and thermal overload protection.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: M10589

Technical Specifications

• Horse Power: 3/4
• RPM: 1075
• Voltage: 115V
• Bearings: Sleeve
• Enclosure Type: Open Air Over
• Rotation: Reversible
• Amperage: 11.2
• Manufacturer: Mars
• Part Number: 10589
• Item model number: 10589
• Material: copper
• Item Package Quantity: 1
• Speed: 1075 RPM
• Amperage Rating: 11.2 FLA
• Application Type: Fan & Blower Motors
• Bearing Type: Sleeve
• Capacitor: 15 uF at 370 VAC
• Dimensions: 5-1/2 in Dia
• Frame Style: NEMA 48
• Frequency Rating: 60 Hz
• Insulation Class: Class B
• Motor Type: All Angle
• Number of Speeds: 3
• Phase: 1
• Shaft Size: 1/2 in Dia x 4-1/2 in L
• Temperature Rating: 60 deg C
