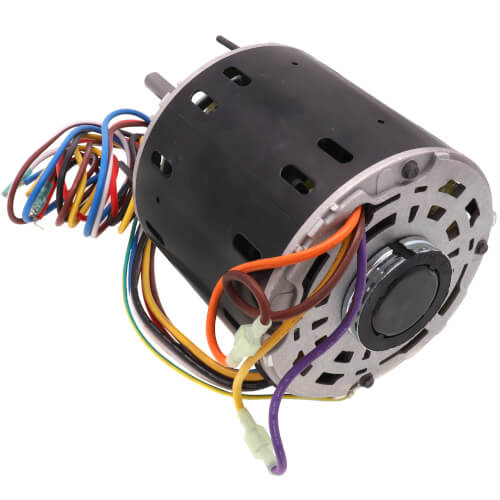

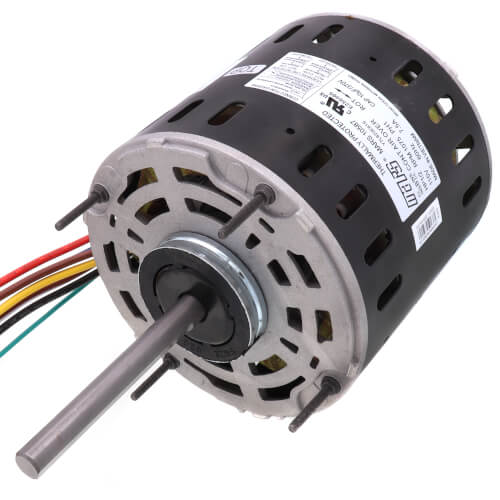

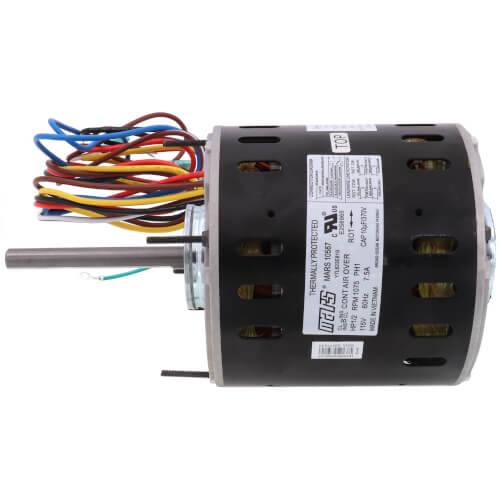

Mars M10587 Direct Drive Furnace Blower Motor 1/2 HP 115V 1075 RPM

Product Description

The MARS M10587 direct drive furnace blower motor is a three-speed standard efficiency model. This 1/2 HP, 115V motor features electrical reversibility and includes 2 1/4 inch resilient rings for base mounting. It has all-angle sleeve bearings and an open air over enclosure. Suitable for HVAC, blower, and truck applications.

• All angle sleeve bearing
• Rheem mounting holes
• 3 speeds

Product Highlights

Direct drive furnace blower motor with three speeds, electrical reversibility, and open air over enclosure.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: M10587

Technical Specifications

• Horse Power: 1/2
• RPM: 1075
• Voltage: 115V
• Bearings: Sleeve
• Enclosure Type: Open Air Over
• Rotation: Clockwise, Counter Clockwise
• Amperage: 7.5
• Application Type: Fan & Blower Motors
• Capacitor: 10 uF at 370 VAC
• Frame Style: NEMA 48
• Frequency Rating: 60 Hz
• Insulation Class: Class B
• Motor Type: All Angle
• Number of Speeds: 3
• Phase: 1
• Shaft Size: 1/2 in Dia x 4-1/2 in L
• Speed: 1075
• Temperature Rating: 60 deg C
• Power Rating: 1/2 HP
• Voltage Rating: 115 Volt AC 1-Phase
• NEMA Frame Size: 48
• Mounting: All Angle
• Application: HVAC, Blower, Truck
• Approval: UL, CUL
• Type: Direct Drive
• Diameter: 5-1/2 Inch
• Lead Length: 36 Inch
• Ambient Temperature Rating: 40 Deg C
• Excludes Capacitor: true
• Brand: MARS
• Frame Size: 48
• Motor Thermal Protection: Auto
• RPM Range: 1001-1100
• Shaft Diameter: 1/2"
• Shaft Position: All Angle, Horizontal, Vertical Shaft Down, Vertical Shaft Up
• Variety: PSC
• Ambient: 40 °C
• Frequency: 60Hz
• Full Load Amps: 7.5
• Motor Phase: 1
• Motor RPM: 1075
• Run Capacitor: 10/370
• Shaft Length: 4.5 in
• UL Listed: False
• UL Recognized: False
