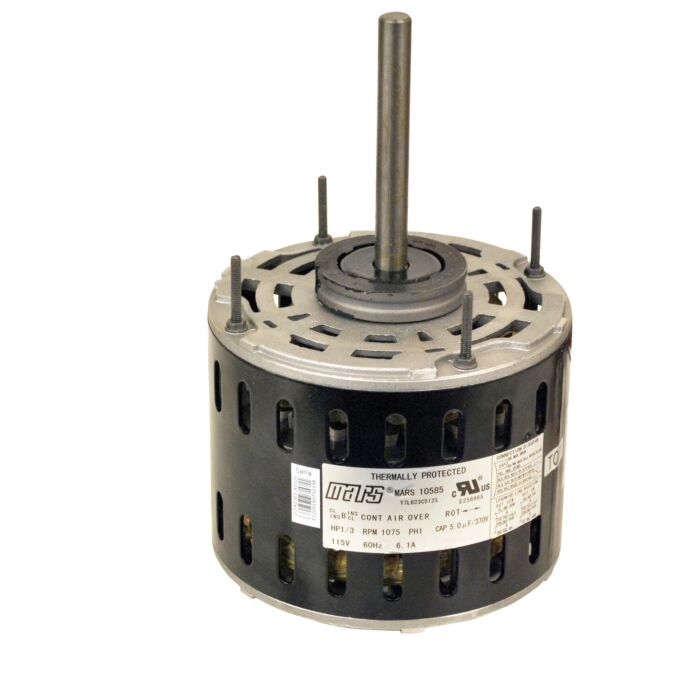

Mars M10585 Furnace Blower Motor 1/3hp 115V OAO PSC

Product Description

The MARS M10585 direct drive blower motor is a 1/3 HP, 115 VAC, 60 Hz, 1-Phase, 6.1 A, 1075 RPM, 3-speed motor with Class B insulation and sleeve bearings. It features all-angle mounting and an open air over enclosure. This motor is electrically reversible and includes 2-1/4 inch resilient rings for base mounting.

• Three speed standard efficiency model
• Electrically reversible with 2-1/4 inch resilient rings for base mounting
• All angle sleeve bearings and open air over enclosure

Product Highlights

Direct drive blower motor suitable for HVAC, blower, and truck applications. Features auto thermal overload protection and Rheem mounting holes.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: M10585

Technical Specifications

• Enclosure Type: OAO
• Power Rating: 1/3 HP
• Voltage Rating: 115 Volt AC 1-Phase
• Frequency Rating: 60 Hertz
• Motor FLA: 6.1 Amp
• Number of Speeds: 3
• Speed Rating: 1075 RPM
• Reversible: Yes
• NEMA Frame Size: 48
• Insulation Class: B
• Mounting: All Angle
• Application: HVAC, Blower, Truck
• Approval: UL, CUL
• Type: Direct Drive
• Bearing Type: Sleeve
• Diameter: 5-1/2 Inch
• Shaft Size: 1/2 Inch Diameter x 4.5 Inch Length
• Lead Length: 36 Inch
• Ambient Temperature Rating: 40 Deg C
• Excludes Capacitor: true
• Brand: MARS
• Frame Size: 48
• HP: 1/3
• Motor Thermal Protection: Auto
• Rotation: Clockwise, Counter Clock Wise
• RPM Range: 1001-1100
• Shaft Diameter: 1/2"
• Shaft Position: All Angle, Horizontal, Vertical Shaft Down, Vertical Shaft Up
• Variety: PSC
• Voltage: 115V
• Ambient: 40 °C
• Frequency: 60Hz
• Full Load Amps: 6.1
• Motor Phase: 1
• Motor RPM: 1075
• Run Capacitor: 5/370
• Shaft Length: 4.5 in
• UL Listed: False
• UL Recognized: False
• Amperage Rating: 6.1 FLA
• Dimensions: 5-1/2 in Dia
• Enclosure: Open Air Over
• Phase: 1
• Speed: 1075
• Temperature Rating: 60 deg C
• Manufacturer: Mars
• Manufacturer Part Number: M10585
• Motor Type: PSC
• RPM: 1075
• Speeds: 3
• UPC: 685744105855
