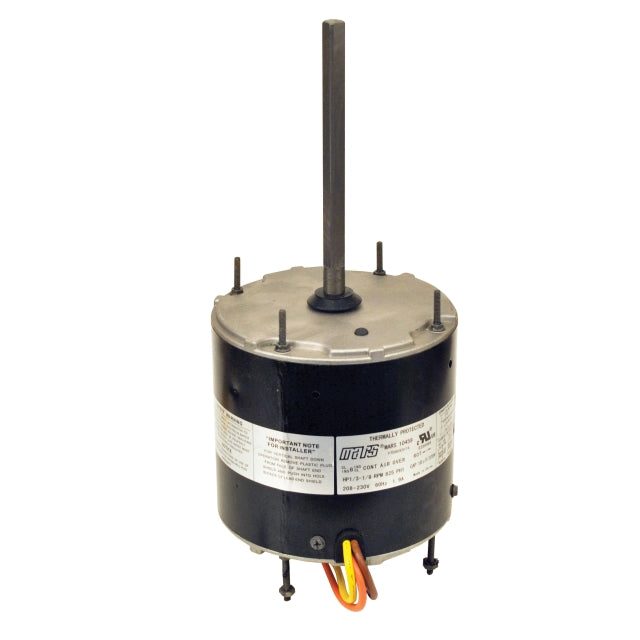

Mars M10469 Condenser Fan Motor 1/6-1/3hp 208/230V 825/2 TEAO

Product Description

The MARS M10469 condenser fan motor operates at 208/230V and 60 Hz. This 1-phase, 2-speed motor has a TEAO enclosure and Class-B insulation. It is rated for 1/6 to 1/3 HP, with a full load amperage of 2.2 and a speed of 825 RPM. The motor is reversible and features a 48-Frame.

• Operates at 208/230V, 60 Hz
• Rated for 1/6 to 1/3 HP
• Features TEAO enclosure and Class-B insulation

Product Highlights

This MARS condenser fan motor is a 2-speed, reversible motor with a TEAO enclosure, suitable for condenser fan applications.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: M10469

Technical Specifications

• Brand: MARS
• Bearing Type: Ball
• Enclosure Type: Totally Enclosed Air Over (TEAO)
• Frame Size: 48
• HP: 1/6-1/3
• Insulation Class: Class B
• Motor Thermal Protection: Auto
• Number of Speeds: 2
• Rotation: Clockwise, Counter Clockwise
• RPM Range: 0-1000
• Shaft Diameter: 1/2
• Shaft Position: All Angle, Horizontal, Vertical Shaft Down, Vertical Shaft Up
• Type: Condenser Fan Motor
• Variety: PSC
• Voltage: 208/230V
• Ambient: 60 °C
• Frequency: 60Hz
• Full Load Amps: 2.2
• Motor Phase: 1
• Motor RPM: 825
• Run Capacitor: 10/7.5/370
• Shaft Length: 5 in
• UL Listed: False
• UL Recognized: False
