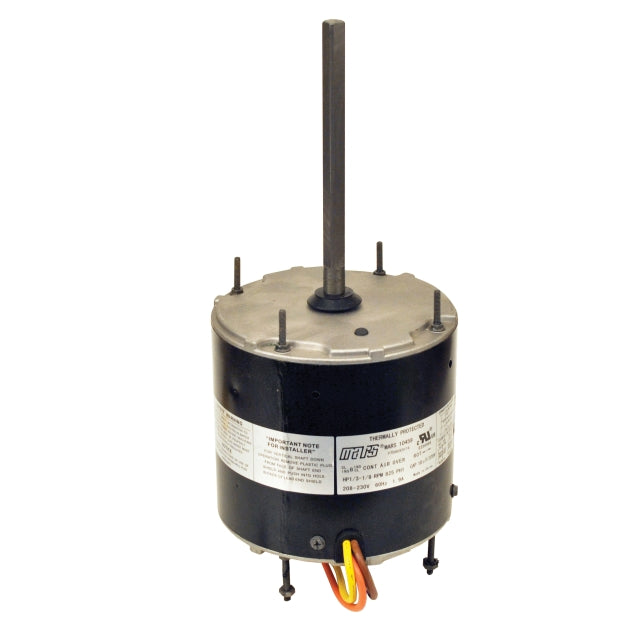

Mars M10468 Condenser Fan Motor 1/5-1/2hp 208/230V 1075/2 TEAO

Product Description

The MARS M10468 condenser fan motor operates at 208 to 230 VAC, 60 Hz, and 1 phase. It has a power rating of 1/5 to 1/2 HP and a speed of 1075 RPM with 2 speeds. This motor features Class B insulation, ball bearings, and all-angle mounting within a TEAO enclosure. It is suitable for HVAC/R, air conditioner, and heat pump applications.

• Ideal for truck stock
• Features Rheem mounting hole with screw installed
• Equipped with water slinger on shaft

Product Highlights

Multi-horsepower condenser fan motor with thermal overload protection and through bolt or band mounting.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: M10468

Technical Specifications

• Enclosure Type: TEAO
• Power Rating: 1/5 to 1/2 HP
• Voltage Rating: 208 to 230 Volt AC 1-Phase
• Frequency Rating: 60 Hertz
• Motor FLA: 3.6 Amp
• Number of Speeds: 2
• Speed Rating: 1075 RPM
• Reversible: Yes
• NEMA Frame Size: 48
• Insulation Class: B
• Mounting: All Angle
• Application: HVAC/R, Air Conditioner, Heat Pump
• Approval: UL, CUL
• Type: Permanent Split Capacitor
• Bearing Type: Ball
• Diameter: 5.5 Inch
• Shaft Size: 1/2 Inch Diameter x 5 Inch Length
• Lead Length: 38 Inch
• Ambient Temperature Rating: 60 Deg C
• Excludes Capacitor: true
• Brand: MARS
• Motor Thermal Protection: Auto
• Rotation: Clockwise, Counter Clock Wise
• RPM Range: 1001-1100
• Shaft Diameter: 1/2
• Shaft Position: All Angle, Horizontal, Vertical Shaft Down, Vertical Shaft Up
• Variety: PSC
• Voltage: 208/230V
• Ambient: 60 °C
• Frequency: 60Hz
• Full Load Amps: 3.6
• Motor Phase: 1
• Motor RPM: 1075
• Run Capacitor: 10/12.5/370
• Shaft Length: 5 in
• UL Listed: False
• UL Recognized: False
• Application Type: Condenser Fan Motors, Fan & Blower Motors
• Capacitor: 10/12.5 uF at 370 VAC
• Frame Style: NEMA 48
• Horsepower: 1/2
• Motor Type: All Angle
• Phase: 1
• Rotation Type: Reversible
• Series: 113
• Speed: 1075
