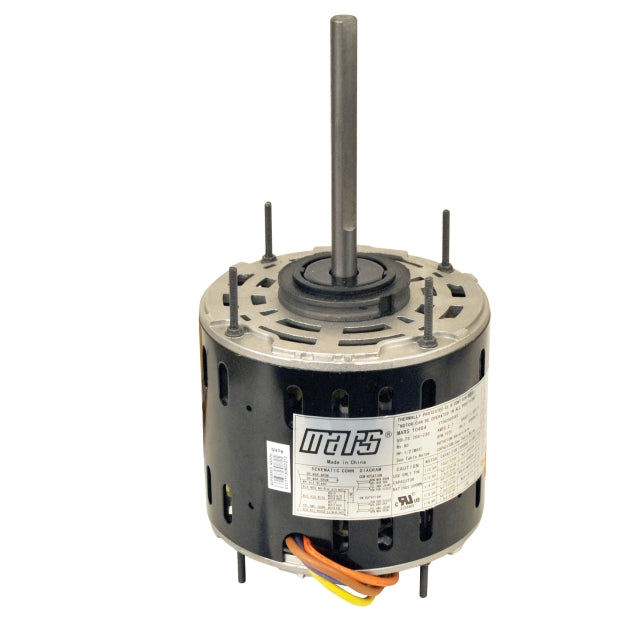

Mars M10466 Furnace Blower Motor 1/5-3/4hp 115V 1075/4 OAO

Product Description

The MARS M10466 is a multi-horsepower direct drive blower motor. This 115 VAC, 60 Hz, 1-Phase motor operates at 1075 RPM with 4 speeds and a motor FLA of 8.5 Amp. It features Class B insulation, sleeve bearing, and all angle mount. The motor is OAO enclosed and suitable for HVAC and blower applications.

• Multi-Horsepower Direct Drive Blower Motors are Ideal for Truck Stock
• Rheem Shell Mounting Holes
• Auto Thermal Overload Protected

Product Highlights

Ideal for HVAC and blower applications, this motor features multi-horsepower capabilities and is designed for direct drive systems.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: M10466

Technical Specifications

• Enclosure Type: OAO
• Power Rating: 1/5 to 3/4 HP
• Voltage Rating: 115 Volt AC 1-Phase
• Frequency Rating: 60 Hertz
• Motor FLA: 8.5 Amp
• Number of Speeds: 4
• Speed Rating: 1075 RPM
• Reversible: Yes
• NEMA Frame Size: 48
• Insulation Class: B
• Mounting: All Angle
• Application: HVAC, Blower
• Approval: UL, CUL
• Type: Direct Drive
• Bearing Type: Sleeve
• Diameter: 5-1/2 Inch
• Shaft Size: 1/2 Inch Diameter x 5.8 Inch Length
• Lead Length: 41 Inch
• Ambient Temperature Rating: 40 Deg C
• Excludes Capacitor: true
• Brand: MARS
• Motor Thermal Protection: Auto
• Rotation: Clockwise, Counter Clock Wise
• RPM Range: 1001-1100
• Shaft Diameter: 1/2"
• Shaft Position: All Angle, Horizontal, Vertical Shaft Down, Vertical Shaft Up
• Variety: PSC
• Voltage: 115V
• Ambient: 40 °C
• Frequency: 60Hz
• Full Load Amps: 8.5
• Motor Phase: 1
• Motor RPM: 1075
• Amperage Rating: 8.5 A Full Load
• Application Type: Fan & Blower Motors
• Horsepower: 3/4 hp
• Temperature Rating: 60 deg C
• Frame Style: NEMA 48
• Hertz: 60
• Motor Type: All Angle
• Rotation Type: Reversible
