Mars M10464 Furnace Blower Motor 1/2hp 5-1/2 inches DD 230V 1075/4 OAO

Product Description

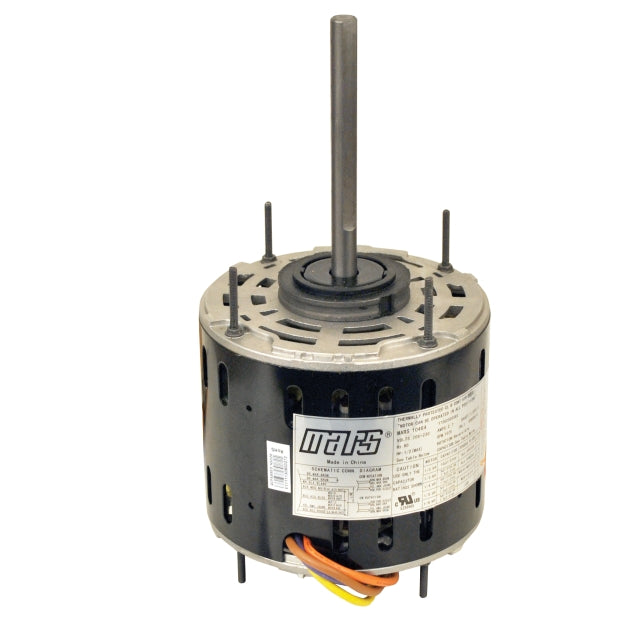

The MARS M10464 is a direct drive blower motor with a 5-1/2" diameter, designed for furnace blower applications. It operates on 208 to 230 VAC at 60 Hz, single-phase, with a rated speed of 1075 RPM and 4 speeds. The motor features a 48 frame, reversible rotation, and sleeve bearings, and is open air over (OAO) and PSC type. It is suitable for direct drive blower applications.

• Ideal for truck stock with multi-horsepower capabilities
• Features Rheem shell mounting holes
• Equipped with thermal overload protection

Product Highlights

This direct drive blower motor is designed for furnace applications, featuring multi-horsepower capabilities and thermal overload protection.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: M10464

Technical Specifications

• Brand: MARS
• Bearing Type: Sleeve
• Enclosure Type: Open Drip Proof (ODP)
• Frame Size: 48
• HP: 1/2
• Insulation Class: Class B
• Motor Thermal Protection: Auto
• Number of Speeds: 4
• Rotation: Clockwise, Counter Clock Wise
• RPM Range: 1001-1100
• Shaft Diameter: 1/2"
• Type: Blower Motor
• Variety: PSC
• Voltage: 208/230V
• Ambient: 40 °C
• Frequency: 60Hz
• Full Load Amps: 6.2
• Motor Phase: 1
• Motor RPM: 1075
• Run Capacitor: 10/7.5/5/370
• Shaft Length: 5.5 in
• UL Listed: False
• UL Recognized: False
