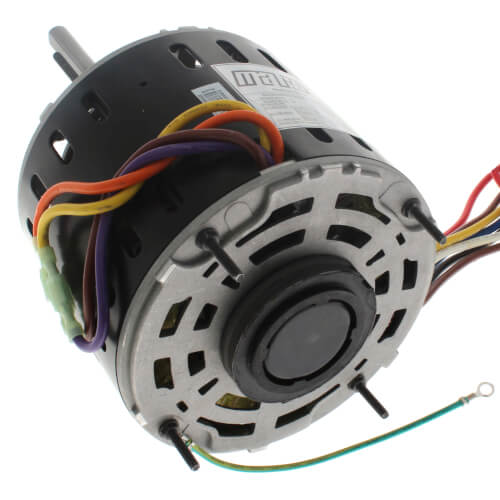

Mars M10463 Multi Horsepower Direct Drive Blower Motor 1/6 - 1/2 HP, 115V, 1075 RPM

Product Description

The MARS M10463 multi-horsepower direct drive blower motor is ideal for truck stock. It covers 115 volt applications from 1/6 through 1/2 HP and features Rheem shell mounting holes. The motor has Class "B" insulation and thermal overload protection.

• Rheem mounting holes
• Reversible rotation

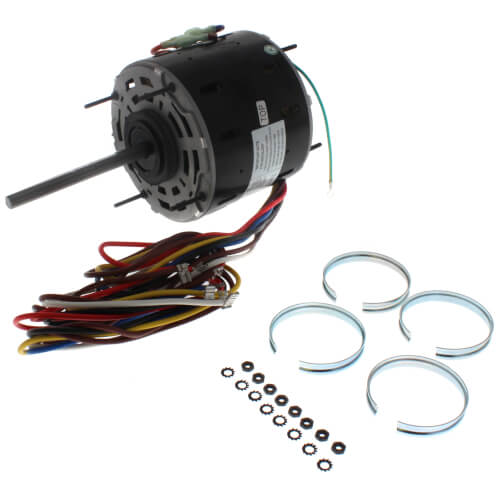

• 2-1/4 inch resilient rings

Product Highlights

This direct drive blower motor is designed for fan and blower applications. It operates at 115V, 1075 RPM, and features reversible rotation.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: M10463

Technical Specifications

• Horse Power: 1/6 - 1/2 HP
• RPM: 1075
• Voltage: 115V
• Bearings: Sleeve
• Enclosure Type: Open Air Over
• Rotation: Reversible
• Amperage Rating: 6.2 A Full Load
• Application Type: Fan & Blower Motors
• Frame: 48
• Frequency Rating: 60 Hz
• Insulation Class: Class B
• Mounting Type: All Angle
• Number of Speeds: 4
• Phase: 1
• Shaft Size: 1/2 in Dia x 5-1/2 in L
• Temperature Rating: 60 deg C
• Voltage Rating: 115 V AC
• Capacitor: 15/7.5/5 uF at 370
