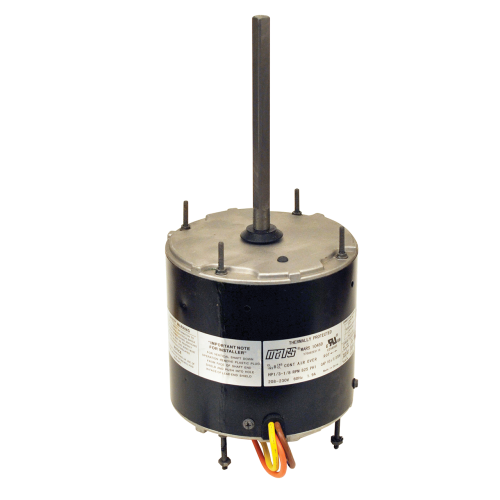

Mars M10459 Condenser Fan 1/3-1/8HP 208-230V 825RPM WIZ

Product Description

The MARS M10459 is a multi-horsepower condenser fan motor with Rheem mounting holes and screws installed. It features a water slinger on the shaft and is suitable for A/C or heat pump duty. It can be mounted through bolts or bands. Ideal for truck stock, it covers 208-230 volt applications.

• Muti-Horsepower Condenser Fan Motor
• Rheem mounting holes with screws installed
• Water slinger on shaft

Product Highlights

The MARS condenser fan motor is designed for A/C or heat pump applications, offering versatile mounting options and reliable thermal protection.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: M10459

Technical Specifications

• Bearing: Ball
• Duty: Continuous
• Enclosure: TEAO
• HP (Max.): 1/3
• Motor Type: PSC
• No. of Poles: 8.0
• Phase: Single
• Rotation: REV
• RPM: 825
• RPM Range: 700-900
• Thermal Protection: Auto
• Service Factor: 1.0
• Speeds: 1
• Amperage Rating: 1.9 A Full Load
• Application Type: Condenser Fan Motors
• Approval: cUL Listed
• Capacitor: 10 uF at 370 VAC
• Enclosure Type: Drip Proof
• Frame Style: NEMA 48
• Frequency Rating: 60 Hz
• Horsepower: 1/3-1/6
• Insulation Class: Class B
• Number of Speeds: 1
• Rotation Type: Reversible
• Shaft Dimensions: 1/2 x 6-1/2 in
• Speed: 825
• Temperature Rating: 60 deg C
• Voltage: 208-230v
