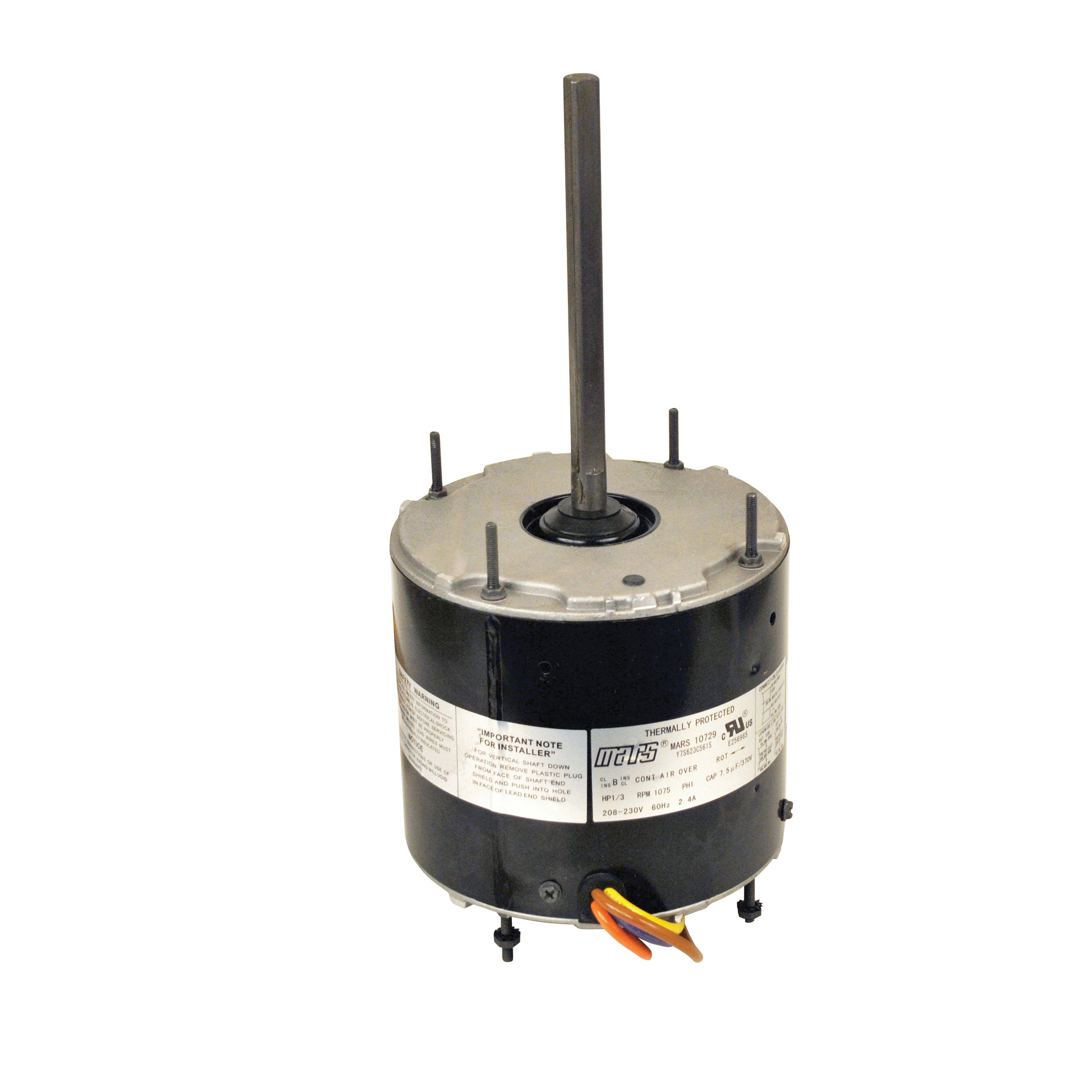

Mars M10404 Condenser Fan - 1/4hp 208-230v 825rpm

Product Description

The MARS M10404 condenser fan motor is designed for vertical shaft-up or shaft-down applications. The shell and end shields are enclosed for weather protection, and a weep hole is provided in each end shield for condensate drainage. Suitable for air conditioning or heat pump applications, this motor operates at 208 to 230 VAC.

• Vertical Shaft Up or Shaft Down
• Weep hole in each end shield
• Rheem mounting holes w/screws installed

Product Highlights

This condenser fan motor features all-angle mounting, reversible rotation, and a water slinger on the shaft. It requires a 5 uF at 370 VAC capacitor (not included).

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: M10404

Technical Specifications

• Application Type: Condenser Fan Motors
• Horsepower: 1/4 hp
• Voltage Rating: 208 to 230 V AC
• Amperage Rating: 2.2 A Full Load
• Frequency Rating: 60 Hz
• Phase: 1
• Speed: 825 rpm
• Enclosure Type: TEAO
• Frame: 48
• Shaft Size: 1/2 in Dia x 6-1/2 in L
• Rotation: Reversible
• Bearing Type: Sleeve
• Mounting Type: All Angle
• Temperature Rating: 60 deg C
• Insulation Class: Class B
• Number of Speeds: 1
