Mars M05411 Shaded Pole AC Motor 115 VAC

Product Description

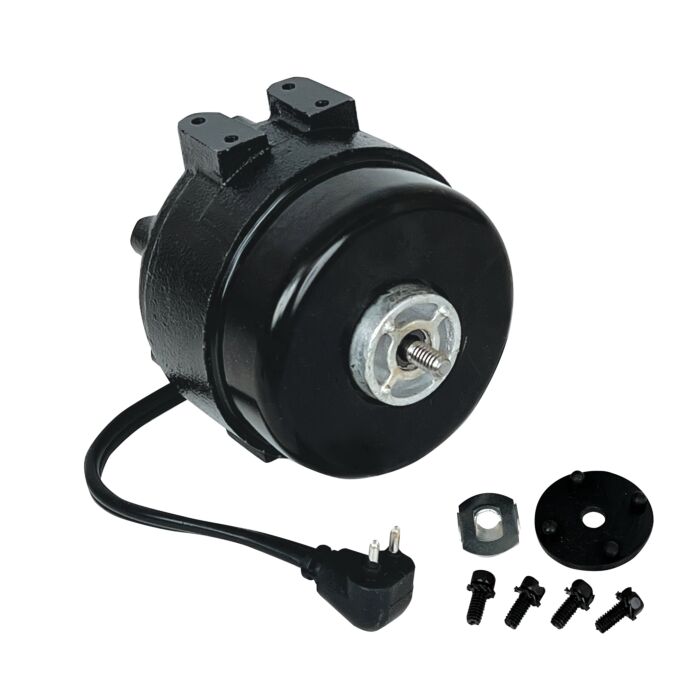

The MARS M05411 shaded pole AC motor is designed for refrigeration, fan, and blower motor applications. It operates at 115 VAC, 50/60 Hz, and 1550 rpm. This motor features a TEFC enclosure, NEMA 51 frame, and all-angle mounting capability. It is suitable for continuous air-over fan duty.

• Fan duty, continuous, air-over
• Impedance protection
• Threaded shaft

Product Highlights

Shaded pole motor with TEFC enclosure, all-angle mounting, and 1550 RPM speed.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: M05411

Technical Specifications

• Amperage Rating: 0.62 A Full Load
• Application Type: Refrigeration Motors, Fan & Blower Motors
• Enclosure Type: TEFC
• Frame: NEMA 51
• Frequency Rating: 50/60 Hz
• Insulation Class: Class A
• Material: Cast Iron
• Mounting Type: All Angle
• Number of Speeds: 1
• Phase: 1
• Rotation: CW
• Shaft Size: 0.25 in Dia x 0.66 in L
• Special Features: Unit Bearing Motors
• Speed: 1550 rpm
• Temperature Rating: 125 deg C
• Type: Shaded Pole
• Voltage Rating: 115 V AC
• Manufacturer: Mars
• Manufacturer Part Number: M05411
• RPM: 1550
• Shaft Type: Smooth
• Speeds: 1
• UPC: 685744054115
• Voltage: 115V/1 Phase
• Watts: 9
