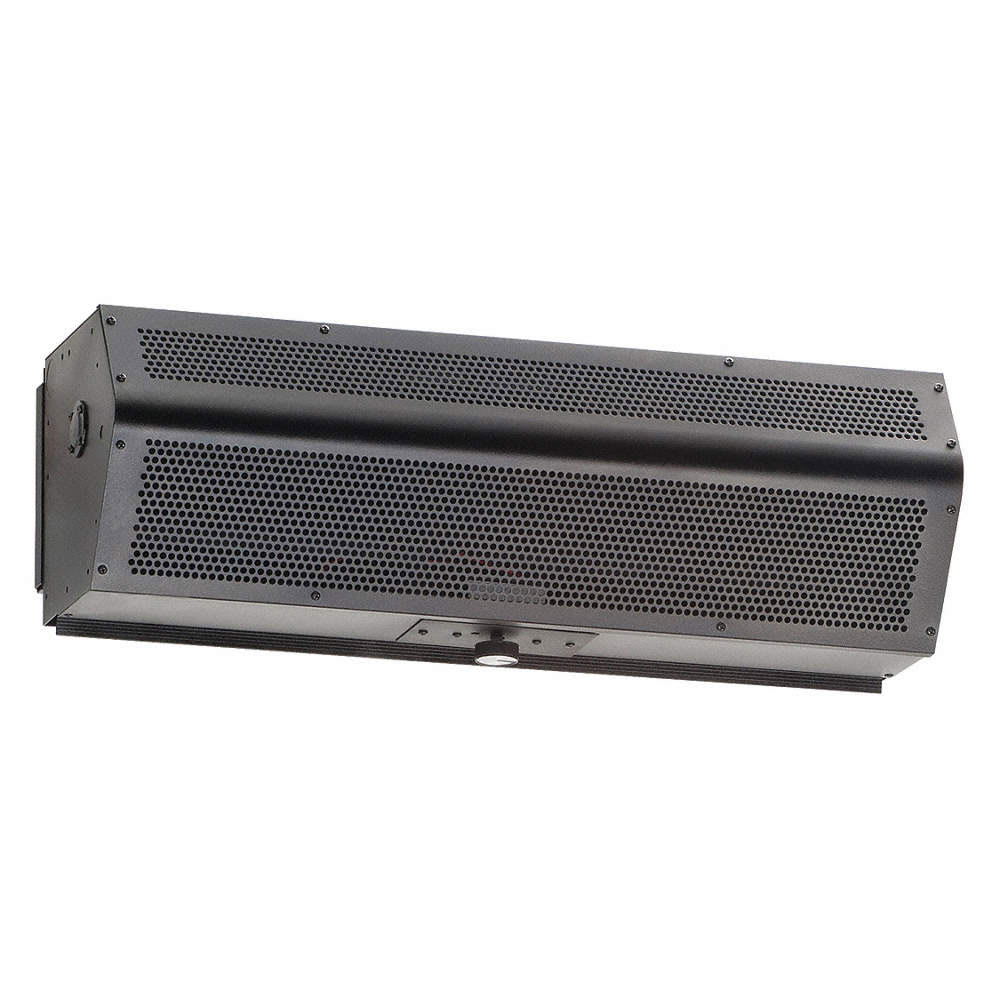

Mars LPV2251UAOB LoPro Series 2 Air Curtain 25 inches Unheated

Product Description

The MARS LPV2251UAOB LoPro Series 2 Air Curtain is designed for a 25" wide door and is unheated. It features a 1/6 HP motor and includes a 99-014 Level 1 control package for automatic operation when the door opens or closes. The air curtain has a Obsidian Black powder coated cabinet and is cETLus certified. It provides insect protection up to 5' high and temperature separation up to 8'.

• Designed for 25" wide doors
• Includes 99-014 Level 1 control package for automatic operation
• Provides insect protection up to 5' high and temperature separation up to 8'

Product Highlights

This unheated air curtain creates an unseen barrier, offering insect protection and temperature control for openings up to 5' high.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: LPV2251UAOB

Technical Specifications

• Manufacturer: Mars
• Product: Air Curtains
• Product Type: Facility Maintenance
• Series: LoPro Series 2
• Temperature: Unheated
• Voltage: 115
• Hertz: 60
• Length (in): 25
• Phase: 1
• Max. Door/Window Height (ft.): 8
• Max. Height Insect Block (ft.): 5
• Horsepower (per motor): 1/6
• CFMs: 625
• Depth (in.): 8.875
• Height (in.): 8
• Certifications: ETL Listed
• Amps: 2.4
• Air Curtain Air Velocity: 1800 fpm
• Air Curtain Air Volume: 625 cfm
• Air Curtain Heated: No
• Air Curtain Housing Material: Steel
• Air Curtain Item: Low Profile Air Curtain
• Air Curtain Max Door Width: 2 ft
• Air Curtain dBA @ 10 Feet: 49
• Max Amps: 2.4
• Max Mounting Height: 8 ft
• Max RPM: 1,550 RPM
• Motor Enclosure: Totally Enclosed Air Over
• Motor HP: 1/6 hp
• Motor Type: Permanent Split Capacitor
• Number of Motors: 1
• Number of Speeds: Variable
• Requires: Door Limit Switch
• Standards: ETL
• Width: 25 in
• Model: LPV225-1UA-OB
• Housing Color: Obsidian Black
