Product Description

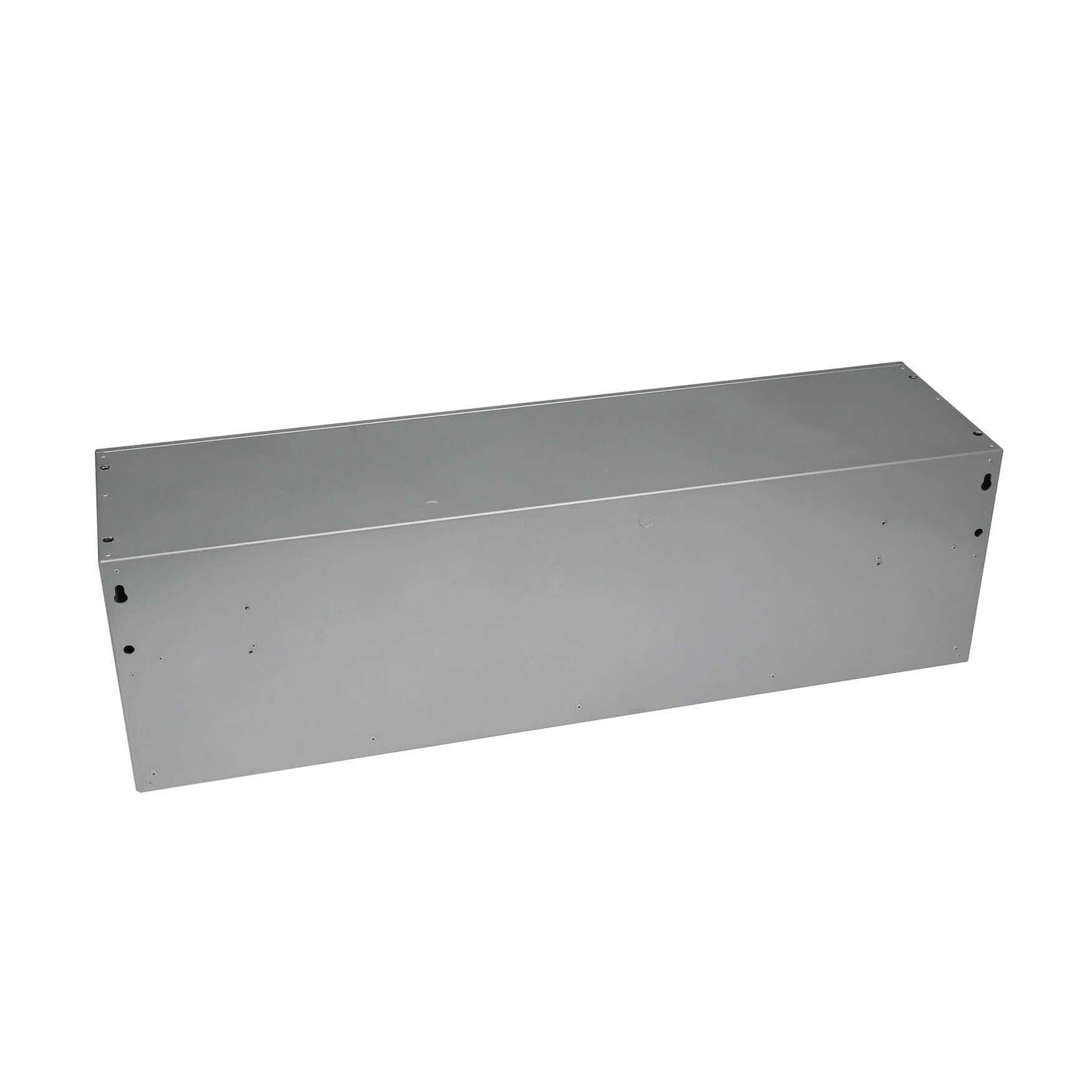

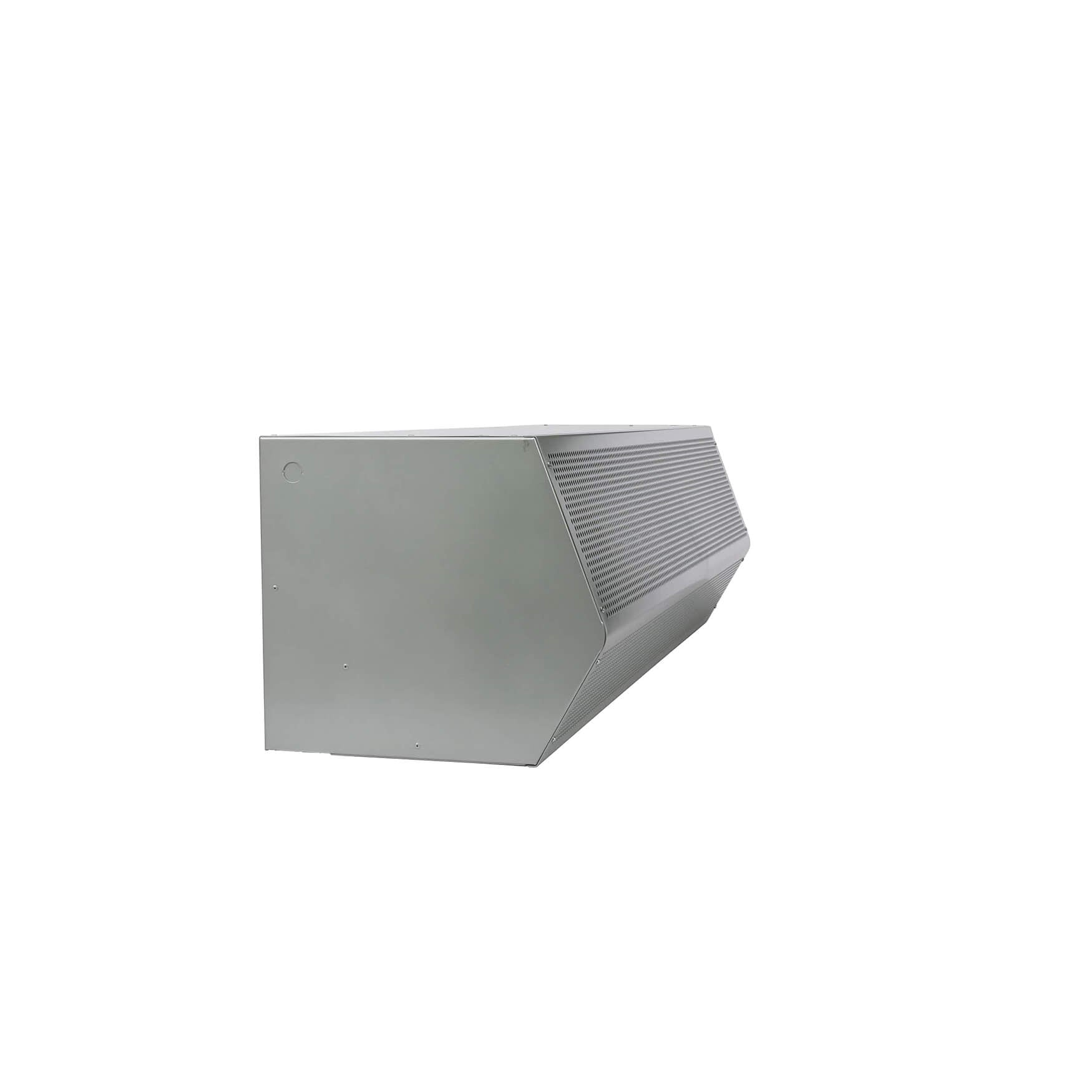

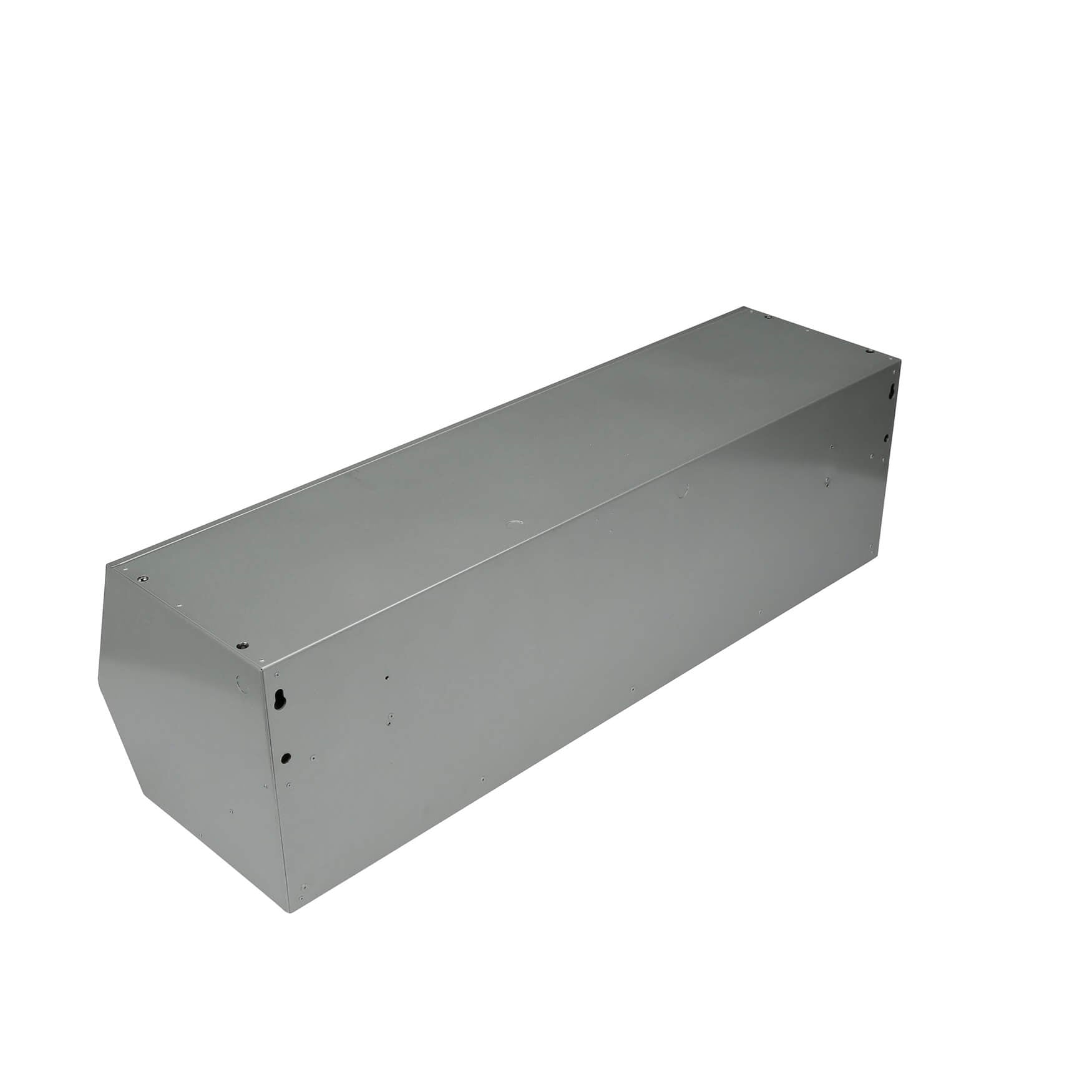

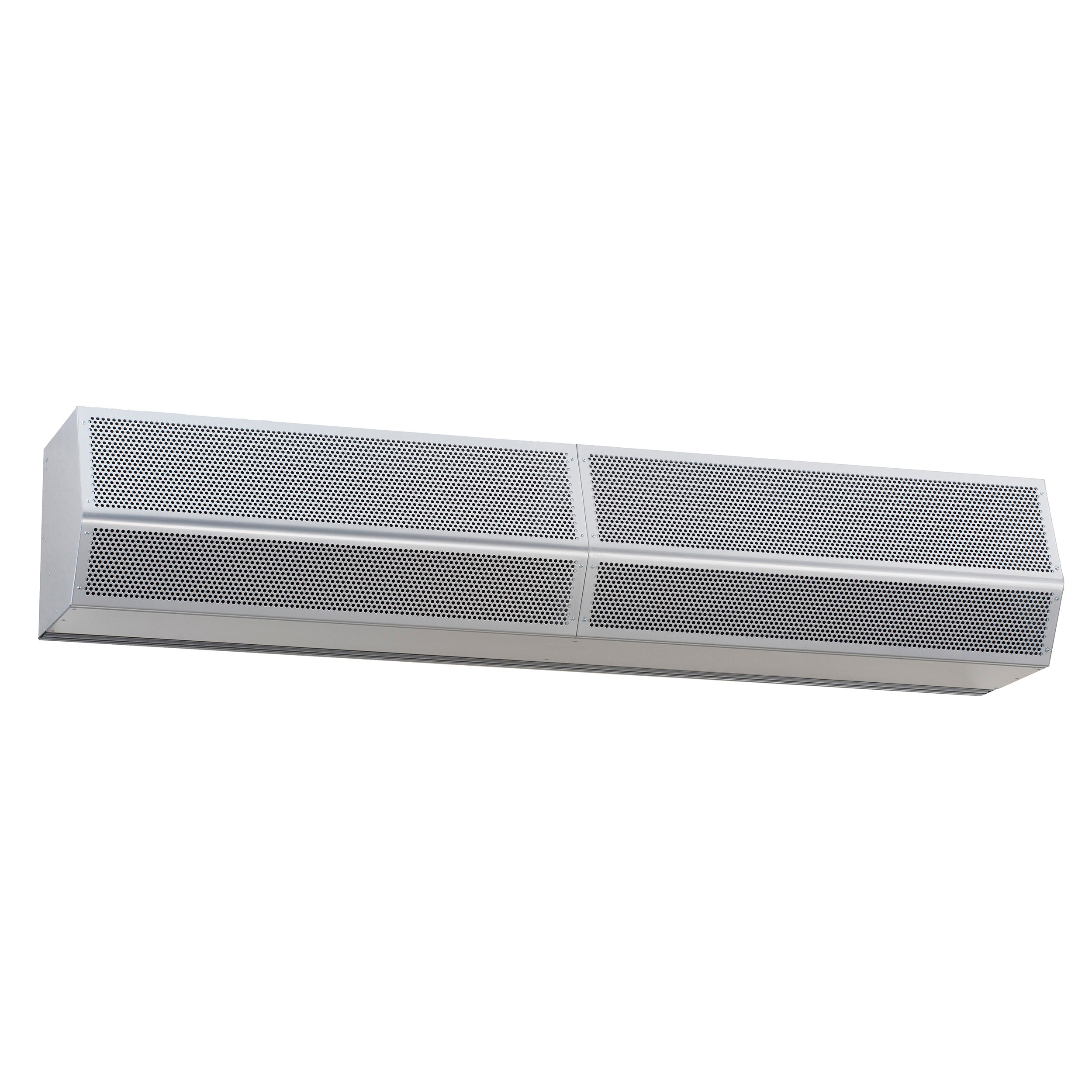

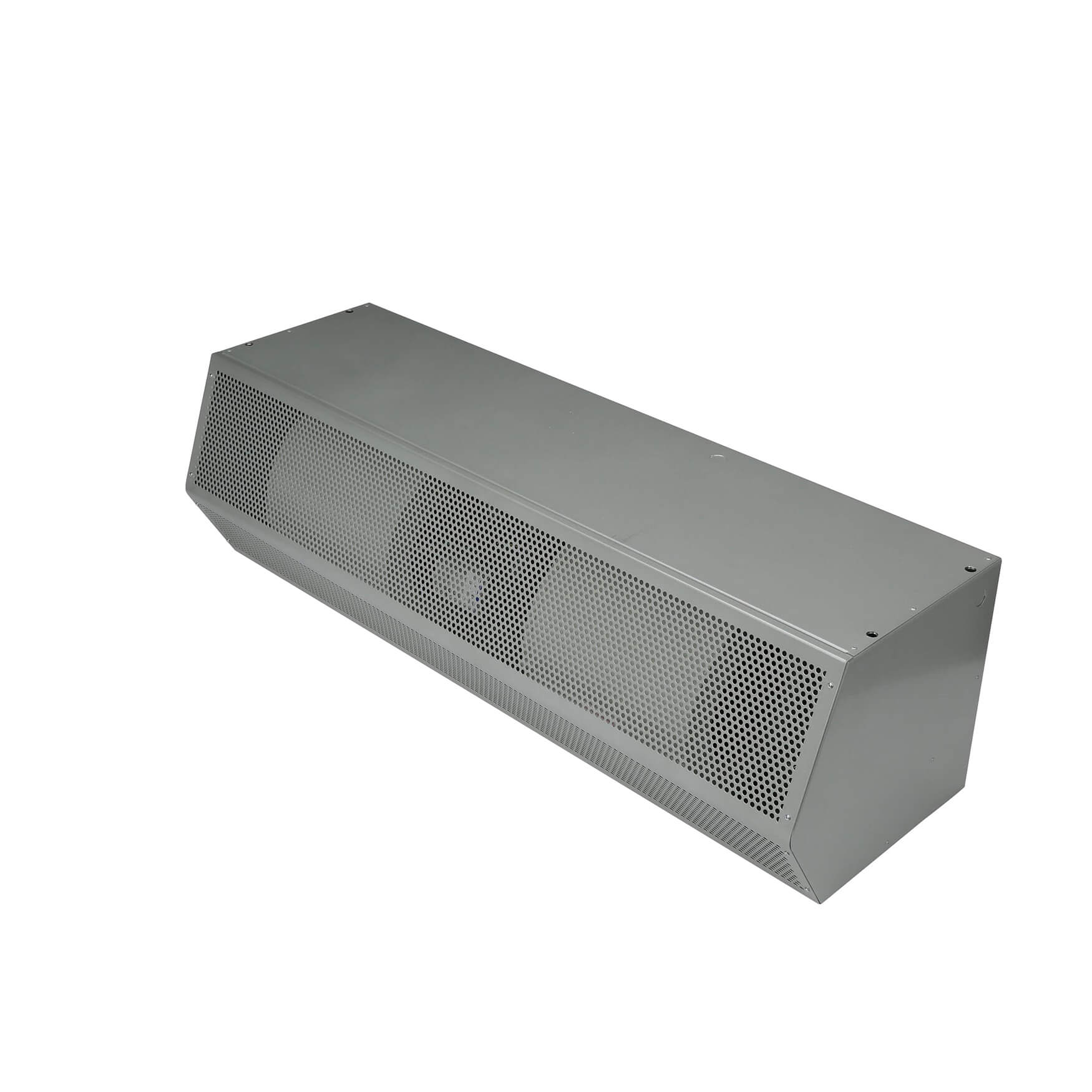

The MARS HV296-2UG-TS air curtain is designed for multipurpose use with a 96-inch width. This unheated steel air curtain is suitable for frame openings up to 8 ft wide. It features a maximum air velocity of 4,000 fpm and a maximum air volume of 4,894 cfm, operating at 208/230V AC, 3-Phase power.
- Suitable for 8 ft frame opening widths
- Maximum air velocity of 4,000 fpm
- Operates on 208/230V AC, 3-Phase power
Product Highlights
This 96-inch air curtain provides effective air separation and environmental control for various applications, featuring a durable steel construction and a standard profile design.
Product Information
Standard Information
-
Brand: MARS
-
Manufacturer Part Number: HV296-2UG-TS
-
Country of Origin: United States
Technical Specifications
-
Hz: 60
-
Item: Air Curtain
-
Depth: 15.63
-
Phase: 3
-
Width: 96 in
-
Finish: Galvanized, Powder Coated
-
Height: 14 in
-
Series: HV2 (High Velocity 2) Series
-
Voltage: 208/230
-
Max. RPM: 1,750 RPM
-
Motor HP: 1 hp
-
Washdown: No
-
Frequency: 60 Hz
-
Max. Amps: 6.6/6.4
-
Standards: ETL
-
Drive Type: Direct Drive
-
Motor Type: 3 Phase
-
Nozzle Width: 96 in
-
Profile Type: Standard Profile
-
Housing Color: Silver
-
Maximum Speed: 1,750 RPM
-
Grille Material: Steel
-
Motor Enclosure: Totally Enclosed Air Over
-
Nominal Voltage: 208/230V AC
-
Air Curtain Item: Air Curtain
-
Air Curtain Type: Ambient Air
-
Number of Motors: 2
-
Number of Speeds: 1
-
Full Load Current: 6.6/6.4 A
-
HEPA Air Cleaning: No
-
Heated/Not Heated: Not Heated
-
Nameplate Voltage: 208/230V AC
-
Power Consumption: 2,720 W
-
Air Curtain Finish: Galvanized
-
Air Curtain Heated: No
-
Maximum Air Volume: 4,894 cfm
-
Sound Level @ 10 ft: 73 dBA
-
Air Temperature Rise: Not Applicable
-
Max. Mounting Height: 12 ft
-
Maximum Air Velocity: 4,000 fpm
-
Sanitation Certified: No
-
Air Curtain Air Volume: 4894 cfm
-
For Frame Opening Width: 8 ft
-
Nameplate Voltage/Phase: 208/230V AC - 3 Ph
-
Nominal Voltage - Phase: 208/230V AC - 3 Phase
-
Air Curtain Air Velocity: 4000 fpm
-
Heater Power Consumption: Not Applicable
-
Ultraviolet Air Cleaning: No
-
Air Curtain dBA @ 10 Feet: 73 dBA
-
Motor Horsepower per Motor: 1 hp
-
Air Curtain Max. Door Width: 8 ft
-
Air Curtain Housing Material: Steel
-
Maximum Operating Temperature: Not Available
-
Minimum Operating Temperature: Not Available
-
Mounting Height for Insect Control: 12 ft
-
Mounting Height for Temperature Control: 14 ft
-
Horse Power: 1
-
Max Volume (CFM): 4894
-
Environmental - Max Height (feet): 14
-
Insect - Max Height (feet): 12
-
Heating Mode: Unheated
-
Unit Width (inches): 96
-
Unit Height (inches): 14
-
Wind Stopping Capability (MPH): 12
-
Motors: 2
-
Voltage Rating: 208-230/3/60
-
Voltage Code: G
-
Amps: 6.6/6.4
-
Uniformity (%): 88
-
dBA: 73
-
Manufacturer: Mars Air Systems
-
Model Number: HV296-2UG-TS
-
Type: un-heated
-
Horse Power Per Motor: 1 hp
-
Max Opening Height Window Door: 14 ft
-
Certifications: cETLus
