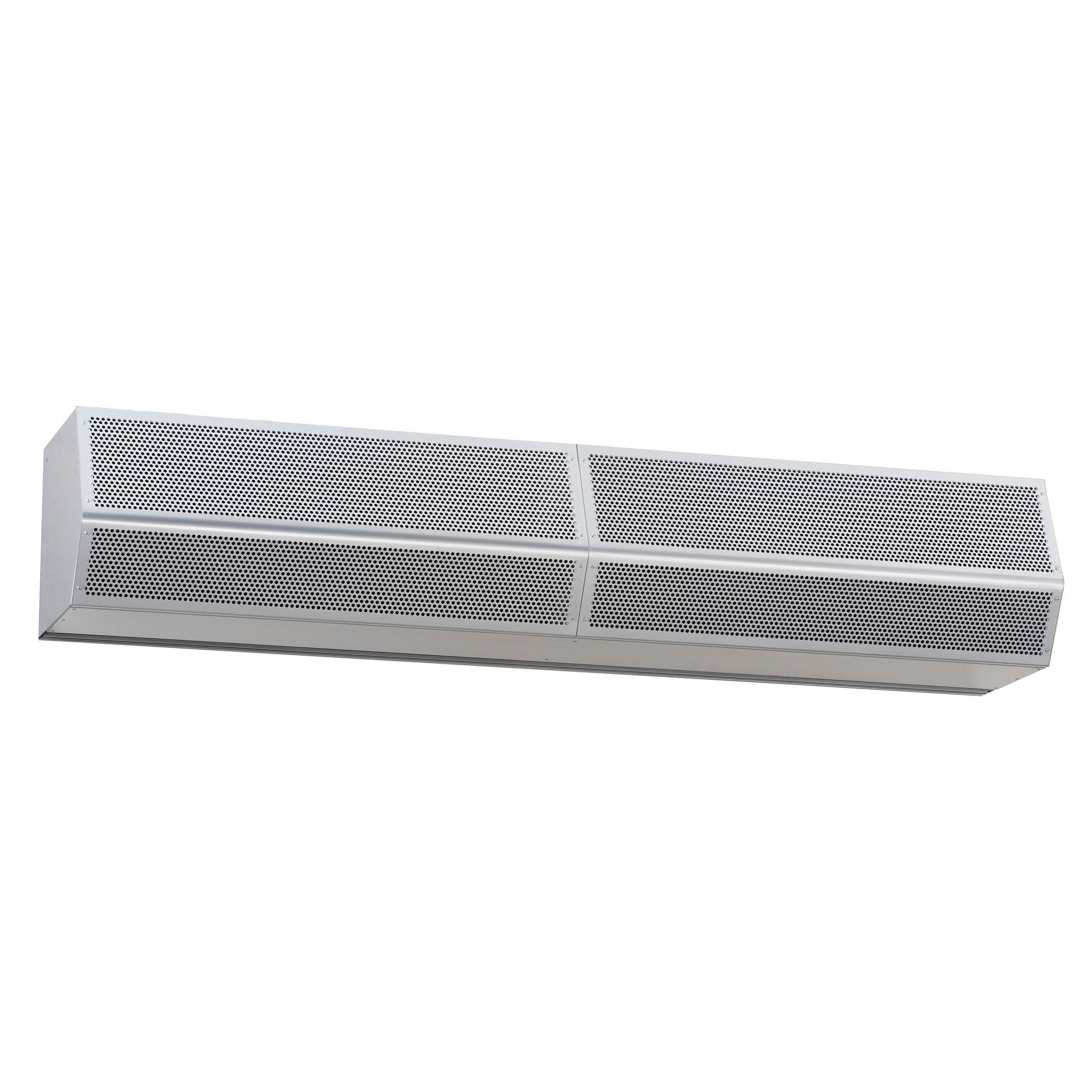

Mars HV296-2UD-TS High Velocity Series 2 Air Curtain 96 inches Unheated

Product Description

The MARS HV296-2UD-TS High Velocity Series 2 air curtain features a 1 horsepower motor strong enough for many industrial applications. It separates environments and protects openings with significant wind loads up to 12 ft. high. Designed for 96" wide doors, this unheated air curtain has a galvanized steel cabinet with a Titanium Silver powder coat finish.

• 1 hp direct-drive motor
• Corrosion Resistant Powder Coated Finish
• Made in USA

Product Highlights

The MARS HV296-2UD-TS air curtain is ideal for industrial applications, maintaining interior temperature and minimizing dust and fumes.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: HV296-2UD-TS
• Country of Origin: USA

Technical Specifications

• Series: High Velocity
• Size: 96"
• Material: Galvanized Steel
• Phase: 1
• Voltage: 208/230V
• Hertz: 60
• Type: Unheated
• FLA 1 Phase-208V/230V: 10.0 / 10.0
• FLA 3 Phase-208V/230V: 6.6 / 6.4
• FLA 3 Phase - 460V: 3.2
• Decibels: 73
• Horse Power: 1
• Max Volume (CFM): 4894
• MPN: HV296-2UD-TS
• Environmental - Max Height (feet): 14
• Insect - Max Height (feet): 12
• Heating Mode: Unheated
• Nozzle Width (inches): 96
• Unit Width (inches): 96
• Unit Height (inches): 14
• Wind Stopping Capability (MPH): 12
• Motors: 2
• Air Flow Certified (AMCA): Yes
• Amps: 10
• Uniformity (%): 88
• Horse Power Per Motor: 1 hp
• Max Opening Height Window Door: 14 ft
• Certifications: cETLus
• Model Number: MRS-HV296-2UD-TS
• Air Volume (CFM): 4894
• Application: Shipping & Receiving Areas
• ETL Listed: Yes
• HP: 1 HP
• Max Environmental Separation Height: 14 Feet
• Max Insect Blocking Height: 12 Feet
• Power: Electric
• Volts: 208/230 Volts
• Wattage: 2,720 Watts
• Frequency (Hertz): 60
