Product Description

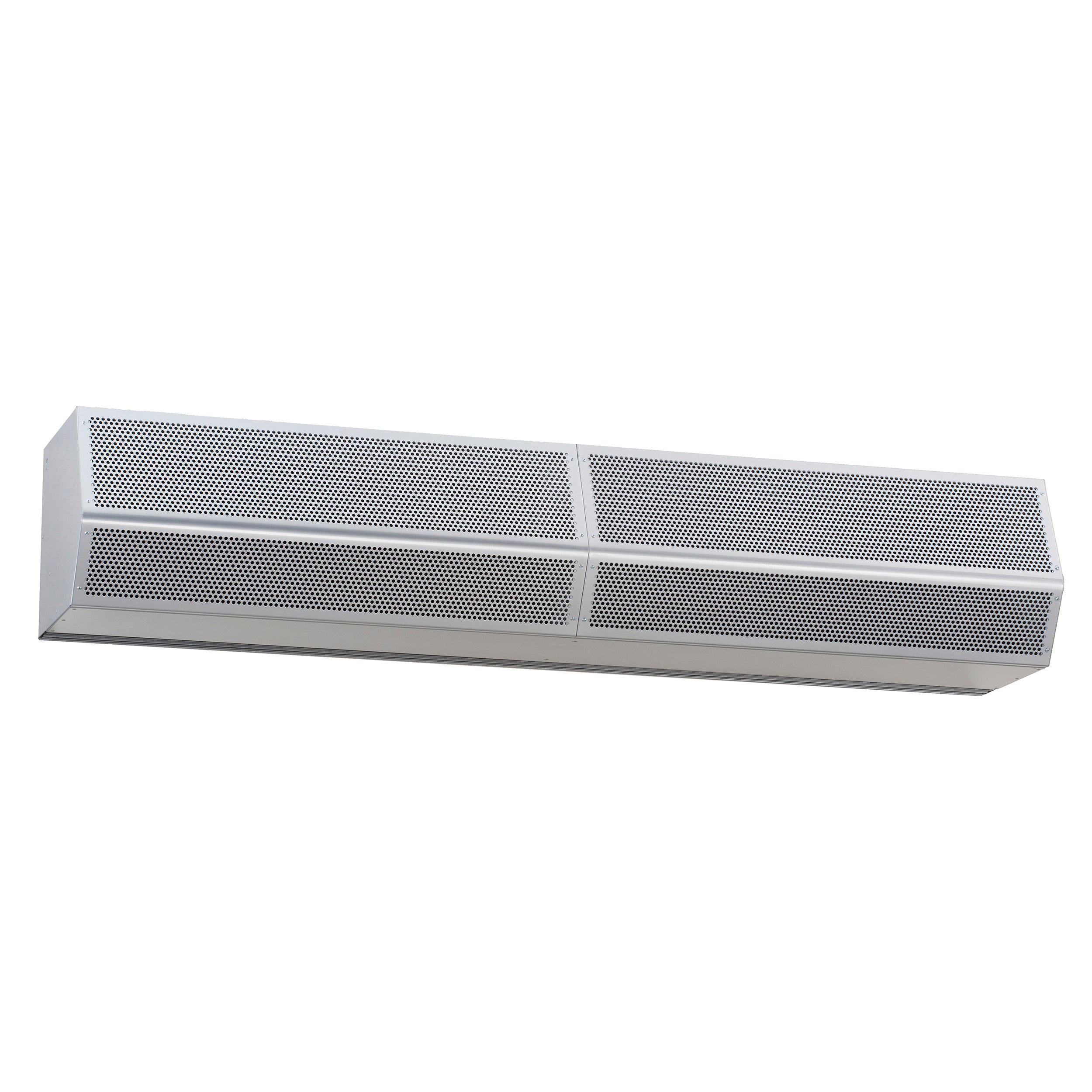

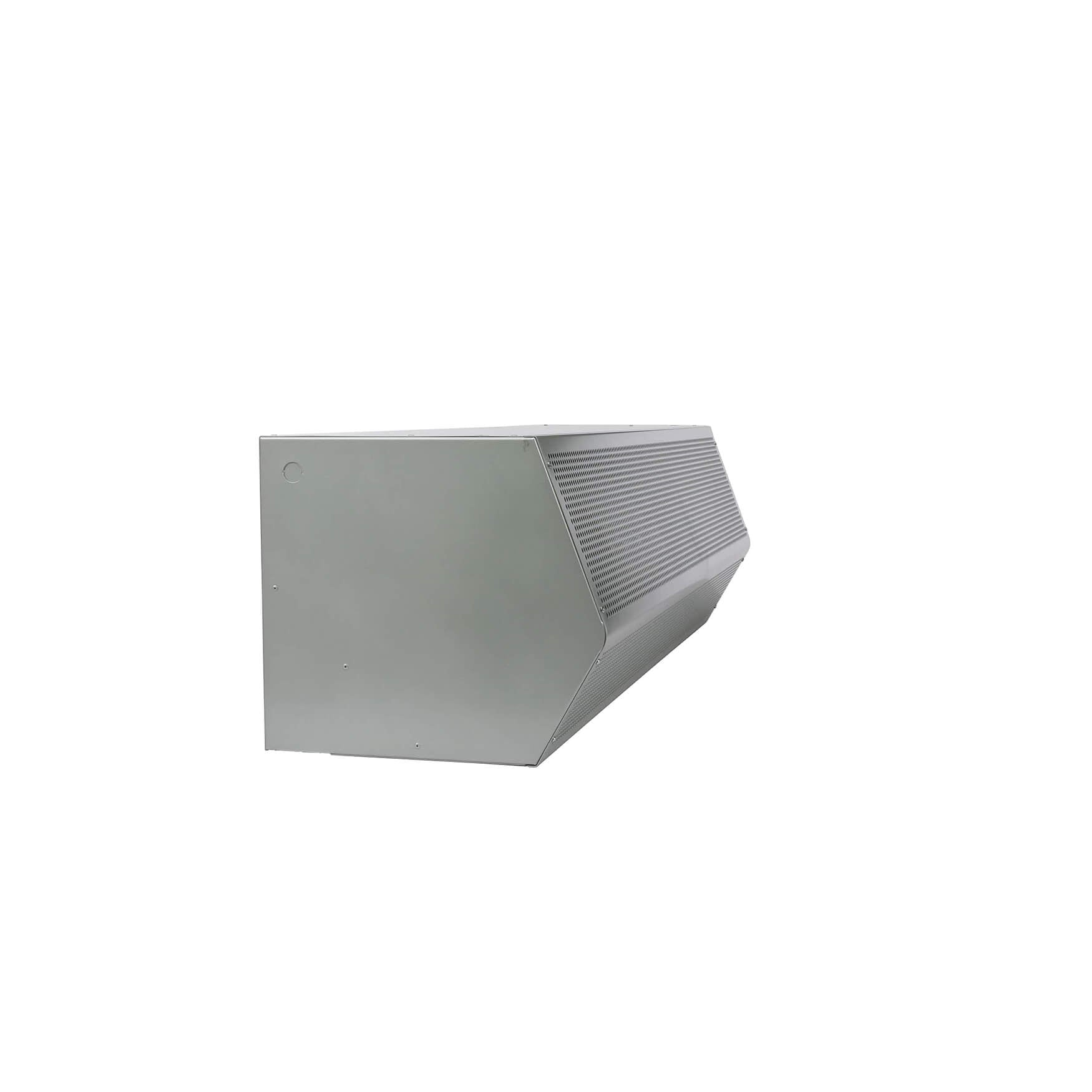

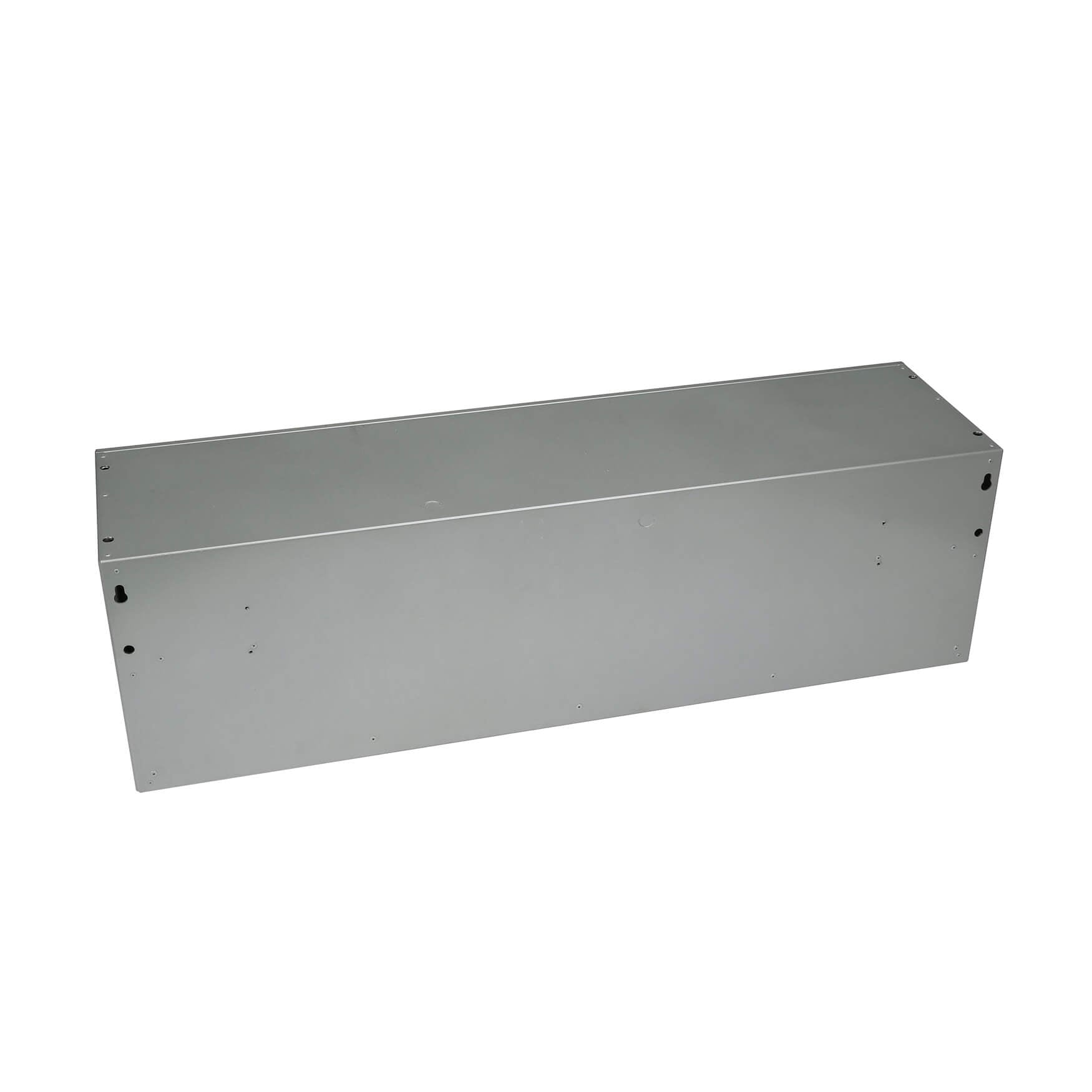

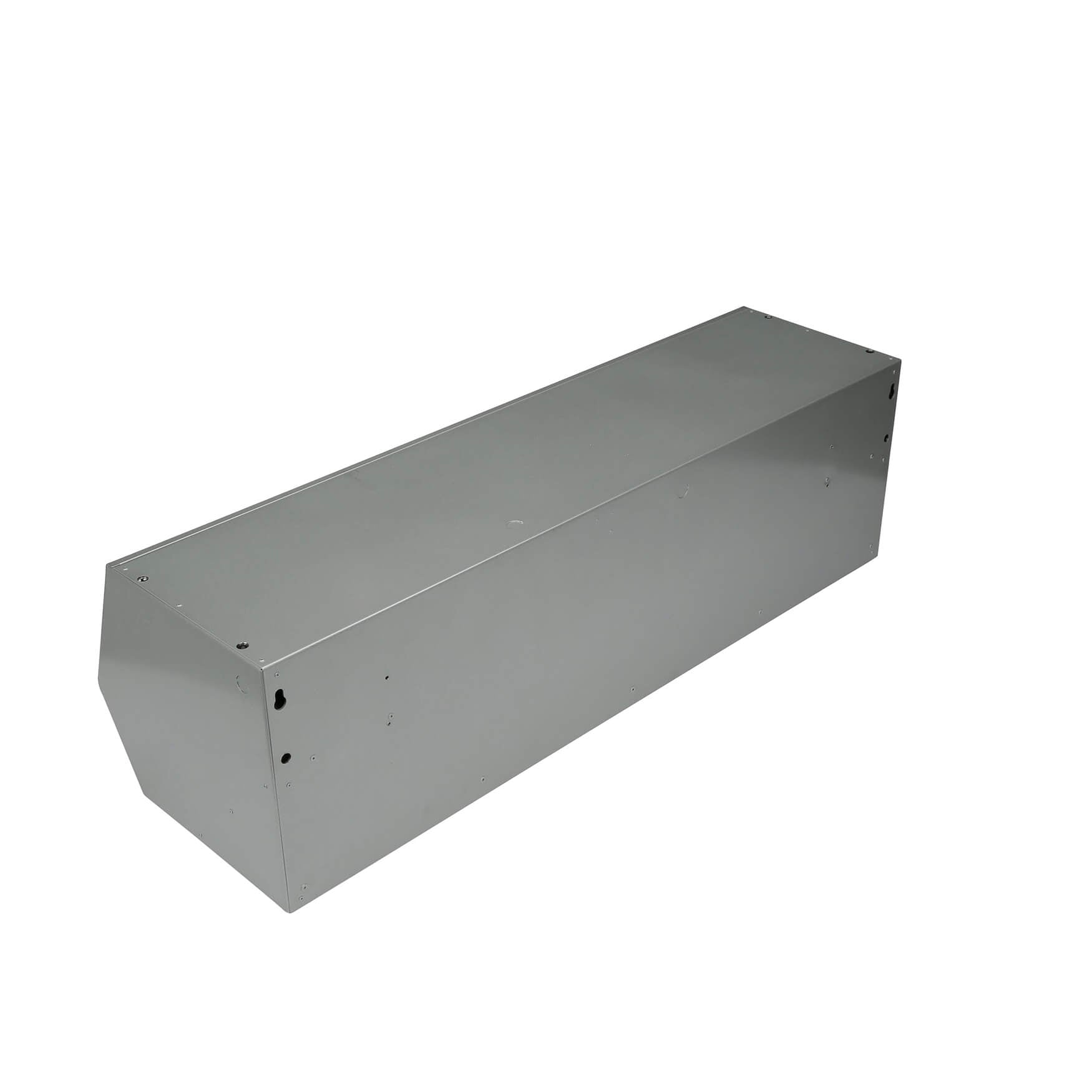

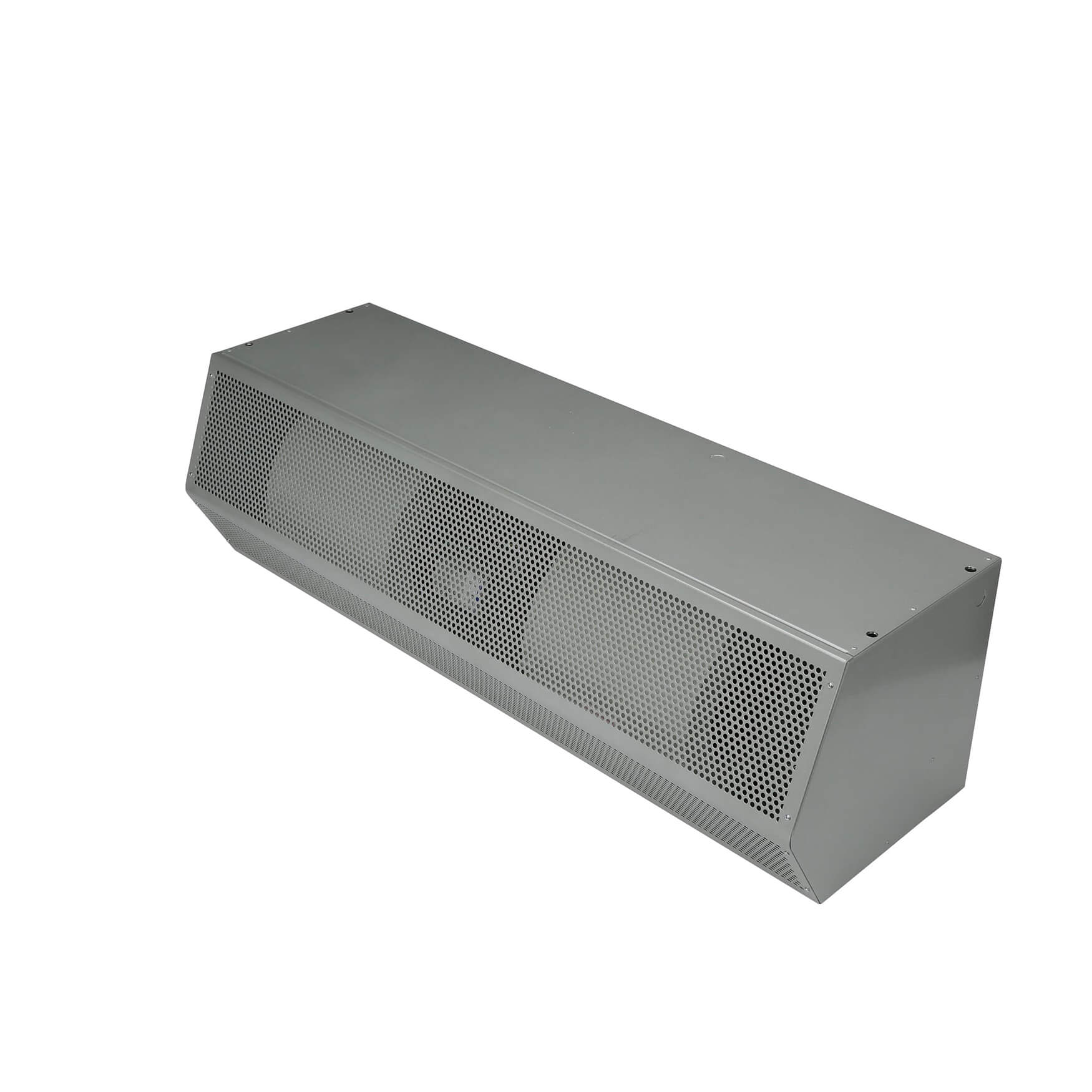

The MARS HV284-2UG-TS air curtain is designed for multipurpose use with an 84-inch width. It is suitable for industrial applications, separating environments and protecting openings with wind loads up to 12 ft high. The air curtain features a galvanized steel cabinet with a Titanium Silver powder coat finish. It requires a motor control panel and door limit switch.
- Features 1 horsepower motor(s)
- Capable of separating environments
- Maximum air volume of 4,644 cfm
- Maximum air velocity of 4,570 fpm
Product Highlights
This unheated air curtain is ideal for insect control up to 12 feet and temperature/environmental separation up to 14 feet.
Product Information
Standard Information
-
Brand: MARS
-
Manufacturer Part Number: HV284-2UG-TS
-
Country of Origin: United States
Technical Specifications
-
Item: Air Curtain
-
Depth: 15 5/8 in
-
Phase: 3-Ph
-
Width: 84 in
-
Finish: Galvanized, Powder Coated
-
Height: 14 in
-
Series: HV2 (High Velocity 2) Series
-
Voltage: 208/230
-
Max. RPM: 1,750 RPM
-
Motor HP: 1 hp
-
Requires: Motor Control Panel And Door Limit Switch
-
Washdown: No
-
Frequency: 60 Hz
-
Max. Amps: 6.6/6.4
-
Standards: ETL
-
Drive Type: Direct Drive
-
Motor Type: 3 Phase
-
Nozzle Width: 84 in
-
Profile Type: Standard Profile
-
Housing Color: Silver
-
Maximum Speed: 1,750 RPM
-
For Outdoor Use: Not Available
-
Grille Material: Steel
-
Motor Enclosure: Totally Enclosed Air Over
-
Nominal Voltage: 208/230V AC
-
Air Curtain Item: Air Curtain
-
Air Curtain Type: Ambient Air
-
Number of Motors: 2
-
Number of Speeds: 1
-
Full Load Current: 6.6/6.4 A
-
HEPA Air Cleaning: No
-
Heated/Not Heated: Not Heated
-
Nameplate Voltage: 208/230V AC
-
Power Consumption: 2,610 W
-
Air Curtain Finish: Galvanized
-
Air Curtain Heated: No
-
Maximum Air Volume: 4,644 cfm
-
Sound Level @ 10 ft: 73 dBA
-
Air Temperature Rise: Not Applicable
-
Max. Mounting Height: 12 ft
-
Maximum Air Velocity: 4,570 fpm
-
Sanitation Certified: No
-
Air Curtain Air Volume: 8000 cfm
-
For Frame Opening Width: 7 ft
-
Nameplate Voltage/Phase: 208/230V AC - 3 Ph
-
Nominal Voltage - Phase: 208/230V AC - 3 Phase
-
Air Curtain Air Velocity: 4570 fpm
-
Heater Power Consumption: Not Applicable
-
Ultraviolet Air Cleaning: No
-
Air Curtain dBA @ 10 Feet: 73
-
Motor Horsepower per Motor: 1 hp
-
Air Curtain Max. Door Width: 7 ft
-
Air Curtain Housing Material: Steel
-
Maximum Operating Temperature: Not Available
-
Minimum Operating Temperature: Not Available
-
Mounting Height for Insect Control: 12 ft
-
Country of Origin (subject to change): United States
-
Max. Mounting Height Environment/Insect: 14 ft / 12 ft
-
Mounting Height for Temperature Control: 14 ft
-
Environmental - Max Height (feet): 14
-
Insect - Max Height (feet): 12
-
Heating Mode: Unheated
-
Nozzle Width (inches): 84
-
Unit Width (inches): 84
-
Unit Height (inches): 14
-
Wind Stopping Capability (MPH): 12
-
Horsepower: 1
-
Motors: 2
-
Voltage Rating: 208-230/3/60
-
Voltage Code: G
-
Amps: 6.6/6.4
-
Uniformity (%): 93
-
dBA: 73
-
Model Number: HV284-2UG-TS
-
Type: un-heated
-
Horse Power Per Motor: 1 hp
-
Certifications: cETLus
-
Max. Door/Window Height (ft.): 14
-
Max. Height Insect Block (ft.): 12
-
Heat: No
-
Depth (in.): 15.625
-
Height (in.): 14
-
Length (in.): 84
-
Product Type: Unheated
-
OEM: MARS
-
OEM #: HV284-2UG-TS
-
Hertz: 60
-
Manufacturer: Mars Air Systems
-
Width (side - side): 84" - 95"
