Mars HV284-2UD-TS High Velocity (HV2) Unheated Air Curtain - 84 inches - 208/230 Volt - Single-Phase

Product Description

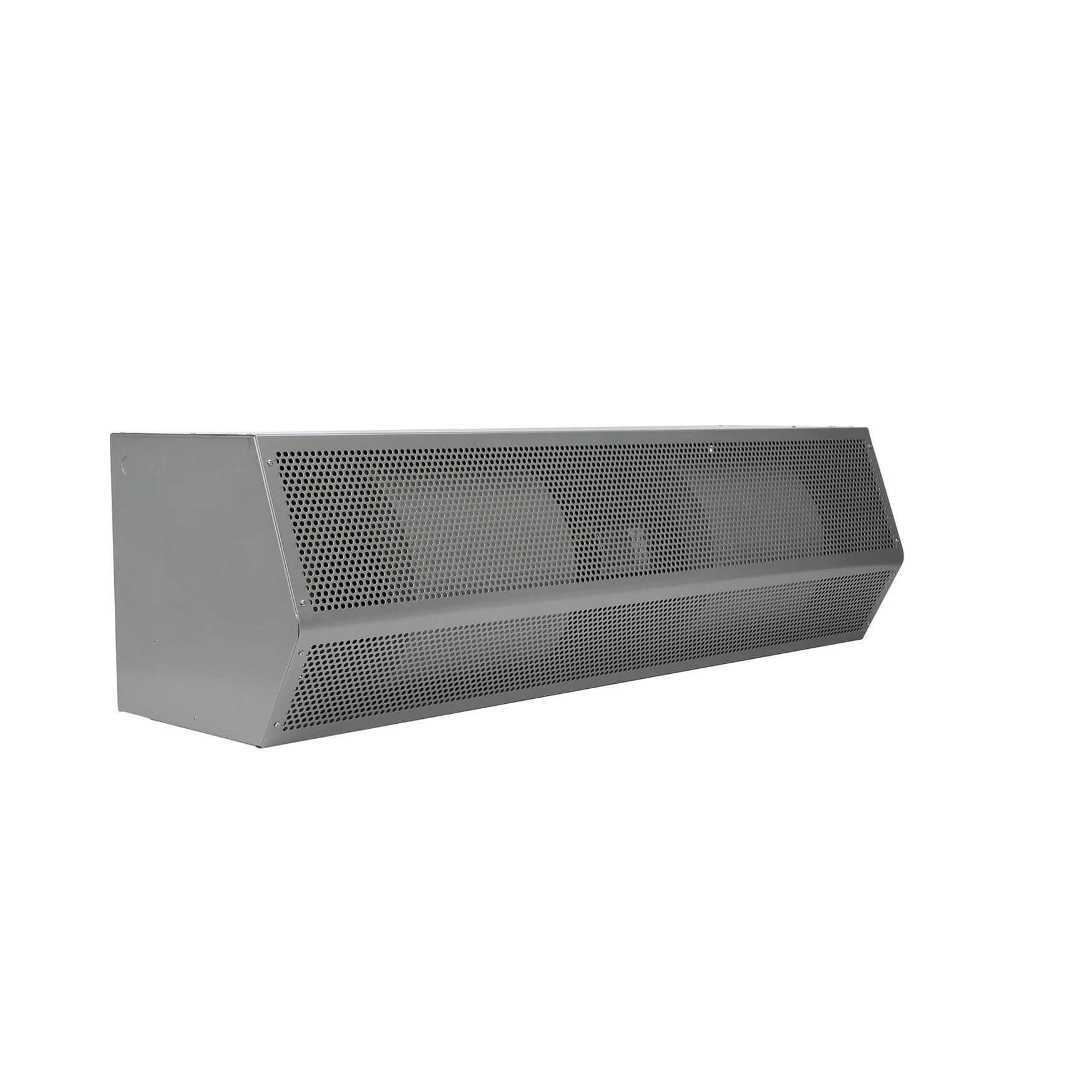

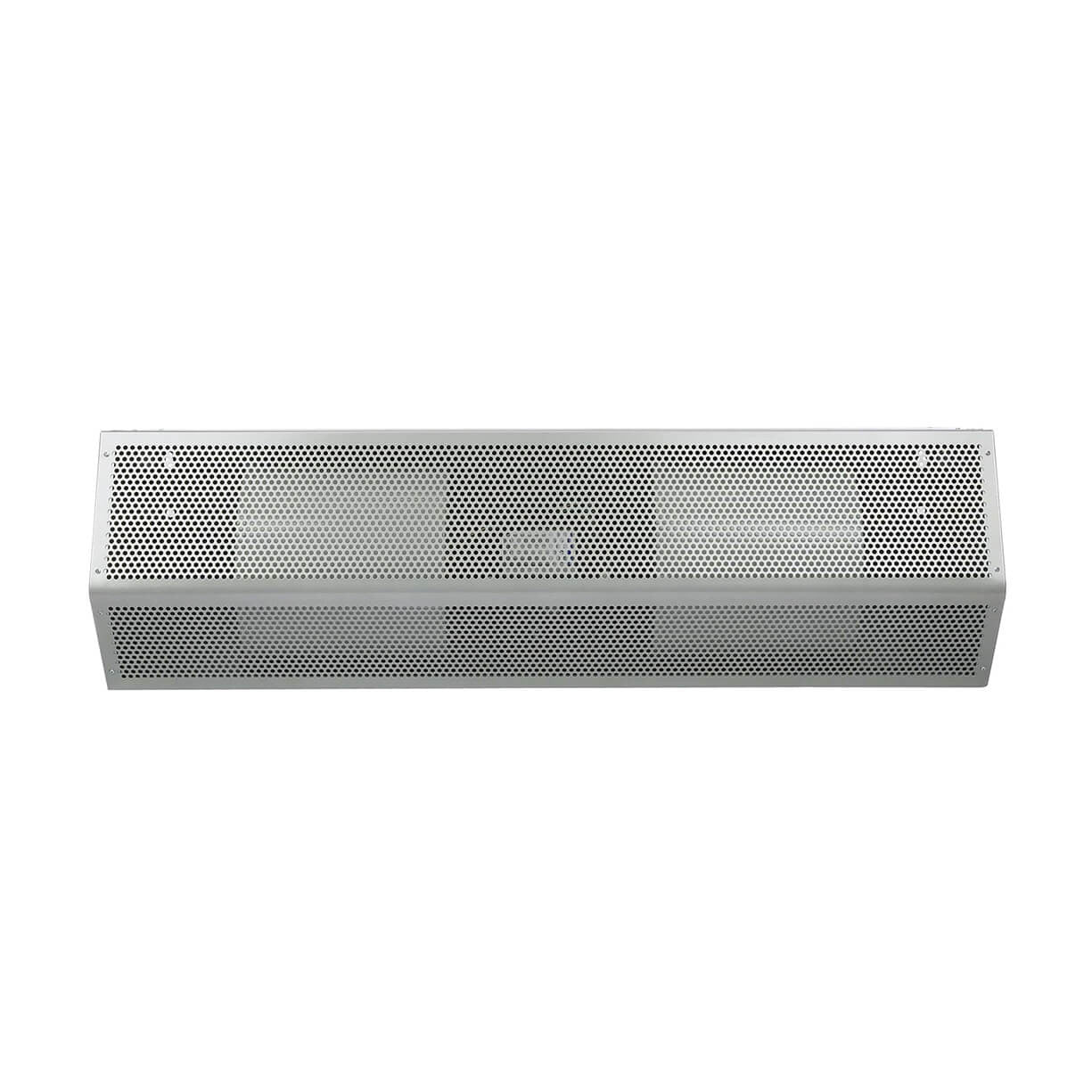

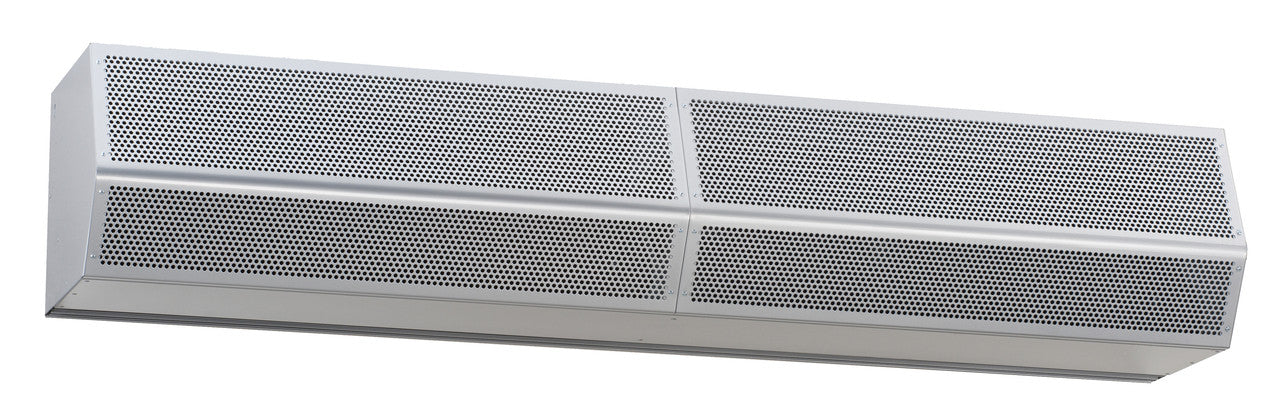

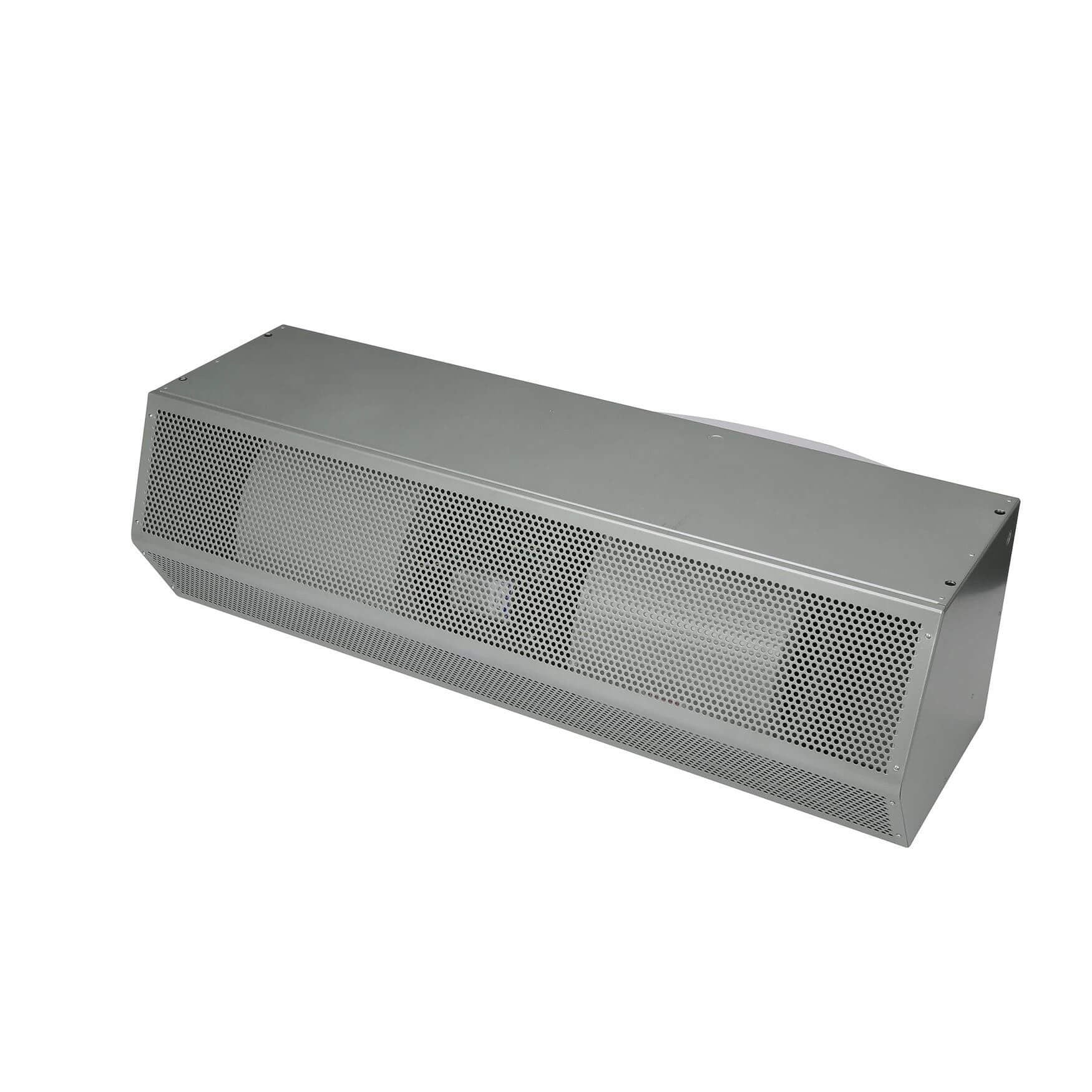

The Mars Air Systems HV284-2UD-TS High Velocity Unheated Air Curtain is designed for efficient environmental separation. This model operates on 208-230 volt power and features two one horsepower motors, providing effective air flow for areas up to 14 feet high. The air curtain is made from durable materials and has a Titanium Silver finish for protection against corrosion. It is suitable for various commercial applications including shipping/receiving doors and cold storage areas.

• Powerful performance with two 1 HP motors.
• Effective for doors up to 84 inches wide.
• Easy installation with various control panel options.

Product Highlights

This unit is designed to help maintain indoor climate by creating a barrier against insects and outside air.

Product Information

Standard Information

• Brand: Mars
• Voltage: 208/230V

Technical Specifications

• Model: HV284-2UD-TS
• Length: 84 inches
• Motor/HP: 2 Motors; 1 HP each
• Full Load Amps: 10 amps
• Sound Level: 73 dBA
• Max Volume: 4644 CFMs
• Uniformity: 93%
• Power Rating: 2610 watts
• Weight: 235 lbs
