Product Description

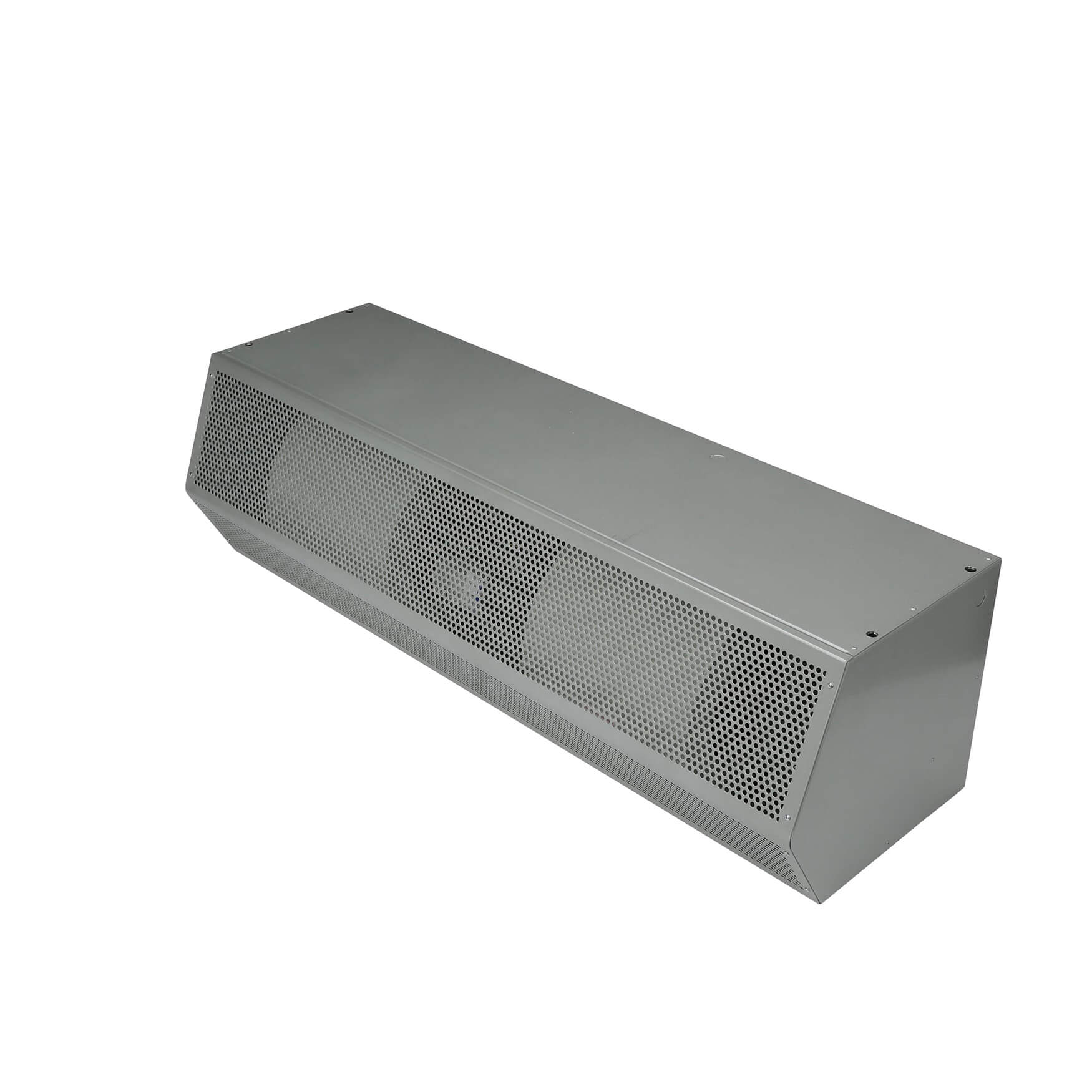

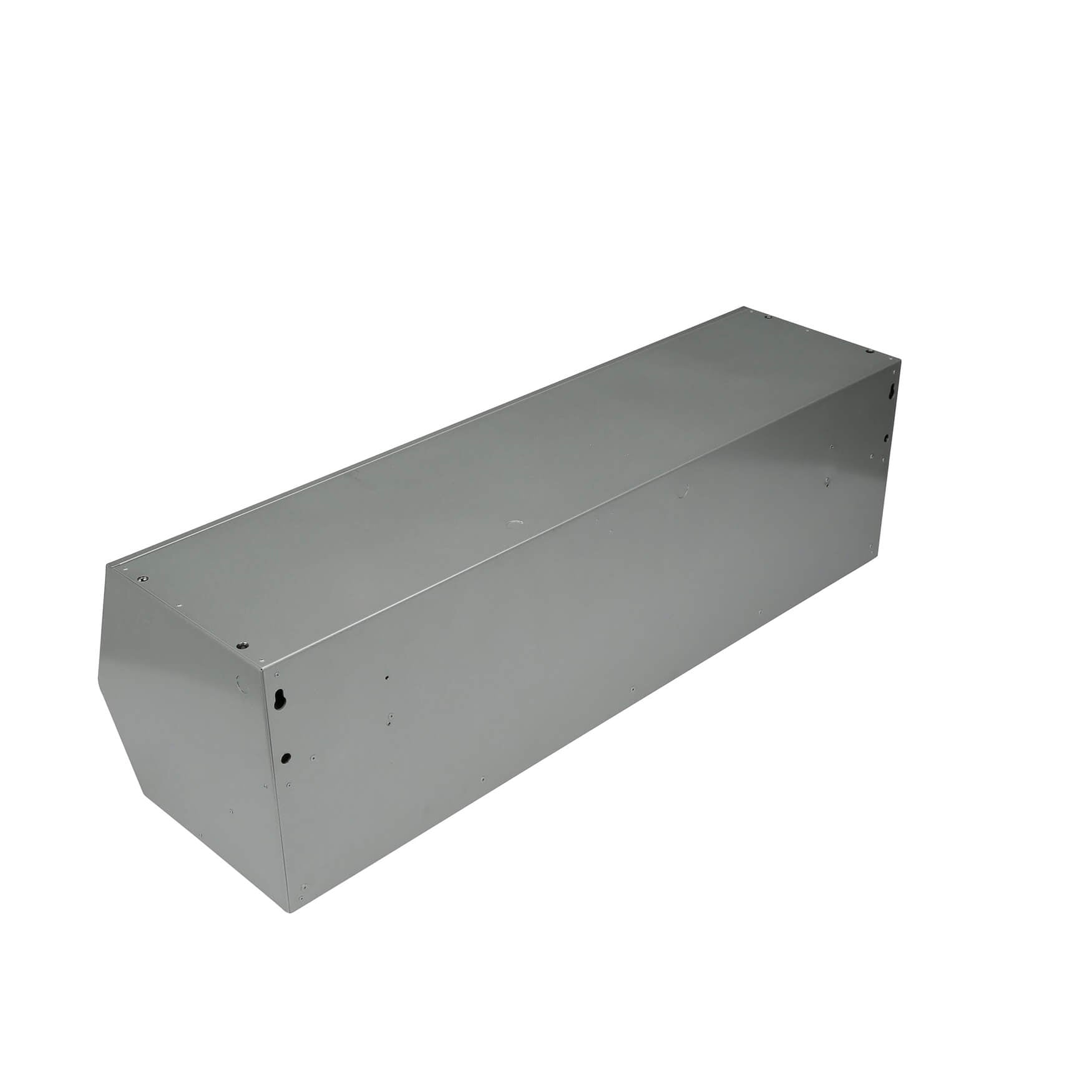

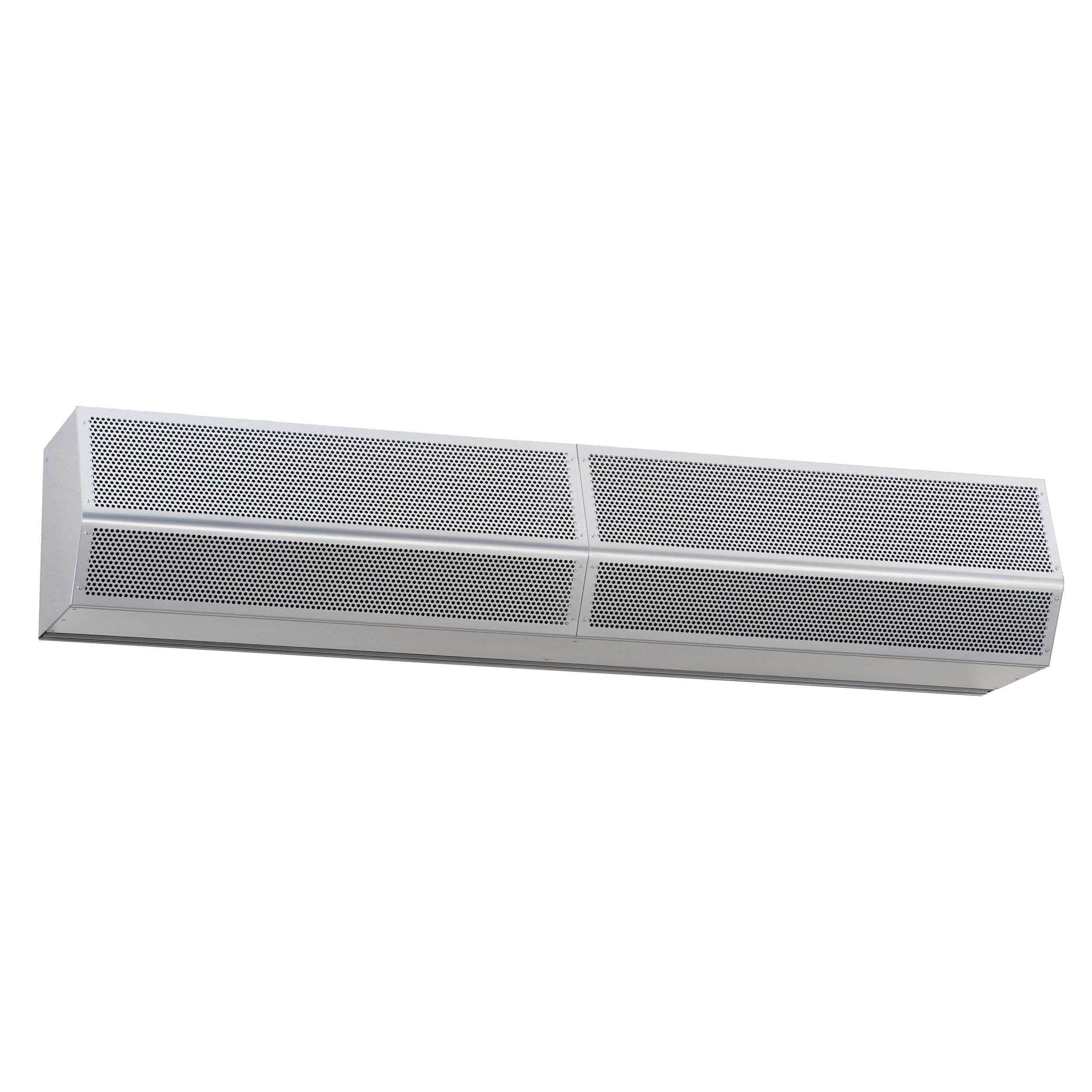

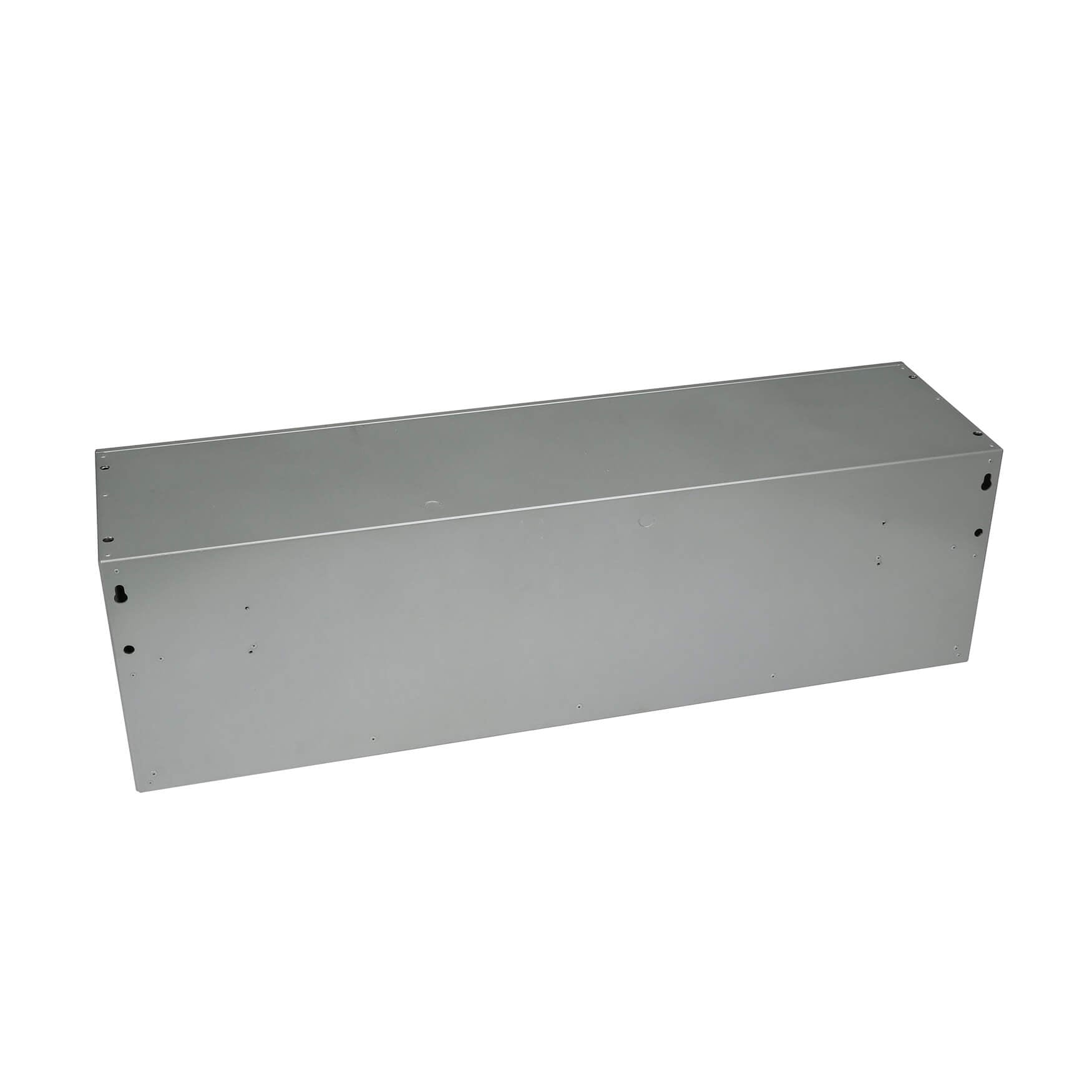

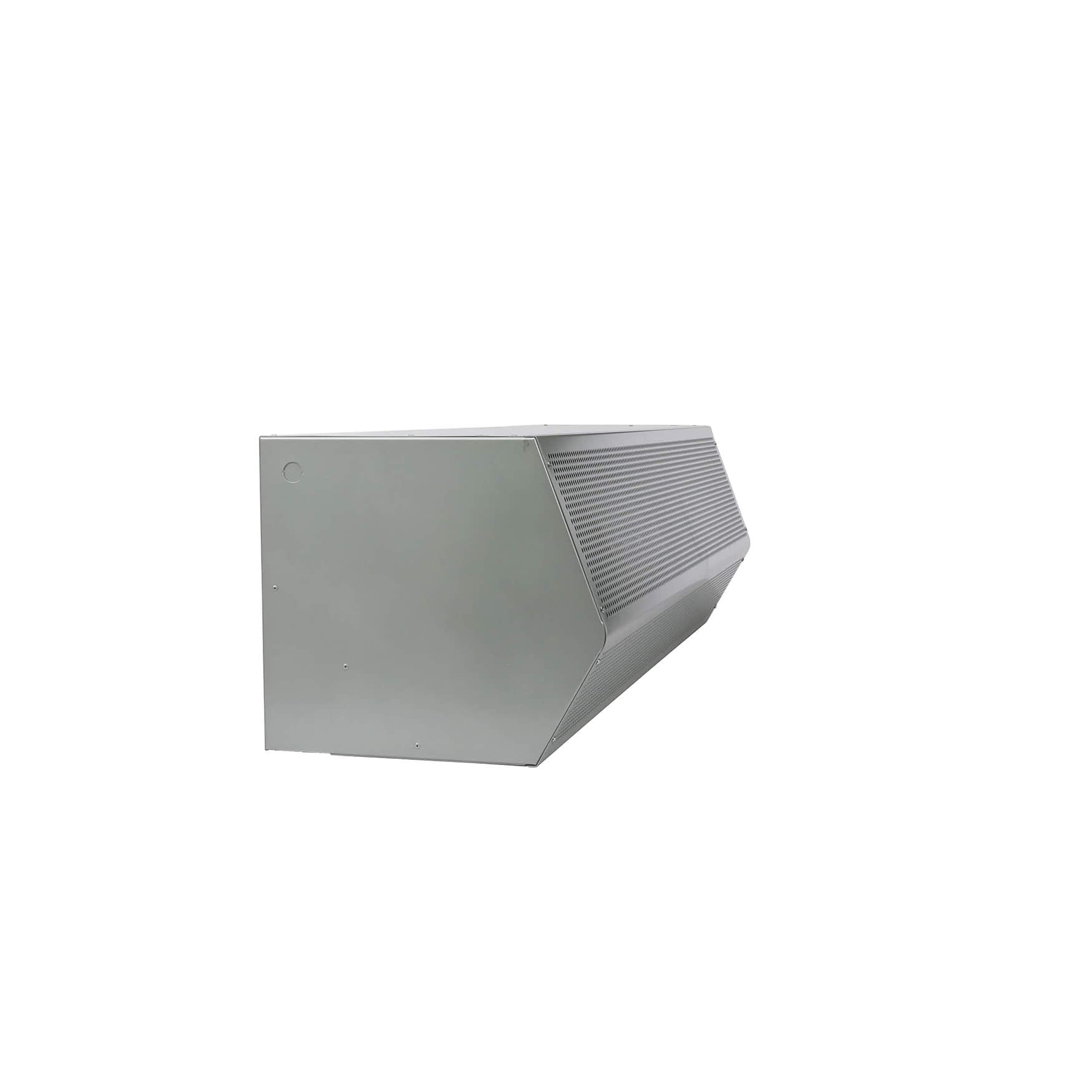

The MARS HV272-2UH-TS Series 2 unheated high-velocity air curtain reduces energy costs and consumption by creating effective environmental separation. It maintains interior building temperature and minimizes dirt, dust, and fumes. Designed for a 72" wide door, it features durable metal construction with a corrosion-resistant powder-coated finish.
- Reduces energy costs and consumption
- Creates effective environmental separation
- Maintains interior building temperature
- Minimizes dirt, dust, and fumes
- Prevents flying insects from intruding
- Offers and unobstructed view, enhancing safety
- Durable metal construction
- Corrosion resistant powder coated finish
- Easy to install
- Low maintenance
Product Highlights
This unheated air curtain is easy to install and maintain, providing an unobstructed view while enhancing safety. Ideal for industrial applications.
Product Information
Standard Information
-
Brand: MARS
-
Manufacturer Part Number: HV272-2UH-TS
-
Country of Origin: United States
Technical Specifications
-
CFM: 8000 CFM
-
Type: un-heated
-
Brand: Mars
-
Phase: 3
-
Series: HV2 (High Velocity 2) Series
-
Voltage: 460 V
-
Decibels: 73
-
Material: Galvanized Steel
-
Horsepower: 1 HP
-
Heating Option: Unheated
-
Door Width: 72 in
-
3 Phase 460V FLA: 3.2 A
-
Door Height: 12 ft
-
Max Door Height: 12 ft
-
Manufacturers Part Number: HV272-2UH-TS
-
Hz: 60
-
Item: Air Curtain
-
Width: 72 in
-
Finish: Galvanized, Powder Coated
-
Max. RPM: 1,750 RPM
-
Motor HP: 1 hp
-
Requires: Motor Control Panel And Door Limit Switch
-
Washdown: No
-
Frequency: 60 Hz
-
Max. Amps: 3.2
-
Standards: ETL
-
Drive Type: Direct Drive
-
Motor Type: 3 Phase
-
Nozzle Width: 72 in
-
Profile Type: Standard Profile
-
Housing Color: Silver
-
Maximum Speed: 1,750 RPM
-
For Outdoor Use: Not Available
-
Grille Material: Steel
-
Motor Enclosure: Totally Enclosed Air Over
-
Nominal Voltage: 480V AC
-
Air Curtain Item: Air Curtain
-
Air Curtain Type: Ambient Air
-
Number of Motors: 2
-
Number of Speeds: 1
-
Heated/Not Heated: Not Heated
-
Nameplate Voltage: 460V AC
-
Power Consumption: 2,490 W
-
Air Curtain Finish: Galvanized
-
Air Curtain Heated: No
-
Maximum Air Volume: 4,118 cfm
-
Sound Level @ 10 ft: 73 dBA
-
Air Temperature Rise: Not Applicable
-
Max. Mounting Height: 12 ft
-
Maximum Air Velocity: 5,140 fpm
-
Sanitation Certified: No
-
Air Curtain Air Volume: 3584 cfm
-
For Frame Opening Width: 6 ft
-
Nameplate Voltage/Phase: 460V AC - 3 Ph
-
Nominal Voltage - Phase: 480V AC - 3 Phase
-
Air Curtain Air Velocity: 5140 fpm
-
Heater Power Consumption: Not Applicable
-
Ultraviolet Air Cleaning: No
-
Air Curtain dBA @ 10 Feet: 73
-
Motor Horsepower per Motor: 1 hp
-
Air Curtain Max. Door Width: 6 ft
-
Air Curtain Housing Material: Steel
-
Maximum Operating Temperature: Not Available
-
Minimum Operating Temperature: Not Available
-
Mounting Height for Insect Control: 12 ft
-
Country of Origin (subject to change): United States
-
Max. Mounting Height Environment/Insect: 14 ft / 12 ft
-
Mounting Height for Temperature Control: 14 ft
-
Size: 72"
-
Horse Power Per Motor: 1 hp
-
Max Volume (CFM): 3584
-
Environmental - Max Height (feet): 14
-
Insect - Max Height (feet): 12
-
Heating Mode: Unheated
-
Nozzle Width (inches): 72
-
Unit Width (inches): 72
-
Unit Height (inches): 14
-
Wind Stopping Capability (MPH): 12
-
Motors: 2
-
ETL sanitation certified to ANSI/NSF 37 standards: No
-
Air Flow Certified (AMCA): Yes
-
Voltage Rating: 460/3/60
-
Voltage Code: H
-
Amps: 3.2
-
Uniformity (%): 90
-
Manufacturer: Mars Air Systems
-
3-Ph: 3-Ph
-
Model Number: HV272-2UH-TS
-
Weight: 150 lbs
-
Max Opening Height Window Door: 14 ft
-
Certifications: cETLus
