Product Description

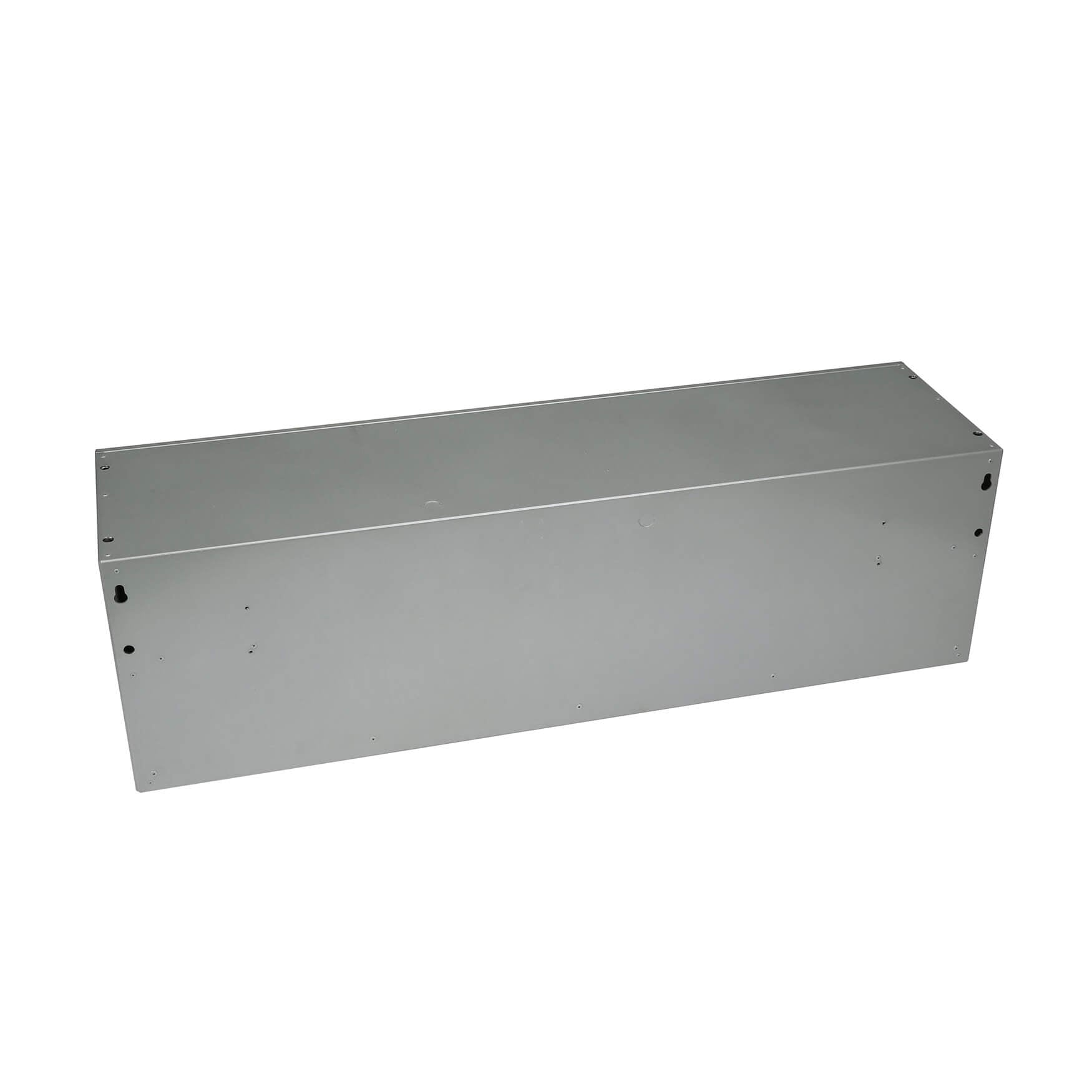

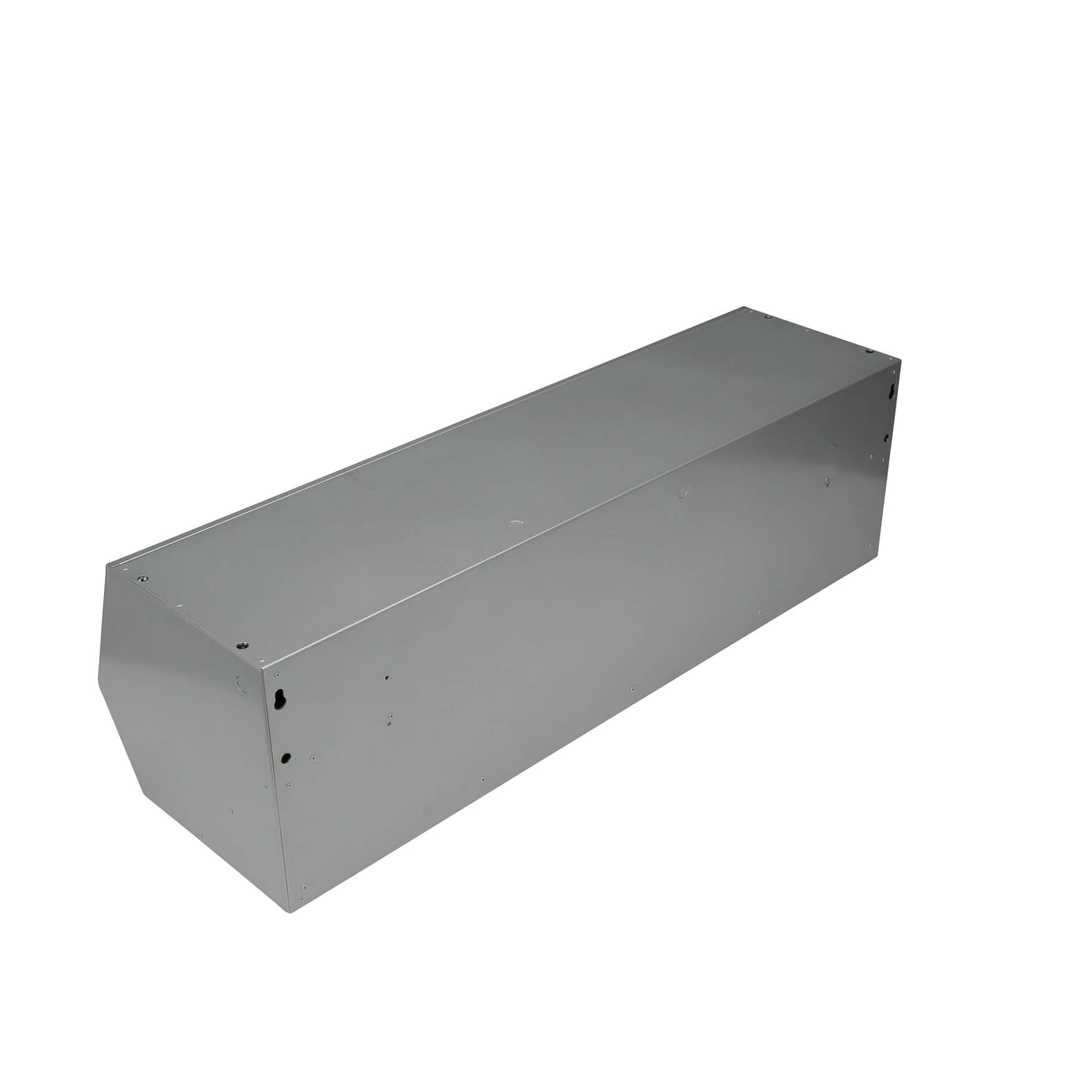

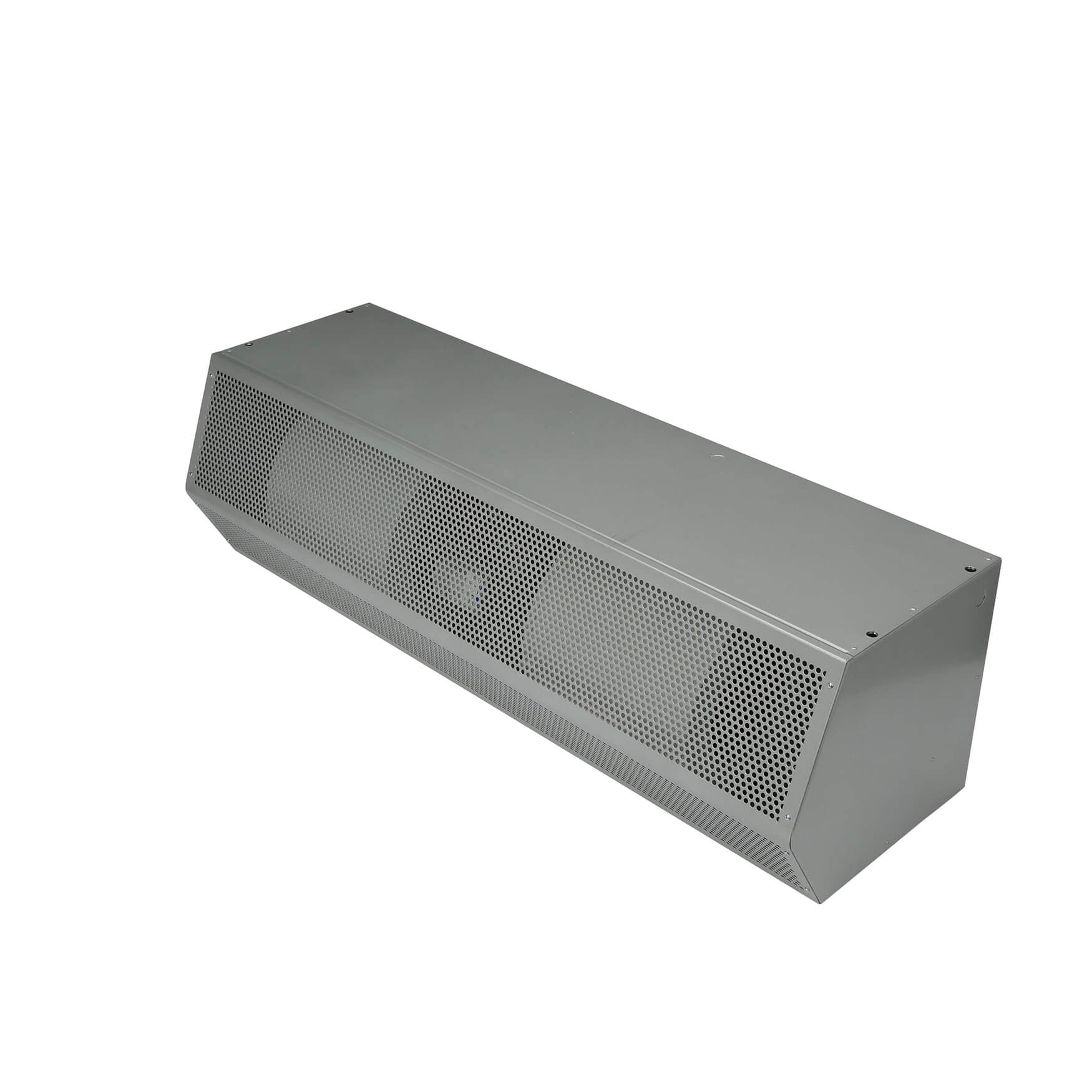

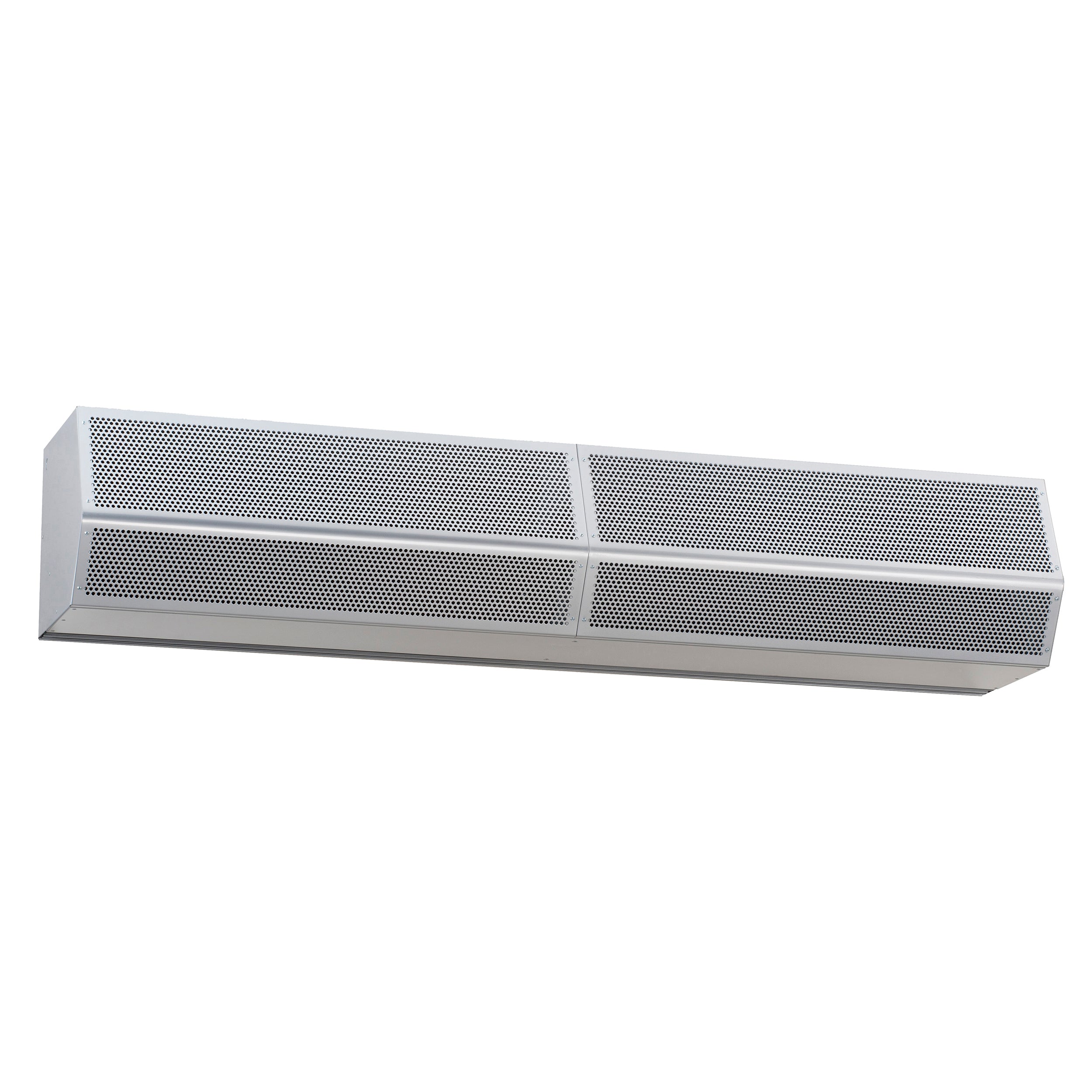

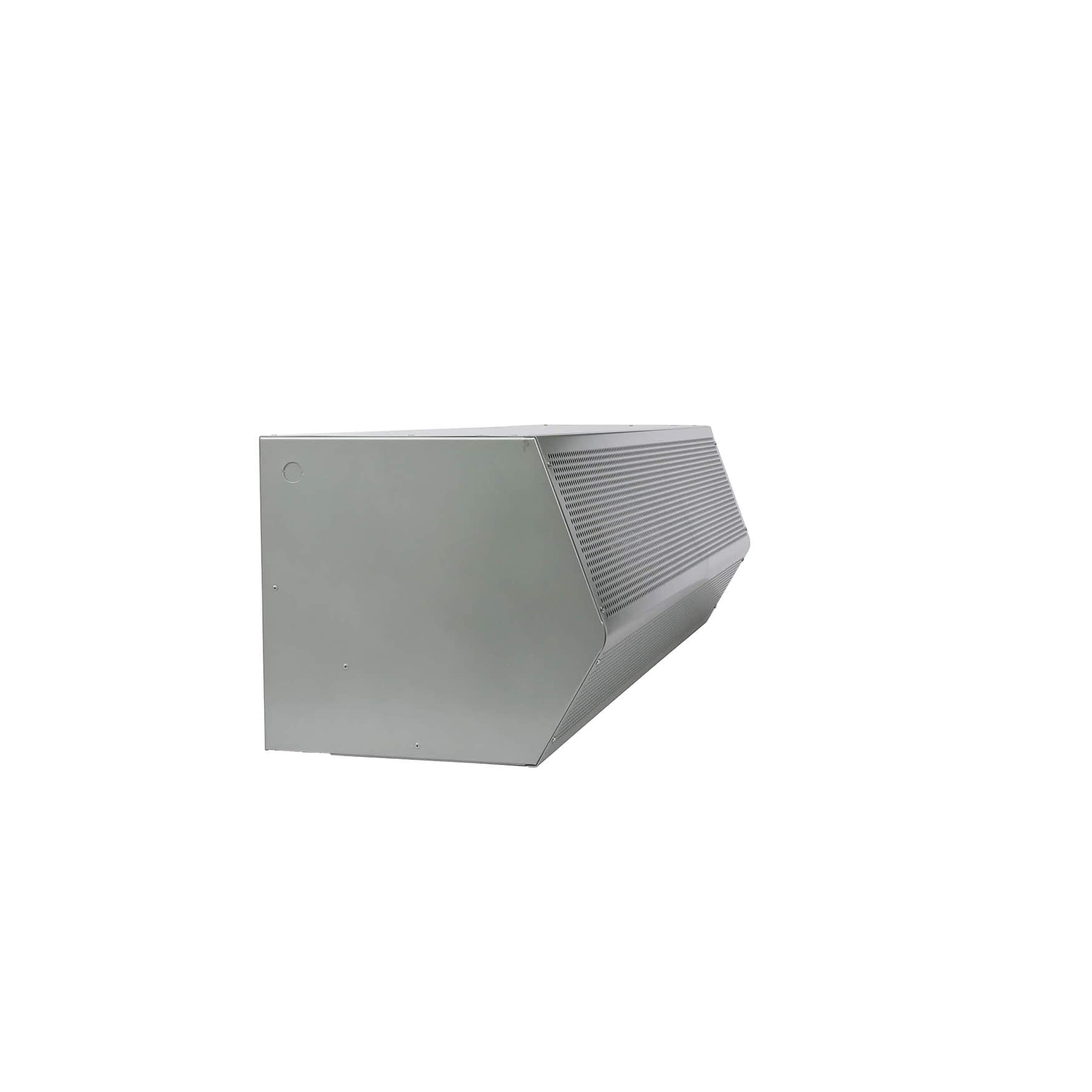

The MARS HV272-2UG-TS air curtain is designed for multipurpose use with a 72-inch width. This unheated steel air curtain is suitable for frame openings up to 6 ft wide and provides temperature control up to a 14 ft mounting height. It features a maximum air velocity of 5,140 fpm and an air volume of 4,118 cfm.
- Suitable for 6 ft frame opening widths
- Provides temperature control up to 14 ft mounting height
- Maximum air velocity of 5,140 fpm
Product Highlights
Ideal for maintaining temperature and controlling insects in various environments.
Product Information
Standard Information
-
Brand: MARS
-
Manufacturer Part Number: HV272-2UG-TS
-
Country of Origin: United States
Technical Specifications
-
Hz: 60
-
Item: Air Curtain
-
Depth: 15 5/8 in
-
Phase: 3
-
Width: 72 in
-
Finish: Galvanized, Powder Coated
-
Height: 14 in
-
Series: HV2
-
Voltage: 208/230
-
Max. RPM: 1,750 RPM
-
Motor HP: 1 hp
-
Requires: Motor Control Panel And Door Limit Switch
-
Washdown: No
-
Frequency: 60 Hz
-
Max. Amps: 6.6/6.4
-
Standards: ETL
-
Drive Type: Direct Drive
-
Motor Type: 3 Phase
-
Nozzle Width: 72 in
-
Profile Type: Standard Profile
-
Housing Color: Silver
-
Maximum Speed: 1,750 RPM
-
Motor Enclosure: Totally Enclosed Air Over
-
Nominal Voltage: 208/230V AC
-
Air Curtain Item: Air Curtain
-
Air Curtain Type: Ambient Air
-
Number of Motors: 2
-
Full Load Current: 6.6/6.4 A
-
HEPA Air Cleaning: No
-
Heated/Not Heated: Not Heated
-
Nameplate Voltage: 208/230V AC
-
Power Consumption: 2,490 W
-
Air Curtain Finish: Galvanized
-
Air Curtain Heated: No
-
Maximum Air Volume: 4,118 cfm
-
Sound Level @ 10 ft: 73 dBA
-
Air Temperature Rise: Not Applicable
-
Max. Mounting Height: 12 ft
-
Maximum Air Velocity: 5,140 fpm
-
Sanitation Certified: No
-
Air Curtain Air Volume: 3584 cfm
-
For Frame Opening Width: 6 ft
-
Nameplate Voltage/Phase: 208/230V AC - 3 Ph
-
Nominal Voltage - Phase: 208/230V AC - 3 Phase
-
Air Curtain Air Velocity: 5140 fpm
-
Heater Power Consumption: Not Applicable
-
Ultraviolet Air Cleaning: No
-
Air Curtain dBA @ 10 Feet: 73
-
Motor Horsepower per Motor: 1 hp
-
Air Curtain Max. Door Width: 6 ft
-
Air Curtain Housing Material: Steel
-
Mounting Height for Insect Control: 12 ft
-
Country of Origin (subject to change): United States
-
Max. Mounting Height Environment/Insect: 14 ft / 12 ft
-
Mounting Height for Temperature Control: 14 ft
-
Horse Power: 1
-
Max Volume (CFM): 3584
-
Environmental - Max Height (feet): 14
-
Insect - Max Height (feet): 12
-
Voltage Rating: 208-230/3/60
-
Amps: 6.6/6.4
-
dBA: 73
-
Type: un-heated
-
Motors: 2 motors
-
Max Opening Height Window Door: 14 ft
-
Certifications: cETLus
-
Application: Multiple types of door openings
-
Insect Control: Up to 12 feet
-
Temperature/Environmental Separation: Up to 14 feet
-
Wind Stopping Capability (MPH): 12
-
Air Flow Certified (AMCA): Yes
