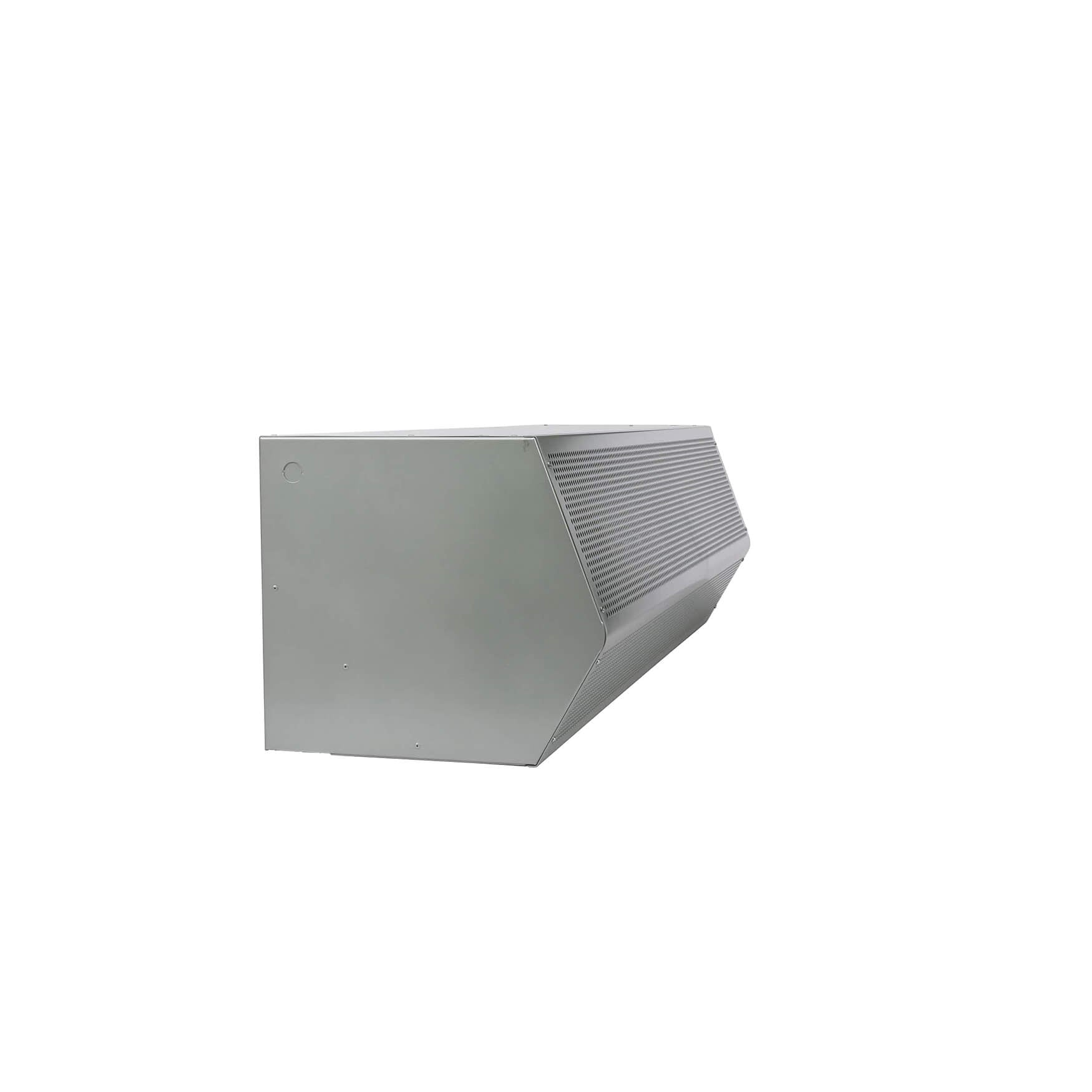

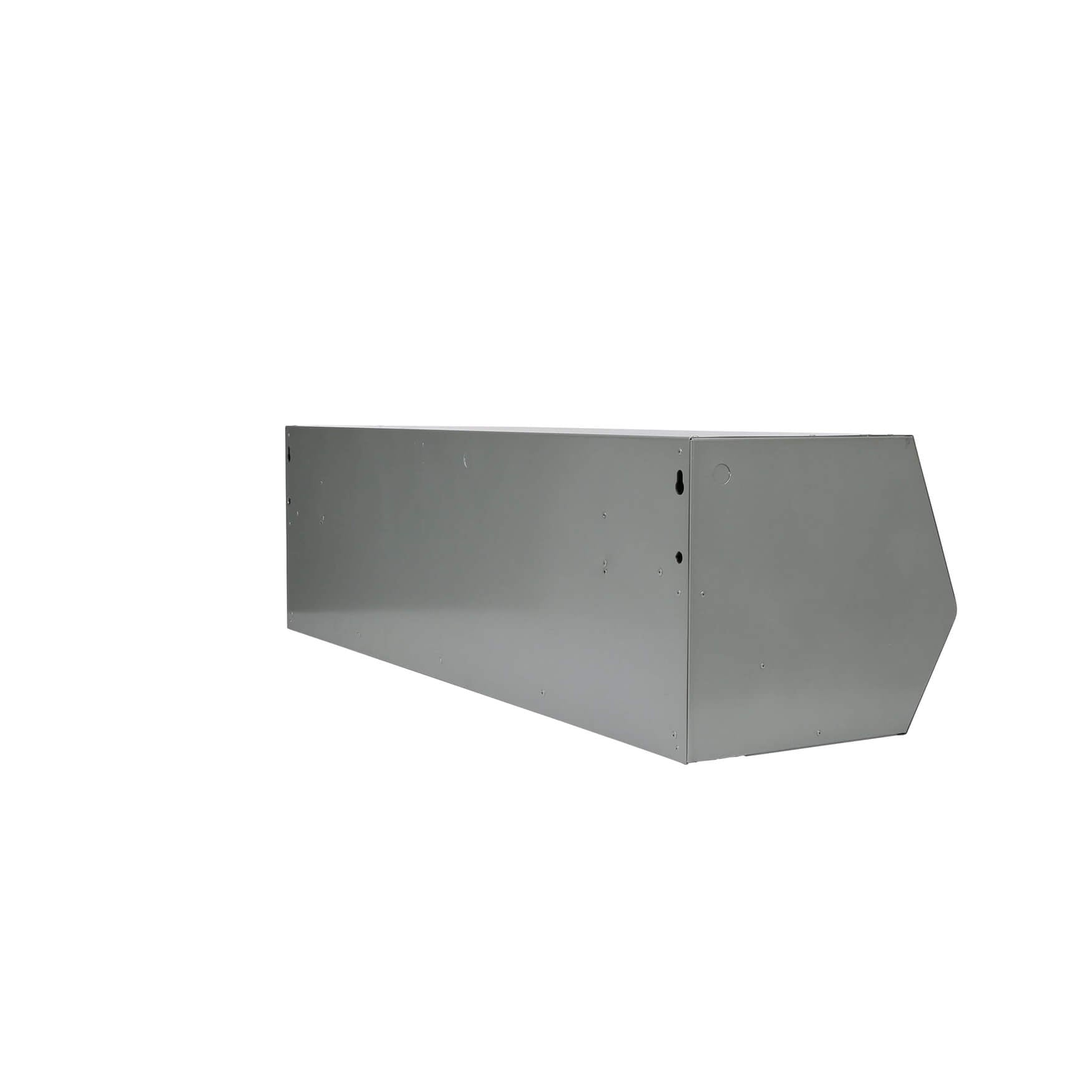

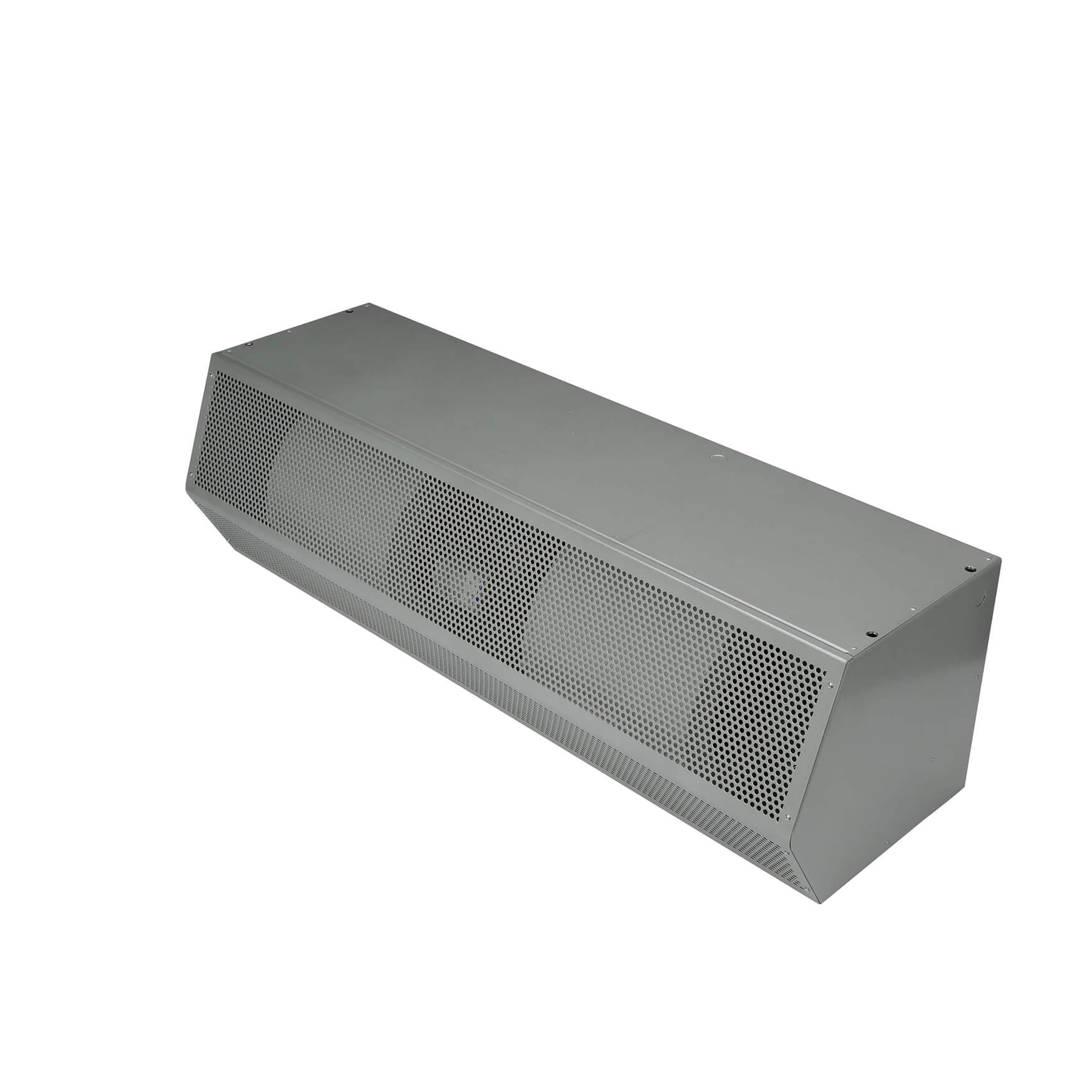

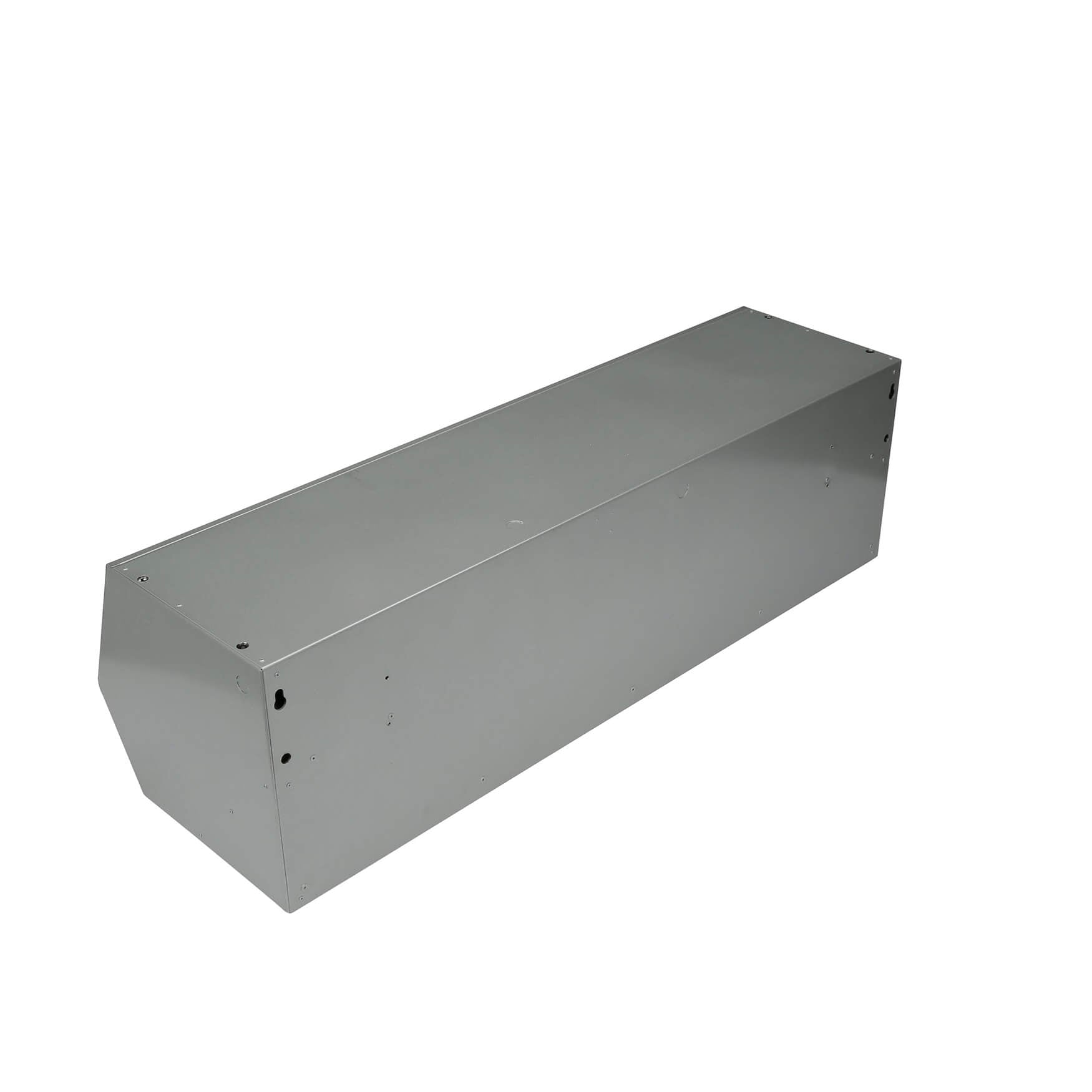

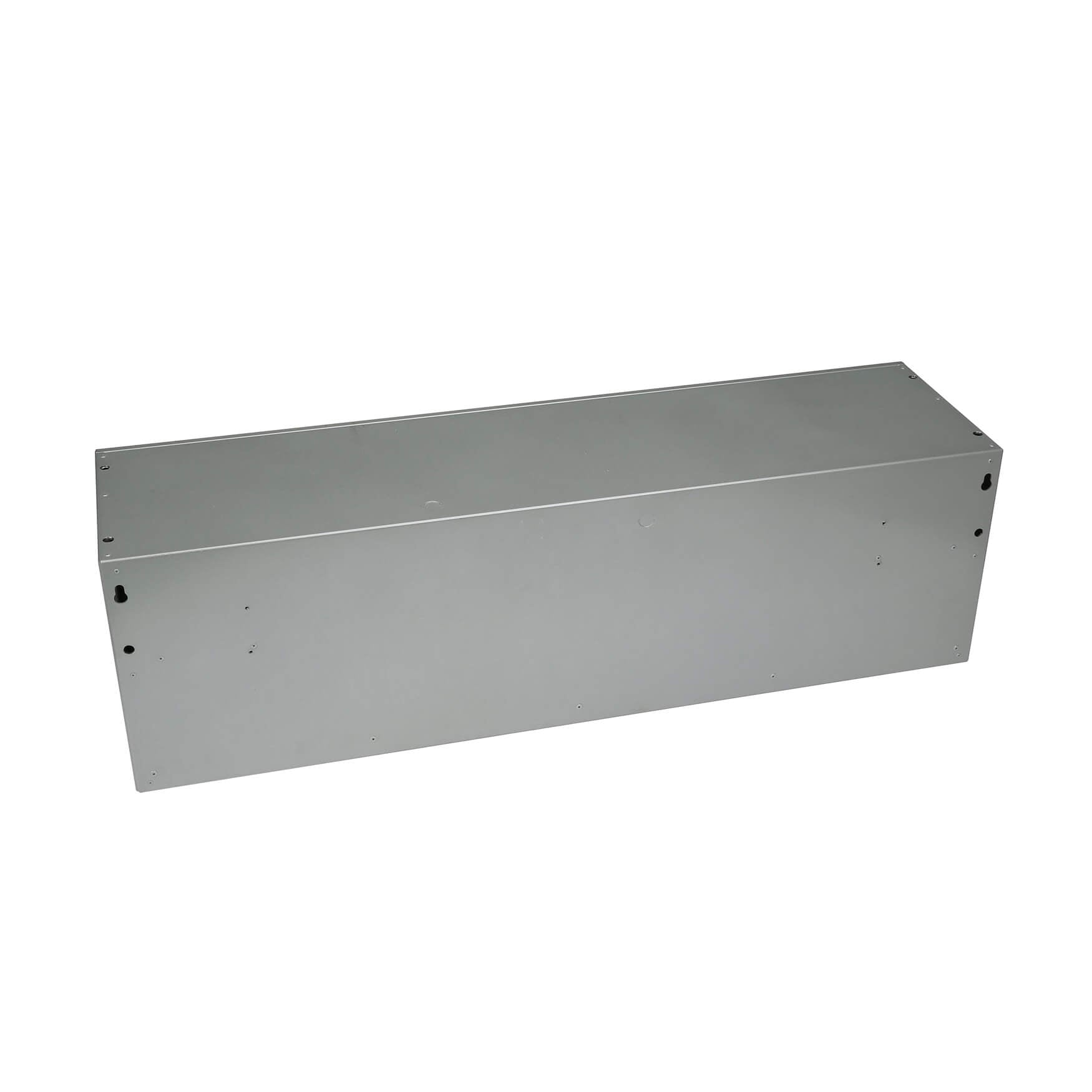

Mars HV272-2UD-TS Series 2 Unheated High Velocity Air Curtain W/ 72 inches Wide Door 8000 CFM

Product Description

The MARS HV272-2UD-TS Series 2 unheated high-velocity air curtain is designed for 72" wide doors, delivering 8000 CFM. It reduces energy costs, creates environmental separation, and maintains interior temperature. This air curtain minimizes dirt, dust, fumes, and prevents insects from entering. Features durable metal construction with a corrosion-resistant powder-coated finish.

• Reduces energy costs and consumption
• Creates effective environmental separation
• Maintains interior building temperature

Product Highlights

Durable, easy-to-install air curtain that provides effective environmental separation and helps maintain interior temperature while minimizing contaminants and preventing insects.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: HV272-2UD-TS
• Country of Origin: USA

Technical Specifications

• CFM: 8000 CFM
• Type: Standard
• Brand: Mars
• Phase: 1
• Series: High Velocity
• Voltage: 208 / 230 V
• Decibels: 73
• Material: Galvanized Steel
• Horsepower: 1 HP
• Heating Option: Unheated
• Door Width: 72 in
• 1 Phase 115V FLA: 18.0 A
• 3 Phase 460V FLA: 3.2 A
• Door Height: 10' - 12'
• 1 Phase 208V/230V FLA: 10.0 / 10.0 A
• Max Door Height: 12 ft
• Manufacturers Part Number: HV272-2UD-TS
• Size: 72"
• Hertz: 60
• Environmental - Max Height (feet): 14
• Insect - Max Height (feet): 12
• Heating Mode: Unheated
• Nozzle Width (inches): 72
• Unit Width (inches): 72
• Unit Height (inches): 14
• Wind Stopping Capability (MPH): 12
• Motors: 2
• Air Flow Certified (AMCA): Yes
• Voltage Rating: 208-230/1/60
• Voltage Code: D
• Air Curtain Air Volume (CFM): 4118
• Amps: 10
• Uniformity (%): 90
• dBA: 73
• Max. Door/Window Height (ft.): 14
• Max. Height Insect Block (ft.): 12
• Heat: No
• Depth (in.): 15.625
• Height (in.): 14
• Length (in.): 72
• Certifications: ETL Listed, AMCA
• Product Type: Unheated
• Number of Poles: 1
• Max Volume: 8000
• Max Velocity: 5140
• Frequency (Hertz): 60
• AMCA Uniformity: 92
• # of Motors: 2
• Sound dBA: 73
• Finish: Titanium Silver Powder Coat
• Manufacturer: Mars Air Systems
• Dimensions: 76 20 18
