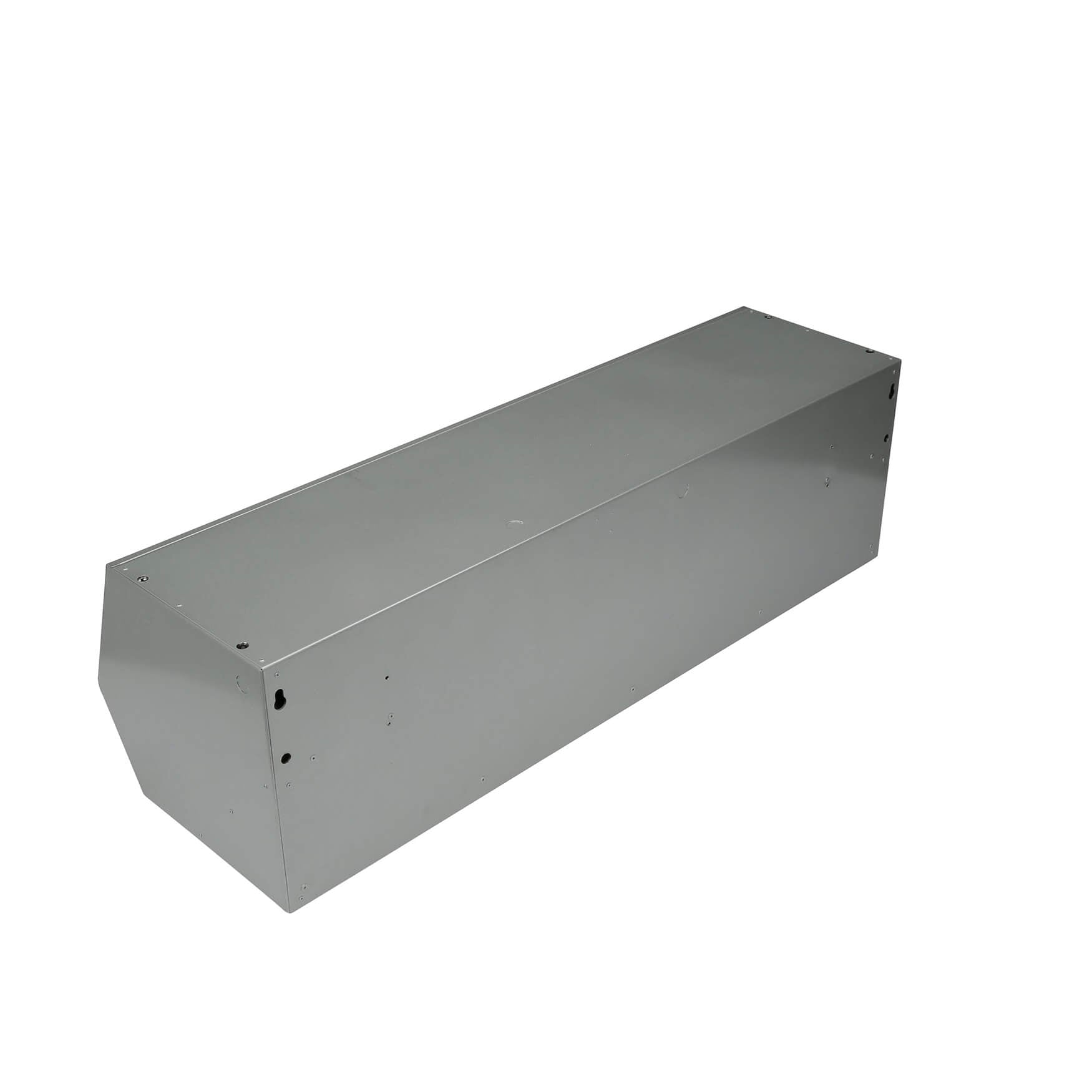

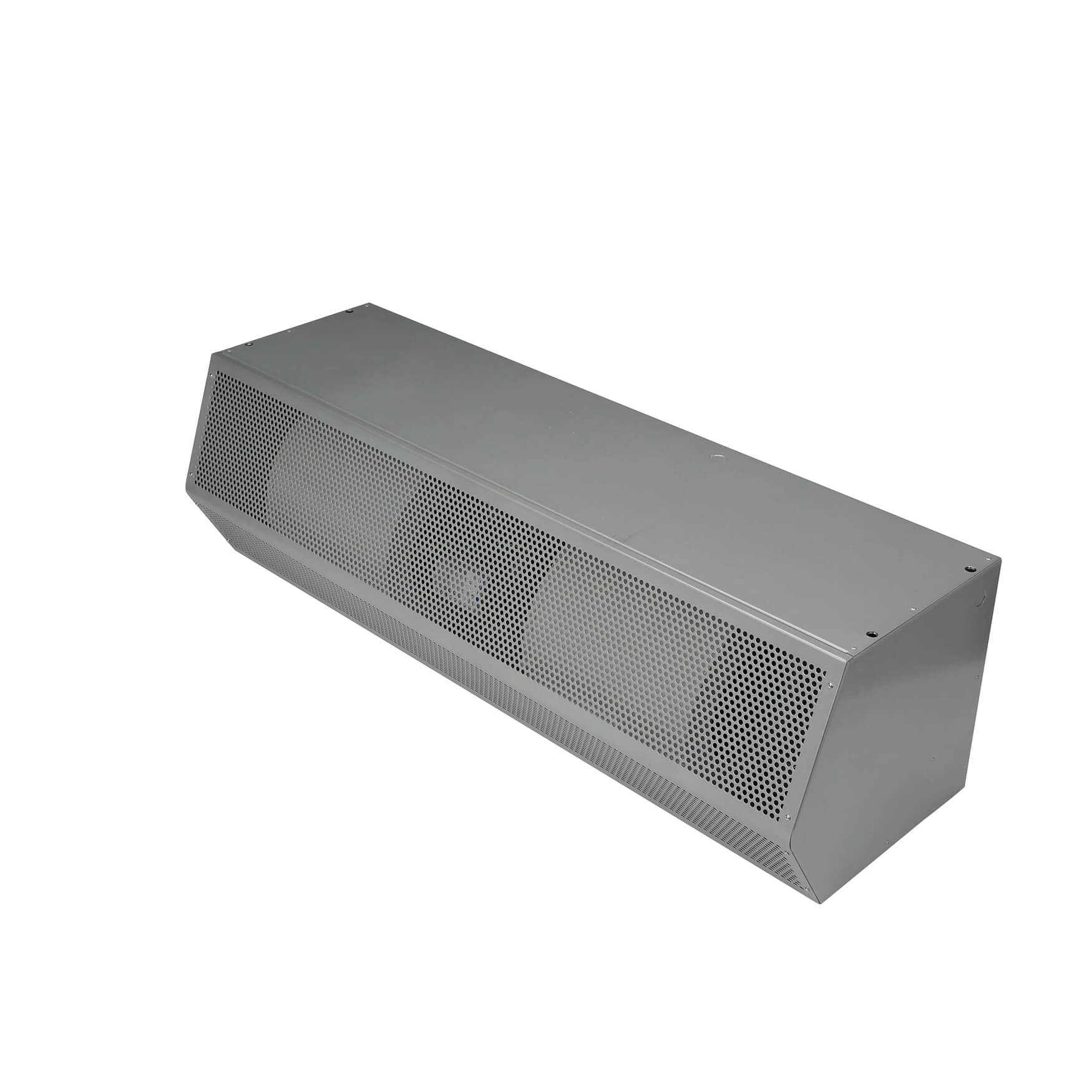

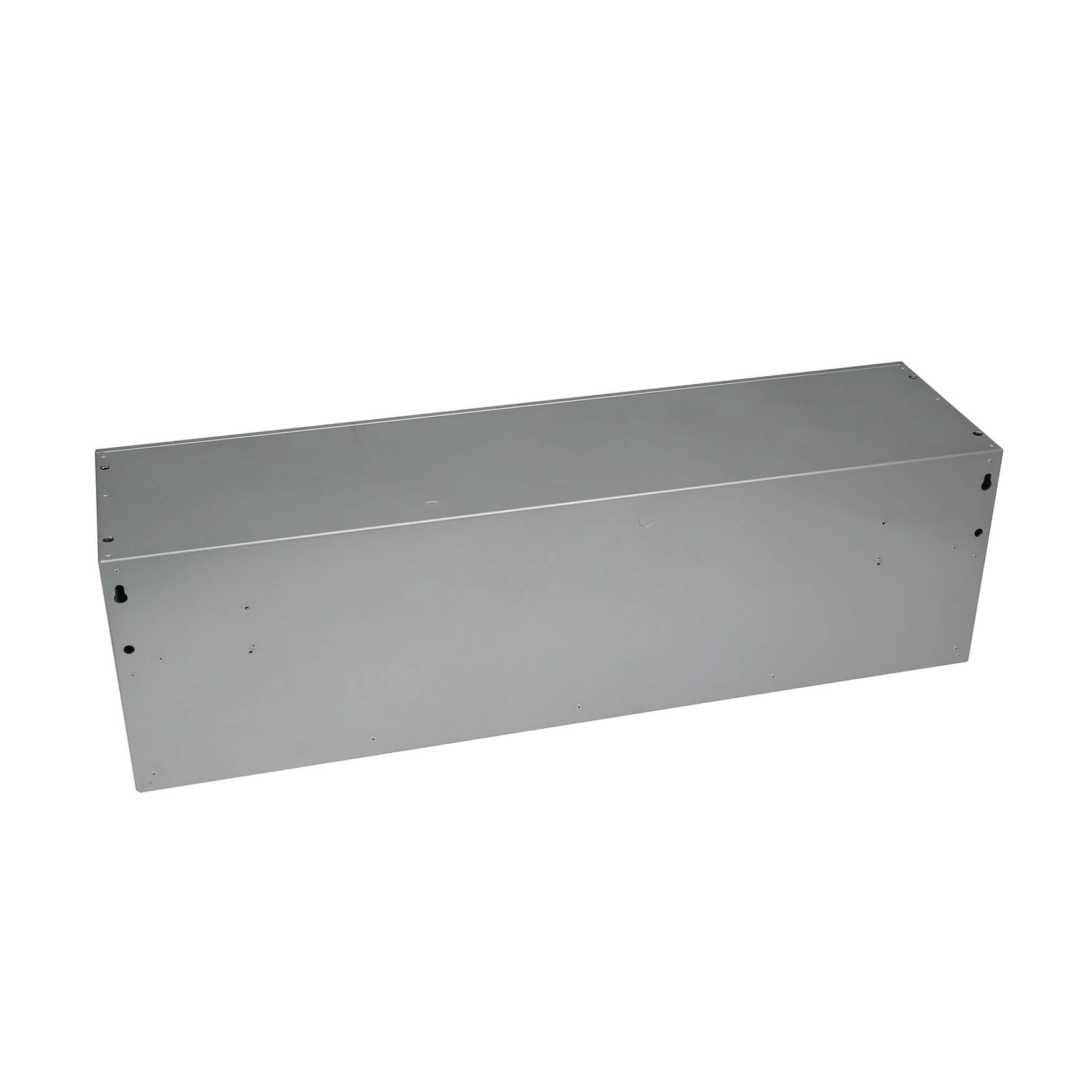

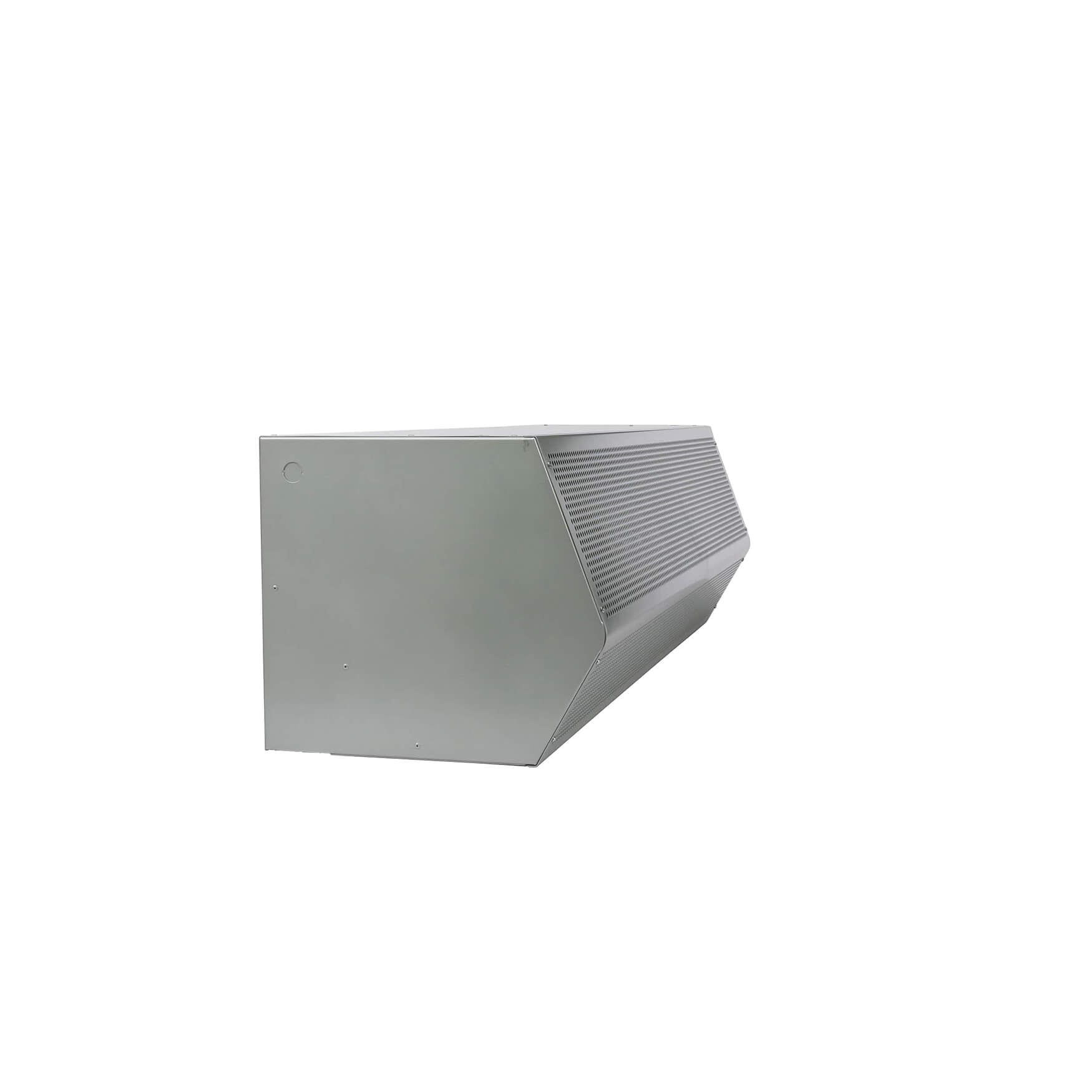

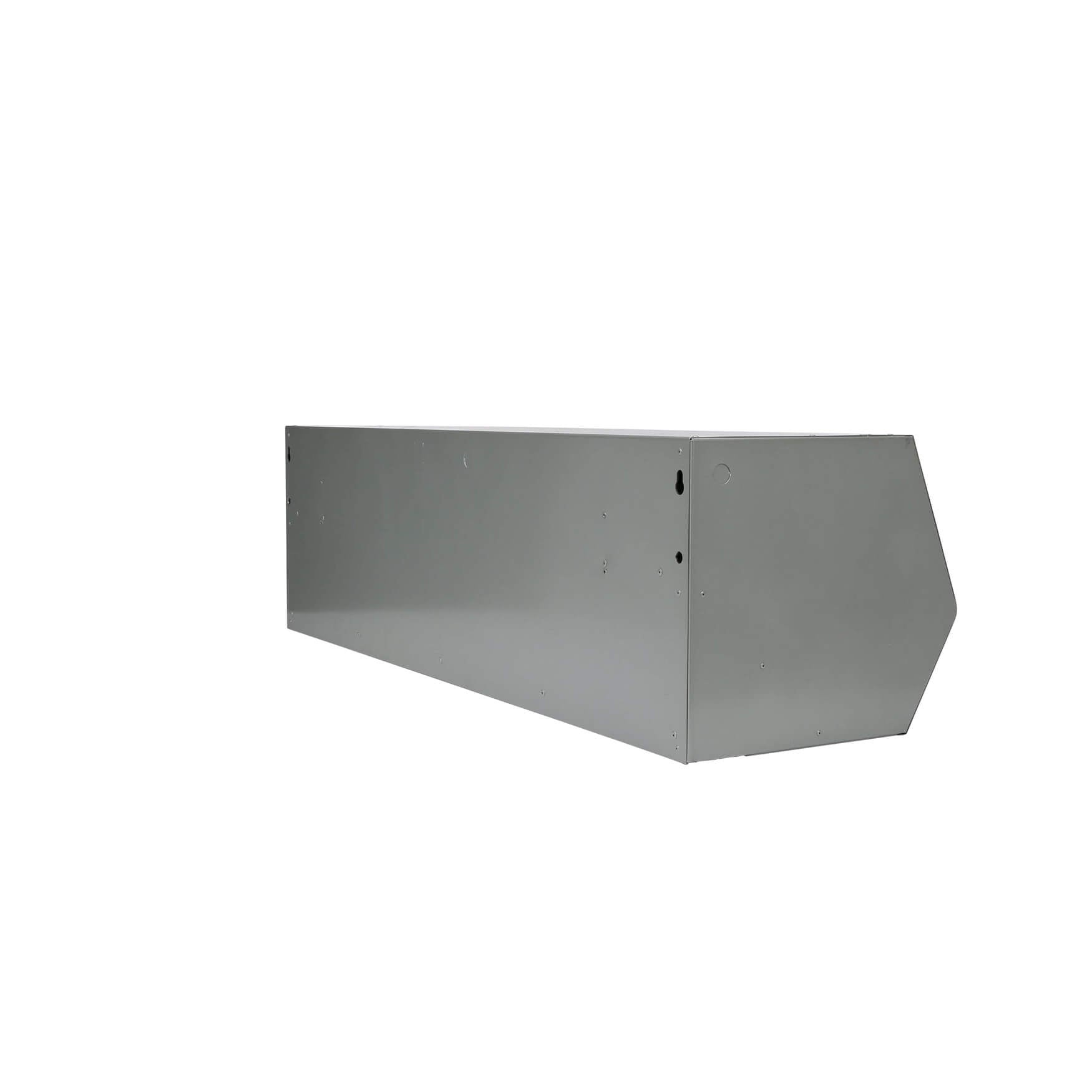

Mars HV272-2UA-TS 72 inches Wide Door High Velocity Series 2 Unheated Air Curtain 115/1/60

Product Description

The MARS HV272-2UA-TS is a 72" wide door high velocity series 2 unheated air curtain. Featuring a 1 horsepower motor, this air curtain separates environments and protects openings with wind loads up to 12 ft. high. It is designed for insect control up to 12 feet and temperature/environmental separation up to 14 feet.

• 1 hp direct-drive motor
• Durable Metal Construction
• Environmental Protection up to 12’

Product Highlights

This 72" air curtain is ideal for industrial applications, maintaining interior temperature, and minimizing dirt, dust, and fumes.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: HV272-2UA-TS
• Country of Origin: USA

Technical Specifications

• Size: 72"
• Series: High Velocity
• Material: Galvanized Steel
• Phase: 1
• Voltage: 115V
• Hertz: 60
• Type: Unheated
• Horse Power: 1
• Max Volume (CFM): 3584
• Decibels: 73
• Environmental - Max Height (feet): 14
• Insect - Max Height (feet): 12
• Heating Mode: Unheated
• Nozzle Width (inches): 72
• Unit Width (inches): 72
• Unit Height (inches): 14
• Wind Stopping Capability (MPH): 12
• Motors: 2
• Air Flow Certified (AMCA): Yes
• Air Curtain Air Volume (CFM): 4118
• Amps: 18
• Uniformity (%): 90
• dBA: 73
• Number of Poles: 1
• Max Volume: 8000
• Max Velocity: 5140
• AMCA Uniformity: 92
• Sound dBA: 73
• cETLus certified for safety: true
• 115v 60 Hz 1-Ph electrical compatibility: true
• Supports openings up to 14 feet high: true
• Dimensions Width: 72 Inches
• Dimensions Depth: 15.63 Inches
• Dimensions Height: 14 Inches
• Application: Shipping & Receiving Areas
• ETL Listed: Yes
• HP: 1 HP
• Max Environmental Separation Height: 14 Feet
• Max Insect Blocking Height: 12 Feet
• Power: Electric
• Wattage: 2,490 Watts
• Frequency (Hertz): 60
