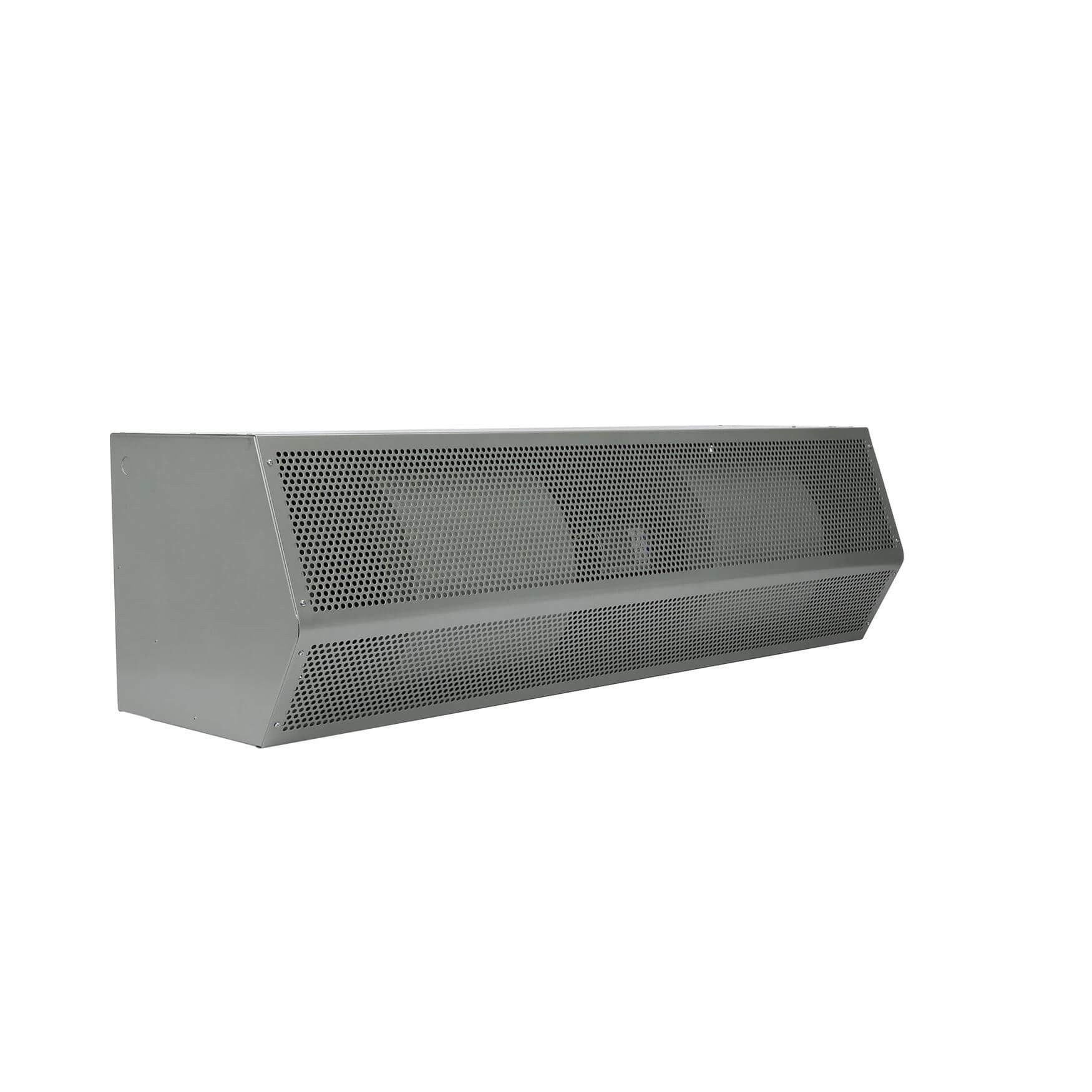

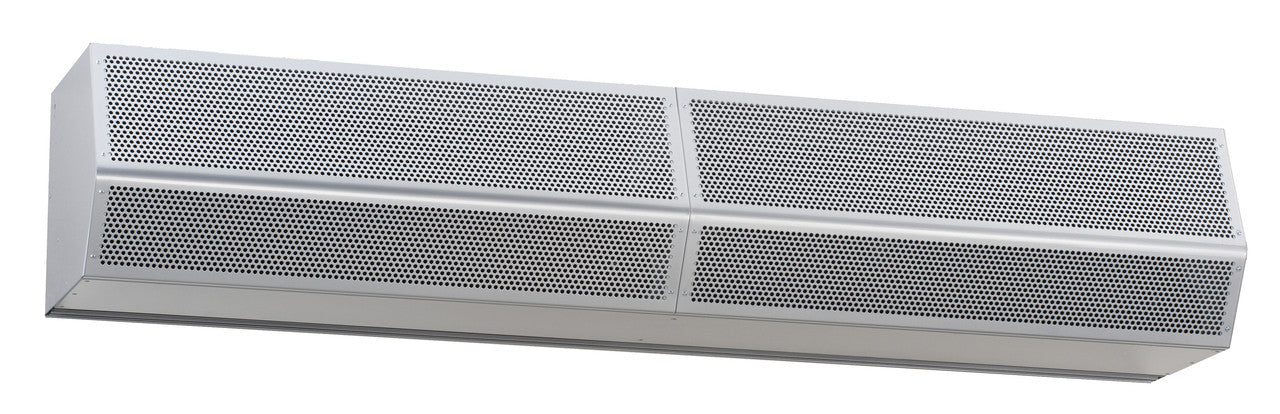

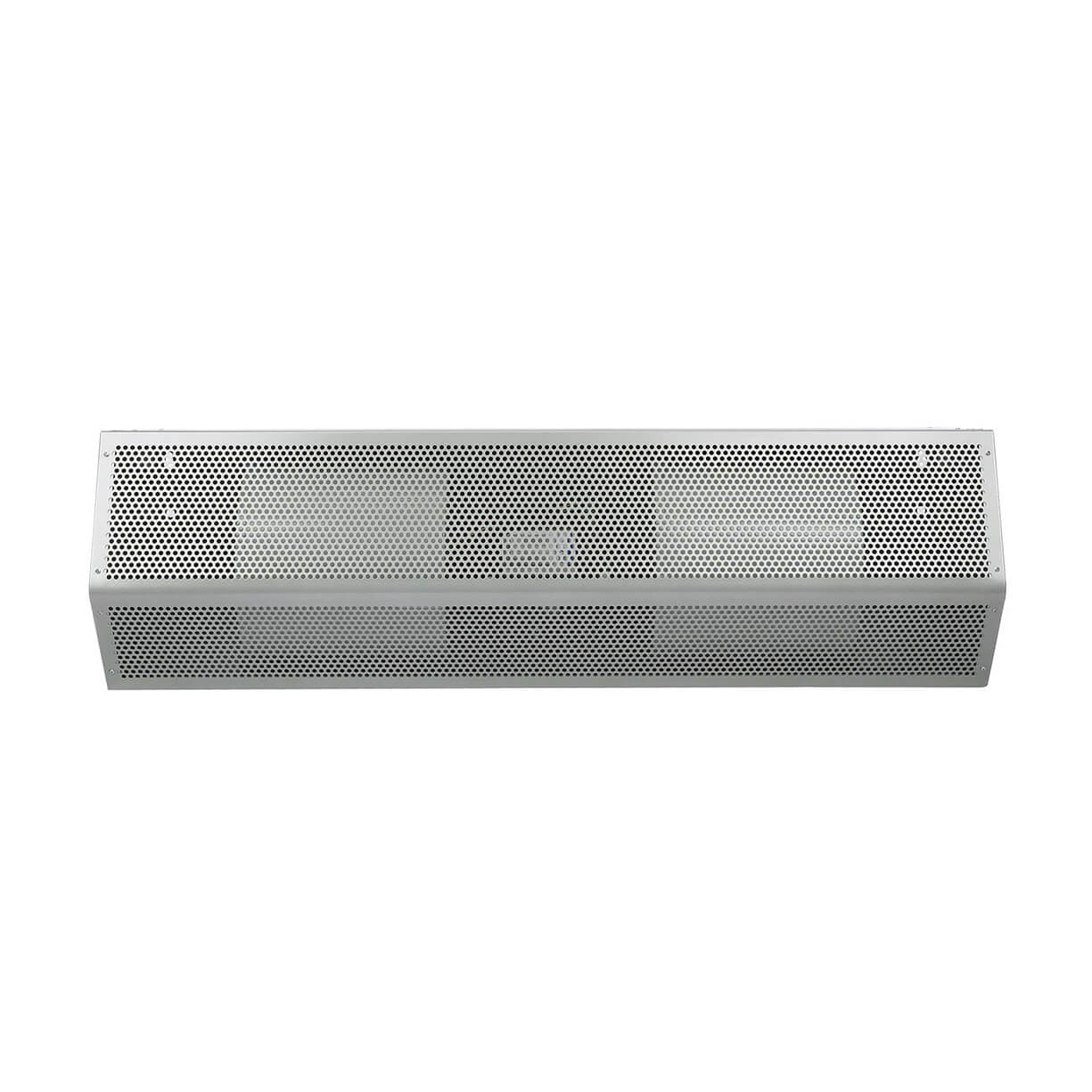

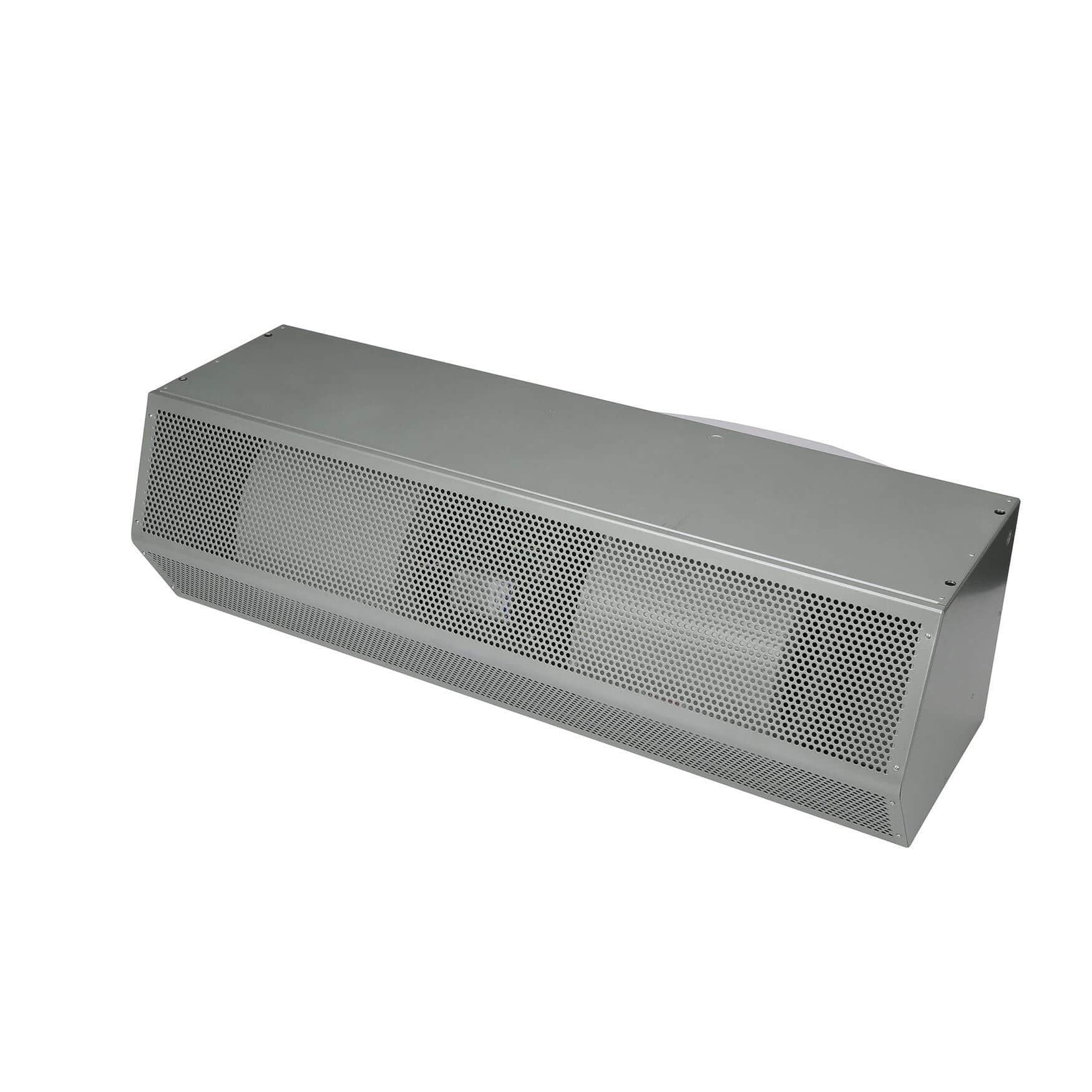

MARS HV260-1UG-TS High Velocity Air Curtain 60 inches

Product Description

The MARS HV260-1UG-TS is a high-velocity unheated air curtain that provides efficient airflow for large openings up to fourteen feet high. This unit operates on 208/230 volts, three-phase power and includes a robust 1 horsepower motor. It effectively keeps out insects while allowing easy passage through doorways. The 60-inch size makes it suitable for various applications including shipping and receiving areas, customer entrances, and cold storage rooms.

• Designed for heights of ten to twelve feet
• Durable metal casing with a corrosion-resistant titanium silver finish
• Includes an automatic door switch for convenient operation

Product Highlights

The HV260-1UG-TS ensures environmental separation and promotes comfort by creating a barrier against outdoor elements. It is part of a versatile series that offers different lengths and motor configurations to meet specific installation needs.

Product Information

Standard Information

• Brand: MARS
• MPN: HV260-1UG-TS

Technical Specifications

• Length: 60 inches
• Motor/HP: 1 Motor; 1 HP
• Full Load Amps: 3.3 / 3.2 amps
• Sound Level: 70 dBA
• Max Volume: 2760 CFMs
• Uniformity: 80%
• Power Rating: 1560 watts
• Weight: 140 lbs
