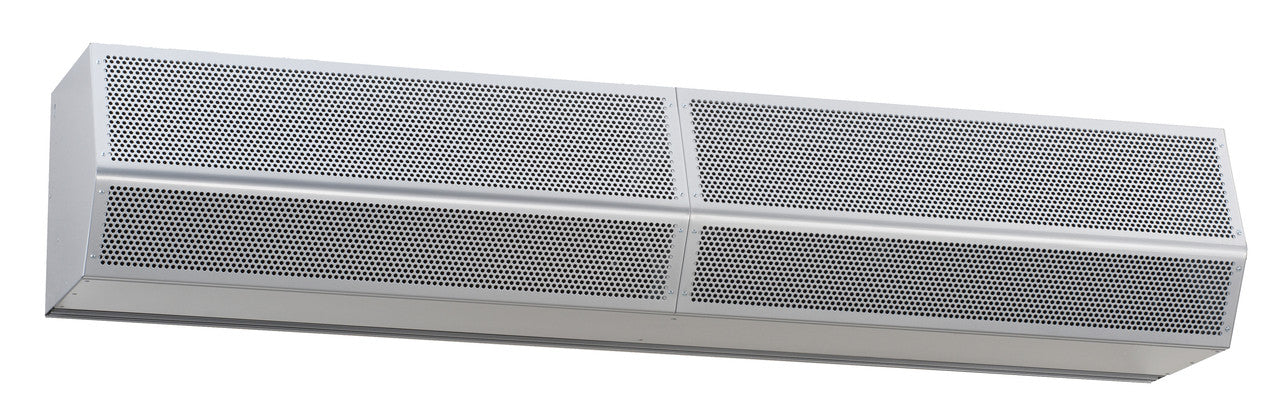

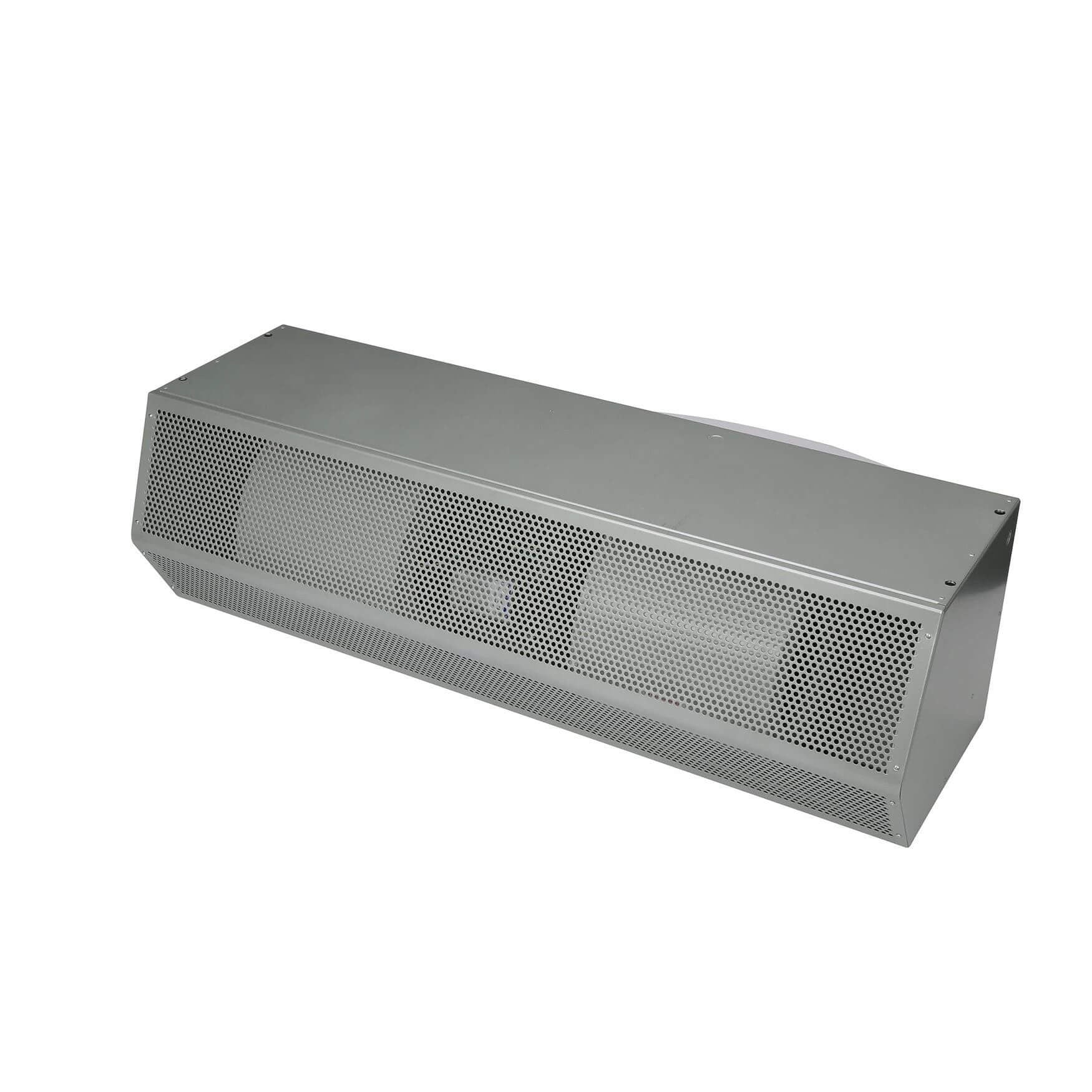

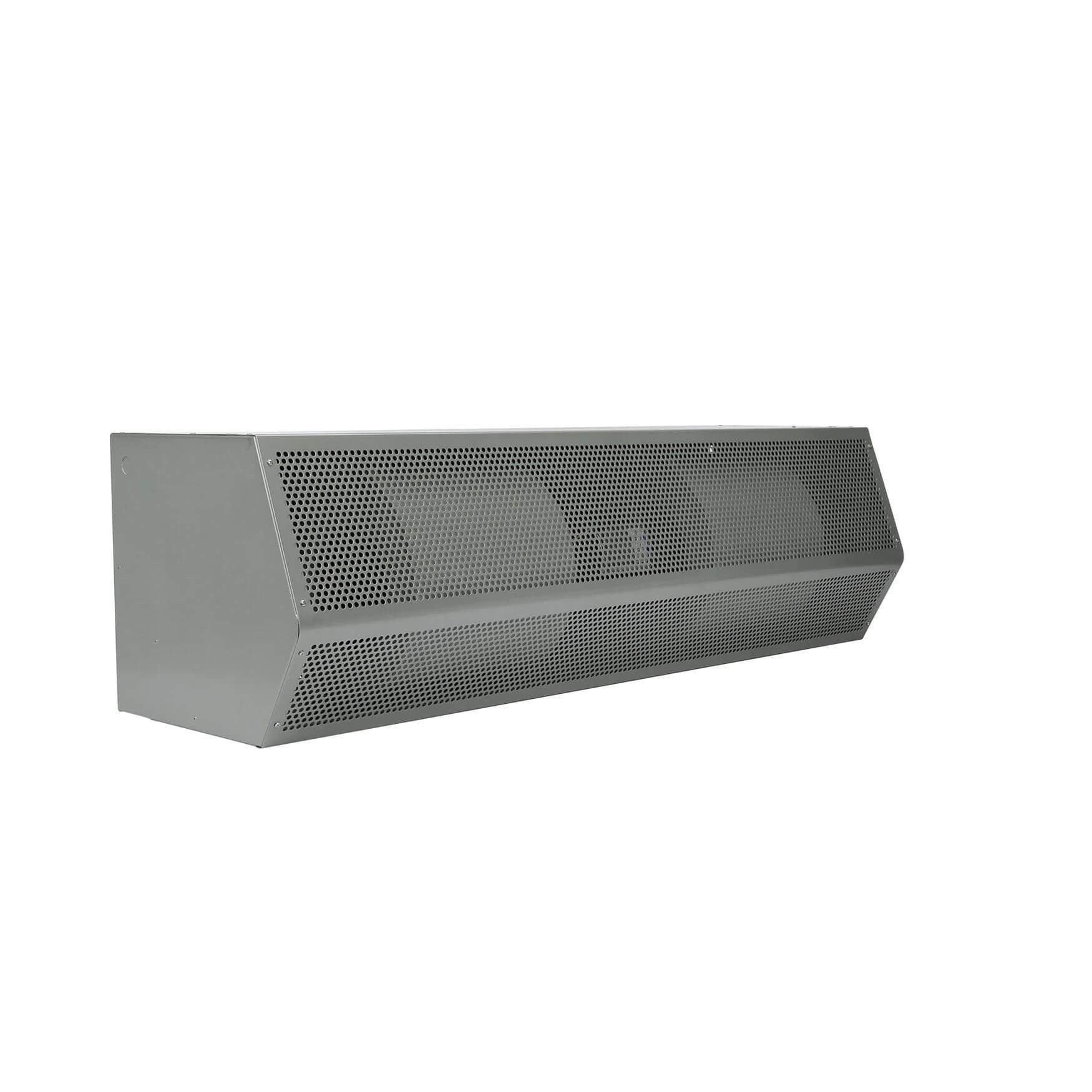

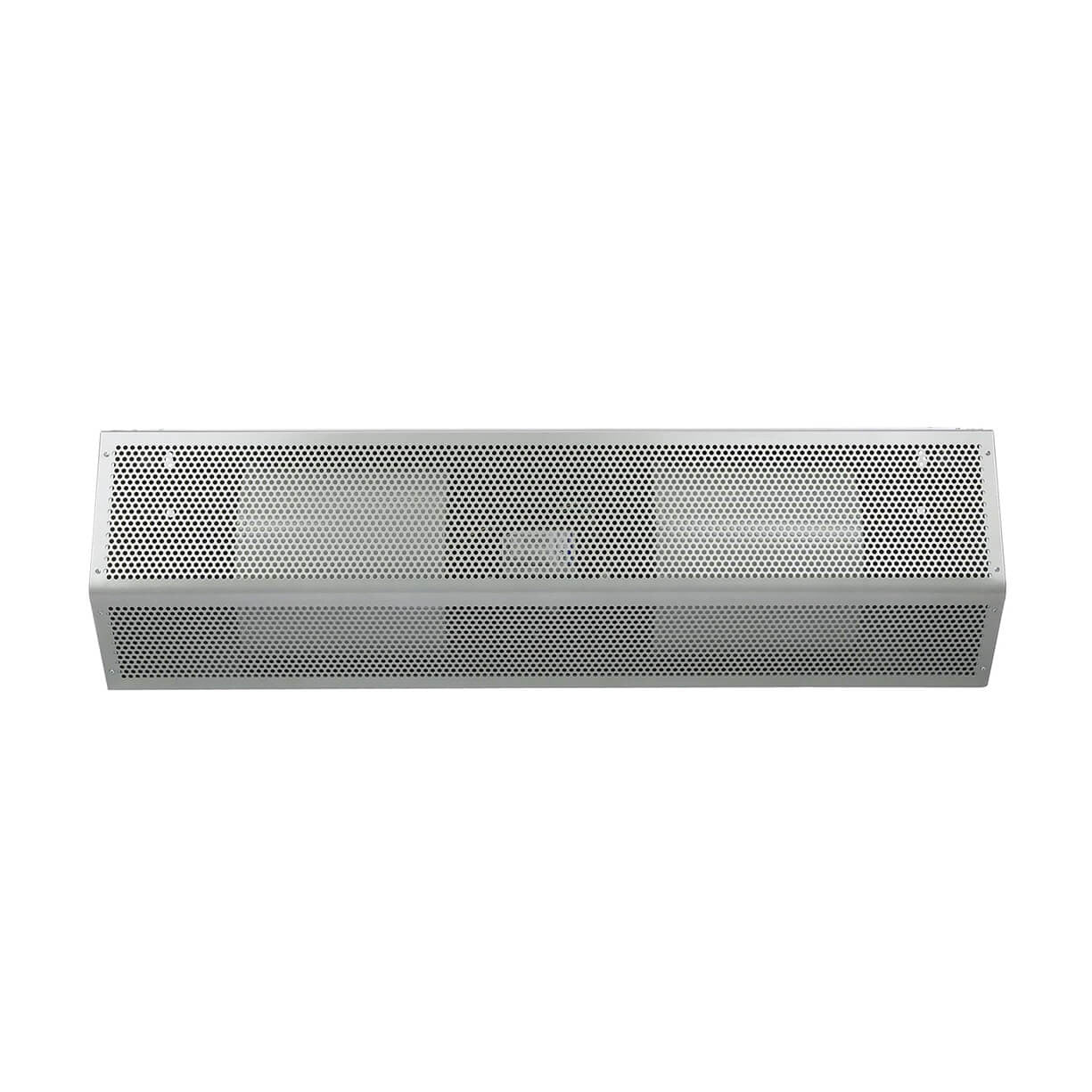

MARS HV260-1UD-TS Mars Air Systems High Velocity Unheated Air Curtain 60 inches

Product Description

The MARS HV260-1UD-TS is a high-velocity unheated air curtain designed to create an effective barrier against dust, insects, and environmental changes. It operates on 208/230 volts and features a single one horsepower motor. The unit measures sixty inches in length and is built to withstand demanding environments with durable metal construction and a corrosion-resistant titanium silver finish.

• High-performance 1 HP motor ensuring efficient airflow.
• Ideal for installation heights between ten to twelve feet.
• Compatible with various control panels and door switches.

Product Highlights

The HV2 series is designed for easy installation and effective performance in settings like shipping docks, customer entrances, and cold storage rooms. It helps maintain climate control and reduce energy loss.

Product Information

Standard Information

• Voltage: 208/230V
• Phase: Single-Phase

Technical Specifications

• Length: 60 inches
• Motor Power: 1 HP
• Full Load Amps: 5 amps
• Sound Level: 70 dBA
• Max Air Volume: 2760 CFM
• Power Rating: 1560 watts
• Weight: 140 lbs
• Installation Height: 10 to 12 feet
