Product Description

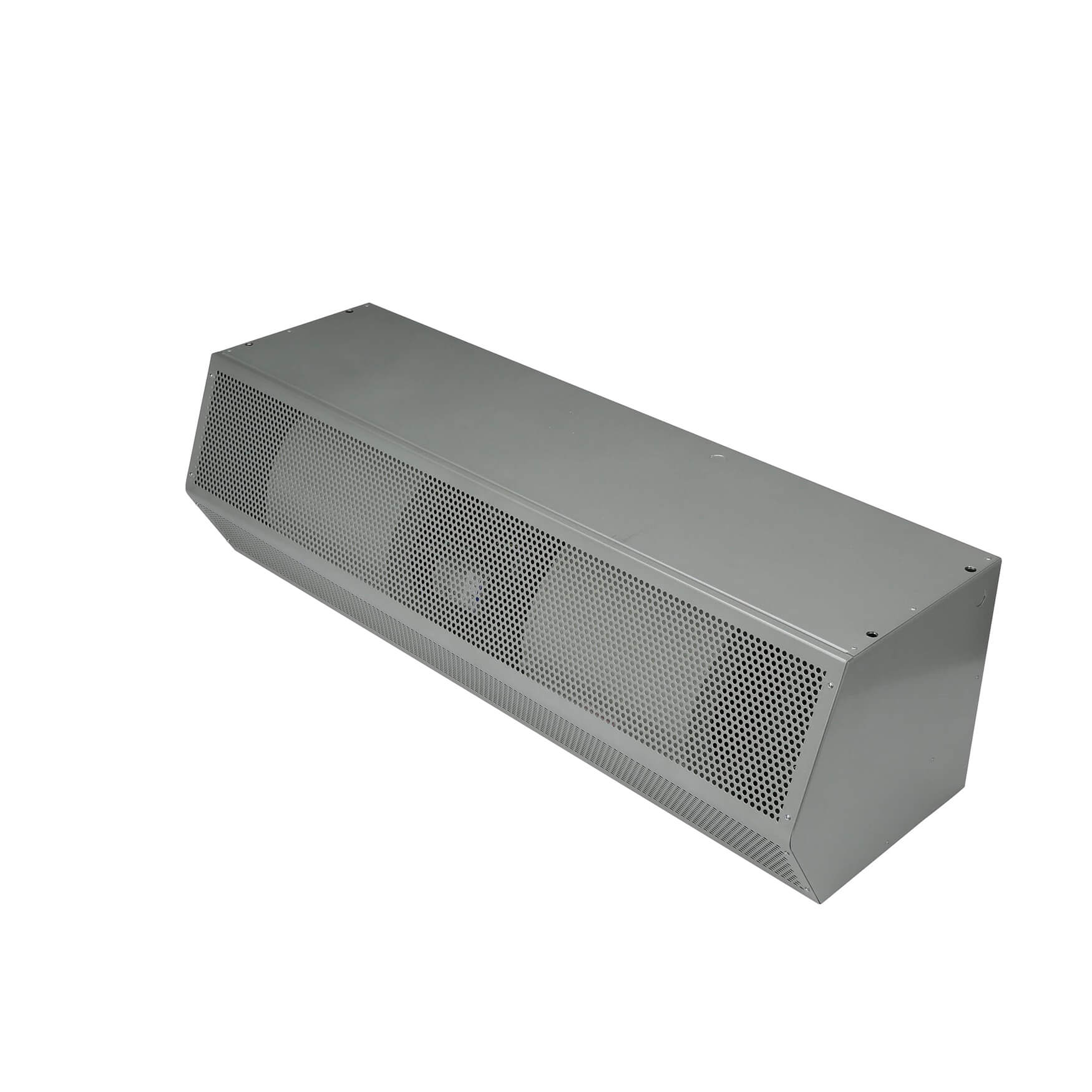

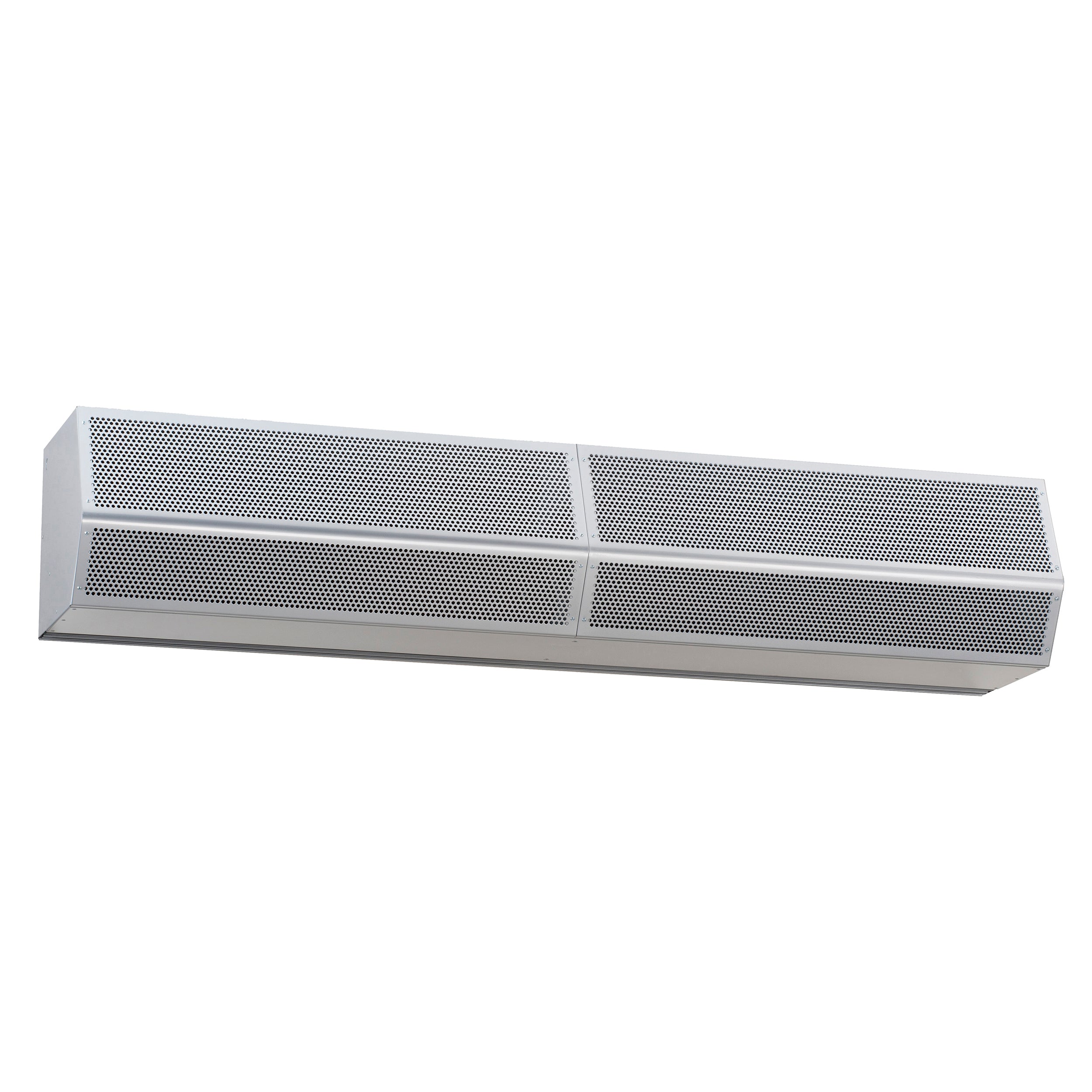

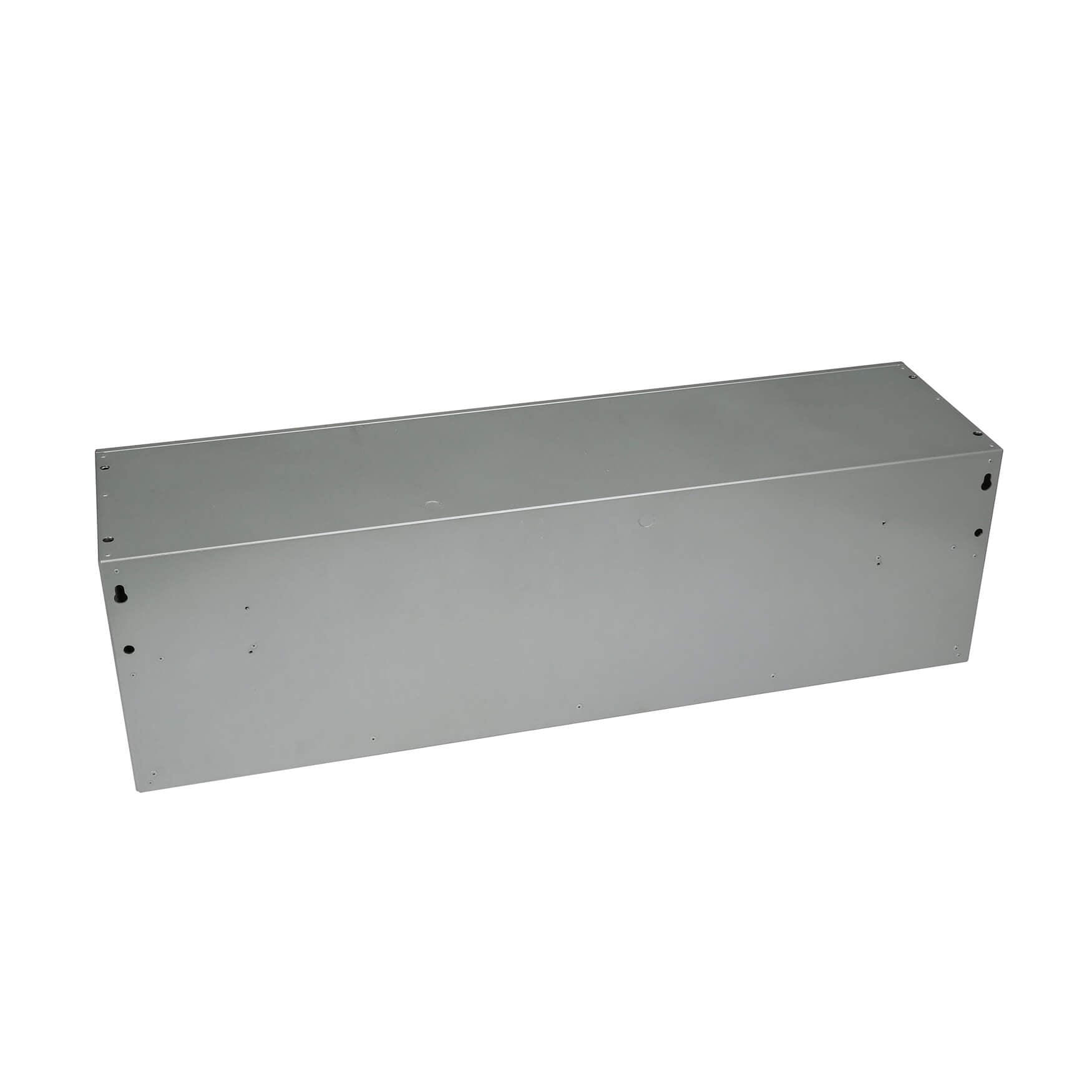

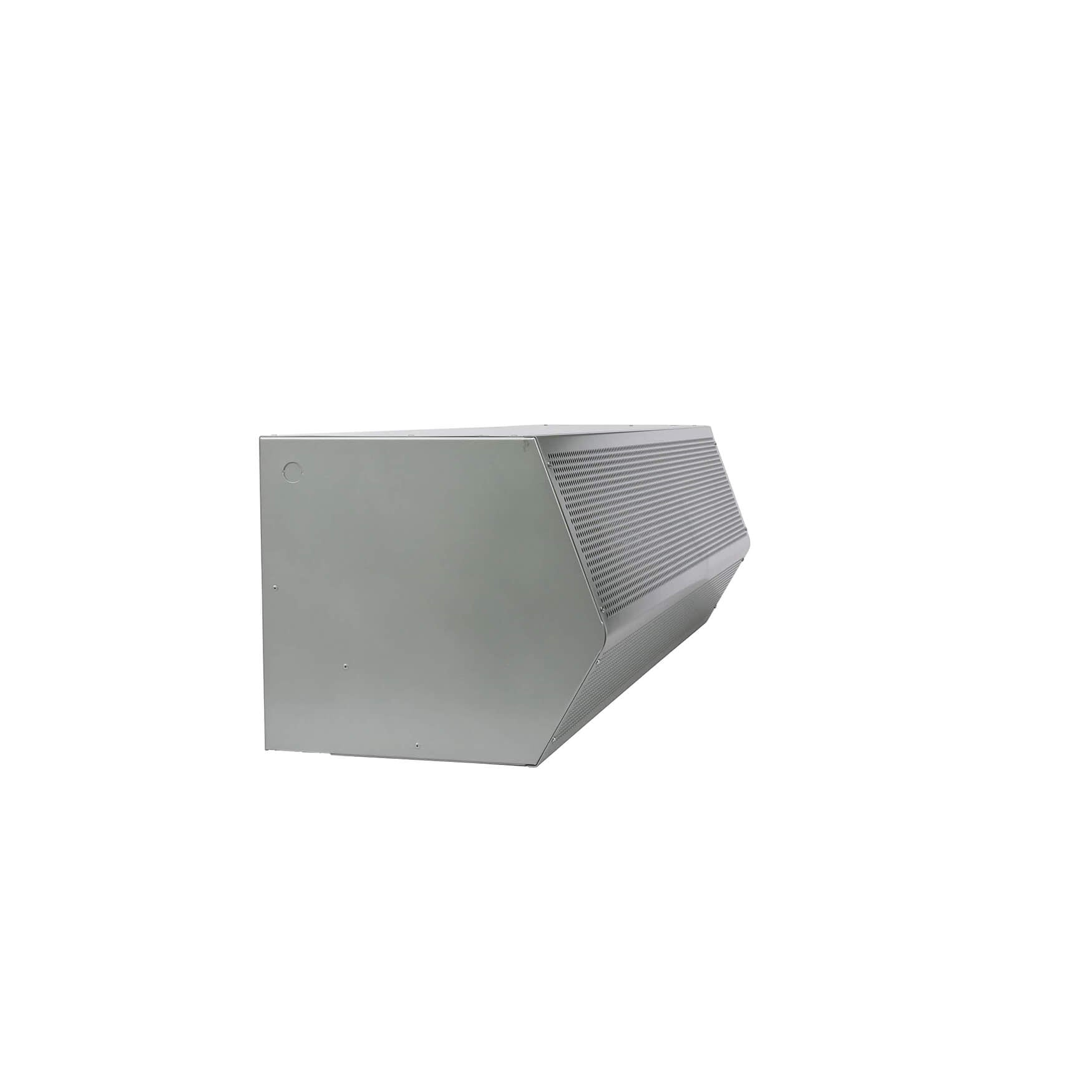

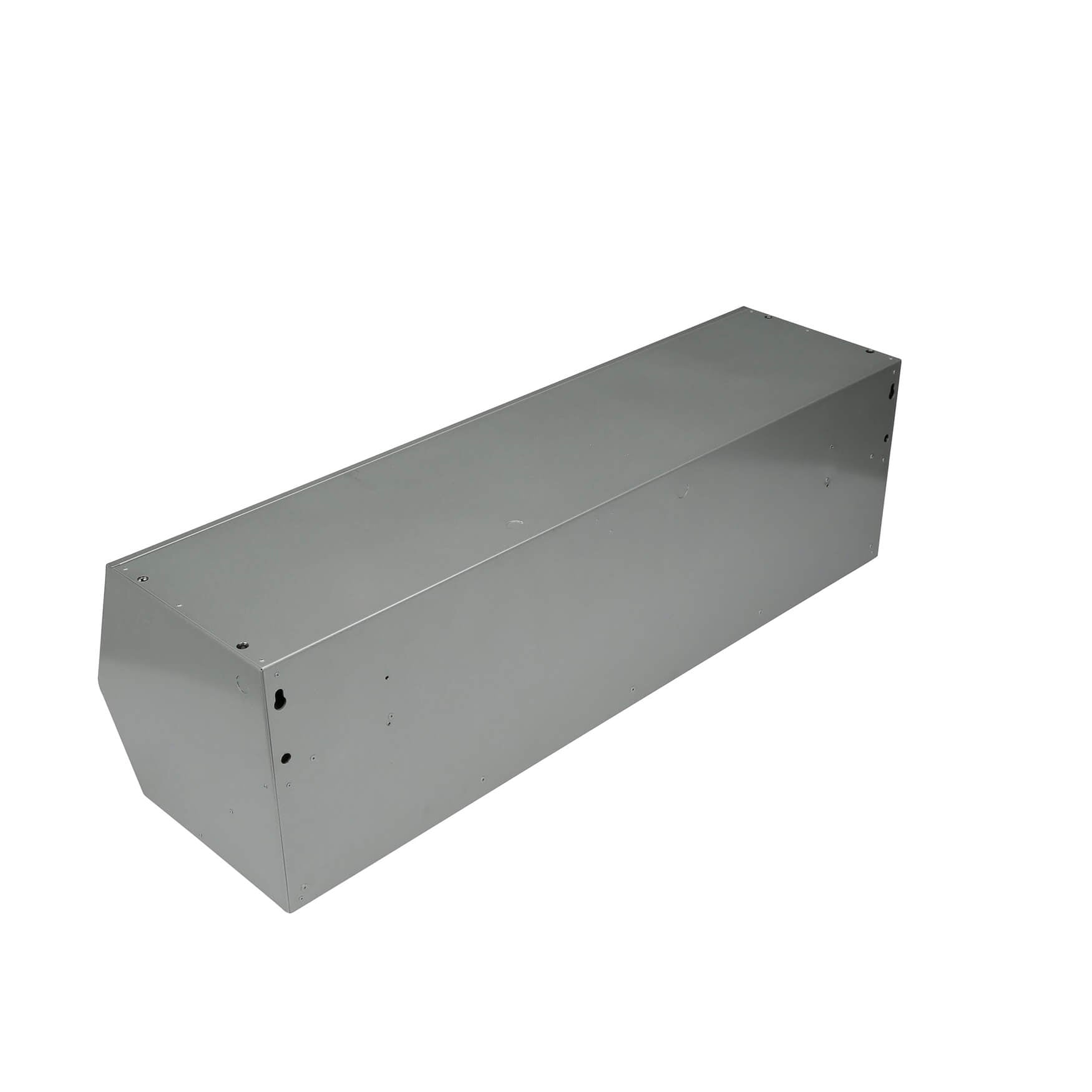

The MARS HV260-1UA-TS air curtain is designed for multiple types of door openings, separating environments and protecting openings. Suitable for frame openings of 5 ft, it features a 1 HP motor and is capable of insect control up to 12 ft and temperature separation up to 14 ft. The housing is made of steel.
- Designed for insect control up to 12 feet
- Provides temperature/environmental separation up to 14 feet
- Features a 1 HP motor
Product Highlights
This air curtain is ideal for industrial applications, maintaining consistent interior temperatures and minimizing dirt, dust, and fumes.
Product Information
Standard Information
-
Brand: MARS
-
Manufacturer Part Number: HV260-1UA-TS
-
Country of Origin: United States
Technical Specifications
-
Hz: 60
-
Item: Air Curtain
-
Depth: 15 5/8 in
-
Phase: 1
-
Width: 60 in
-
Finish: Galvanized, Powder Coated
-
Height: 14 in
-
Series: HV2 (High Velocity 2) Series
-
Voltage: 115
-
Max. RPM: 1,750 RPM
-
Motor HP: 1 hp
-
Washdown: No
-
Frequency: 60 Hz
-
Max. Amps: 9
-
Standards: ETL
-
Drive Type: Direct Drive
-
Motor Type: Permanent Split Capacitor
-
Nozzle Width: 60 in
-
Profile Type: Standard Profile
-
Housing Color: Silver
-
Maximum Speed: 1,750 RPM
-
Grille Material: Steel
-
Motor Enclosure: Totally Enclosed Air Over
-
Nominal Voltage: 120V AC
-
Air Curtain Item: Air Curtain
-
Air Curtain Type: Ambient Air
-
Number of Motors: 1
-
Number of Speeds: 2
-
Heated/Not Heated: Not Heated
-
Nameplate Voltage: 115V AC
-
Power Consumption: 1,560 W
-
Air Curtain Finish: Galvanized
-
Air Curtain Heated: No
-
Maximum Air Volume: 2,760 cfm
-
Sound Level @ 10 ft: 70 dBA
-
Air Temperature Rise: Not Applicable
-
Max. Mounting Height: 12 ft
-
Maximum Air Velocity: 3,200 fpm
-
Sanitation Certified: No
-
For Frame Opening Width: 5 ft
-
Nameplate Voltage/Phase: 115V AC - 1 Ph
-
Nominal Voltage - Phase: 120V AC - 1 Phase
-
Air Curtain Air Velocity: 3200 fpm
-
Heater Power Consumption: Not Applicable
-
Ultraviolet Air Cleaning: No
-
Air Curtain dBA @ 10 Feet: 70
-
Motor Horsepower per Motor: 1 hp
-
Air Curtain Max. Door Width: 5 ft
-
Air Curtain Housing Material: Steel
-
Maximum Operating Temperature: Not Available
-
Minimum Operating Temperature: Not Available
-
Mounting Height for Insect Control: 12 ft
-
Country of Origin (subject to change): United States
-
Max. Mounting Height Environment/Insect: 14 ft / 12 ft
-
Mounting Height for Temperature Control: 14 ft
-
Environmental - Max Height (feet): 14
-
Insect - Max Height (feet): 12
-
Heating Mode: Unheated
-
Nozzle Width (inches): 60
-
Unit Width (inches): 60
-
Unit Height (inches): 14
-
Wind Stopping Capability (MPH): 12
-
Horsepower: 1
-
Motors: 1
-
Voltage Rating: 115/1/60
-
Voltage Code: A
-
Amps: 9
-
Uniformity (%): 80
-
dBA: 70
-
Air Volume (CFM): 2760
-
Application: Shipping & Receiving Areas
-
ETL Listed: Yes
-
Power: Electric
-
Volts: 115 Volts
-
Wattage: 1,560 Watts
-
Manufacturer: Mars Air Systems
-
Model Number: HV260-1UA-TS
-
Depth (inches): 15.63
-
Type: un-heated
-
Horse Power Per Motor: 1 hp
-
Max Opening Height Window Door: 14 ft
-
Certifications: cETLus
