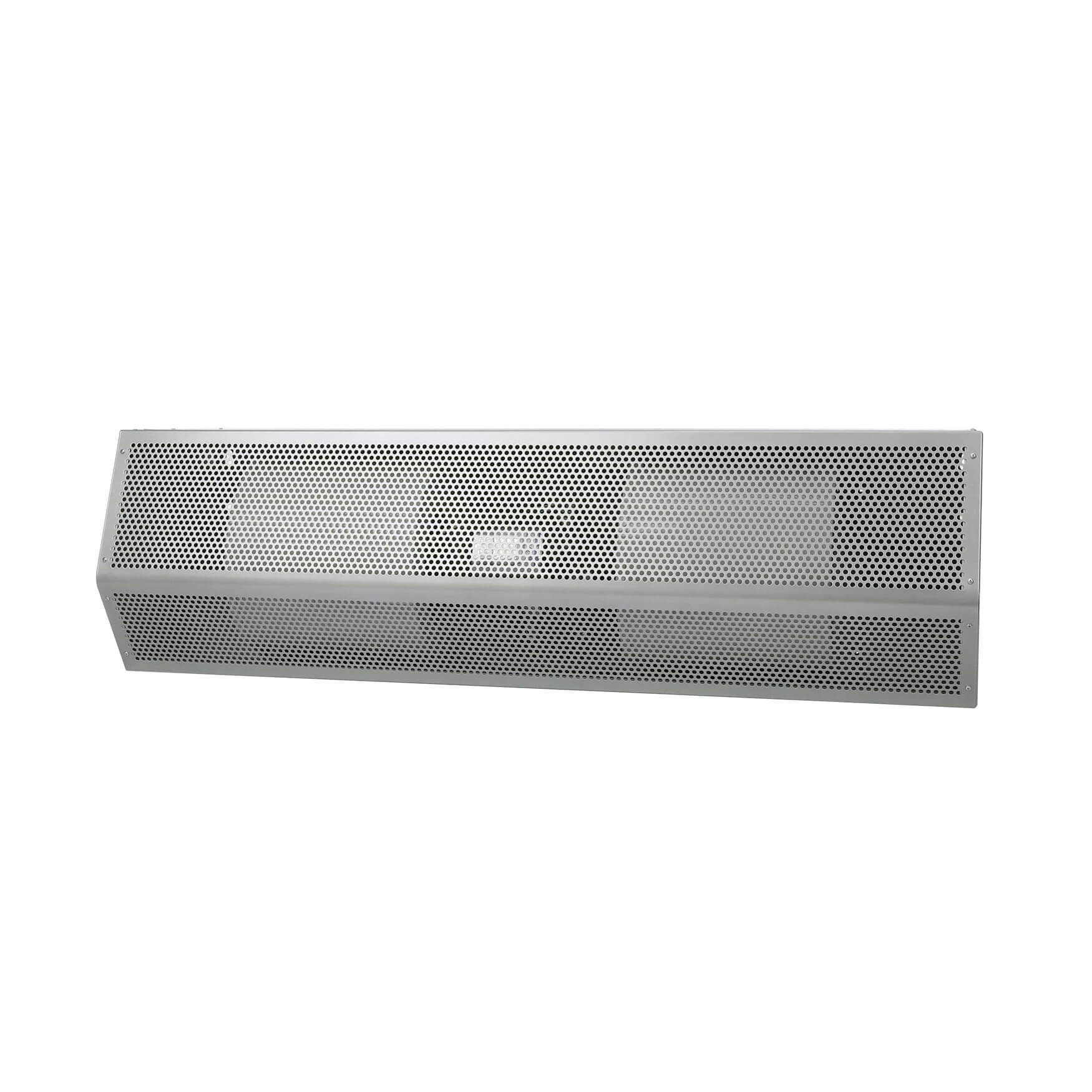

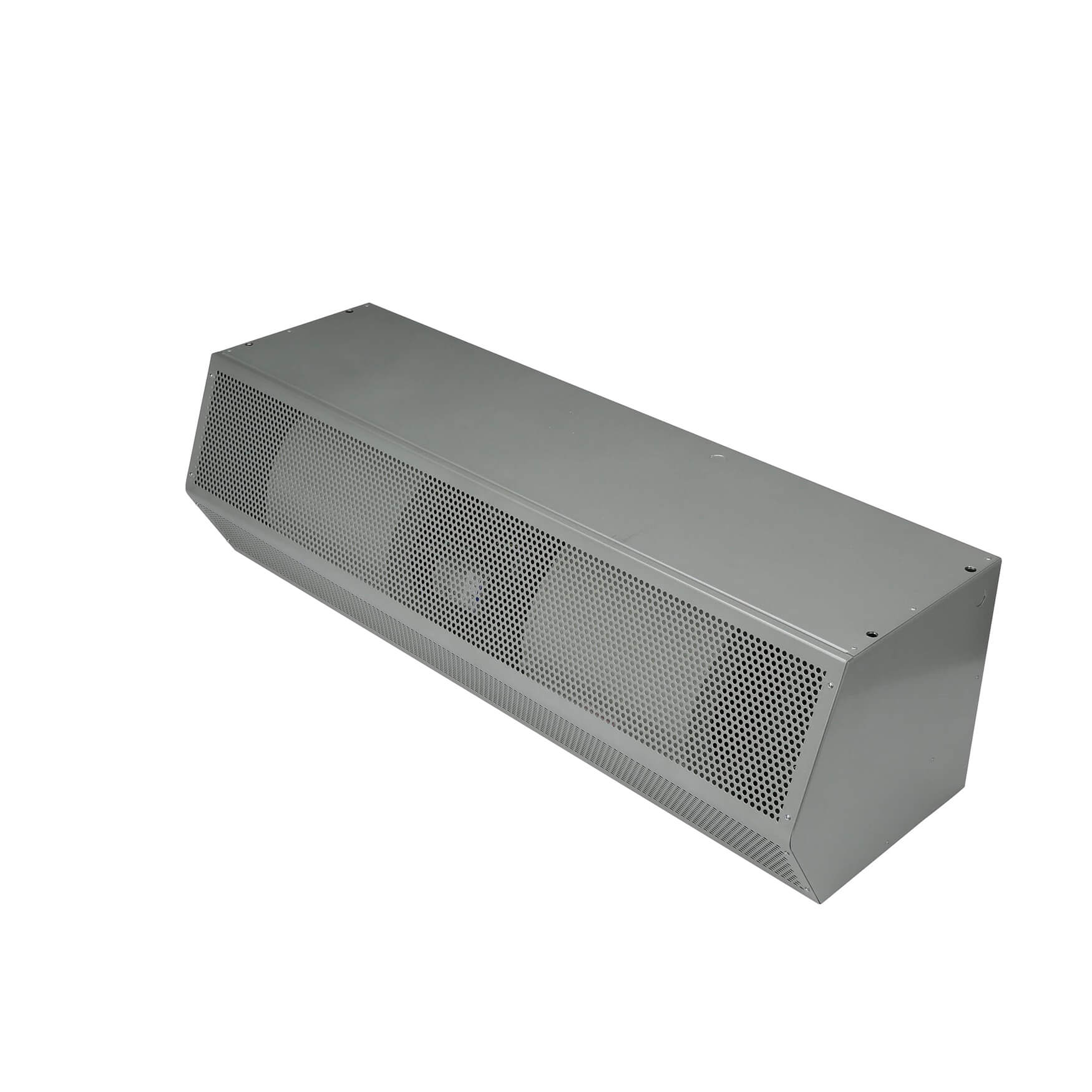

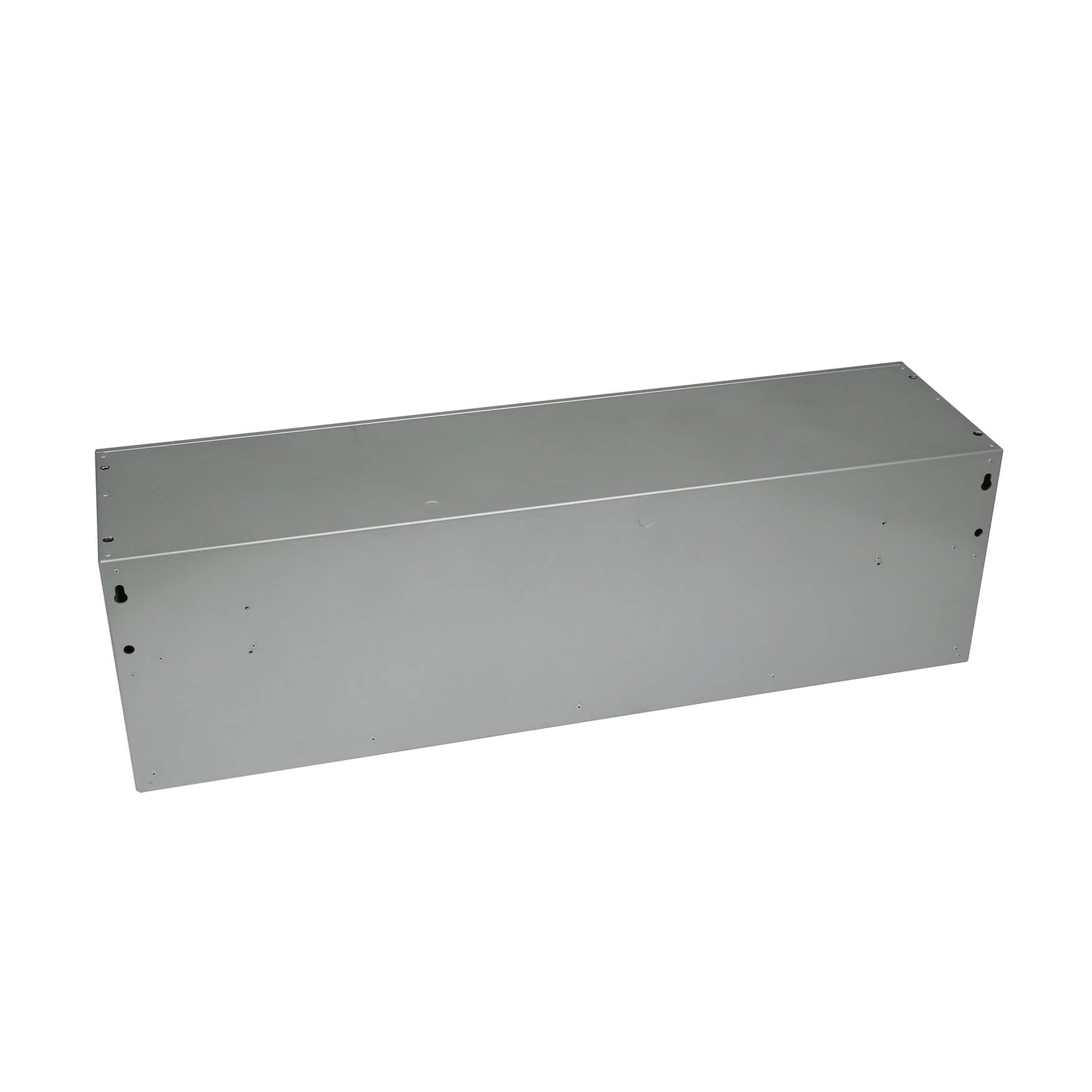

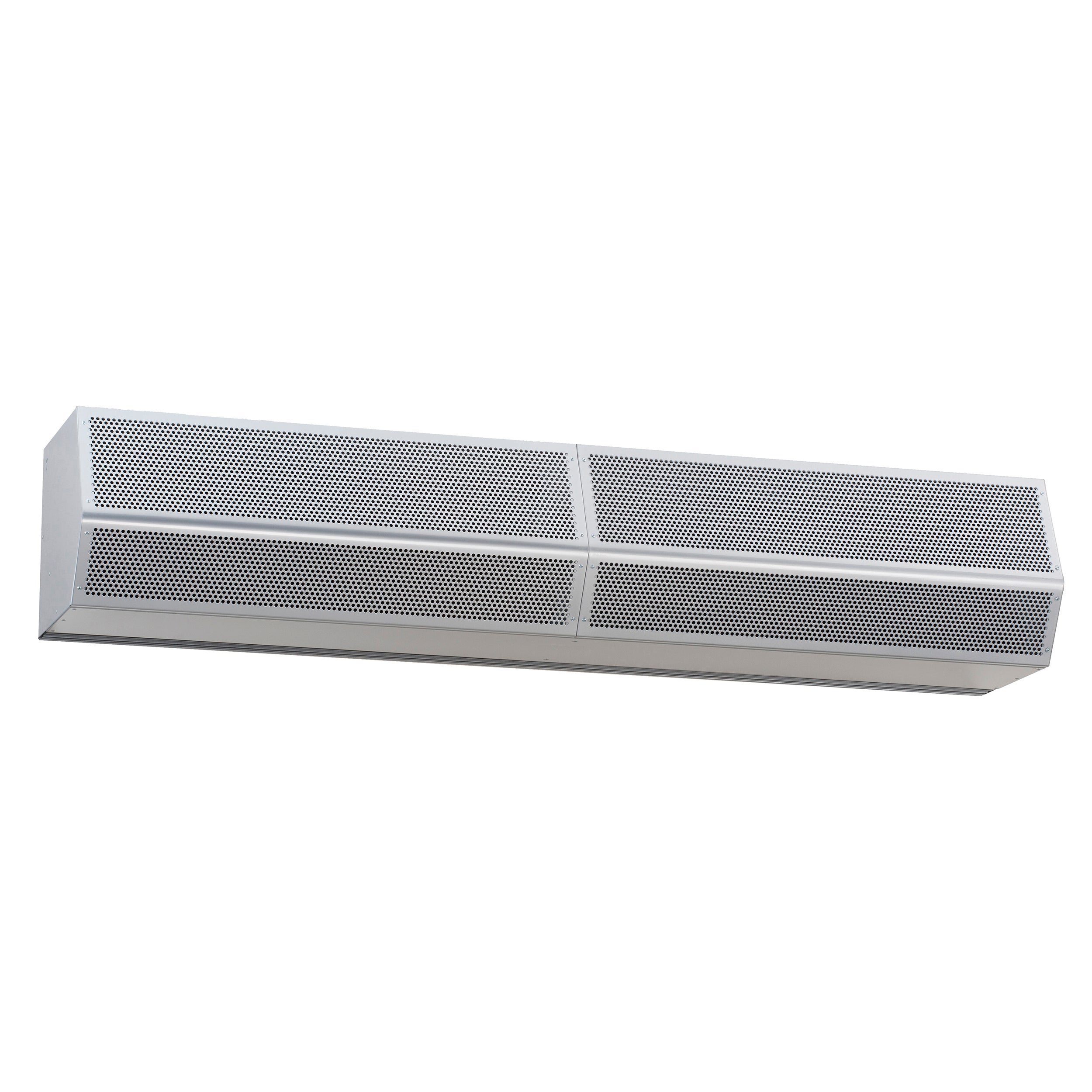

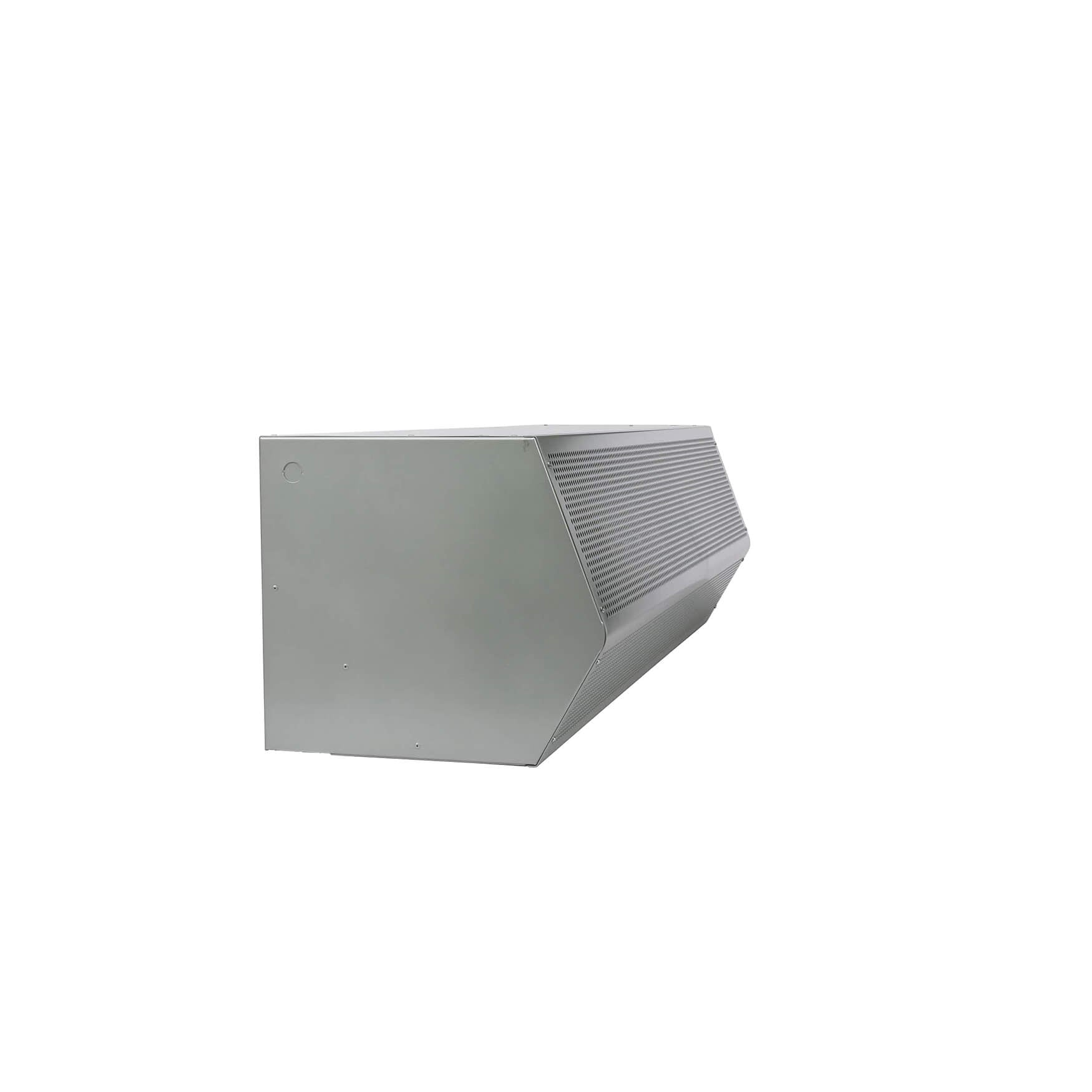

Mars HV248-1UH-TS Air Curtain, Multipurpose, 48 In

MARS
Brand: MARS
SKU: HV248-1UH-TS
Availability: Out Of Stock
Free shipping
$2,668.05
$2,668.05
LTL Delivery

This product weighs 125 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The MARS HV248-1UH-TS air curtain is designed for multiple types of door openings, offering insect control up to 12 feet and temperature/environmental separation up to 14 feet. The unheated unit features a 1 HP motor and a galvanized steel cabinet with a Titanium Silver powder coat finish. It has a maximum air volume of 2,447 cfm and a sound level of 70 dBA at 10 ft.

  • Provides environmental separation and protects openings with significant wind loads up to 12 ft high.
  • Features a 1 HP direct-drive motor.
  • ETL certified to conform to UL 2021 (US) and CSA 22.2 (Canada) standards.

Product Highlights

The MARS HV248-1UH-TS air curtain is ideal for restaurants, retail, healthcare, manufacturing, and transportation applications.

Product Information

Standard Information

  • Brand: MARS
  • Manufacturer Part Number: HV248-1UH-TS
  • Country of Origin: United States
Technical Specifications
Item
Air Curtain
Depth
15.63 ″
Phase
3
Width
48 in
Finish
Galvanized, Powder Coated
Height
14 ″
Series
HV2
Voltage
460V AC
Max. RPM
1,750 RPM
Motor HP
1 hp
Requires
Motor Control Panel And Door Limit Switch
Washdown
No
Frequency
60 Hz
Max. Amps
1.6
Standards
ETL
Drive Type
Direct Drive
Motor Type
3 Phase
Nozzle Width
48 in
Profile Type
Standard Profile
Housing Color
Silver
Maximum Speed
1,750 RPM
For Outdoor Use
Not Available
Grille Material
Steel
Motor Enclosure
Totally Enclosed Air Over
Air Curtain Item
Air Curtain
Air Curtain Type
Ambient Air
Number of Motors
1
Number of Speeds
1
Heated/Not Heated
Not Heated
Nameplate Voltage
460V AC
Power Consumption
1,360 W
Maximum Air Volume
2,447 cfm
Sound Level @ 10 ft
70 dBA
Air Temperature Rise
Not Applicable
Max. Mounting Height
14 ft
Maximum Air Velocity
4,000 fpm
Sanitation Certified
No
Air Curtain Air Volume
2447 cfm
For Frame Opening Width
4 ft
Nameplate Voltage/Phase
460V AC - 3 Ph
Nominal Voltage - Phase
480V AC - 3 Phase
Air Curtain Air Velocity
4000 fpm
Heater Power Consumption
Not Applicable
Air Curtain dBA @ 10 Feet
70
Motor Horsepower per Motor
1 hp
Air Curtain Max. Door Width
4 ft
Air Curtain Housing Material
Steel
Mounting Height for Insect Control
12 ft
Country of Origin (subject to change)
United States
Max. Mounting Height Environment/Insect
14 ft / 12 ft
Mounting Height for Temperature Control
14 ft
Size
48"
Material
Galvanized Steel
Hertz
60
Type
Unheated
FLA 3 Phase - 460V
1.6
Decibels
70
Horse Power
1
Max Volume (CFM)
2447
Environmental - Max Height (feet)
14
Insect - Max Height (feet)
12
Heating Mode
Unheated
Nozzle Width (inches)
48
Unit Width (inches)
48
Unit Height (inches)
14
Wind Stopping Capability (MPH)
12
Motors
1 motor
Voltage Rating
460/3/60
Voltage Code
H
Amps
1.6
Uniformity (%)
88
dBA
70
Door Width (Inches)
48
Number of Poles
3
Max Volume
4000
Max Velocity
4000
Frequency (Hertz)
60
AMCA Uniformity
88
Sound dBA
70
Manufacturer
Mars Air Systems
Model Number
HV248-1UH-TS
Brand
MARS AIR DOORS
Overall Dimensions
14 in H x 48 in W x 16 in D
Door Height
10' - 12'
Certifications
cETLus
