Product Description

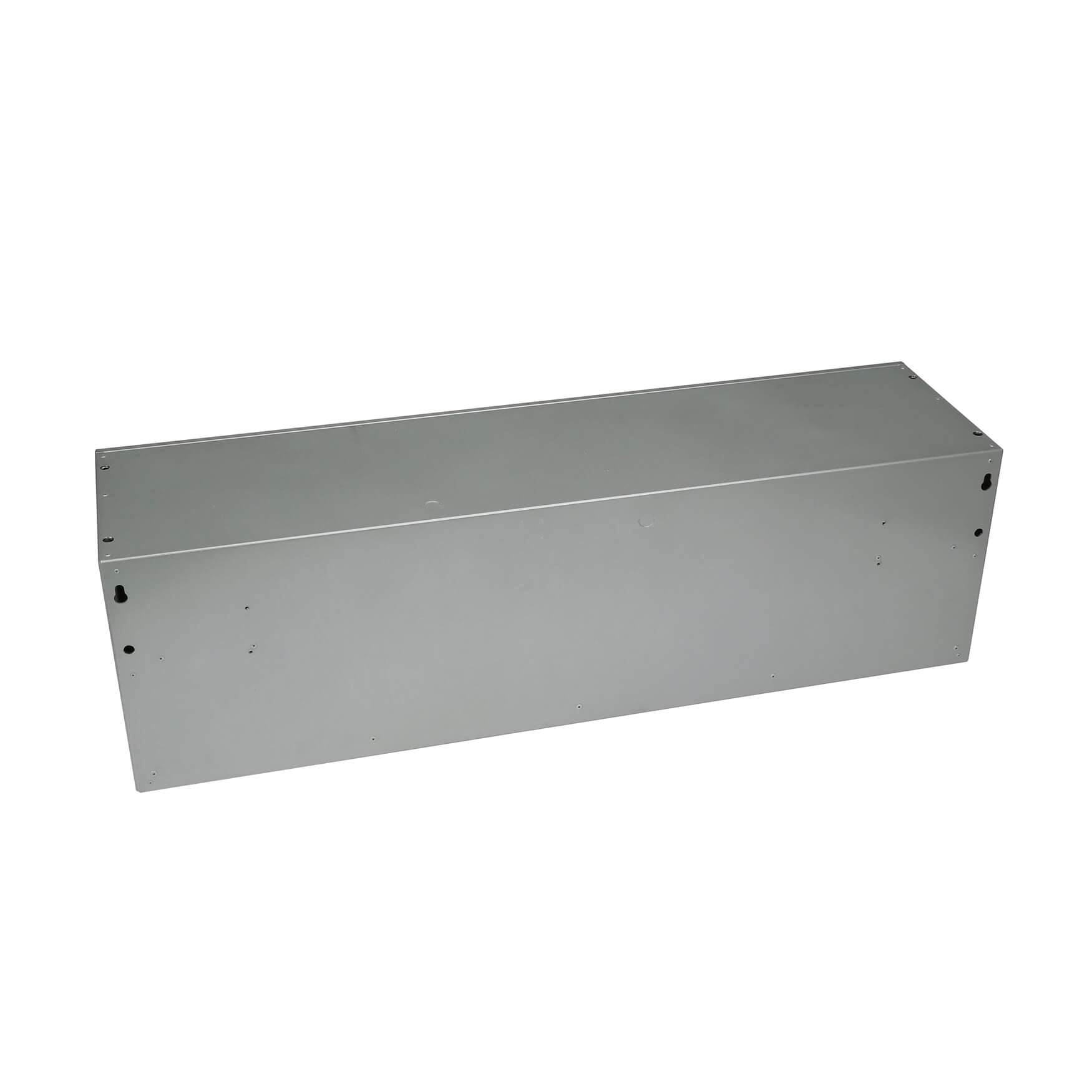

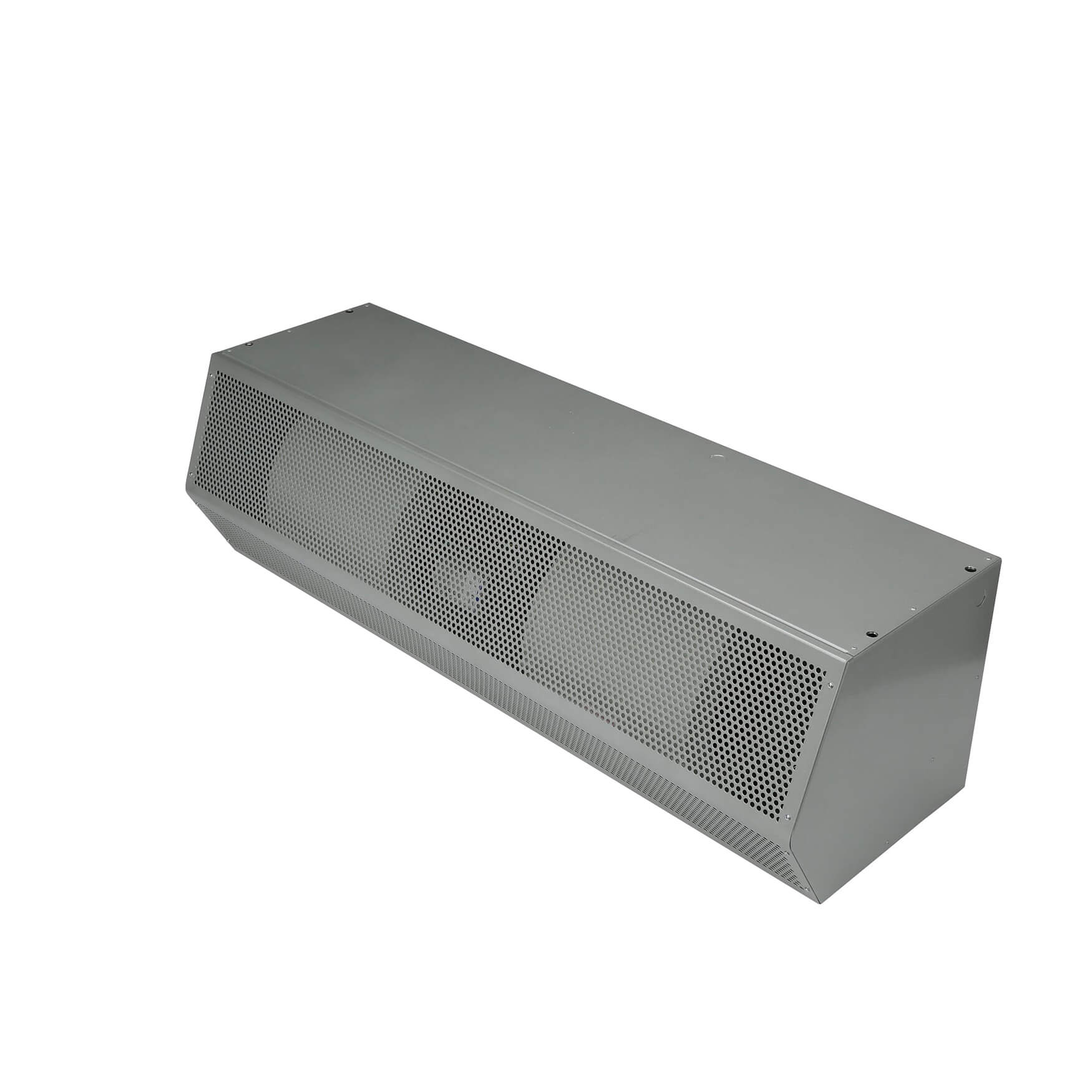

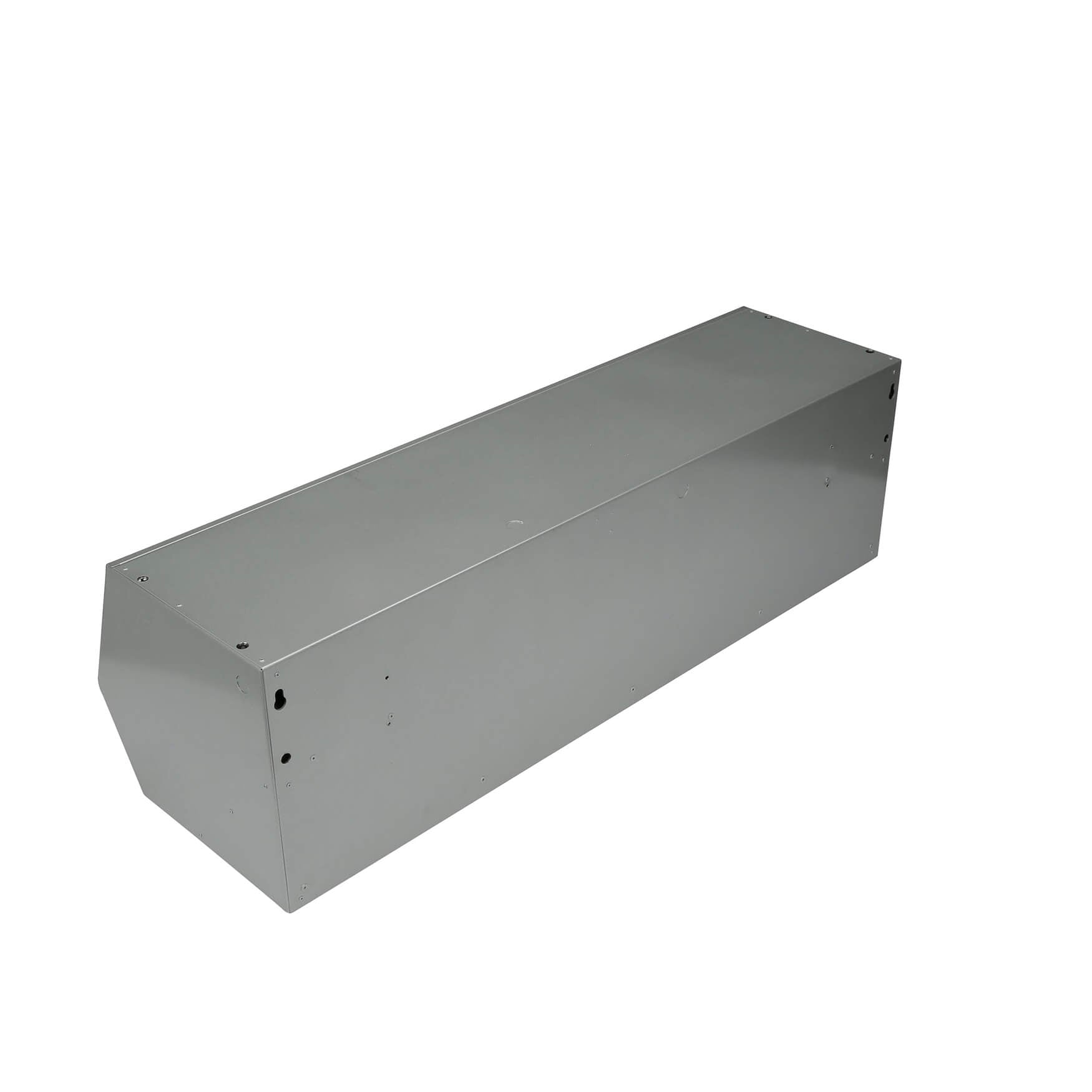

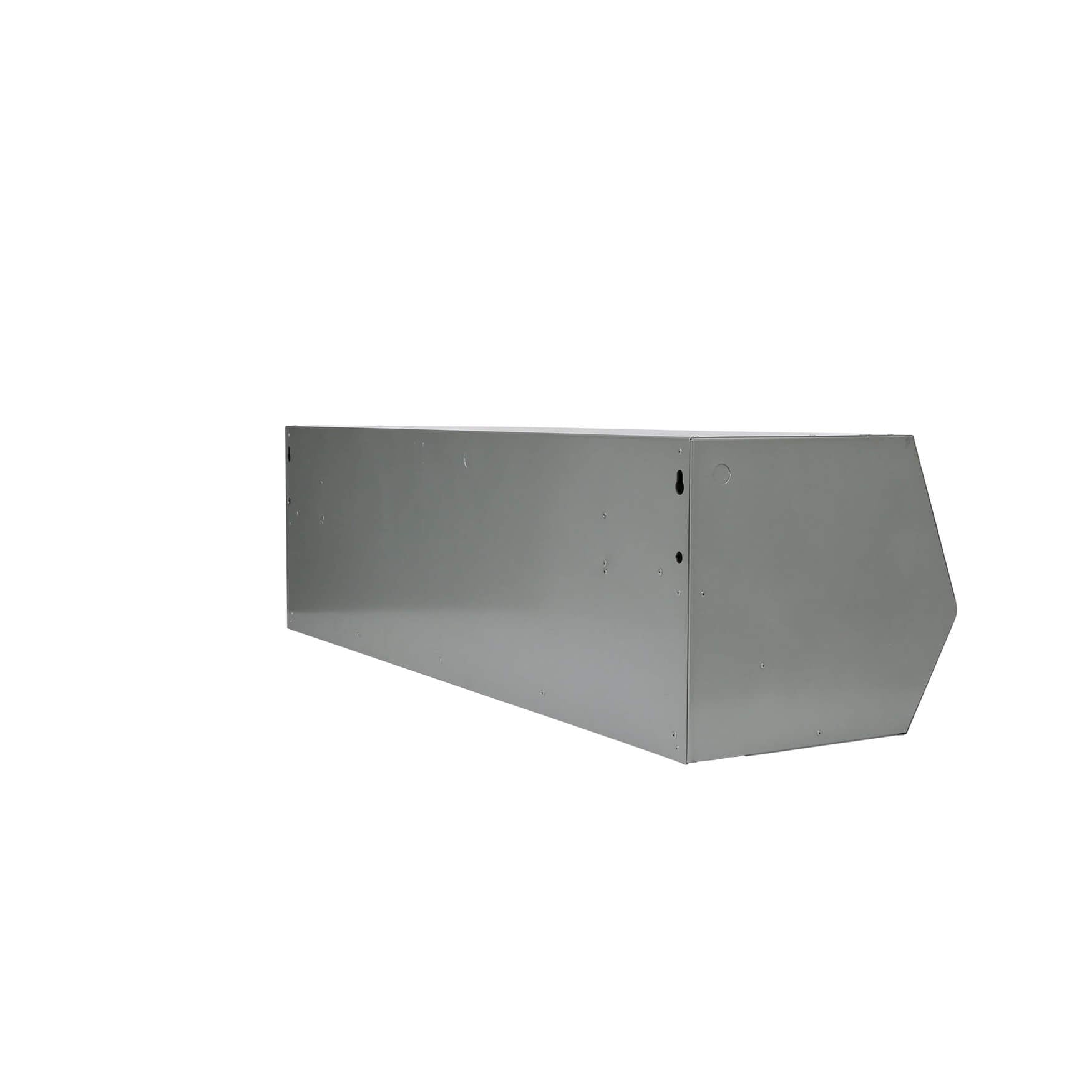

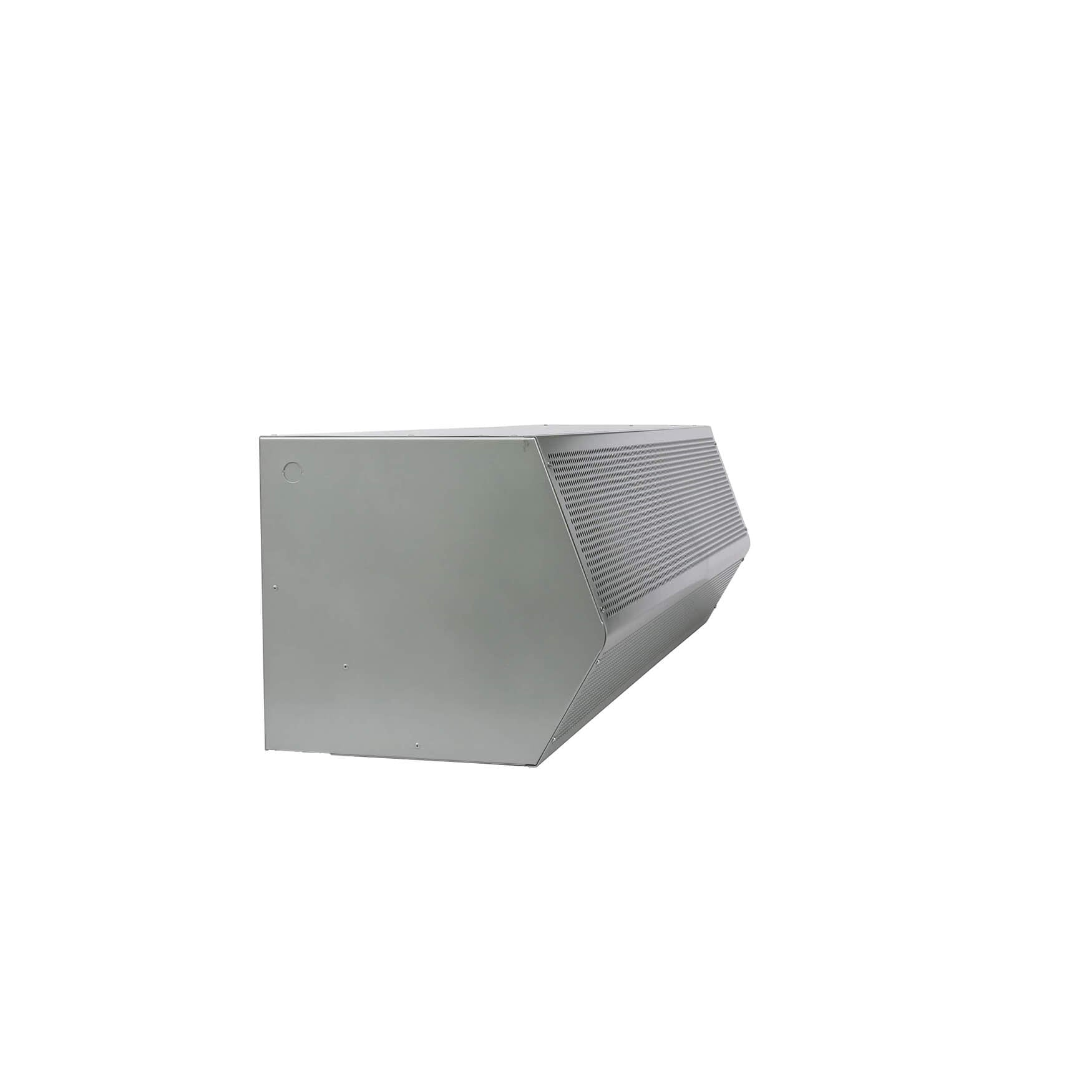

The MARS HV248-1UG-TS air curtain is designed for multipurpose use with a 48-inch width. This steel air curtain is suitable for frame openings of 4 ft. It offers a maximum air velocity of 4,000 fpm and a maximum air volume of 2,447 cfm, operating at 208/230V AC and 60 Hz.
- Suitable for temperature control up to 14 ft mounting height.
- Effective for insect control up to 12 ft mounting height.
- Features a three-phase motor with a sound level of 70 dBA at 10 ft.
Product Highlights
Ideal for maintaining temperature and preventing insects in doorways, this air curtain provides a powerful and efficient air barrier.
Product Information
Standard Information
-
Brand: MARS
-
Manufacturer Part Number: HV248-1UG-TS
-
Country of Origin: United States
Technical Specifications
-
Hz: 60
-
Item: Air Curtain
-
Phase: 3-Ph
-
Width: 48 in
-
Finish: Galvanized, Powder Coated
-
Height: 14 in
-
Series: HV2
-
Voltage: 208-230v
-
Max. RPM: 1,750 RPM
-
Motor HP: 1 hp
-
Washdown: No
-
Frequency: 60 Hz
-
Max. Amps: 3.3/3.2
-
Standards: ETL
-
Drive Type: Direct Drive
-
Nozzle Width: 48 in
-
Profile Type: Standard Profile
-
Housing Color: Silver
-
Maximum Speed: 1,750 RPM
-
Grille Material: Steel
-
Motor Enclosure: Totally Enclosed Air Over
-
Nominal Voltage: 208/230V AC
-
Air Curtain Item: Air Curtain
-
Air Curtain Type: Ambient Air
-
Number of Motors: 1
-
Number of Speeds: 1
-
Heated/Not Heated: Not Heated
-
Nameplate Voltage: 208/230V AC
-
Power Consumption: 1,360 W
-
Air Curtain Finish: Galvanized
-
Air Curtain Heated: No
-
Maximum Air Volume: 2,447 cfm
-
Sound Level @ 10 ft: 70 dBA
-
Air Temperature Rise: Not Applicable
-
Max. Mounting Height: 12 ft
-
Maximum Air Velocity: 4,000 fpm
-
Sanitation Certified: No
-
Air Curtain Air Volume: 2447 cfm
-
For Frame Opening Width: 4 ft
-
Nameplate Voltage/Phase: 208/230V AC - 3 Ph
-
Nominal Voltage - Phase: 208/230V AC - 3 Phase
-
Air Curtain Air Velocity: 4000 fpm
-
Heater Power Consumption: Not Applicable
-
Air Curtain dBA @ 10 Feet: 70 dBA
-
Motor Horsepower per Motor: 1 hp
-
Air Curtain Max. Door Width: 4 ft
-
Air Curtain Housing Material: Steel
-
Maximum Operating Temperature: Not Available
-
Minimum Operating Temperature: Not Available
-
Mounting Height for Insect Control: 12 ft
-
Country of Origin (subject to change): United States
-
Max. Mounting Height Environment/Insect: 14 ft / 12 ft
-
Mounting Height for Temperature Control: 14 ft
-
Horsepower: 1
-
Environmental - Max Height (feet): 14
-
Insect - Max Height (feet): 12
-
Heating Mode: Unheated
-
Nozzle Width (inches): 48
-
Unit Width (inches): 48
-
Unit Height (inches): 14
-
Wind Stopping Capability (MPH): 12
-
Motors: 1
-
Air Flow Certified (AMCA): Yes
-
Voltage Rating: 208-230/3/60
-
Voltage Code: G
-
Amps: 3.3/3.2
-
dBA: 70
-
Manufacturer: Mars Air Systems
-
Hertz: 60
-
Brand: MARS
-
Model: HV248-1UG-TS
-
Weight: 131.0000
-
Length: 21.000
-
Application: Multiple types of door openings
-
Insect Control: Up to 12 feet
-
Temperature/Environmental Separation: Up to 14 feet
-
Widths: 36" to 144"
-
Configurations: Ambient, Electric, Steam and Hot Water
-
Standard Color: Powder coated Silver metal housing
-
Available Colors: White, Black or 304 Stainless Steel
