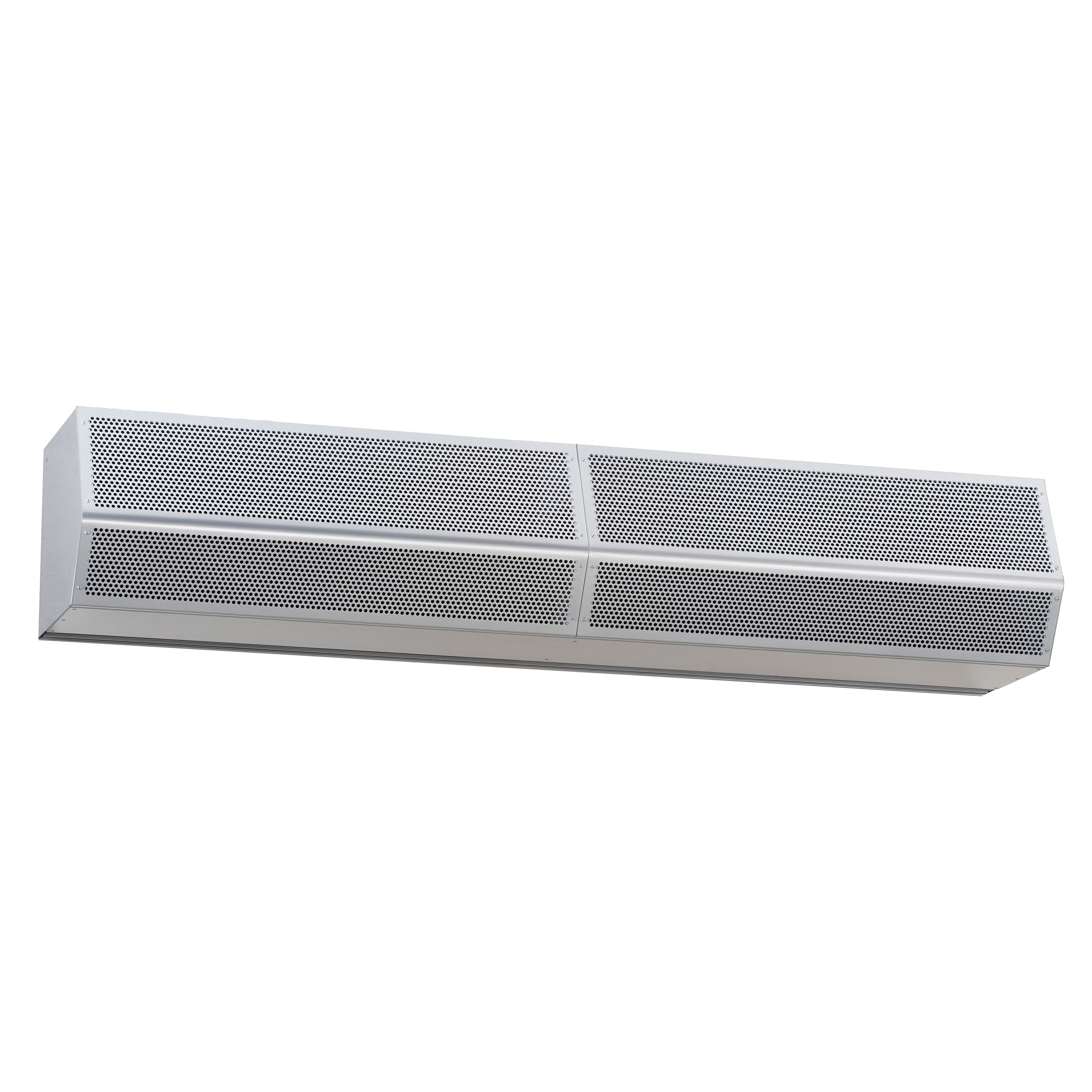

Mars HV248-1UD-TS High Velocity Series 2 Air Curtain 48 inches Unheated

Product Description

The MARS HV248-1UD-TS High Velocity Series 2 air curtain features a 1 horsepower motor suitable for industrial applications. It separates environments and protects openings with wind loads up to 12 ft. high. This unheated air curtain has a durable metal construction with a corrosion-resistant powder-coated finish. Designed for 48" door openings.

• 1 hp direct-drive motor
• Environmental protection up to 12 feet
• Flying-insects protection up to 10 feet

Product Highlights

The HV series is capable of separating environments and protecting openings with significant wind loads.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: HV248-1UD-TS
• Country of Origin: USA

Technical Specifications

• Series: High Velocity
• Size: 48"
• Material: Galvanized Steel
• Phase: 1
• Voltage: 208/230V
• Hertz: 60
• Type: Unheated
• Horse Power: 1
• Max Volume (CFM): 2447
• MPN: HV248-1UD-TS
• Environmental - Max Height (feet): 14
• Insect - Max Height (feet): 12
• Heating Mode: Unheated
• Nozzle Width (inches): 48
• Unit Width (inches): 48
• Unit Height (inches): 14
• Wind Stopping Capability (MPH): 12
• Motors: 1
• Air Flow Certified (AMCA): Yes
• Amps: 5
• Uniformity (%): 88
• dBA: 70
• Manufacturer: Mars Air Systems
• Door Width (Inches): 48
• Number of Poles: 1
• Certifications: cETLus
• Air Volume (CFM): 2447
• Application: Shipping & Receiving Areas
• ETL Listed: Yes
• Wattage: 1,360 Watts
• Max Environmental Separation Height: 14 Feet
• Max Insect Blocking Height: 12 Feet
