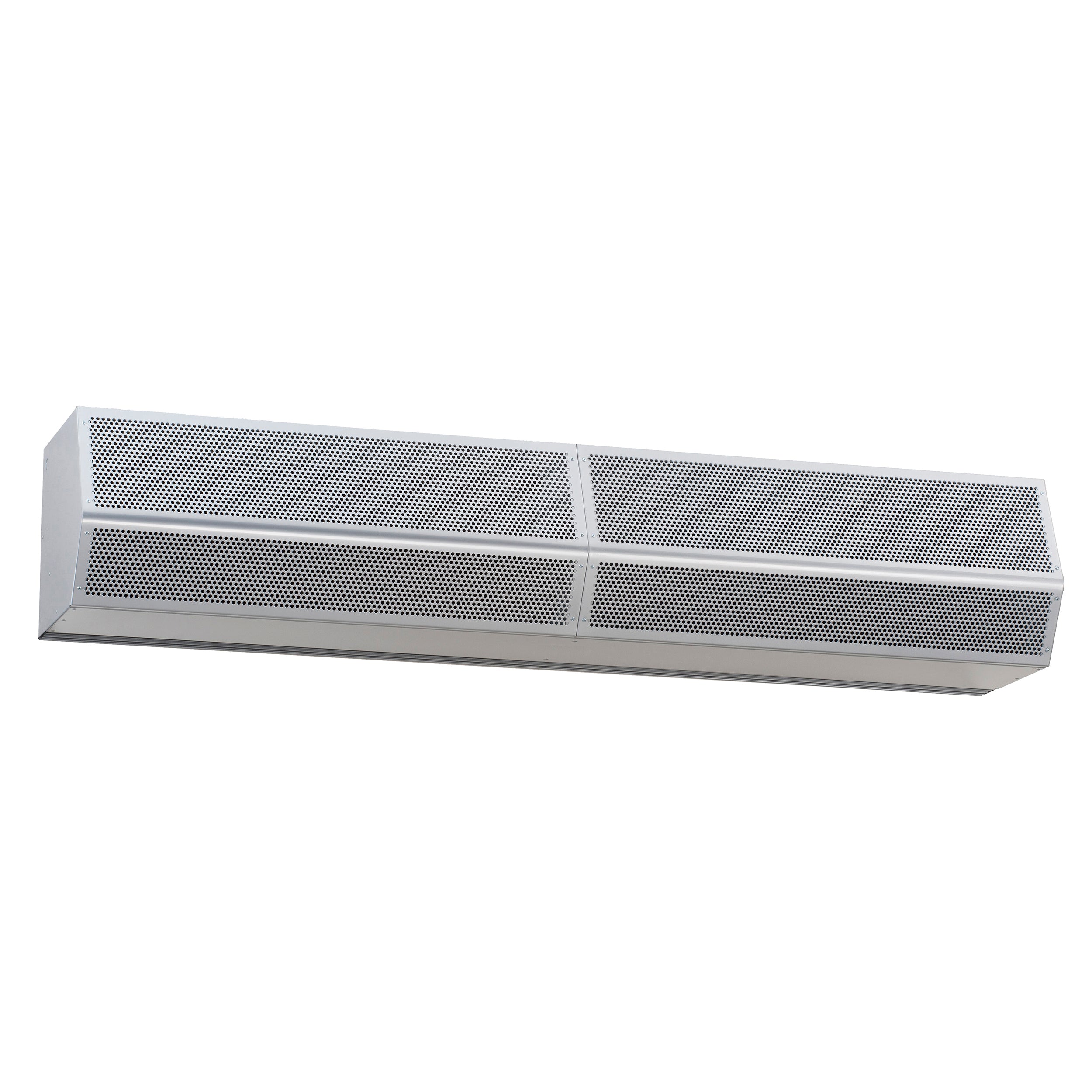

Mars HV242-1UH-TS High Velocity Series 2 Air Curtain 1 HP (42 inch)

Product Description

The MARS HV242-1UH-TS High Velocity Series 2 air curtain features a 1 HP motor suitable for industrial applications. It separates environments and protects openings with wind loads up to 12 ft. high. Constructed of durable metal with a corrosion-resistant powder-coated finish. Easy to install and made in the USA.

• 1 HP direct-drive motor
• Environmental protection up to 12 feet
• Flying-insects protection up to 10 feet

Product Highlights

The HV series is capable of separating environments and protecting openings with significant wind loads. Suitable for industrial applications.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: HV242-1UH-TS
• Country of Origin: USA

Technical Specifications

• Series: High Velocity
• Size: 42"
• Phase: 3
• Voltage: 460V
• Hertz: 60
• Type: Unheated
• Decibels: 70
• Horse Power: 1
• Max Volume (CFM): 2322
• Speeds: 2
• Environmental - Max Height (feet): 14
• Insect - Max Height (feet): 12
• Heating Mode: Unheated
• Nozzle Width (inches): 42
• Unit Width (inches): 42
• Unit Height (inches): 14
• Wind Stopping Capability (MPH): 12
• Motors: 1
• Air Flow Certified (AMCA): Yes
• Amps: 1.6
• Uniformity (%): 93
• Depth: 15.63"
• Horse Power Per Motor: 1 hp
• Max Opening Height Window Door: 14 ft
• Certifications: cETLus
• Frequency (Hertz): 60
• Number of Poles: 3
• Max Volume: 4000
• Max Velocity: 4570
• Sound dBA: 70
• Finish: Titanium Silver Powder Coat
