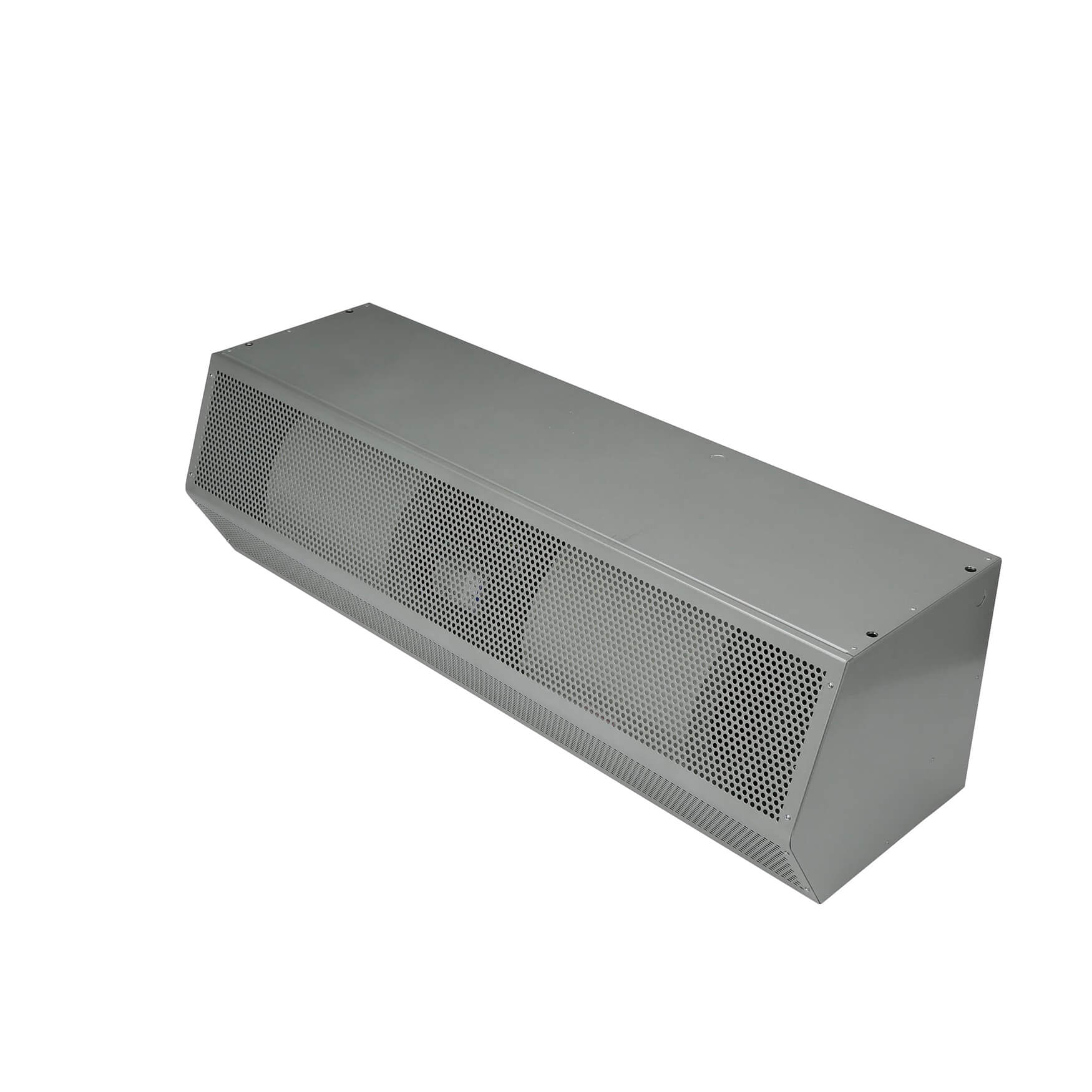

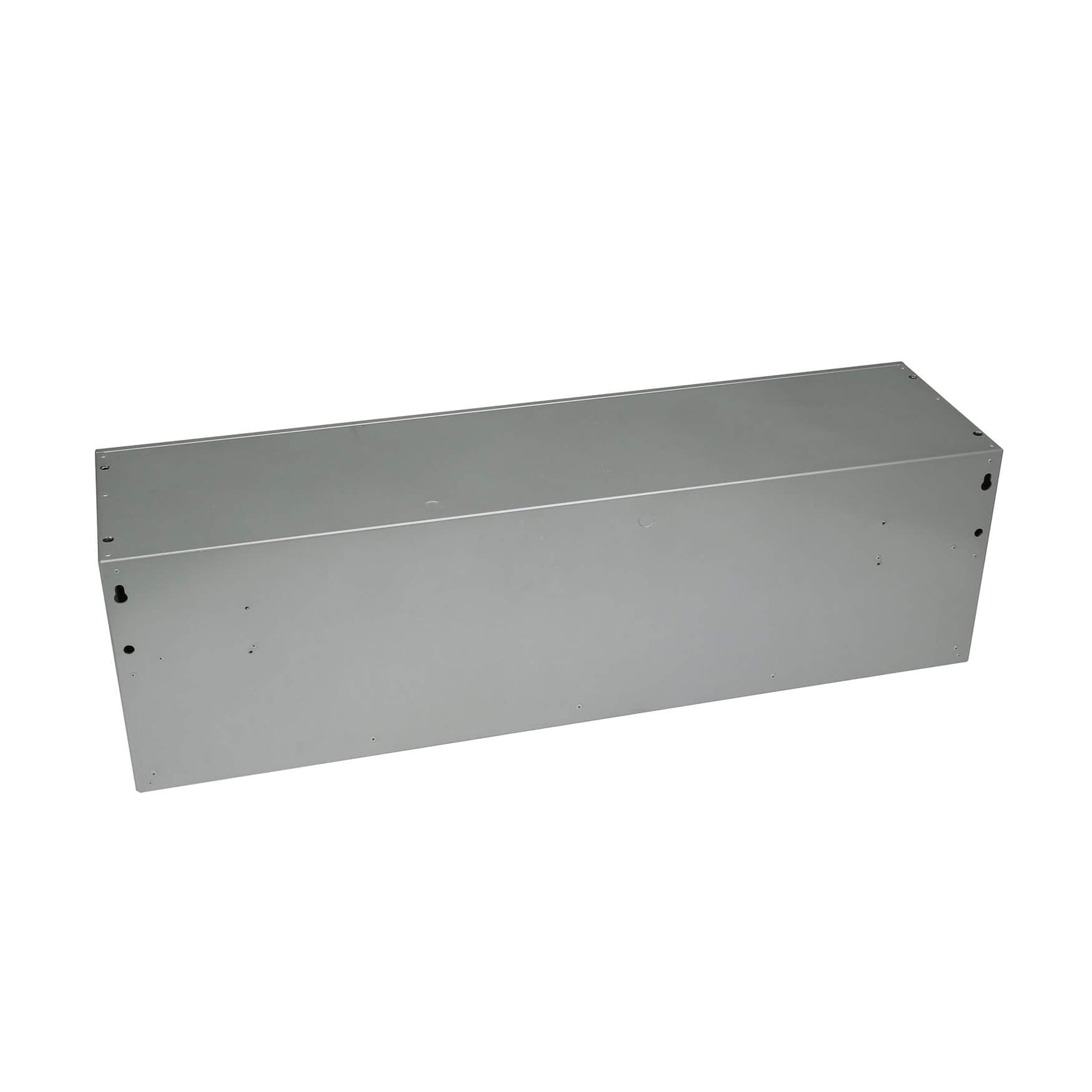

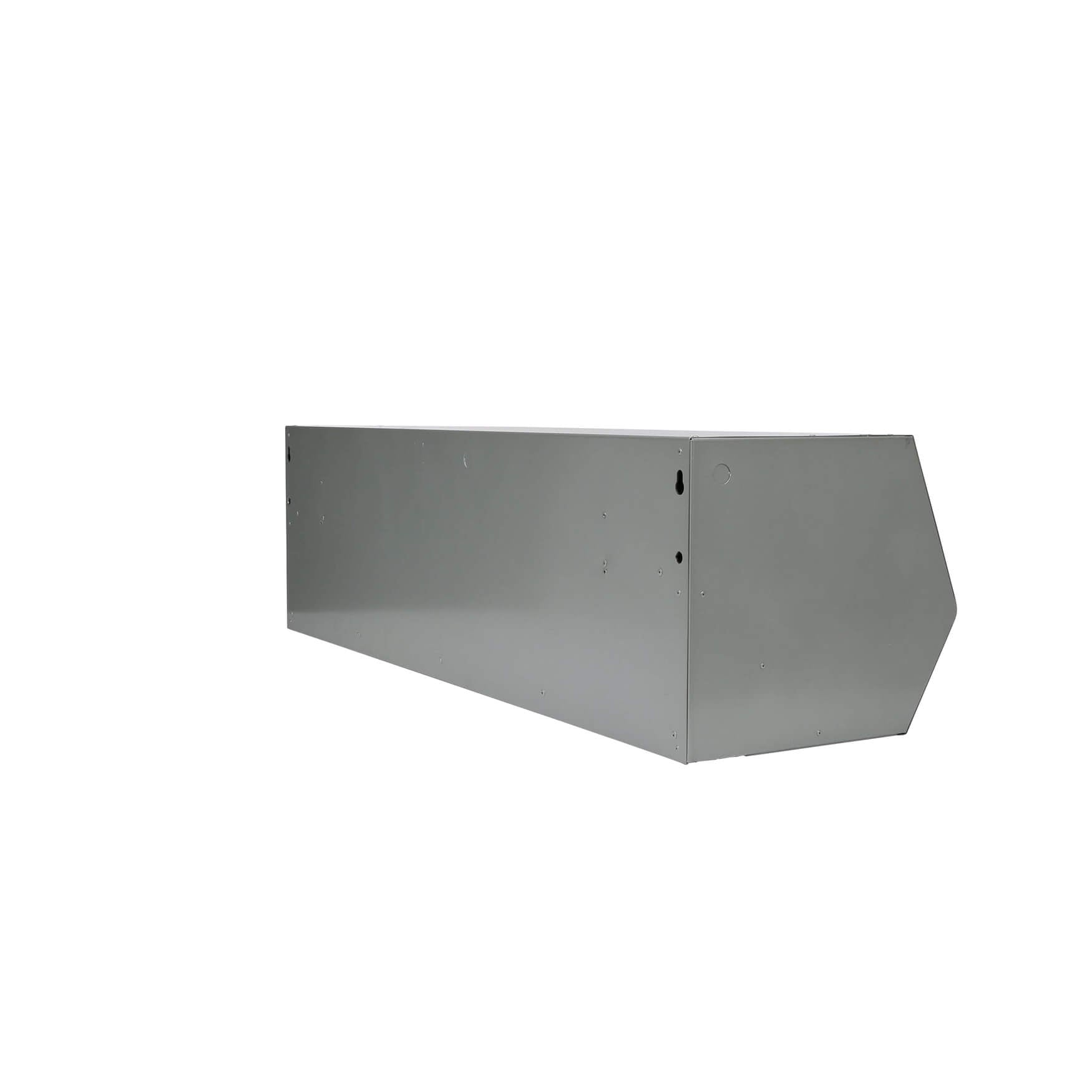

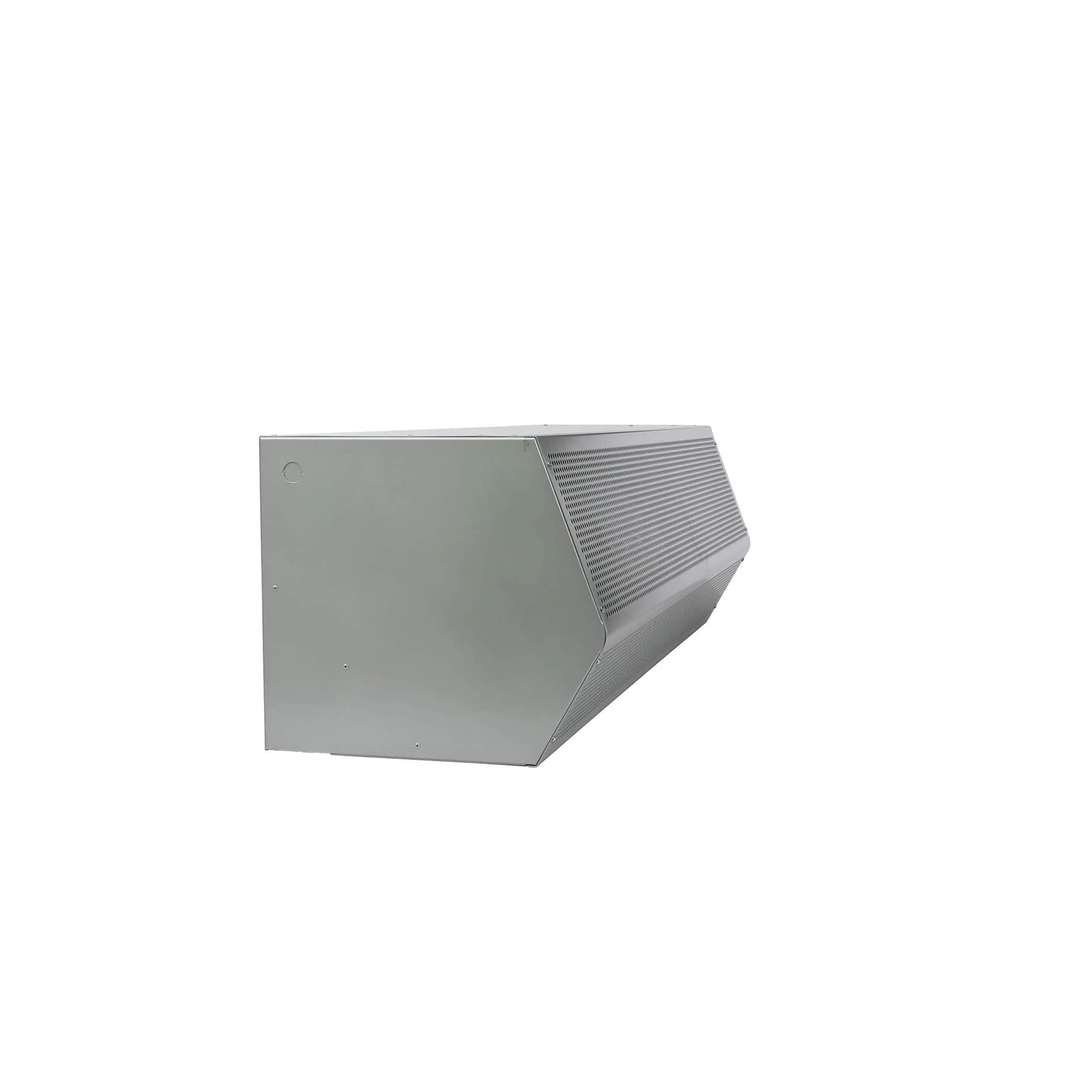

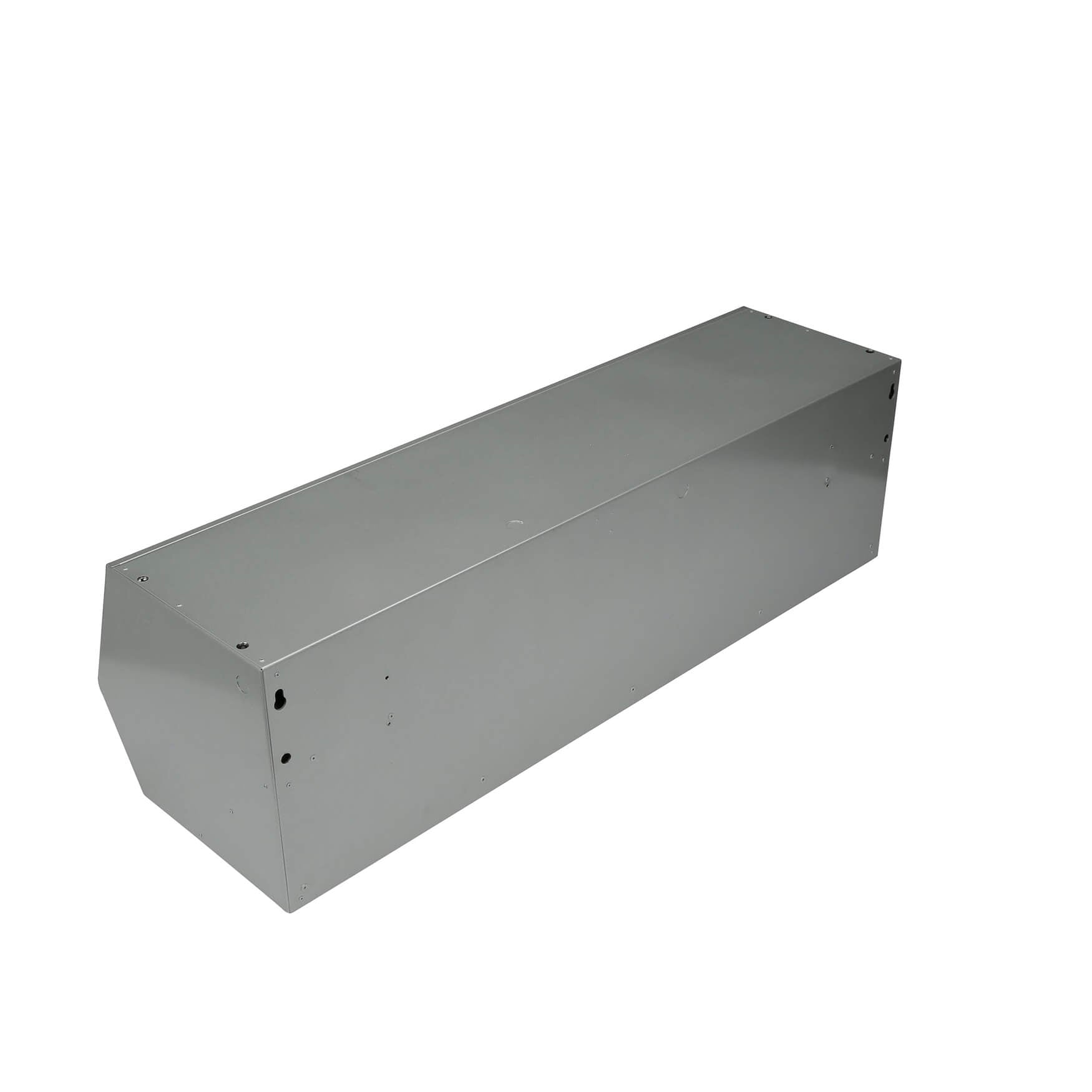

Mars HV242-1UD-TS High Velocity Series 2 Air Curtain 42 inches 1 HP

Product Description

The MARS HV242-1UD-TS High Velocity Series 2 air curtain features a 1 HP motor suitable for industrial applications. It separates environments and protects openings with wind loads up to 12 ft. high. This unheated unit has a durable metal construction with a corrosion-resistant powder-coated finish. It is designed for 42" openings.

• Features a 1 HP direct-drive motor.
• Capable of environmental protection up to 14'.
• Provides flying-insect protection up to 12'.

Product Highlights

This air curtain is ideal for high-traffic areas needing airflow control, maintaining interior temperature, and minimizing dust and fumes.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: HV242-1UD-TS
• Country of Origin: USA

Technical Specifications

• Series: High Velocity
• Size: 42"
• Material: Galvanized Steel
• Phase: 1
• Voltage: 208/230V
• Hertz: 60
• Type: Unheated
• Decibels: 70
• Horse Power: 1
• Max Volume (CFM): 2322
• Speeds: 2
• MPN: HV242-1UD-TS
• Environmental - Max Height (feet): 14
• Insect - Max Height (feet): 12
• Heating Mode: Unheated
• Nozzle Width (inches): 42
• Unit Width (inches): 42
• Unit Height (inches): 14
• Wind Stopping Capability (MPH): 12
• Motors: 1
• Air Flow Certified (AMCA): Yes
• Amps: 5
• Uniformity (%): 93
• FLA (Ampacity): 5Amps
• Door Width (Inches): 42
• Door Height: 10' - 12'
• Number of Poles: 1
• Max Volume: 4000
• Max Velocity: 4570
• # of Motors: 1
• Sound dBA: 70
• Width (side - side): 40" - 47"
• Manufacturer: Mars Air Systems
• Air Volume (CFM): 2322
• Application: Shipping & Receiving Areas
• ETL Listed: Yes
• Exterior Color: Silver
• Max Environmental Separation Height: 14 Feet
• Max Insect Blocking Height: 12 Feet
• Power: Electric
• Volts: 208/230 Volts
• Wattage: 1,305 Watts
• Depth: 15.63″
• Height: 14″
• Horse Power Per Motor: 1 hp
• Max Opening Height Window Door: 14 ft
• Certifications: cETLus
• Depth (in.): 15.625
• Length (in.): 42
• Product Type: Unheated
