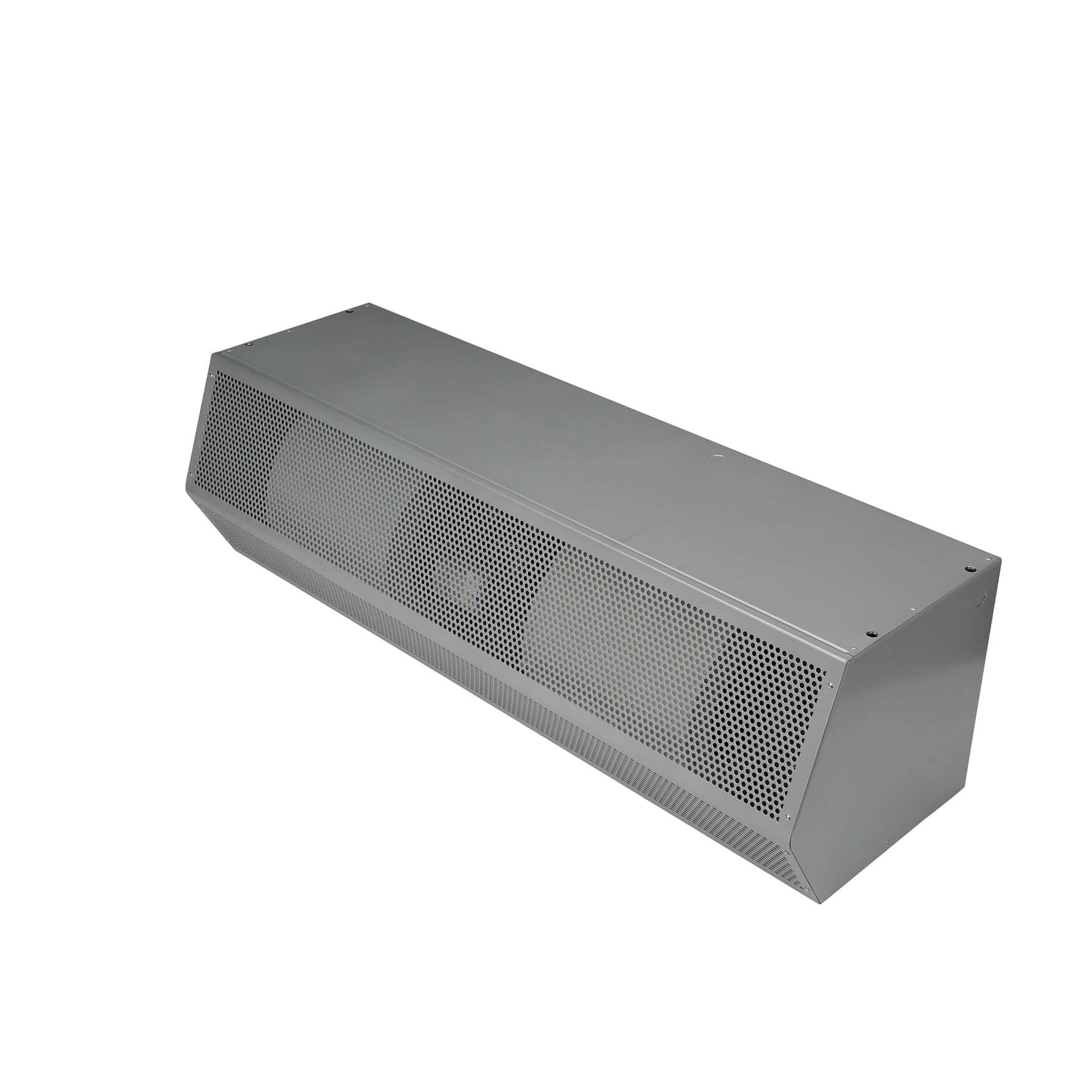

Mars HV242-1UA-TS Series 2 High Velocity Air Curtain 1 HP 42 inches

Product Description

The MARS HV242-1UA-TS Series 2 High Velocity air curtain features a 1 HP motor suitable for industrial applications. It separates environments and protects openings with wind loads up to 12 ft high. Designed for insect control up to 12 feet and temperature separation up to 14 feet. The cabinet is made of galvanized steel with a Titanium Silver powder coat finish.

• 1 HP Continuous Duty TEAO Motor
• Sleek self-contained one piece heavy gauge corrosion proof paint lock metal design
• Adjustable air directional vanes with 40° sweep front to back

Product Highlights

This unheated air curtain is ideal for shipping/receiving doors, customer entrances, cold storage rooms and more.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: HV242-1UA-TS
• Country of Origin: USA

Technical Specifications

• CFM: 4000 CFM
• Type: Standard
• Brand: Mars
• Series: High Velocity 2 Series
• Voltage: 115 V
• Decibels: 70
• Material: Galvanized Steel
• Horsepower: 1 HP
• Heating Option: Unheated
• Door Width: 42 in
• 1 Phase 115V FLA: 9.0 A
• Door Height: 12 ft
• Max Door Height: 12 ft
• Manufacturers Part Number: HV242-1UA-TS
• Environmental - Max Height (feet): 14
• Insect - Max Height (feet): 12
• Heating Mode: Unheated
• Nozzle Width (inches): 42
• Unit Width (inches): 42
• Unit Height (inches): 14
• Wind Stopping Capability (MPH): 12
• Motors: 1 motor
• Air Flow Certified (AMCA): Yes
• Voltage Rating: 115/1/60
• Voltage Code: A
• Air Curtain Air Volume (CFM): 2322
• Amps: 9
• Uniformity (%): 93
• Hertz: 60Hz
• Finish: Titanium Silver Powder Coat
• Manufacturer: Mars Air Systems
• Phase: 1-Ph
• Max Opening Height Window Door: 14 ft
• Certifications: cETLus
• Depth (in.): 15.625
• Length (in.): 42
• Product Type: Unheated
