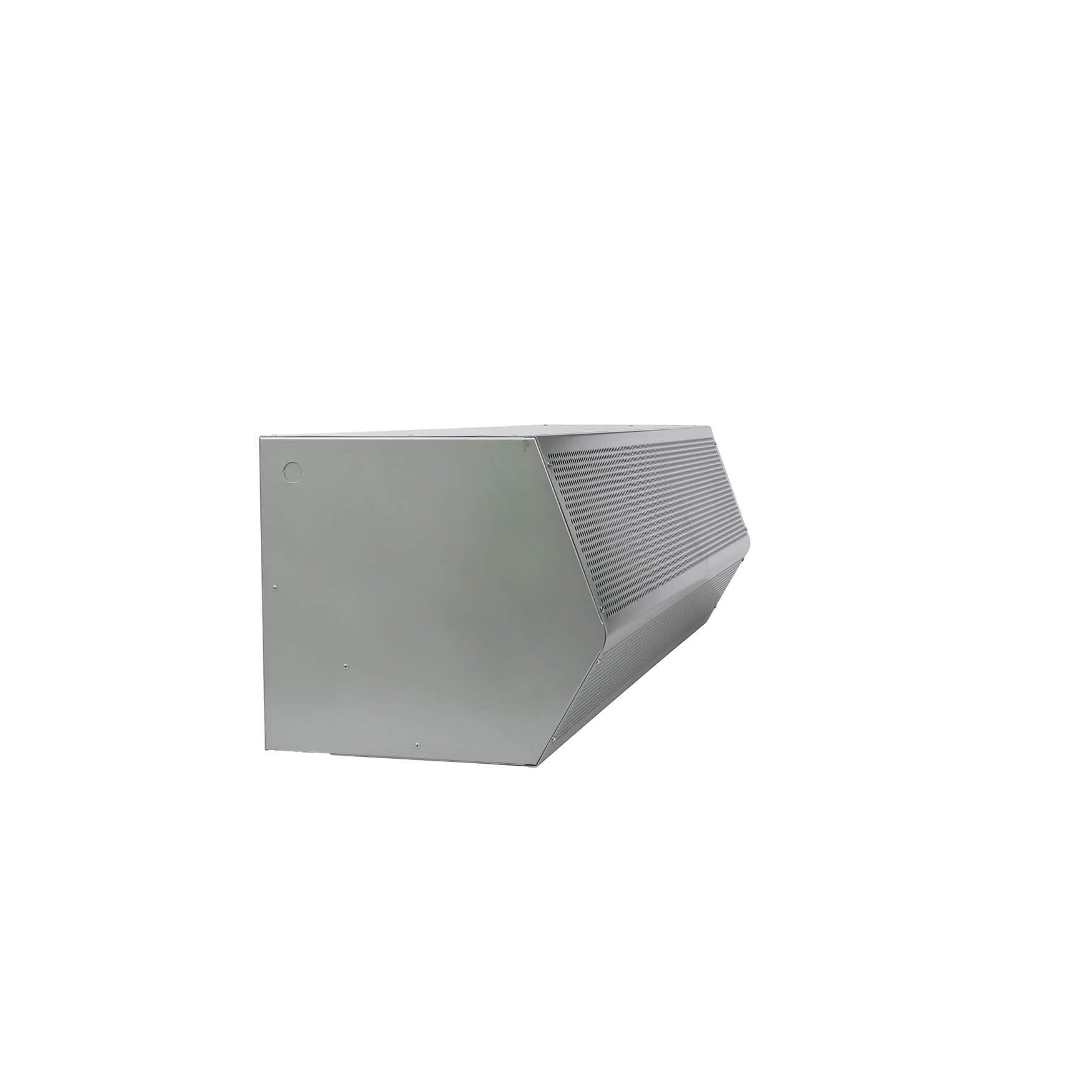

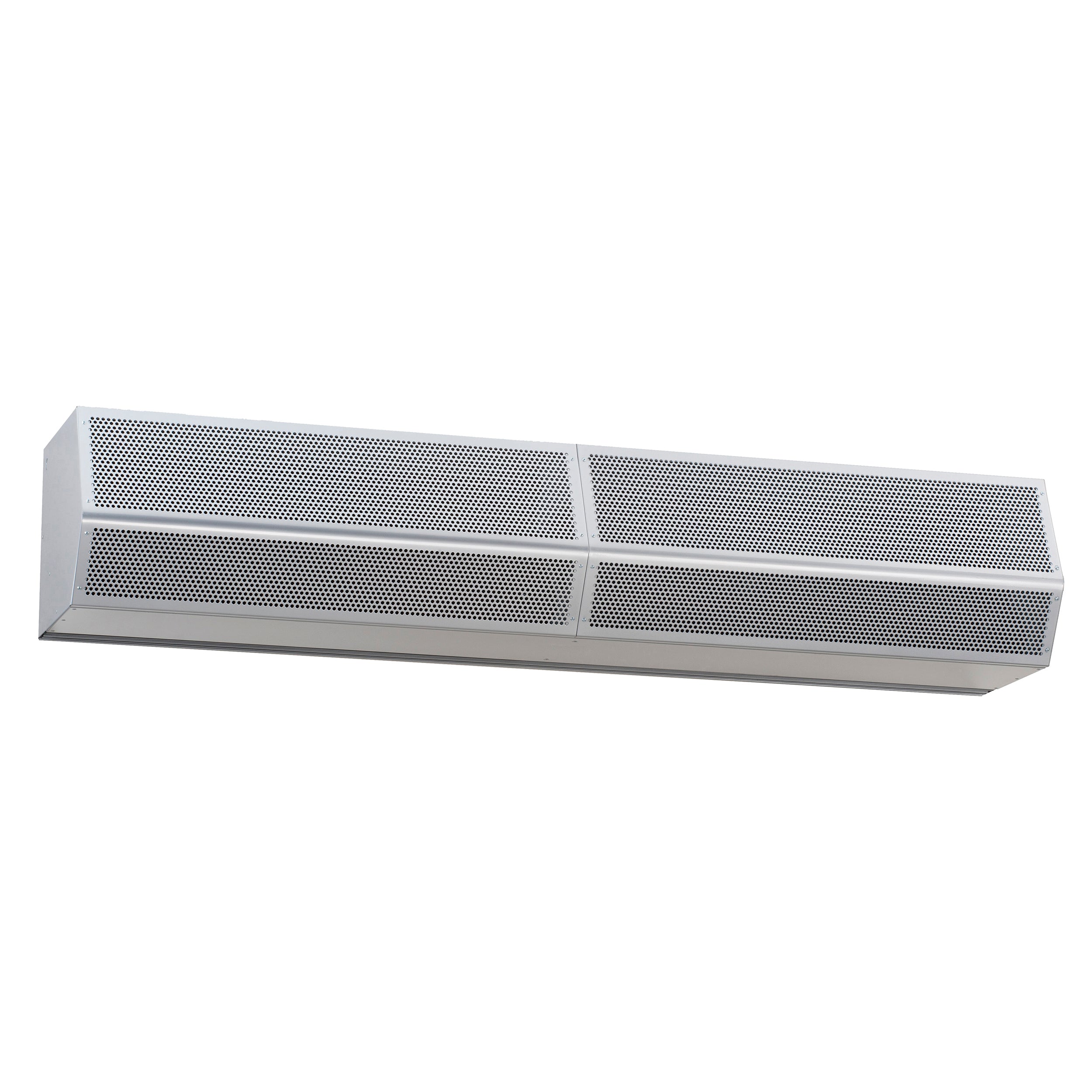

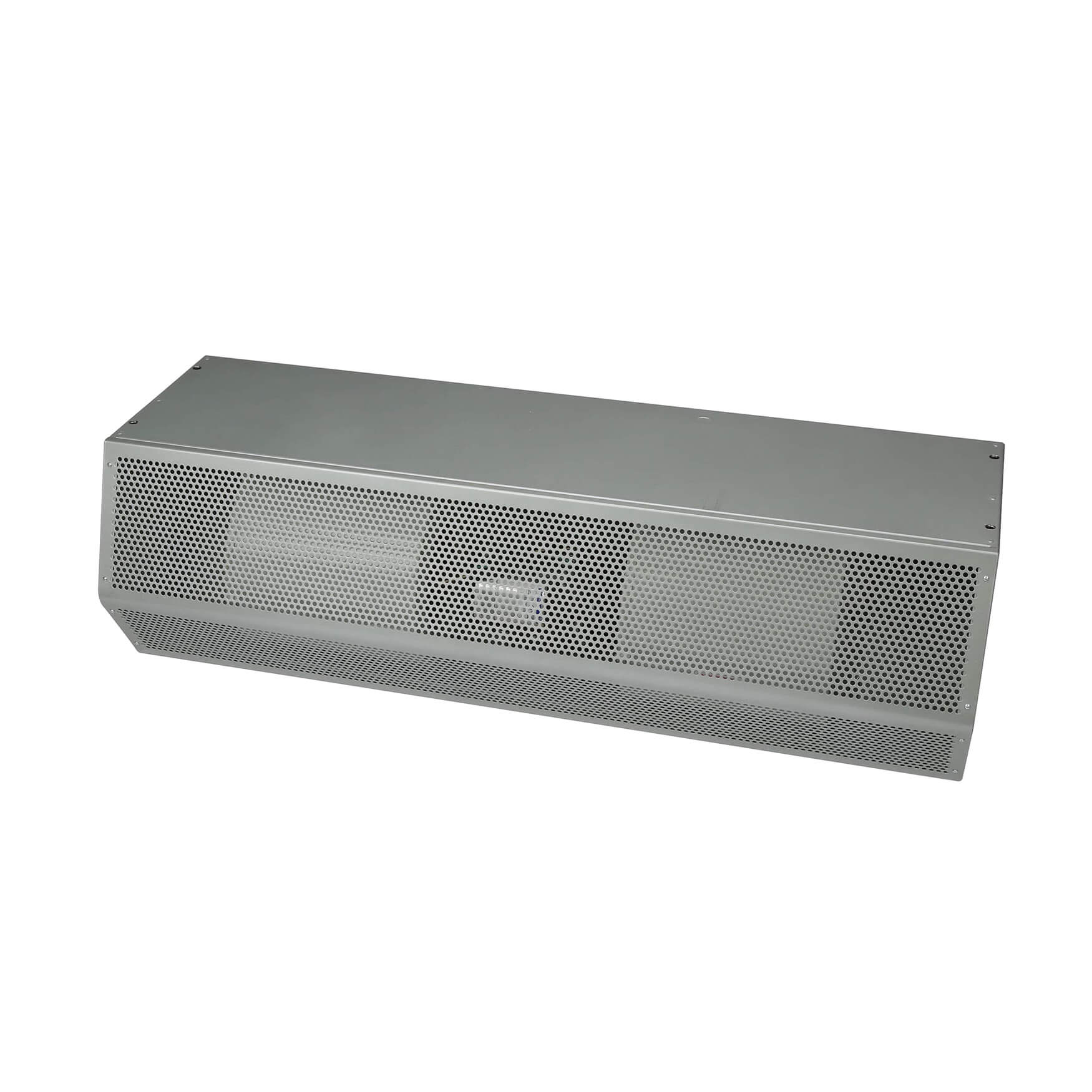

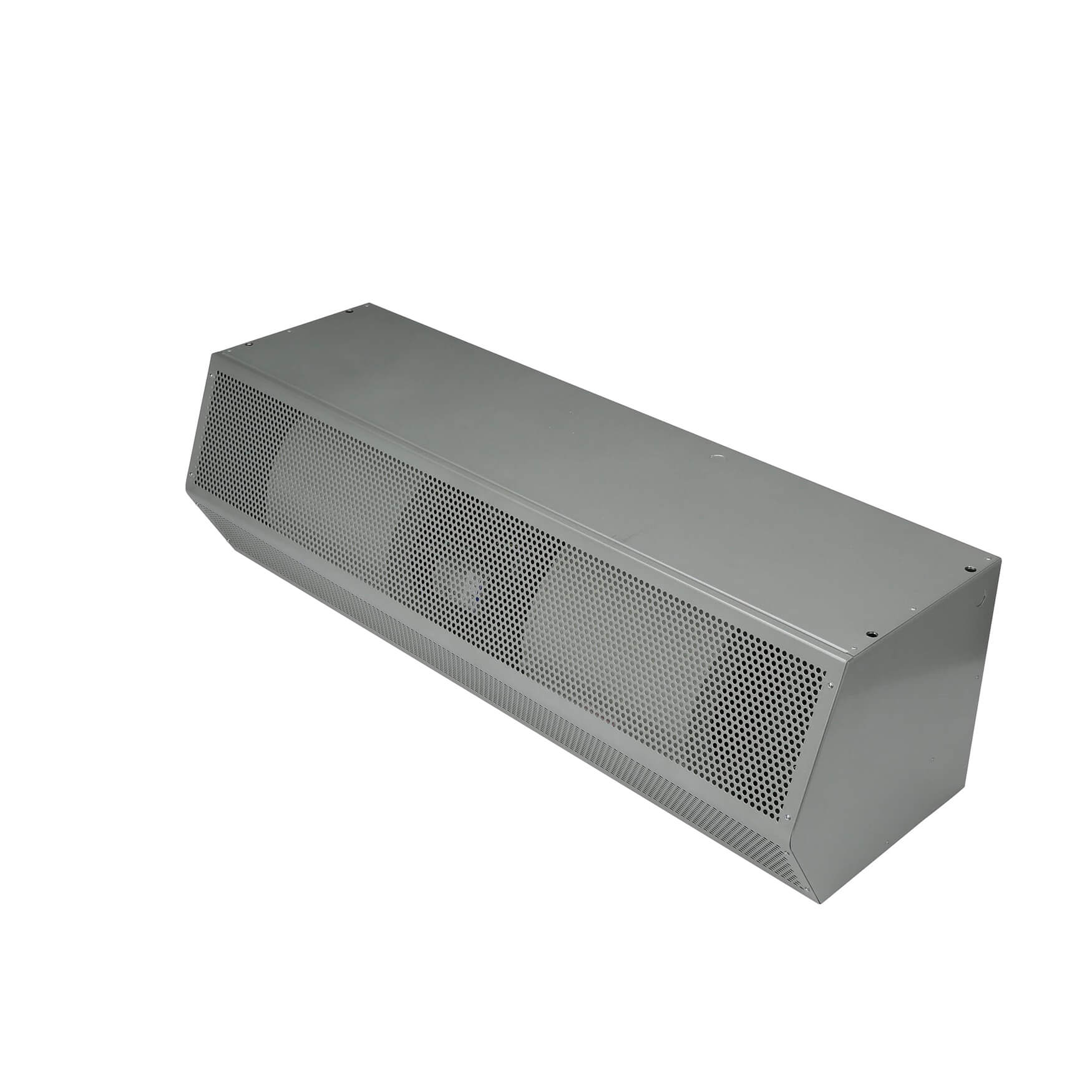

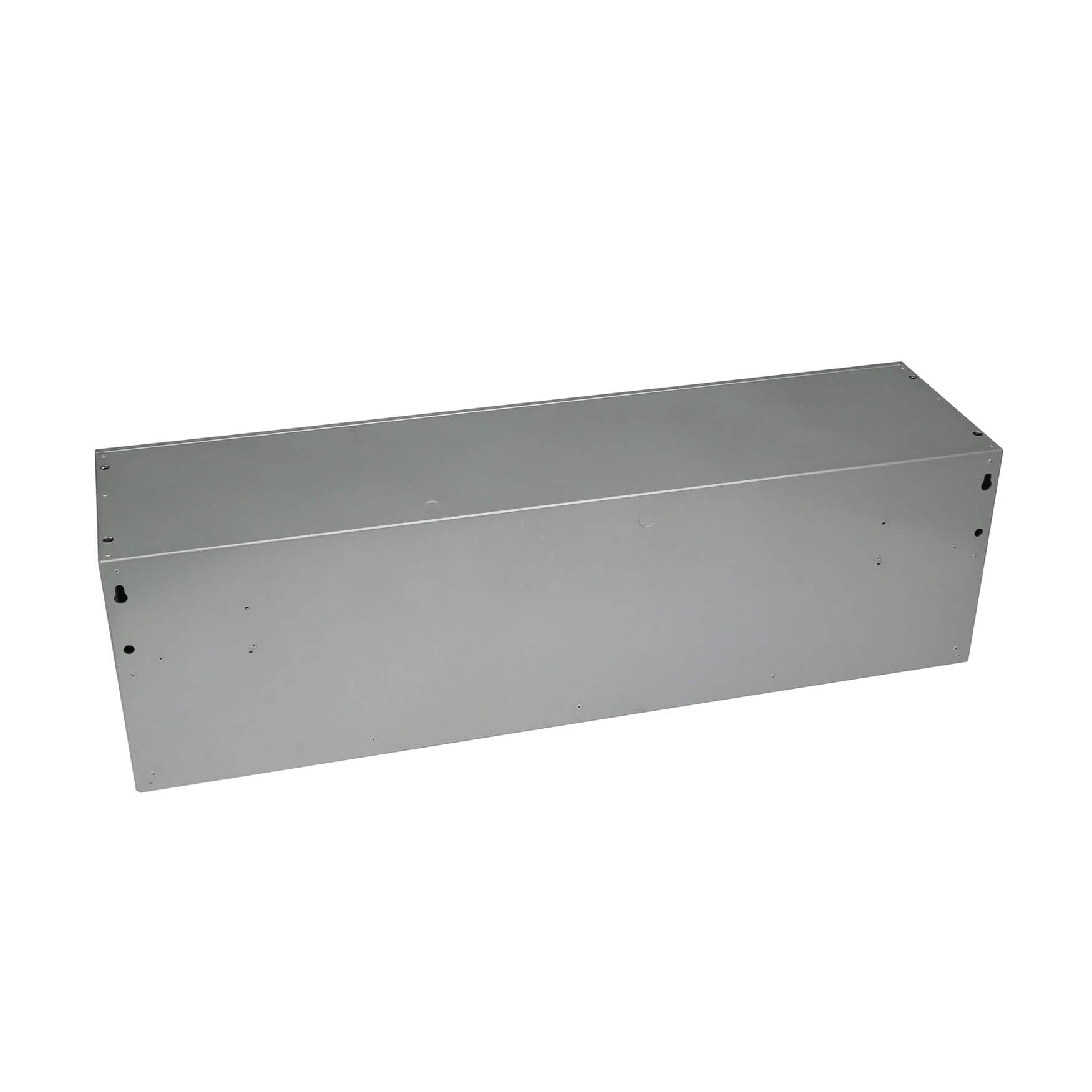

Mars HV236-1UH-TS Series 2 Unheated High Velocity Air Curtain W/ 36 inches Wide Door, 4000 CFM

Product Description

The MARS HV236-1UH-TS is a Series 2 unheated high-velocity air curtain featuring a 1 HP motor suitable for industrial applications. It separates environments and protects openings with wind loads up to 12' high. Designed for 36" wide doors, it has adjustable air directional vanes and a corrosion-resistant powder-coated finish. It is ETL and AMCA certified and Made in USA.

• Features a 1 HP Continuous Duty TEAO Motor
• AMCA Certified to AMCA 211
• ETL Certified to conform to UL 507 (US) and CSA 22.2 (Canada) Standards

Product Highlights

This high-velocity air curtain is ideal for environmental separation, insect control, and maintaining temperature in industrial and commercial settings.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: HV236-1UH-TS
• Country of Origin: USA

Technical Specifications

• CFM: 4000 CFM
• Type: Standard
• Brand: Mars
• Hertz: 60 Hz
• Phase: 3
• Series: High Velocity
• Voltage: 460 V
• Amperage: 1.6 A
• Decibels: 70
• Material: Galvanized Steel
• Horsepower: 1 HP
• Depth: 15.625 in
• Width: 36 in
• Height: 14 in
• Heating Option: Unheated
• Door Width: 36 in
• Number of Speeds: 2
• Door Height: 12 ft
• Max Door Height: 12 ft
• 1 Phase 115V FLA: 9.0 A
• 1 Phase 208V/230V FLA: 5.0 / 5.0 A
• Manufacturers Part Number: HV236-1UH-TS
• Certifications: ETL, UL Listed, AMCA
• Environmental - Max Height (feet): 14
• Insect - Max Height (feet): 12
• Nozzle Width (inches): 36
• Unit Width (inches): 36
• Unit Height (inches): 14
• Wind Stopping Capability (MPH): 12
• Motors: 1
• Air Flow Certified (AMCA): Yes
• Air Curtain Air Volume (CFM): 2059
• Uniformity (%): 90
• dBA: 70
• Finish: Titanium Silver Powder Coat
• Heat: No
• Depth (in.): 15.625
• Height (in.): 14
• Length (in.): 36
• Product Type: Unheated
• Horse Power Per Motor: 1 hp
• Model Number: HV236-1UH-TS
