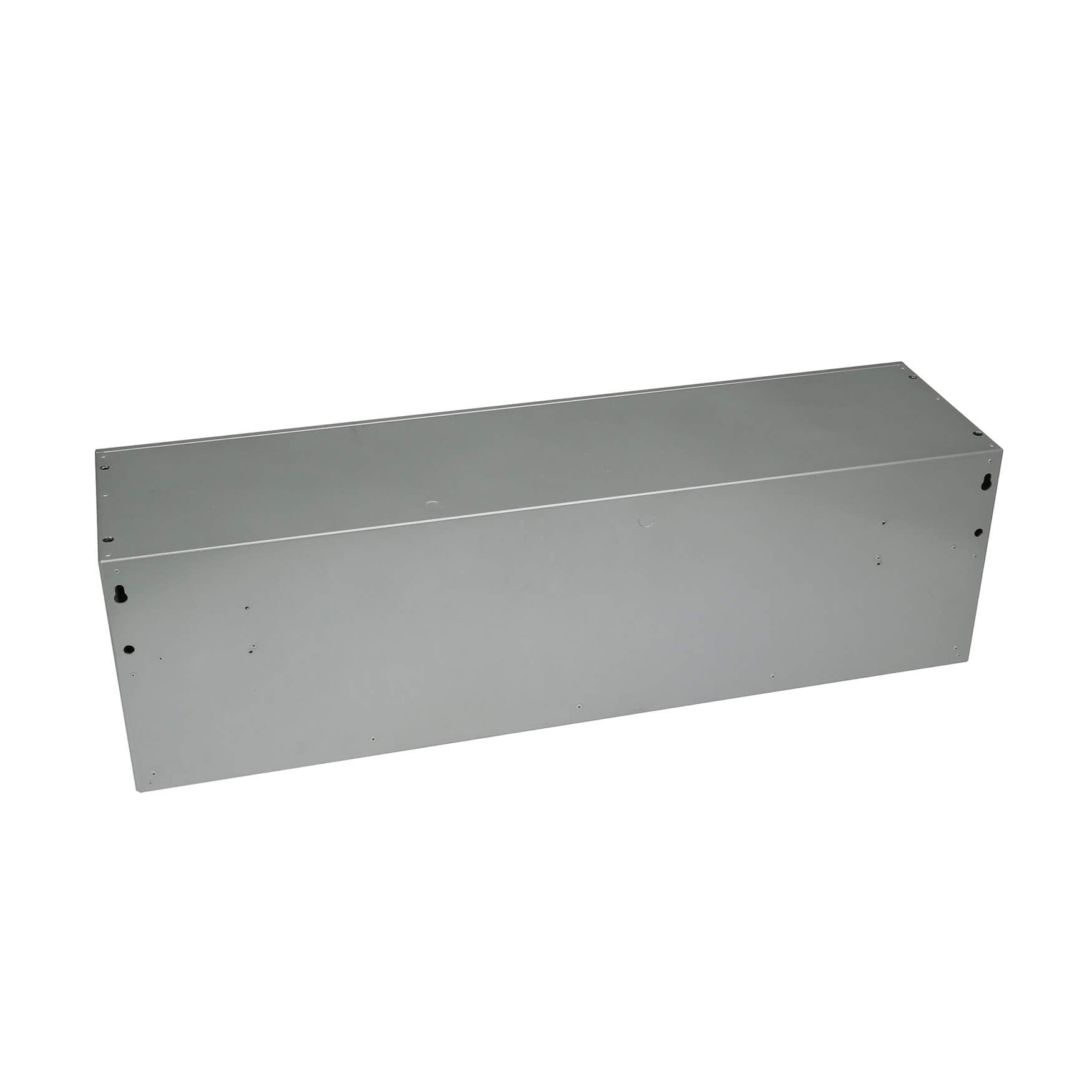

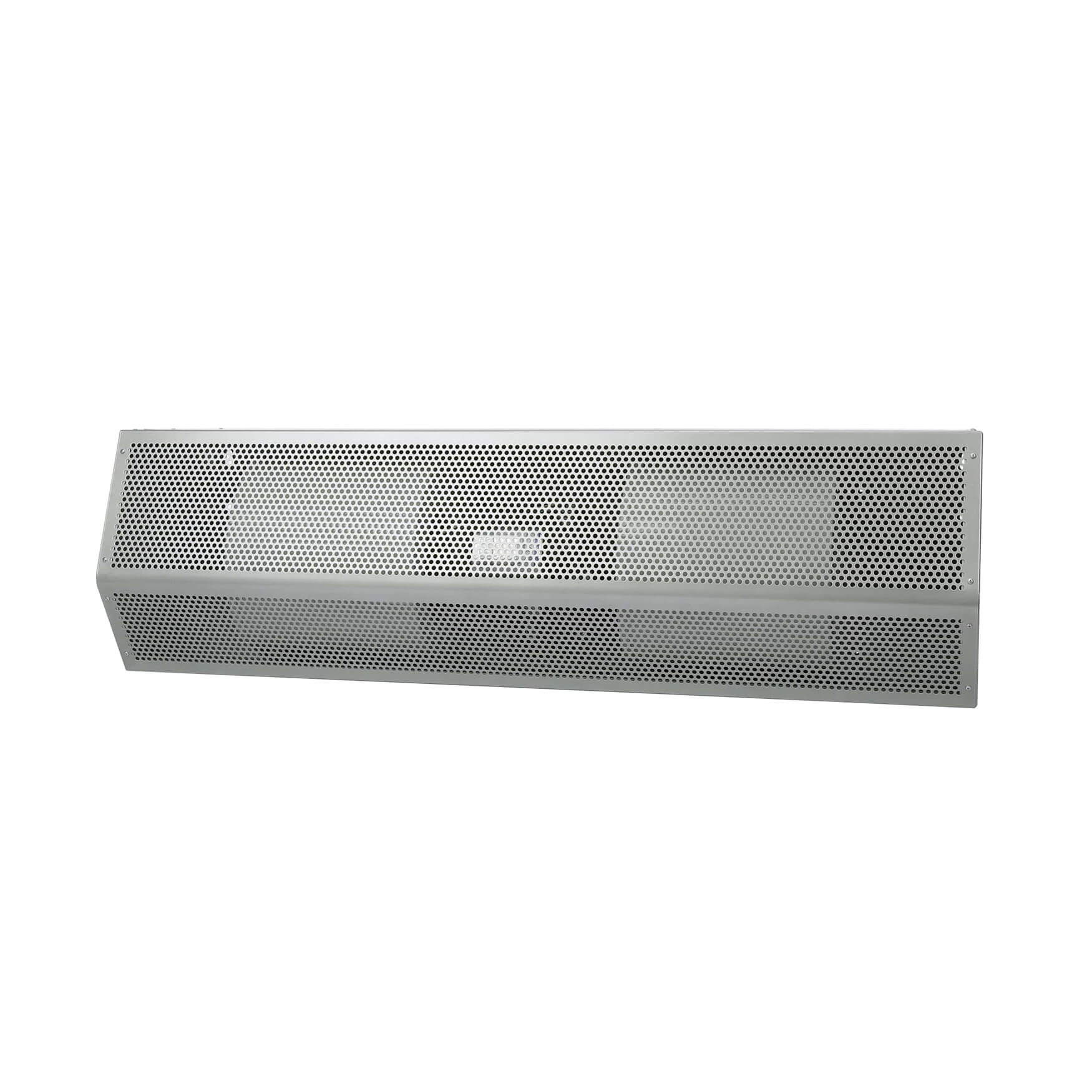

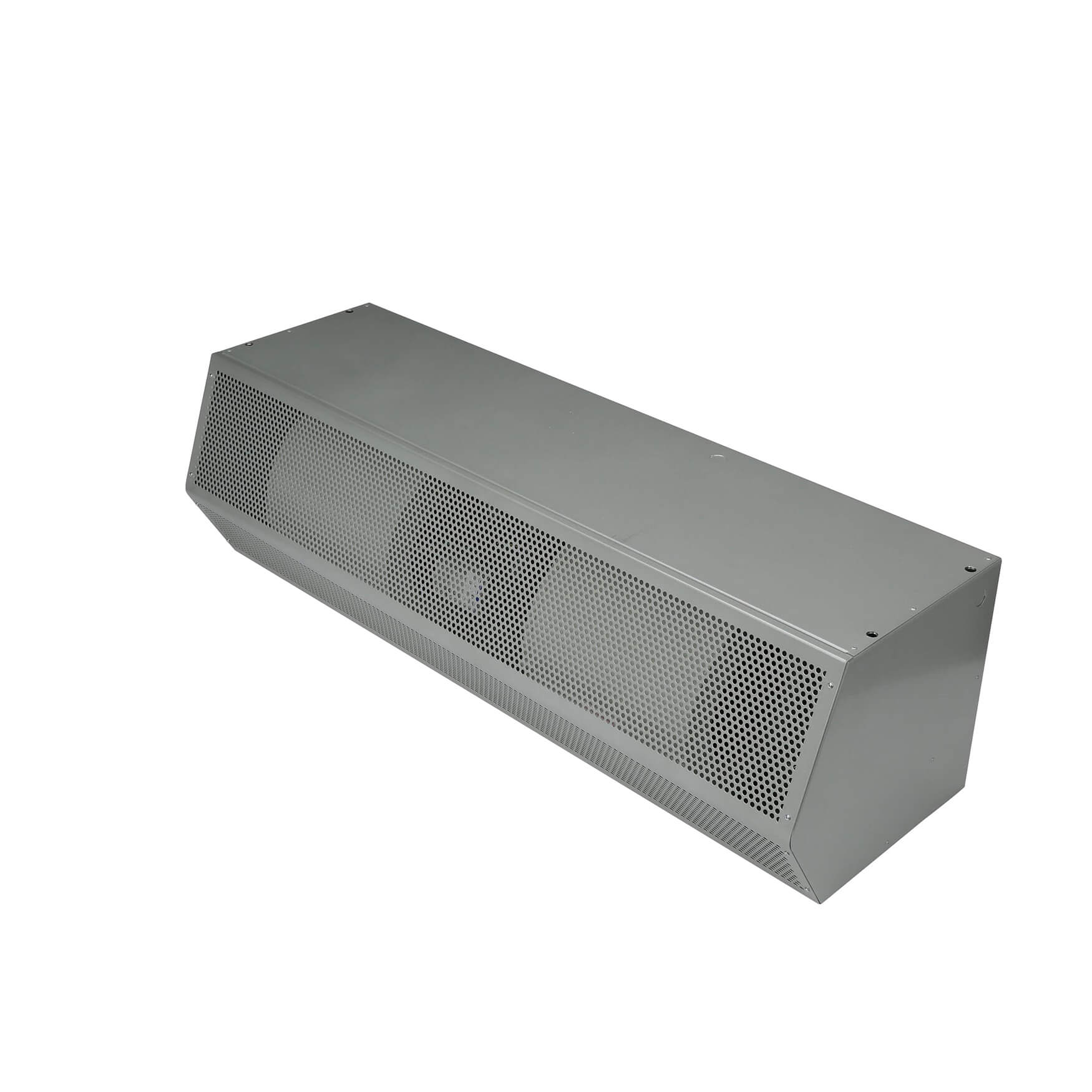

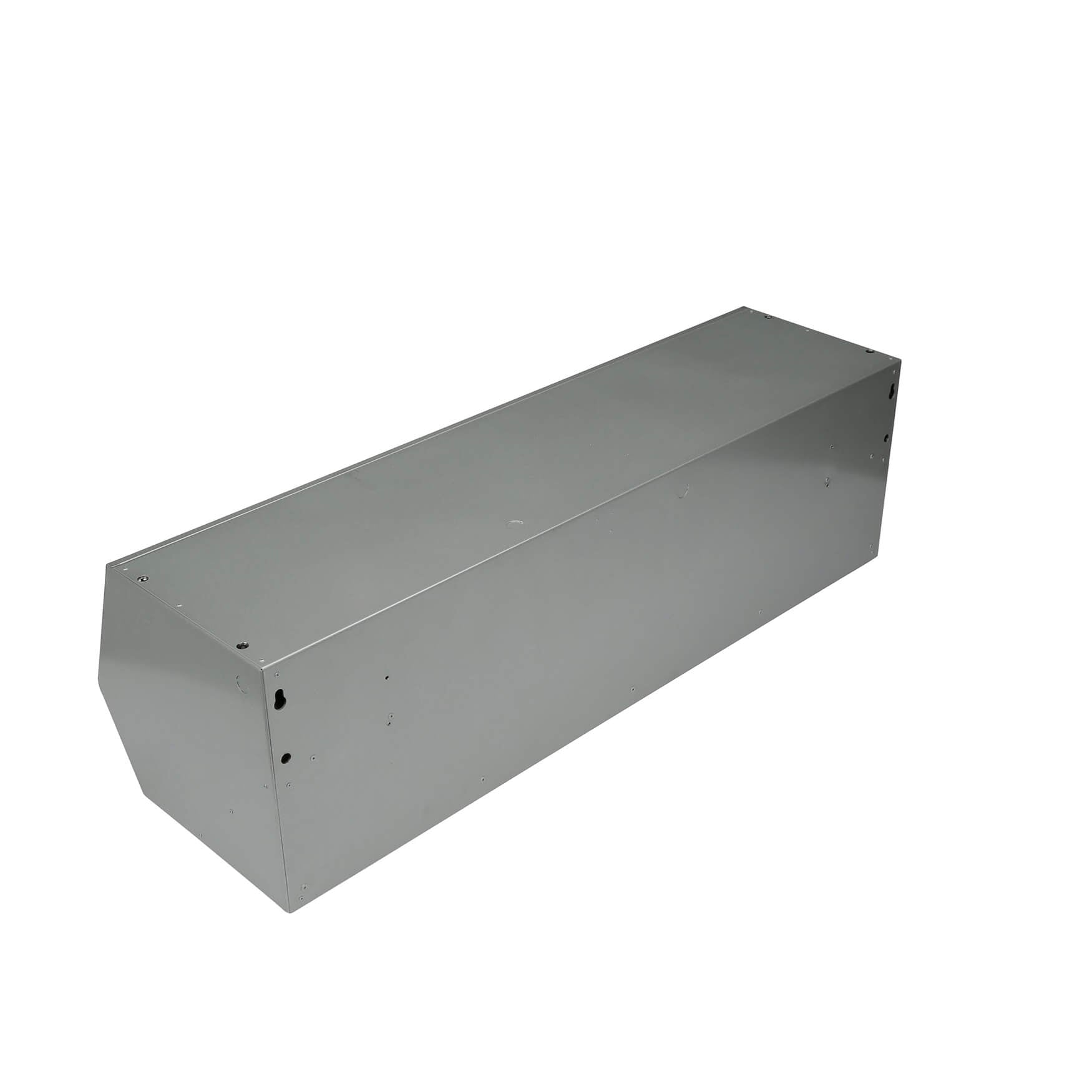

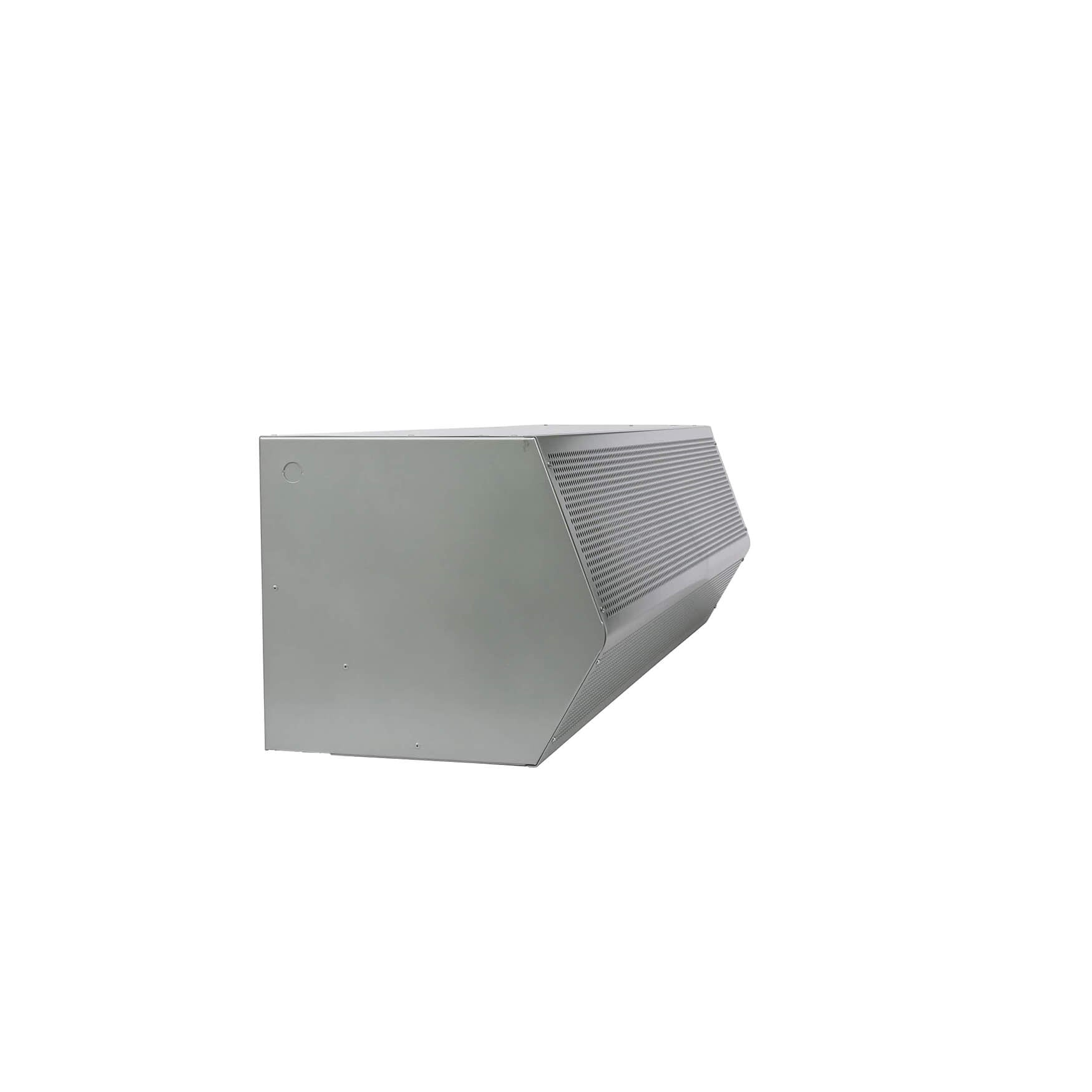

Mars HV236-1UG-TS High Velocity Series 2 Unheated Air Curtain 36 inches

Product Description

The MARS HV236-1UG-TS is part of the HV (High Velocity) series featuring a 1 horsepower motor suitable for many industrial applications. It separates environments and protects openings with significant wind loads up to 12 ft. high. Designed for insect control up to 12 feet and temperature/environmental separation up to 14 feet. The standard color is Titanium Silver.

• 1 hp direct-drive motor
• Corrosion Resistant Powder Coated Finish
• Environmental Protection up to 12 feet

Product Highlights

The HV236-1UG-TS air curtain is ideal for restaurants, retail, healthcare, manufacturing, and transportation applications.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: HV236-1UG-TS
• Country of Origin: USA

Technical Specifications

• Series: HV2 (High Velocity 2) Series
• Size: 36"
• Material: Galvanized Steel
• Phase: 3
• Voltage: 208/230V
• Hertz: 60
• Type: Unheated
• Horse Power: 1
• Max Volume (CFM): 1792
• Amperage: 1.6
• Speeds: 2
• FLA 3 Phase-208V/230V: 3.3 / 3.2
• FLA 3 Phase - 460V: 1.6
• Approval: CE, UL Listed
• Decibels: 70
• MPN: HV236-1UG-TS
• Environmental - Max Height (feet): 14
• Insect - Max Height (feet): 12
• Heating Mode: Unheated
• Nozzle Width (inches): 36
• Unit Width (inches): 36
• Unit Height (inches): 14
• Wind Stopping Capability (MPH): 12
• Motors: 1
• Air Flow Certified (AMCA): Yes
• Voltage Rating: 208-230/3/60
• Voltage Code: G
• Air Curtain Air Volume (CFM): 2059
• Uniformity (%): 90
• dBA: 70
• Fits: 36" doors, covers up to 14 Ft. height
• Motor: 1 HP motor delivers consistent performance
• Finish: Titanium silver powder coat resists corrosion
• Manufacturer: Mars Air Systems
• Width (side - side): 36" - 39"
• FLA (Ampacity): 3.3Amps
• Door Width (Inches): 36
• Door Height: 10' - 12'
• Number of Poles: 3
• Max Volume: 4000
• Max Velocity: 5140
• Frequency (Hertz): 60
• AMCA Uniformity: 92
• # of Motors: 1
• Sound dBA: 70
• Model Number: HV236-1UG-TS
• Depth: 15.63"
• Height: 14"
• Horse Power Per Motor: 1 hp
• Max Opening Height Window Door: 14 ft
• Certifications: cETLus
