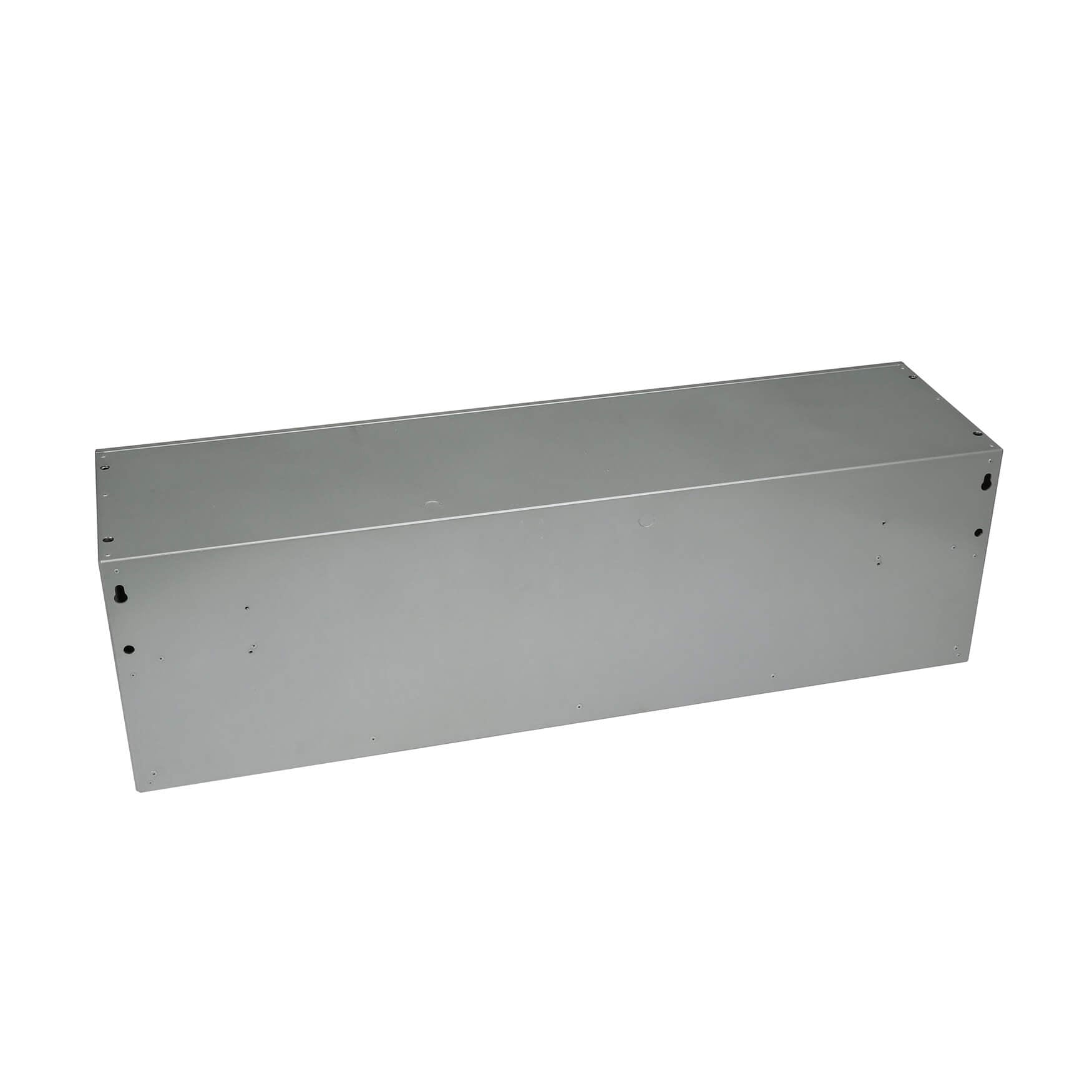

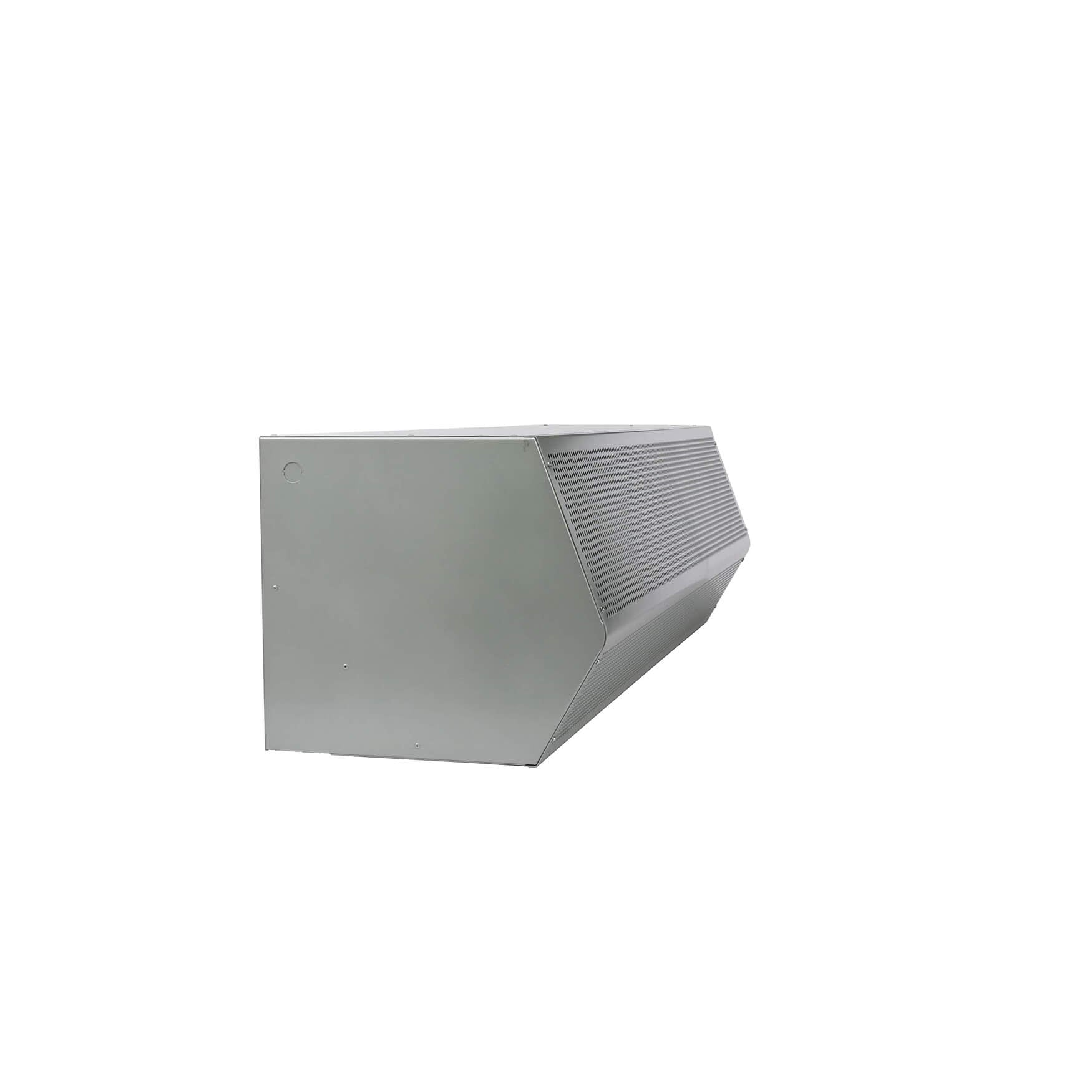

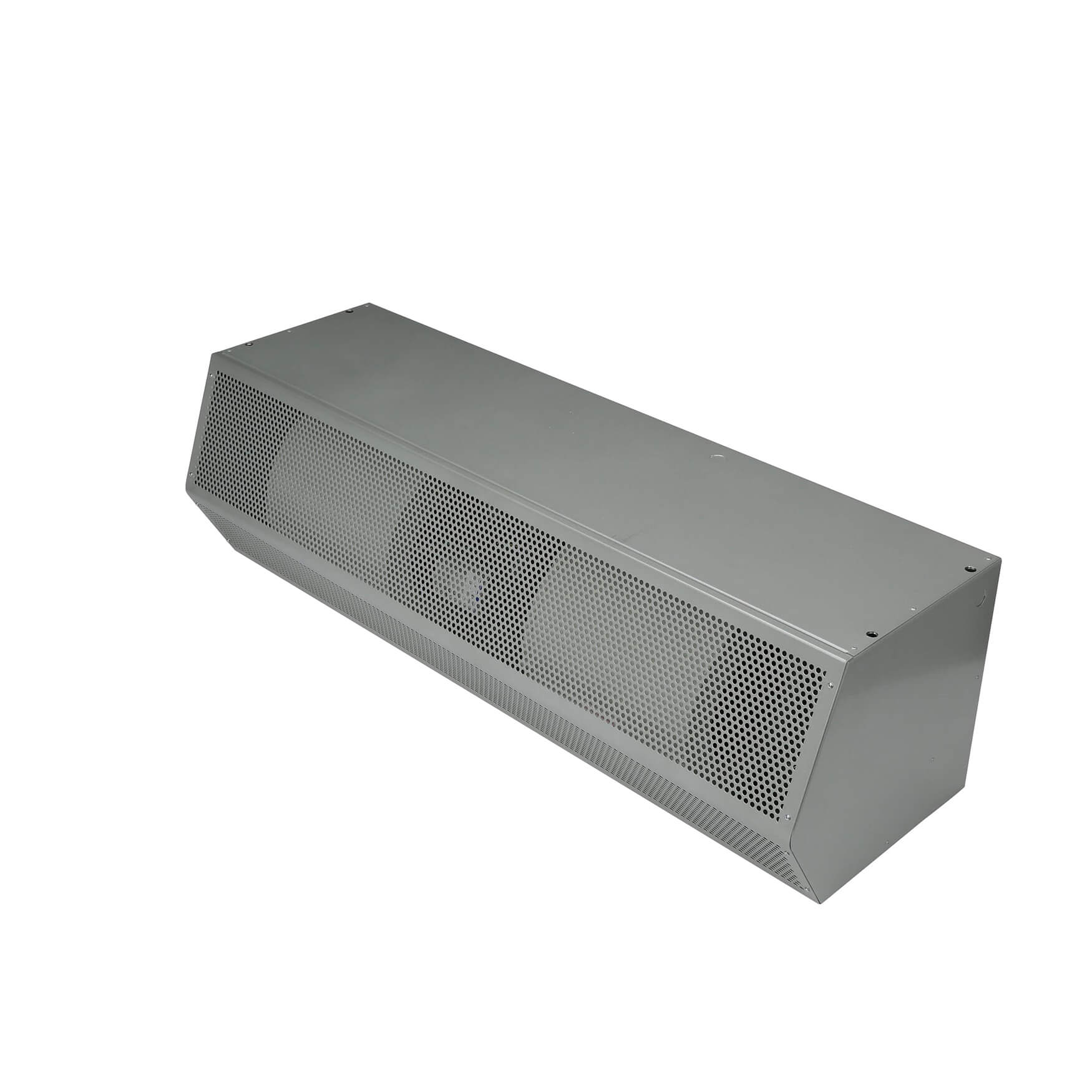

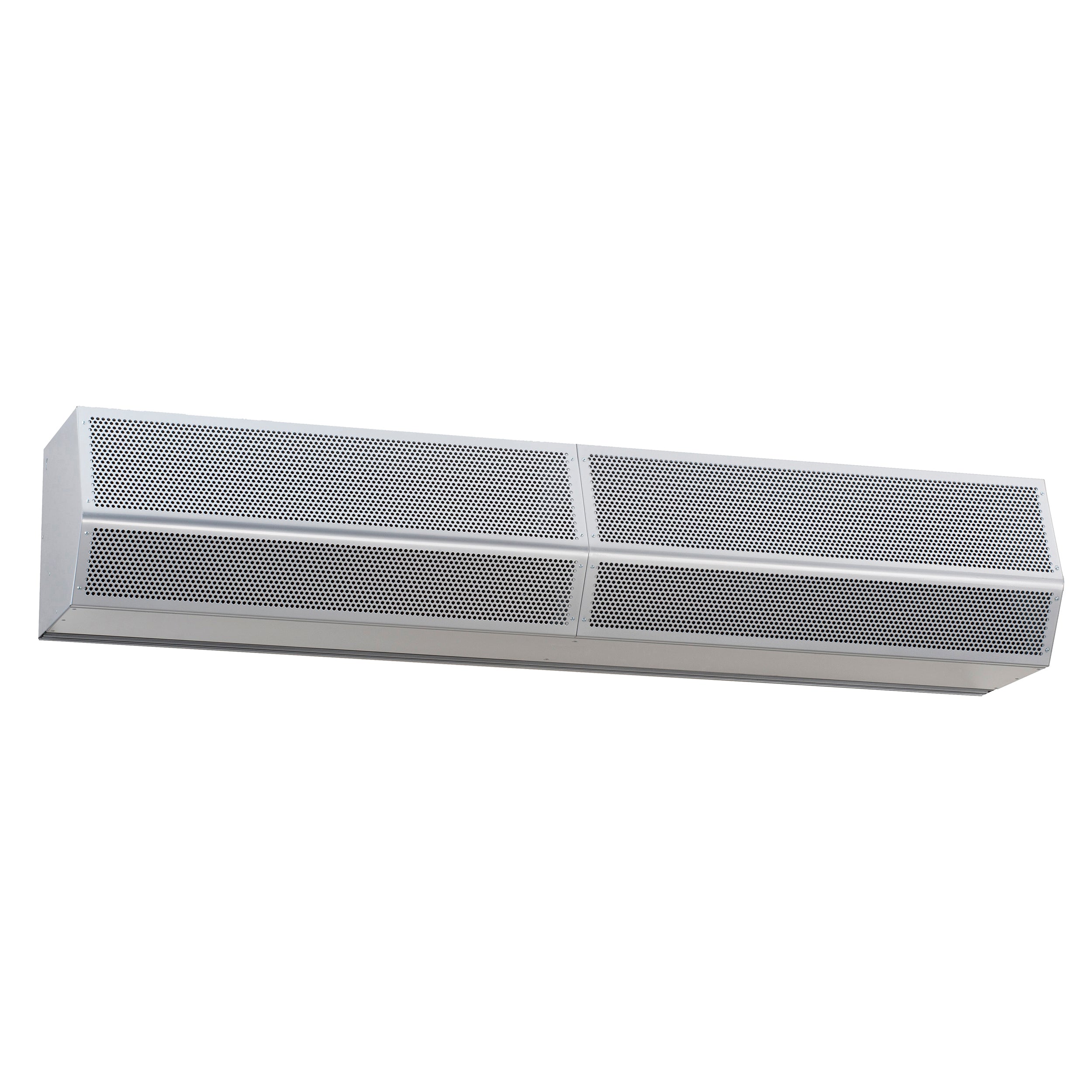

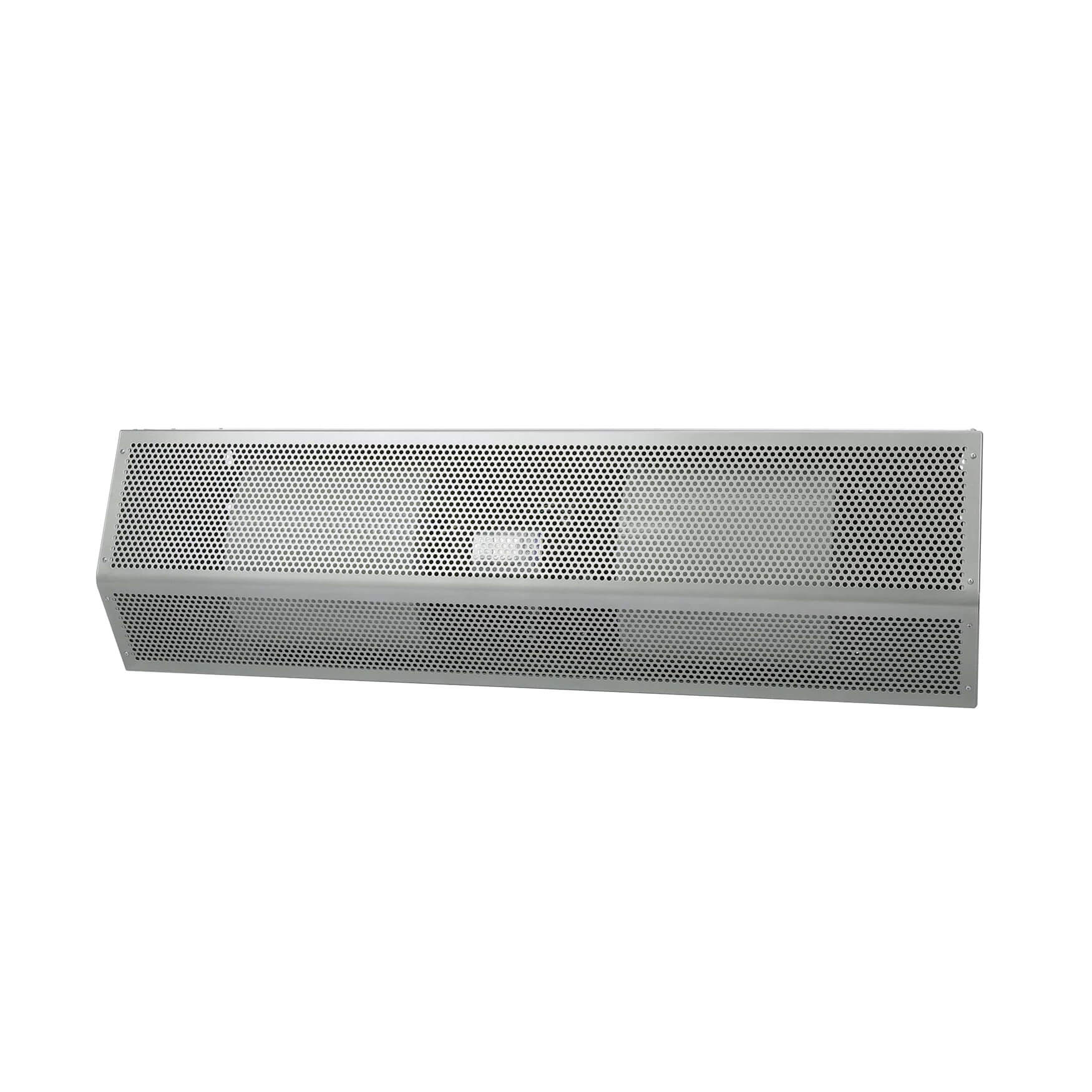

Mars HV236-1UD-TS 36 inches Wide Door High Velocity Series 2 Unheated Air Curtain

Product Description

The MARS HV236-1UD-TS is a 36" wide door high velocity series 2 unheated air curtain featuring a 1 horsepower motor suitable for industrial applications. It separates environments and protects openings with wind loads up to 12 ft. high. Constructed of durable metal with a corrosion-resistant powder-coated finish.

• 1 hp direct-drive motor
• Corrosion Resistant Powder Coated Finish
• Environmental Protection up to 12’

Product Highlights

This air curtain is designed for insect control and temperature/environmental separation in restaurants, retail, healthcare, manufacturing, and transportation settings.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: HV236-1UD-TS
• Country of Origin: USA

Technical Specifications

• Size: 36"
• Series: High Velocity
• Material: Galvanized Steel
• Phase: 1
• Voltage: 208/230V
• Hertz: 60
• Type: Unheated
• Horse Power: 1
• Max Volume (CFM): 1792
• Amperage: 5
• Speeds: 2
• Decibels: 70
• Environmental - Max Height (feet): 14
• Insect - Max Height (feet): 12
• Heating Mode: Unheated
• Nozzle Width (inches): 36
• Unit Width (inches): 36
• Unit Height (inches): 14
• Wind Stopping Capability (MPH): 12
• Motors: 1
• Air Flow Certified (AMCA): Yes
• Voltage Rating: 208-230/1/60
• Voltage Code: D
• Air Curtain Air Volume (CFM): 2059
• Uniformity (%): 90
• dBA: 70
• Depth: 15.63 ″
• Horse Power Per Motor: 1 hp
• Max Opening Height Window Door: 14 ft
• Certifications: cETLus
• Finish: Titanium Silver Powder Coat
• Manufacturer: Mars Air Systems
• FLA (Ampacity): 5Amps
• Door Width (Inches): 36
• Door Height: 10' - 12'
• Number of Poles: 1
• Max Velocity: 5140
• AMCA Uniformity: 92
• Sound dBA: 70
