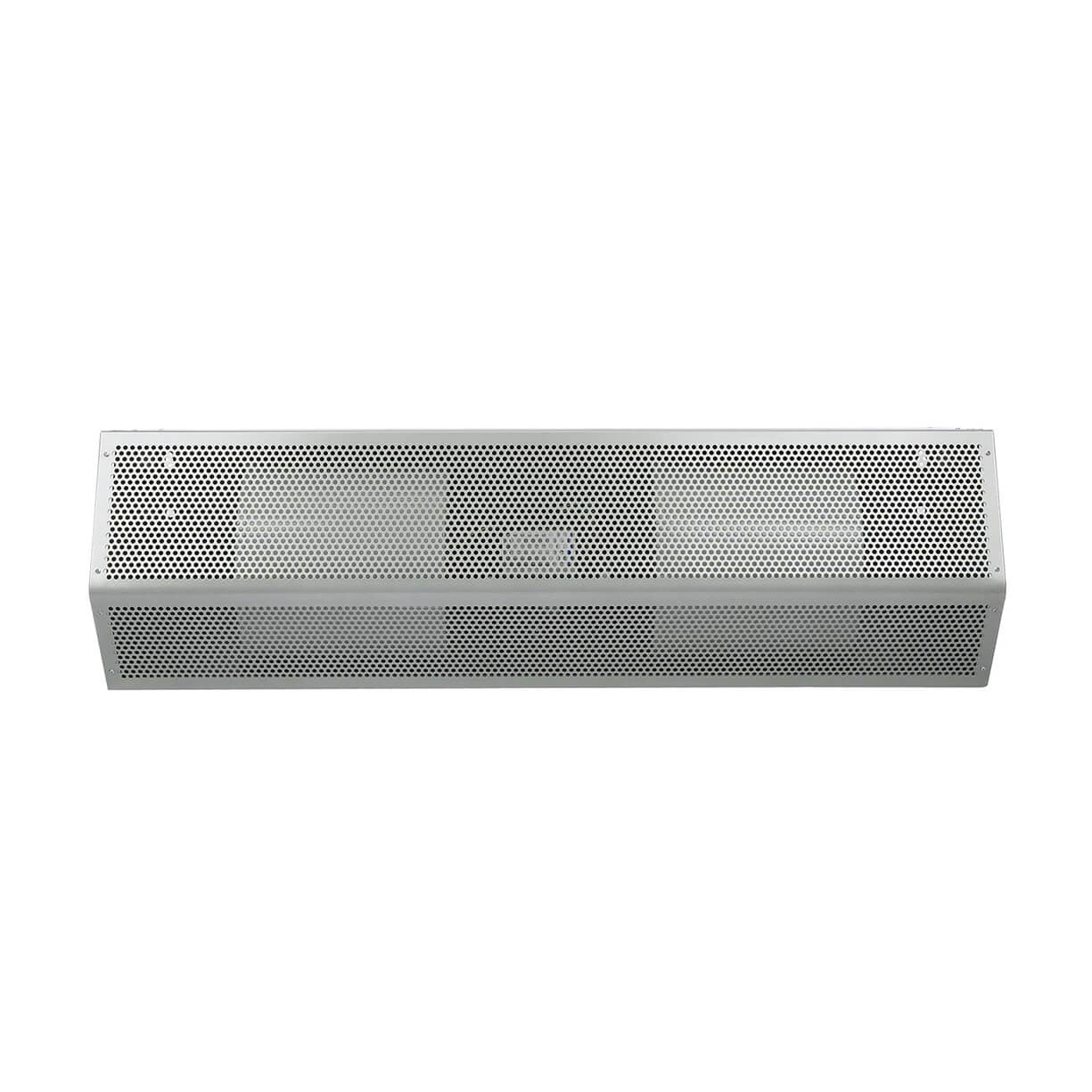

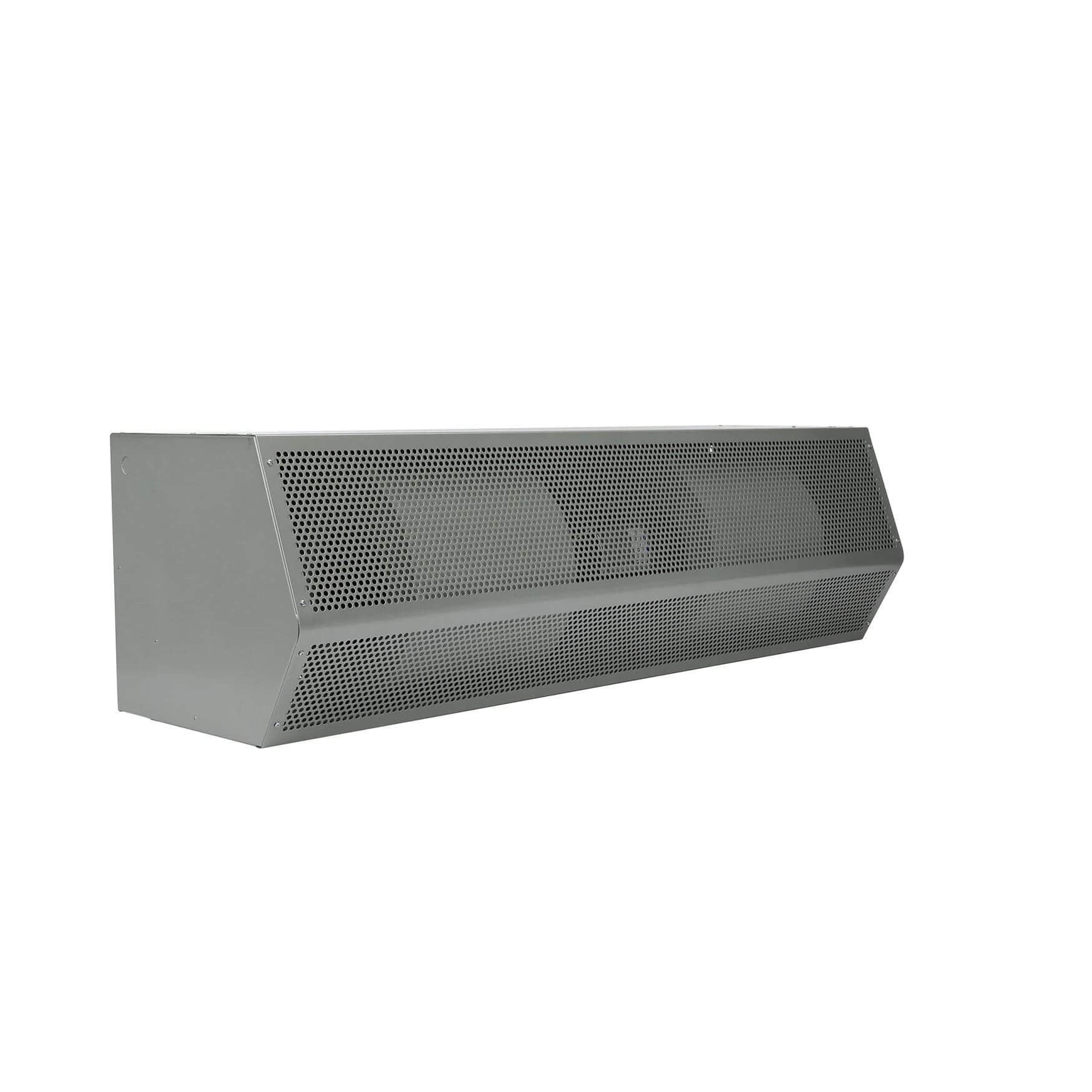

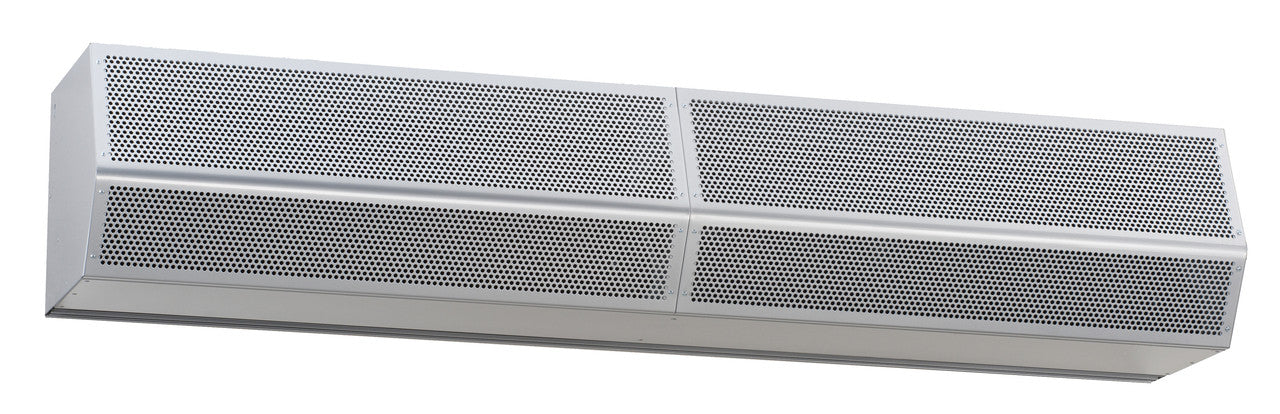

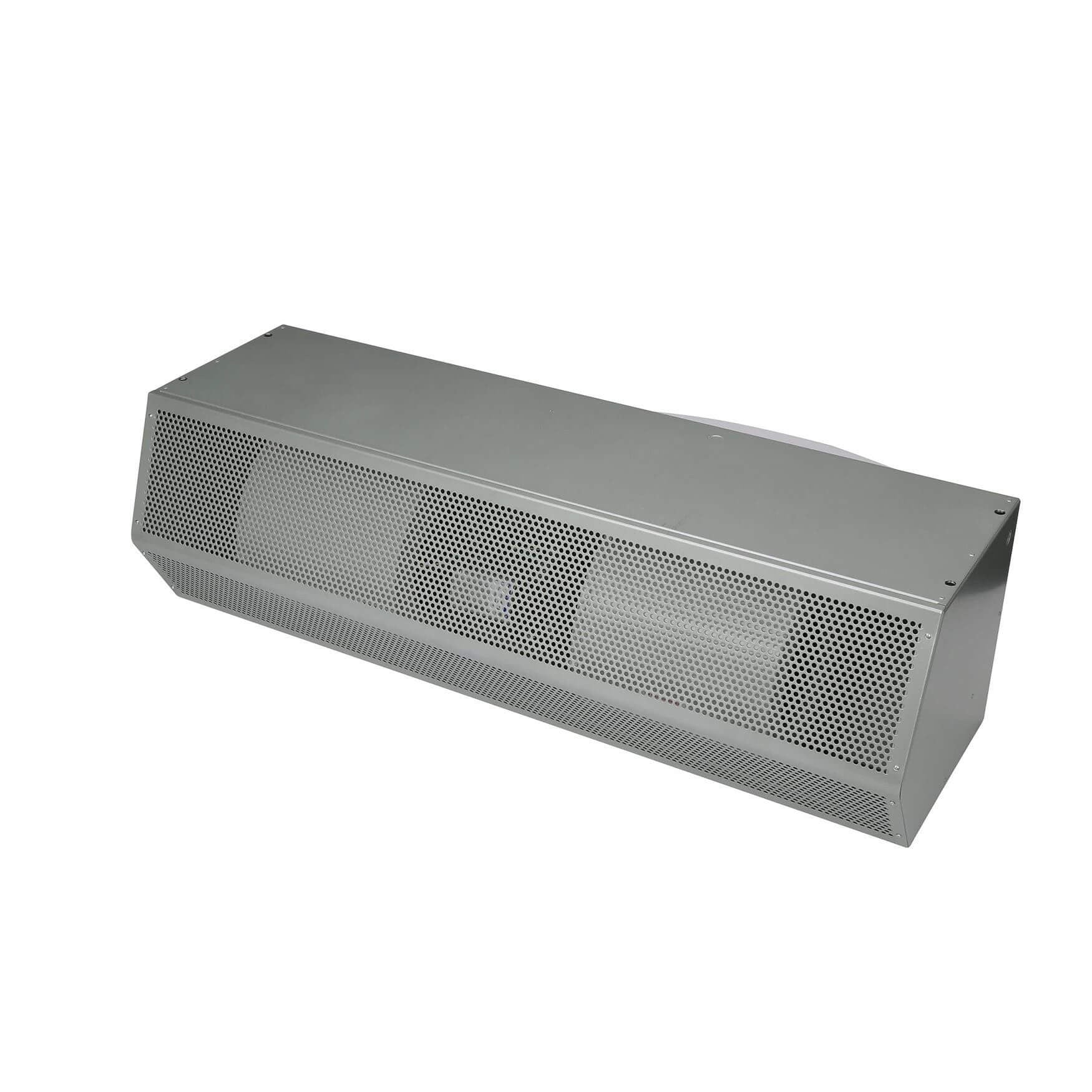

MARS HV236-1UA-TS Mars Air Systems High Velocity Unheated Air Curtain 115 Volt 36 inch

Product Description

The MARS HV236-1UA-TS is a high velocity air curtain designed for effective environmental separation. This 36-inch unheated air curtain operates at 115 volts and features a single one horsepower motor. The unit assists in controlling air flow while preventing insects from entering your space.

• Single motor with one horsepower.
• Ideal for door openings up to 14 feet high.
• Corrosion-resistant titanium silver finish.

Product Highlights

This unit is suitable for various applications such as shipping and receiving doors, customer entrances, and cold storage rooms. The installation height should be between 10 and 12 feet. A separate relay or time delay control is recommended for efficient operation.

Product Information

Standard Information

• Brand: MARS
• MPN: HV236-1UA-TS

Technical Specifications

• Length: 36 inches
• Motor/HP: 1 Motor; 1 HP
• Full Load Amps: 9 amps
• Sound Level: 70 dBA
• Max Volume: 2059 CFM
• Uniformity: 90%
• Power Rating: 1245 watts
• Weight: 115 lbs
