Product Description

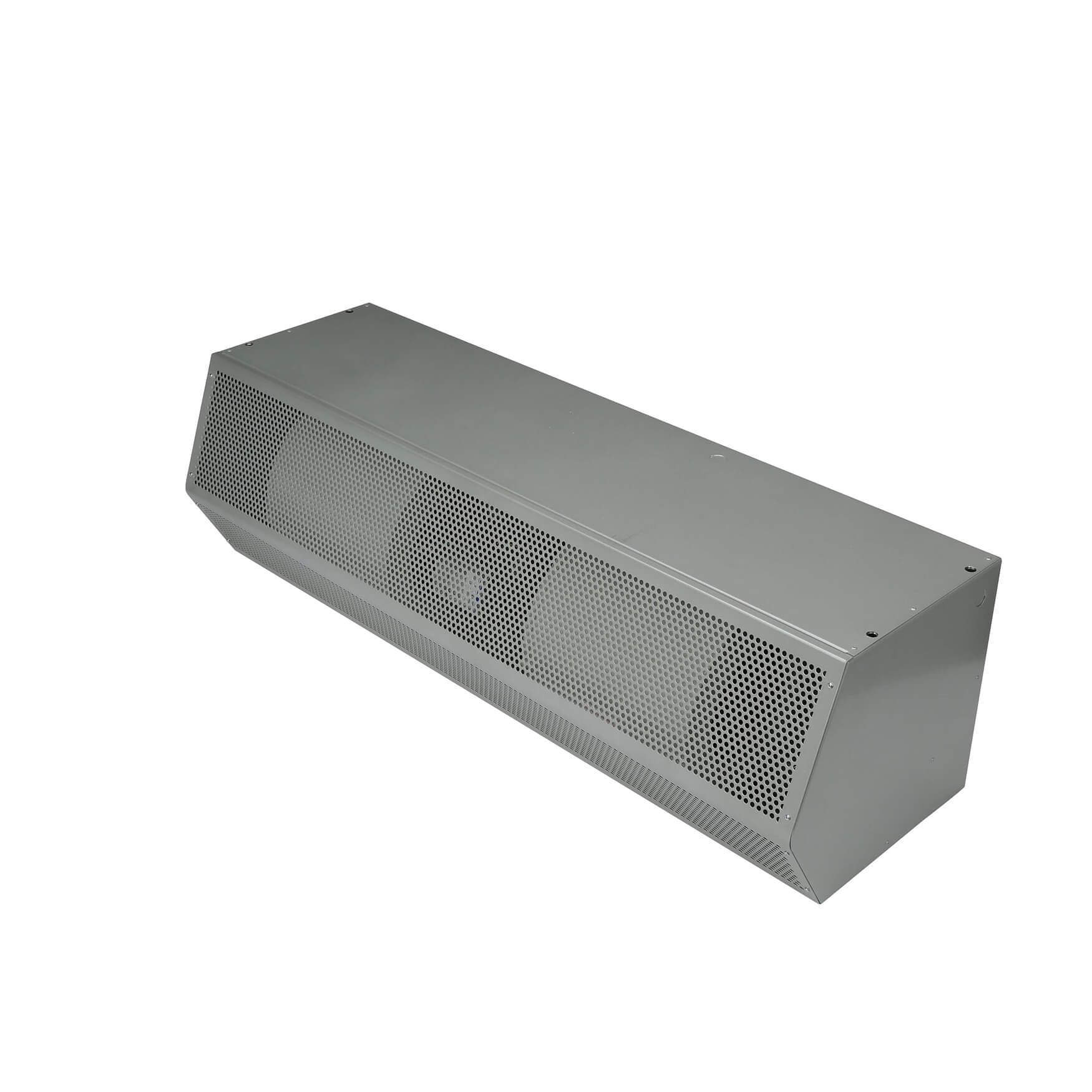

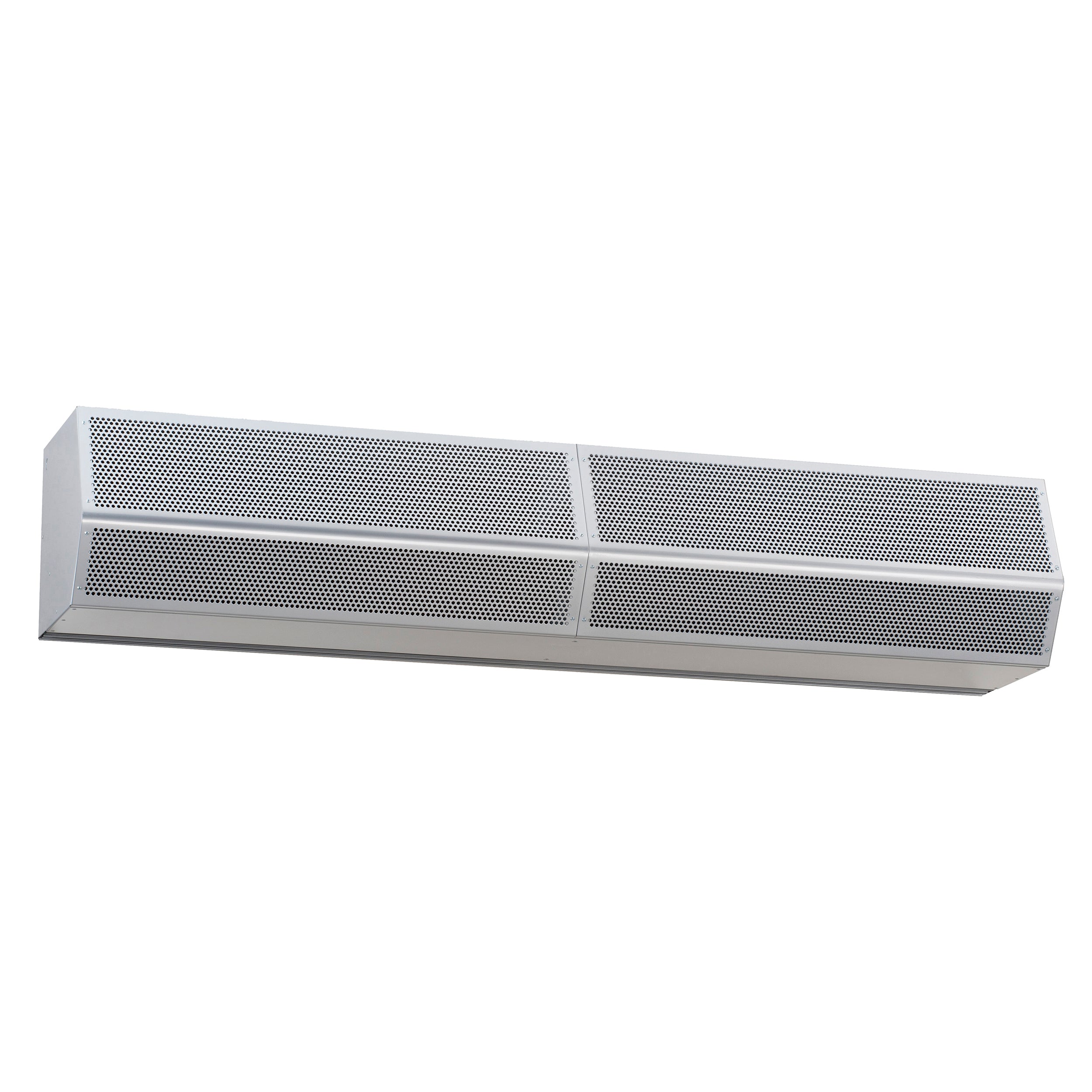

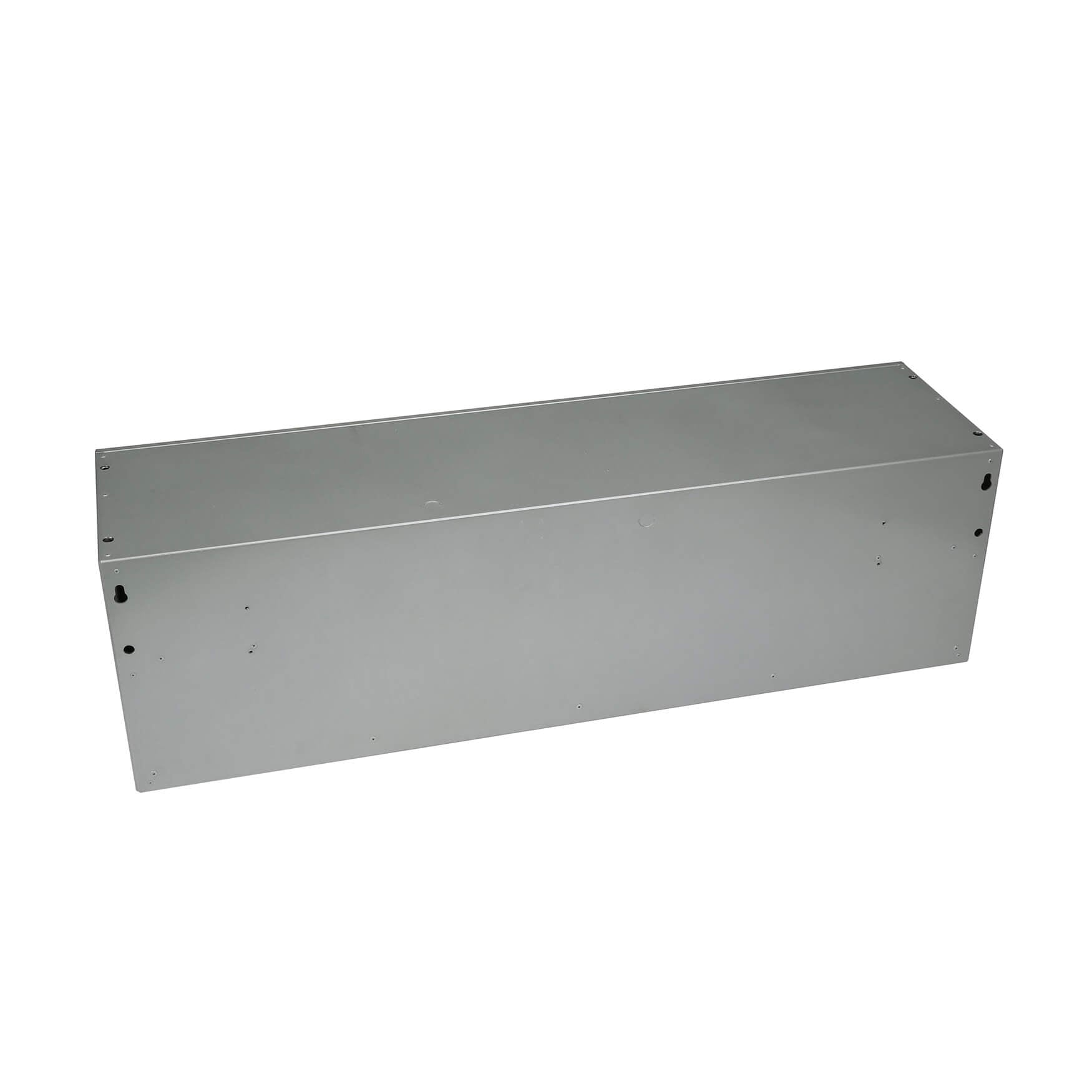

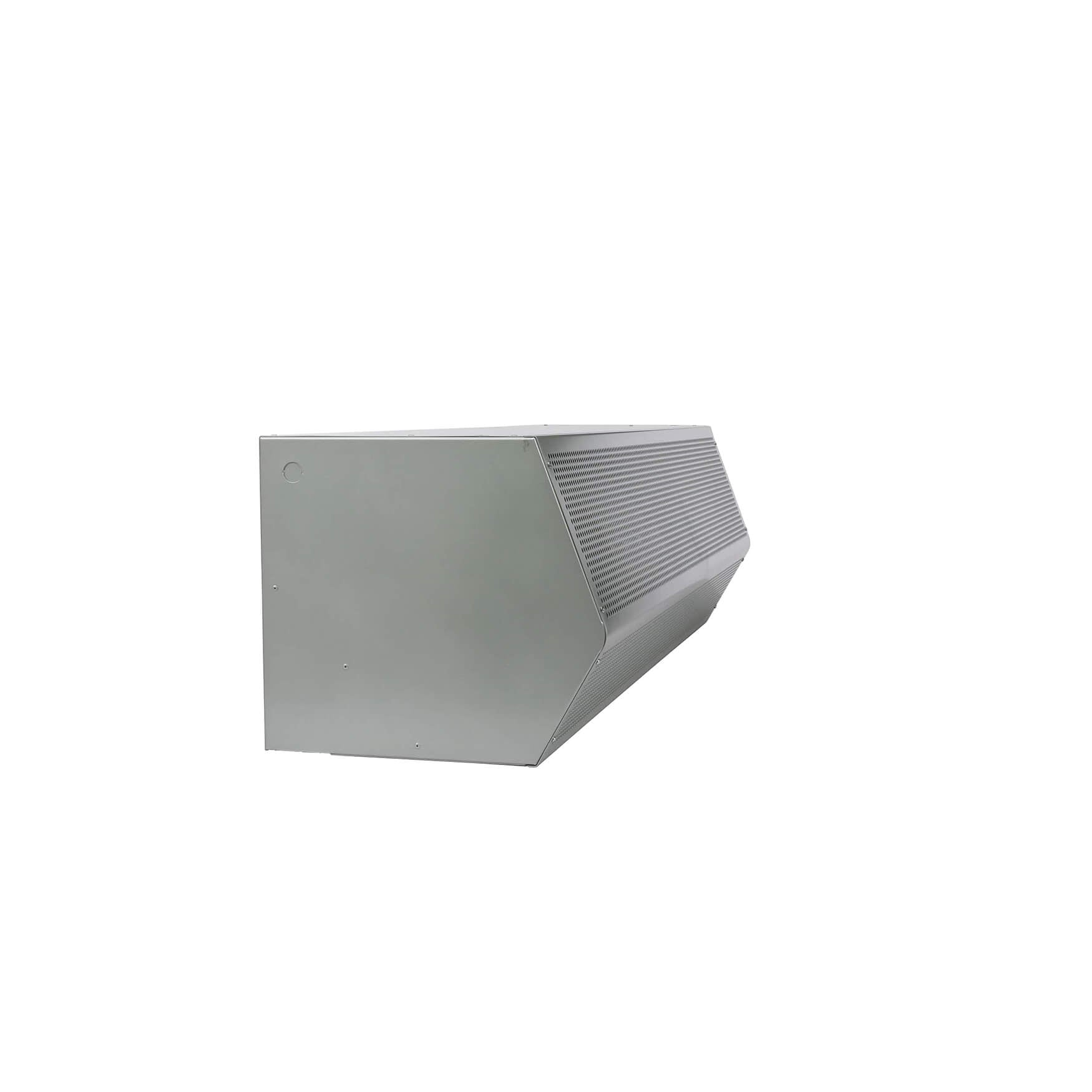

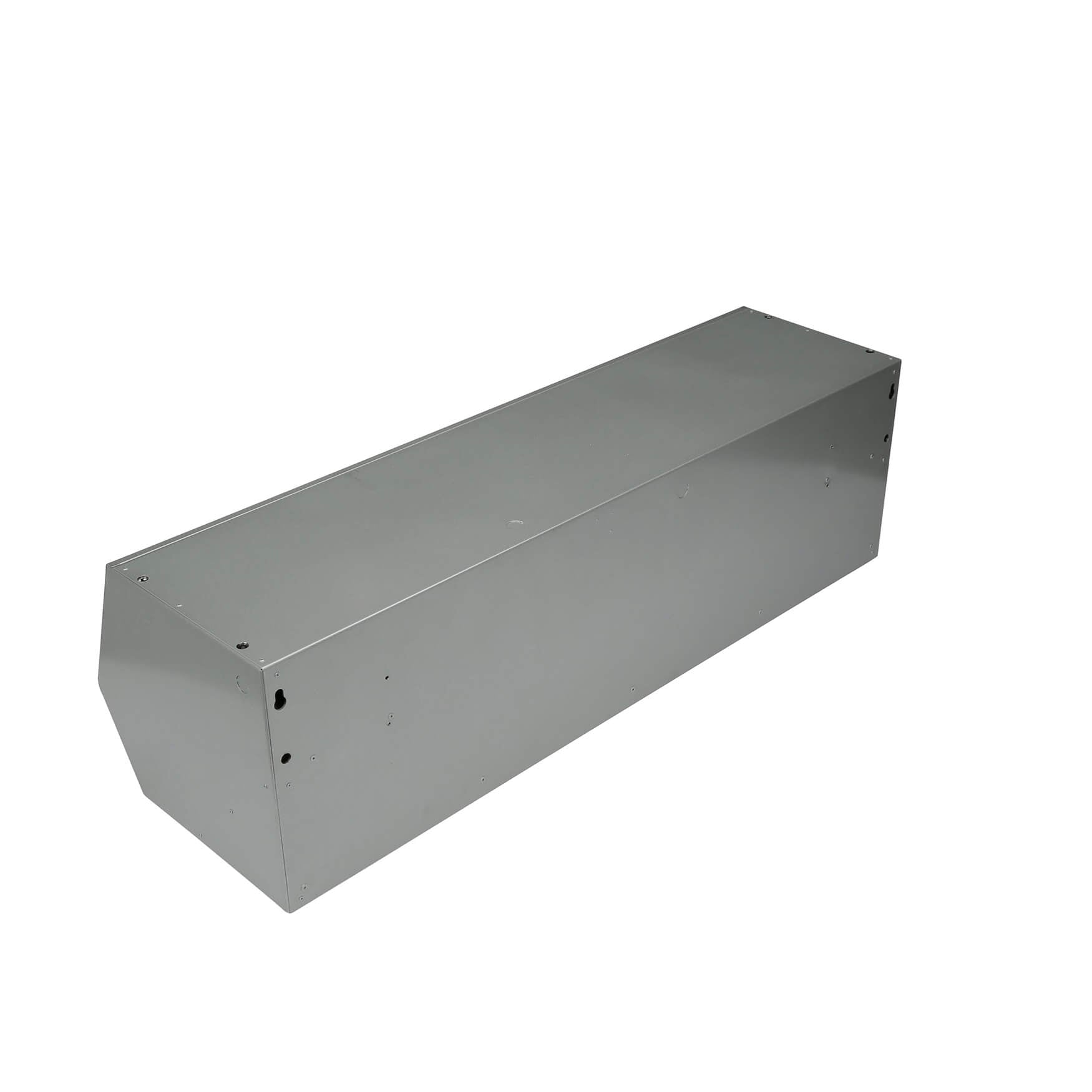

The MARS HV2144-3UH-TS air curtain is designed for multipurpose use with a 144-inch width. This unheated High Velocity 2 series air curtain features three 1 HP motors and is suitable for industrial applications. It effectively separates environments and protects openings with significant wind loads up to 12 ft. high, and for temperature control up to 14 ft.
- Features 3 motors with 1 horsepower each.
- Maximum air volume of 7,341 cfm and maximum air velocity of 4,000 fpm.
- Designed for insect control up to 12 feet and temperature/environmental separation up to 14 feet.
Product Highlights
Ideal for restaurants, retail, manufacturing, and transportation, this air curtain provides an environmental barrier for various door openings.
Product Information
Standard Information
-
Brand: MARS
-
Manufacturer Part Number: HV2144-3UH-TS
-
Country of Origin: United States
Technical Specifications
-
Hz: 60
-
Item: Air Curtain
-
Depth: 15.625 in
-
Phase: 3
-
Width: 144 in
-
Finish: Galvanized, Powder Coated
-
Height: 14 in
-
Series: HV2
-
Voltage: 460
-
Max. RPM: 1,750 RPM
-
Motor HP: 1 hp
-
Requires: Motor Control Panel And Door Limit Switch
-
Washdown: No
-
Frequency: 60 Hz
-
Max. Amps: 4.8
-
Standards: ETL
-
Drive Type: Direct Drive
-
Motor Type: 3 Phase
-
Nozzle Width: 144 in
-
Profile Type: Standard Profile
-
Housing Color: Silver
-
Maximum Speed: 1,750 RPM
-
For Outdoor Use: Not Available
-
Grille Material: Steel
-
Motor Enclosure: Totally Enclosed Air Over
-
Nominal Voltage: 480V AC
-
Air Curtain Item: Air Curtain
-
Air Curtain Type: Ambient Air
-
Number of Motors: 3
-
Number of Speeds: 1
-
Full Load Current: 4.8 A
-
Heated/Not Heated: Not Heated
-
Nameplate Voltage: 460V AC
-
Power Consumption: 4,080 W
-
Air Curtain Finish: Galvanized
-
Air Curtain Heated: No
-
Maximum Air Volume: 7,341 cfm
-
Sound Level @ 10 ft: 75 dBA
-
Air Temperature Rise: Not Applicable
-
Max. Mounting Height: 12 ft
-
Maximum Air Velocity: 4,000 fpm
-
Sanitation Certified: No
-
Air Curtain Air Volume: 7341 cfm
-
For Frame Opening Width: 12 ft
-
Nameplate Voltage/Phase: 460V AC - 3 Ph
-
Nominal Voltage - Phase: 480V AC - 3 Phase
-
Air Curtain Air Velocity: 4000 fpm
-
Heater Power Consumption: Not Applicable
-
Ultraviolet Air Cleaning: No
-
Air Curtain dBA @ 10 Feet: 75
-
Motor Horsepower per Motor: 1 hp
-
Air Curtain Max. Door Width: 12 ft
-
Air Curtain Housing Material: Steel
-
Maximum Operating Temperature: Not Available
-
Minimum Operating Temperature: Not Available
-
Mounting Height for Insect Control: 12 ft
-
Max. Mounting Height Environment/Insect: 14 ft / 12 ft
-
Mounting Height for Temperature Control: 14 ft
-
Environmental - Max Height (feet): 14
-
Insect - Max Height (feet): 12
-
Wind Stopping Capability (MPH): 12
-
Motors: 3
-
Voltage Rating: 460/3/60
-
Voltage Code: H
-
Amps: 4.8
-
Uniformity (%): 88
-
dBA: 75
-
Horse Power Per Motor: 1 hp
-
Max Opening Height Window Door: 14 ft
-
Certifications: cETLus
-
Door Width (Inches): 144
-
Door Height: 10' - 12'
-
Number of Poles: 3
-
Max Volume: 12000
-
Max Velocity: 4000
-
FLA (Ampacity): 4.8Amps
-
Sound dBA: 75
-
Depth (in.): 15.625
-
Length (in.): 144
-
Product Type: Unheated
-
Horsepower: 1 (per motor)
