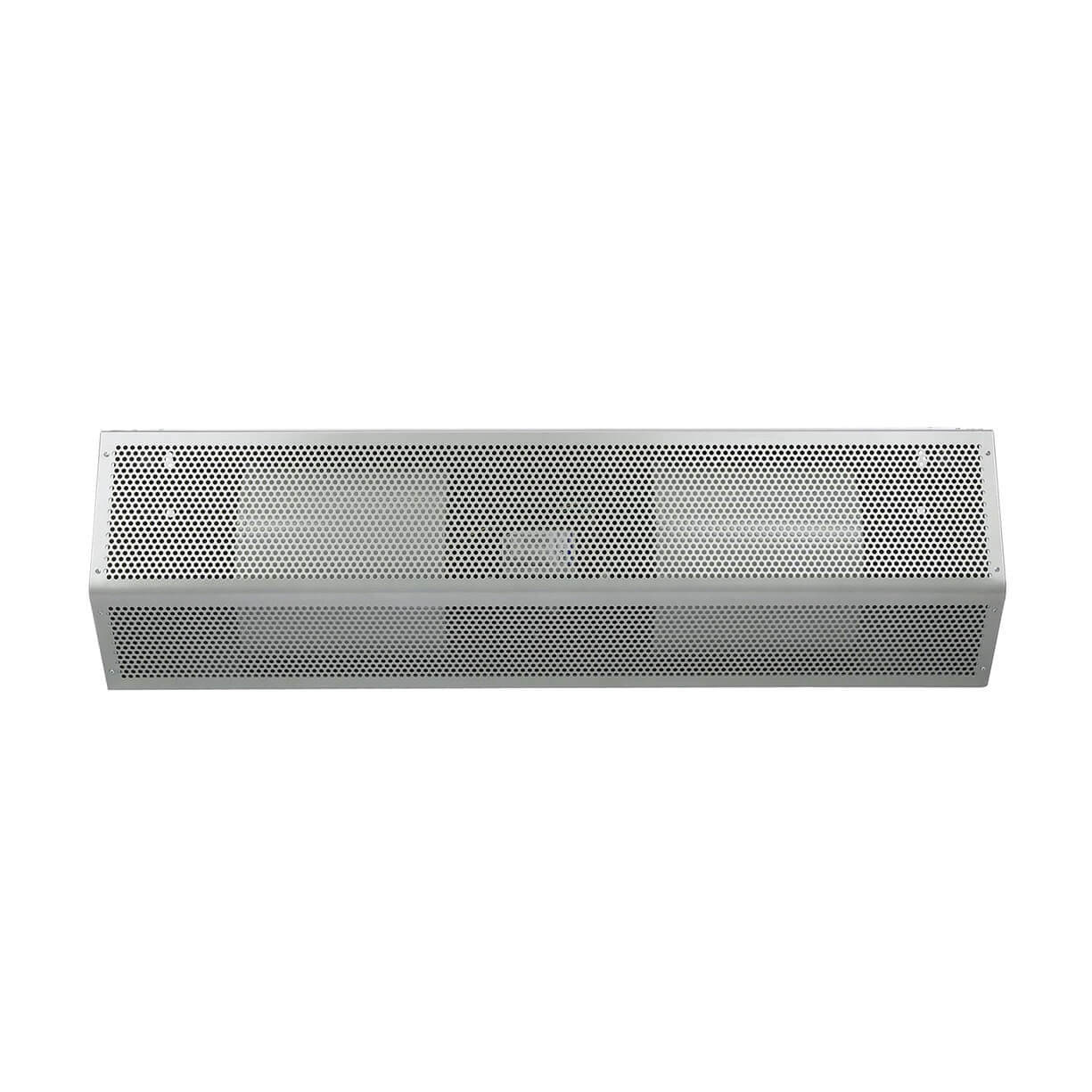

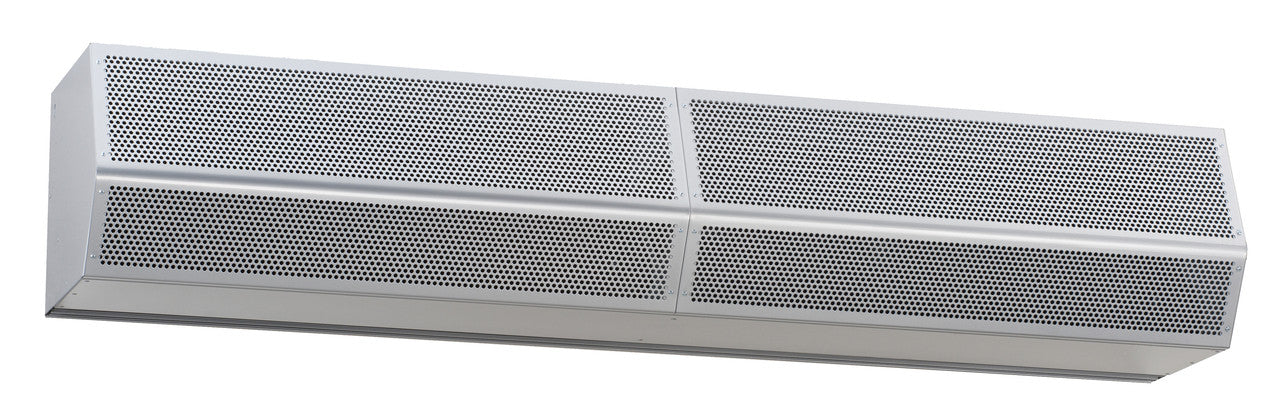

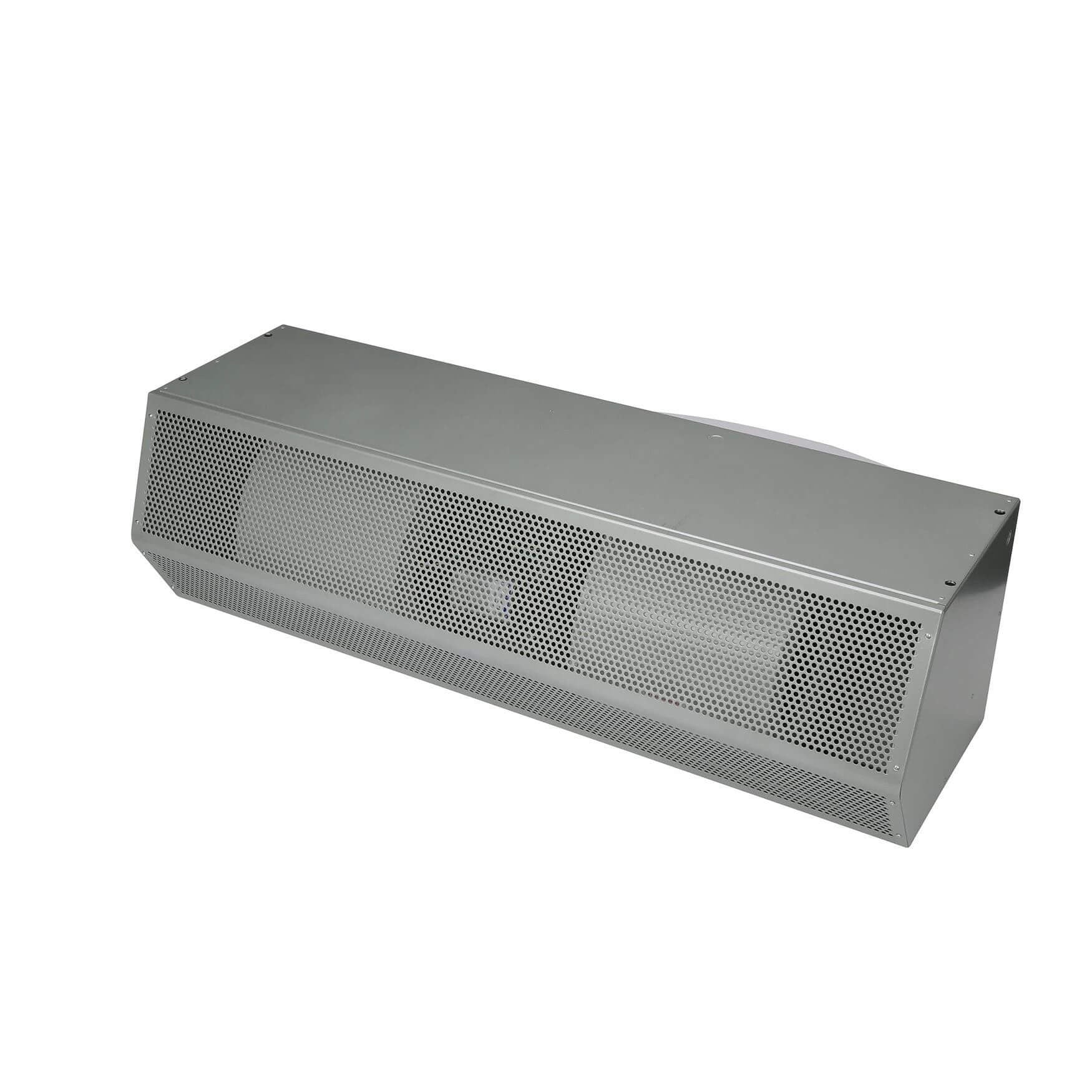

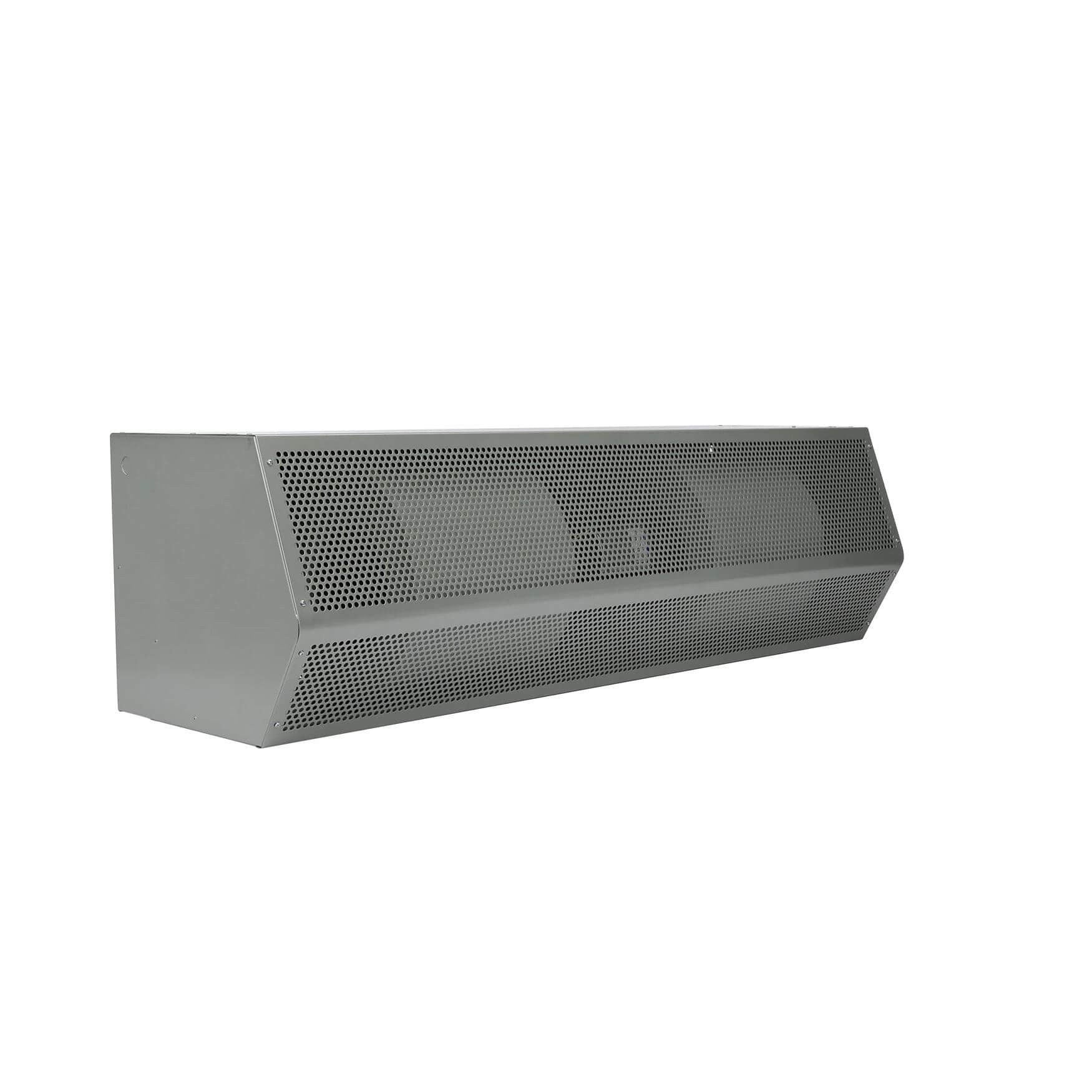

MARS HV2144-3UG-TS Mars Air Systems High Velocity Unheated Air Curtain 144 Inch 208/230 Volt 3-Phase

Product Description

The MARS HV2144-3UG-TS is a high-velocity unheated air curtain designed to provide an effective barrier against outside elements. This air curtain operates on 208/230 volts and is suitable for use in various settings including shipping doors and customer entrances. The unit is 144 inches long and features three one-horsepower motors that deliver efficient air flow to maintain desired environments.

• Air curtain height is ideal for openings up to fifteen feet.
• Constructed with durable materials and designed to resist corrosion.
• Easy to install with a simple control panel requiring external mounting.

Product Highlights

The MARS HV2 series air curtains feature robust construction and energy-efficient motors for reliable performance.

Product Information

Standard Information

• Brand: MARS
• Model: HV2144-3UG-TS

Technical Specifications

• Voltage: 208/230
• Phase: 3-phase
• Length: 144 inches
• Motor Power: 1 HP each (3 motors)
• Full Load Amps: 9.9 / 9.6
• Sound Level: 75 dBA
• Max Volume: 7341 CFMs
• Power Rating: 4080 Watts
• Weight: 375 lbs
