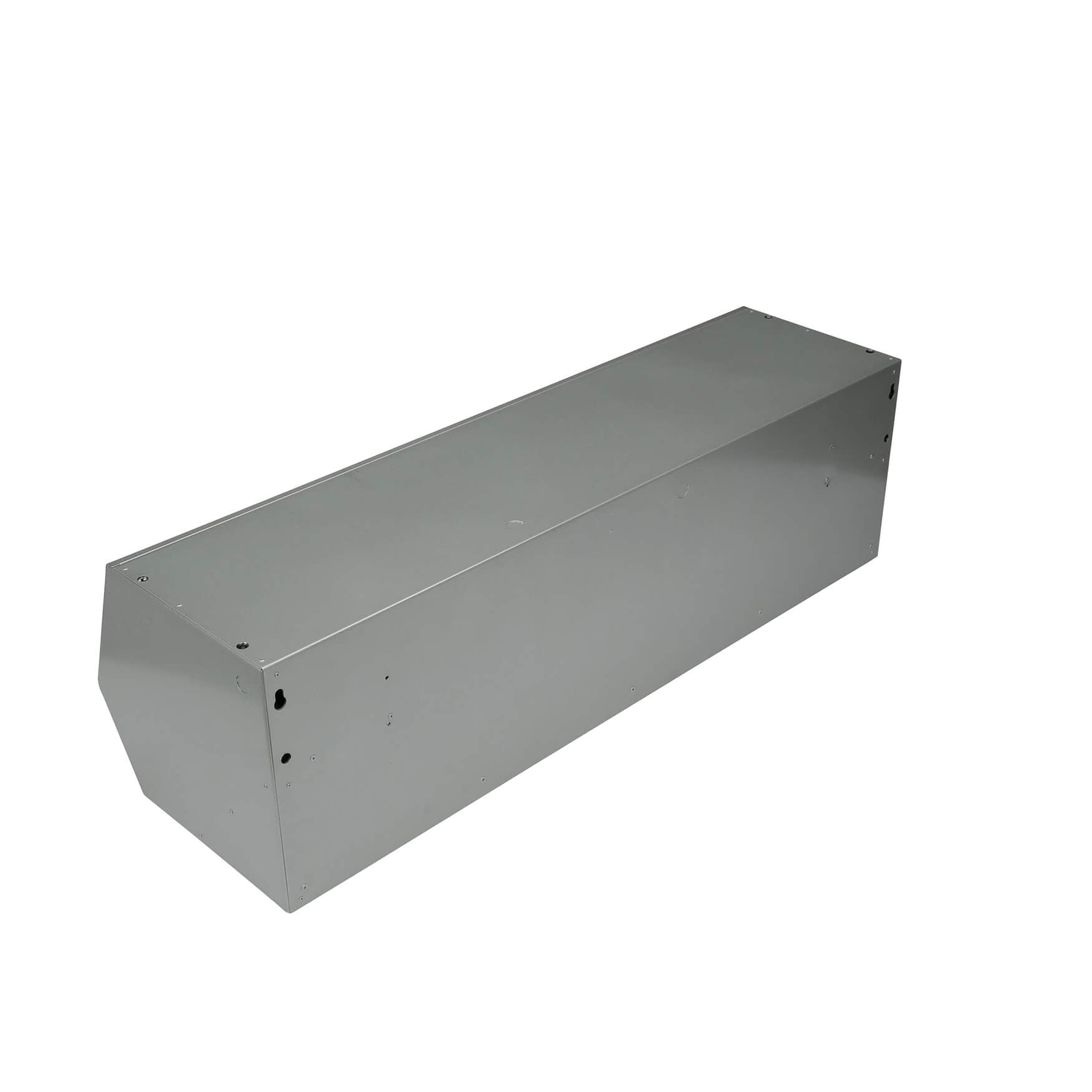

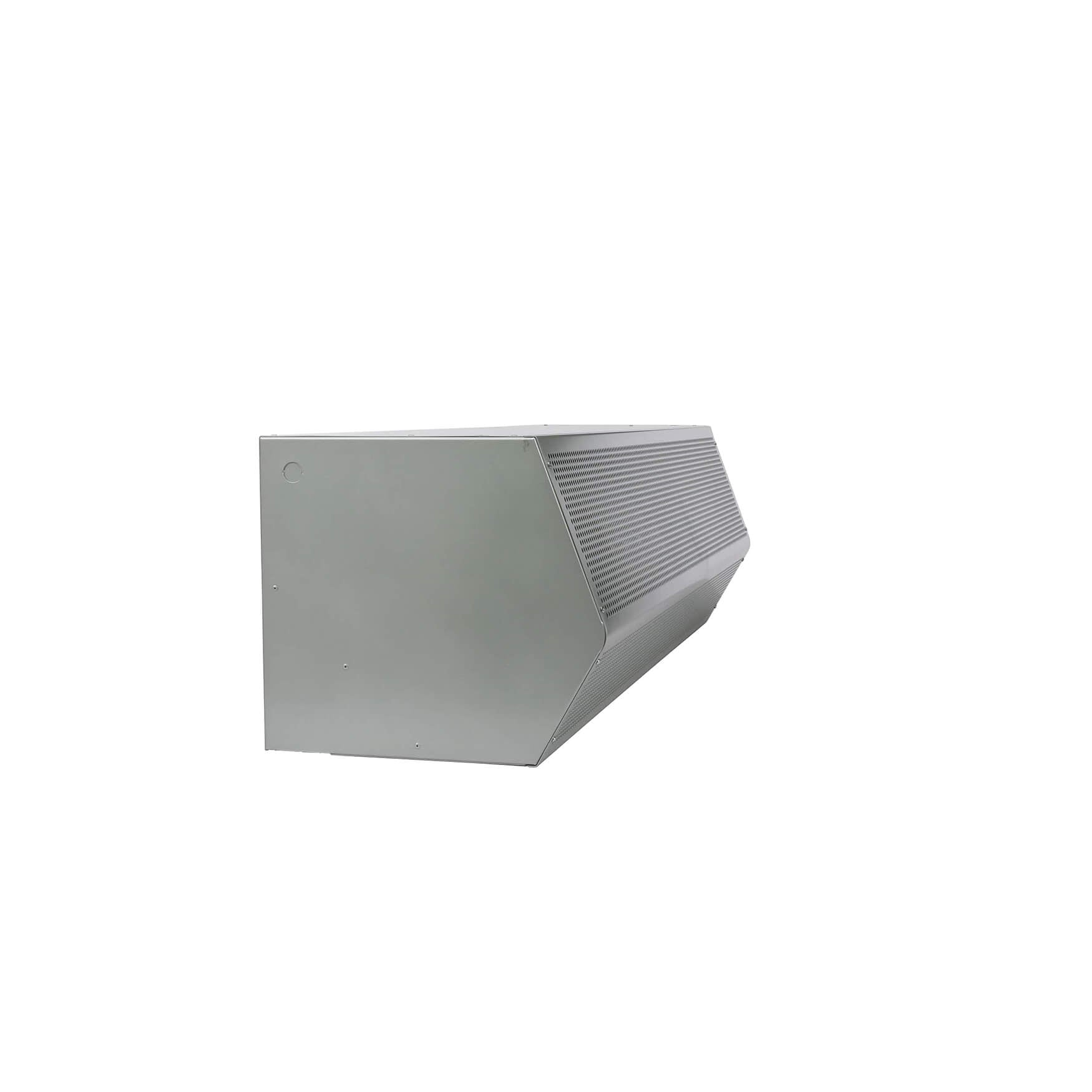

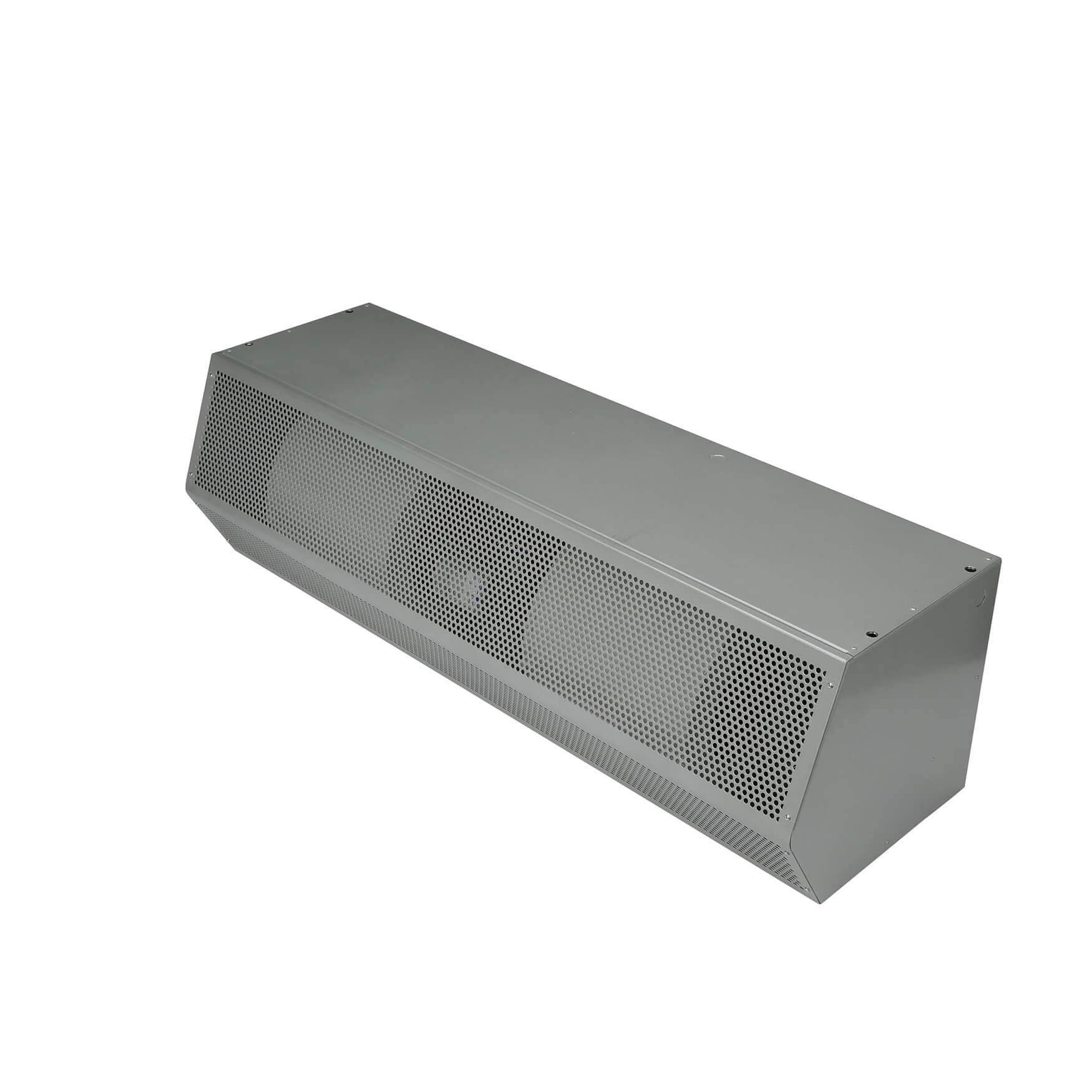

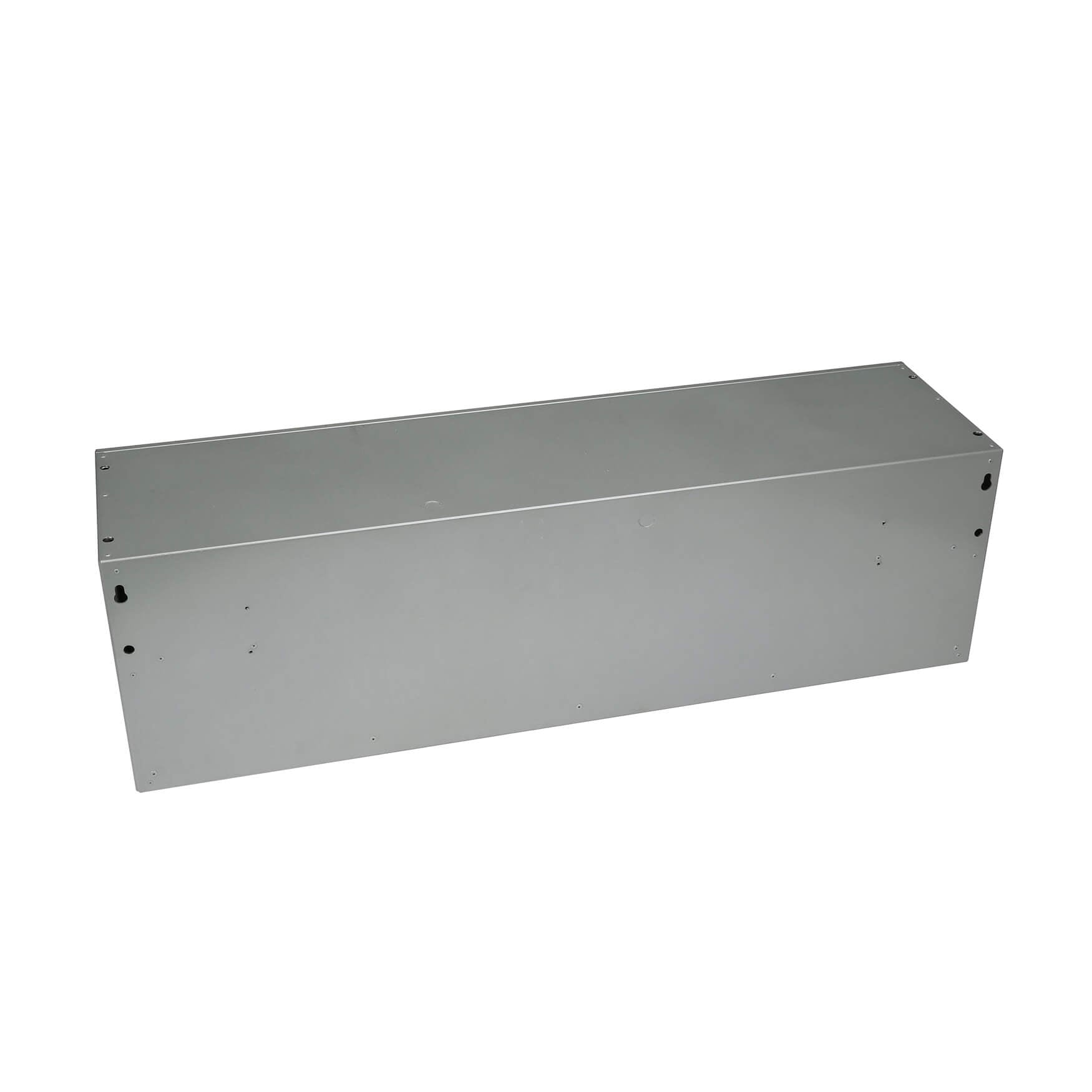

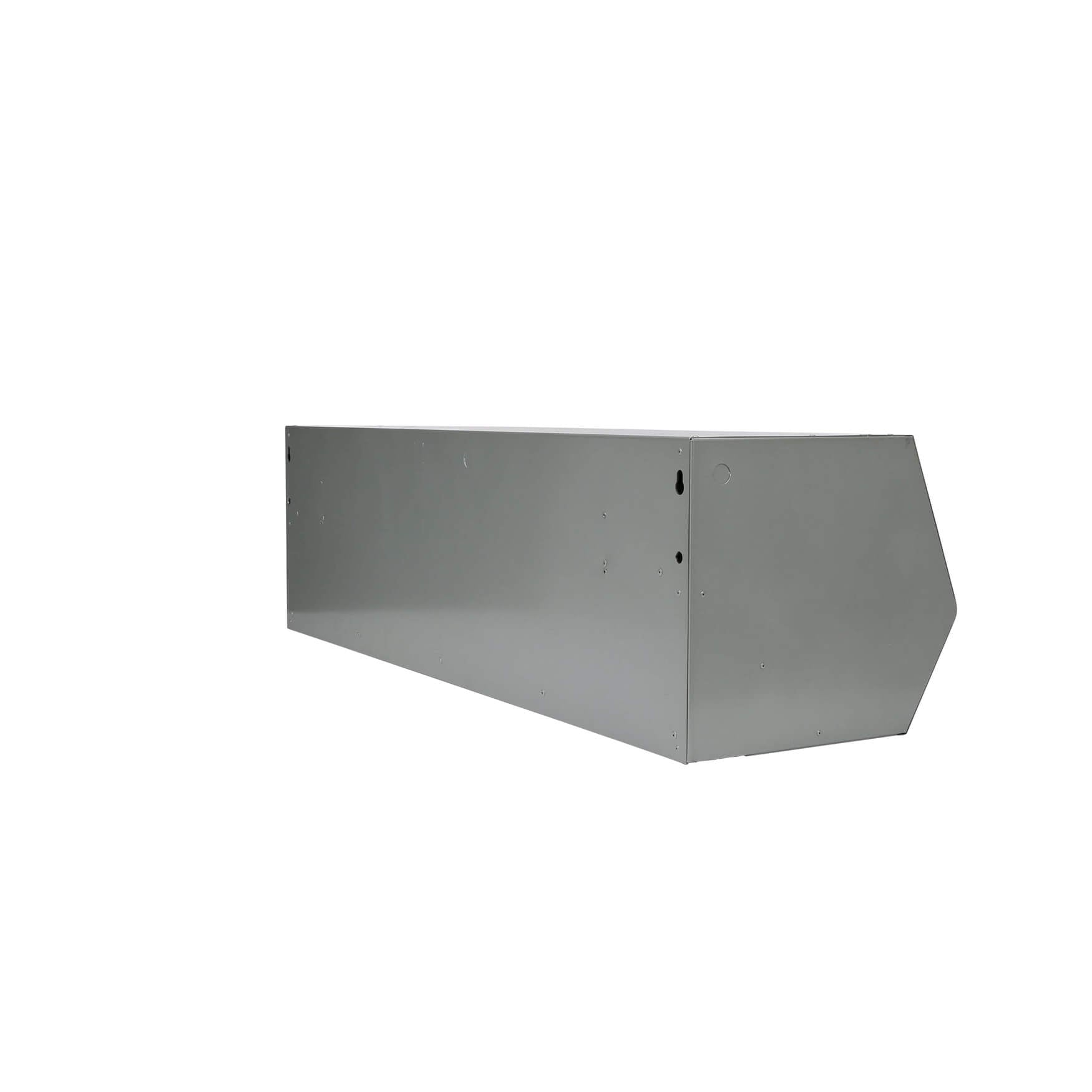

Mars HV2144-3UD-TS High Velocity 2 144 inches 1 HP Unheated Air Curtain

Product Description

The MARS HV2144-3UD-TS High Velocity 2 series air curtain features a 1 HP motor designed for industrial applications. It effectively separates environments and protects openings with significant wind loads up to 14 ft. This unheated air curtain is designed for insect control up to 12 feet and temperature/environmental separation up to 14 feet.

• Equipped with 1 HP direct-drive motor
• Durable metal construction with corrosion-resistant powder-coated finish
• Easy to install with adjustable air directional vanes

Product Highlights

Ideal for building entrances, shipping areas, and cold storage, this air curtain minimizes dirt, dust, and fumes while maintaining a consistent interior temperature.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: HV2144-3UD-TS
• Country of Origin: USA

Technical Specifications

• Series: High Velocity
• Size: 144"
• Material: Galvanized Steel
• Phase: 1
• Voltage: 208/230V
• Hertz: 60
• Type: Unheated
• Horse Power: 1
• Max Volume (CFM): 7341
• Environmental - Max Height (feet): 14
• Insect - Max Height (feet): 12
• Nozzle Width (inches): 144
• Unit Width (inches): 144
• Unit Height (inches): 14
• Wind Stopping Capability (MPH): 12
• Motors: 3
• Air Flow Certified (AMCA): Yes
• Amps: 15
• Uniformity (%): 88
• dBA: 75
• Application: Shipping & Receiving Areas
• ETL Listed: Yes
• Power: Electric
• Wattage: 4,080 Watts
• Number of Poles: 1
• Max Velocity: 4000
• Frequency (Hertz): 60
• AMCA Uniformity: 88
• Sound dBA: 75
