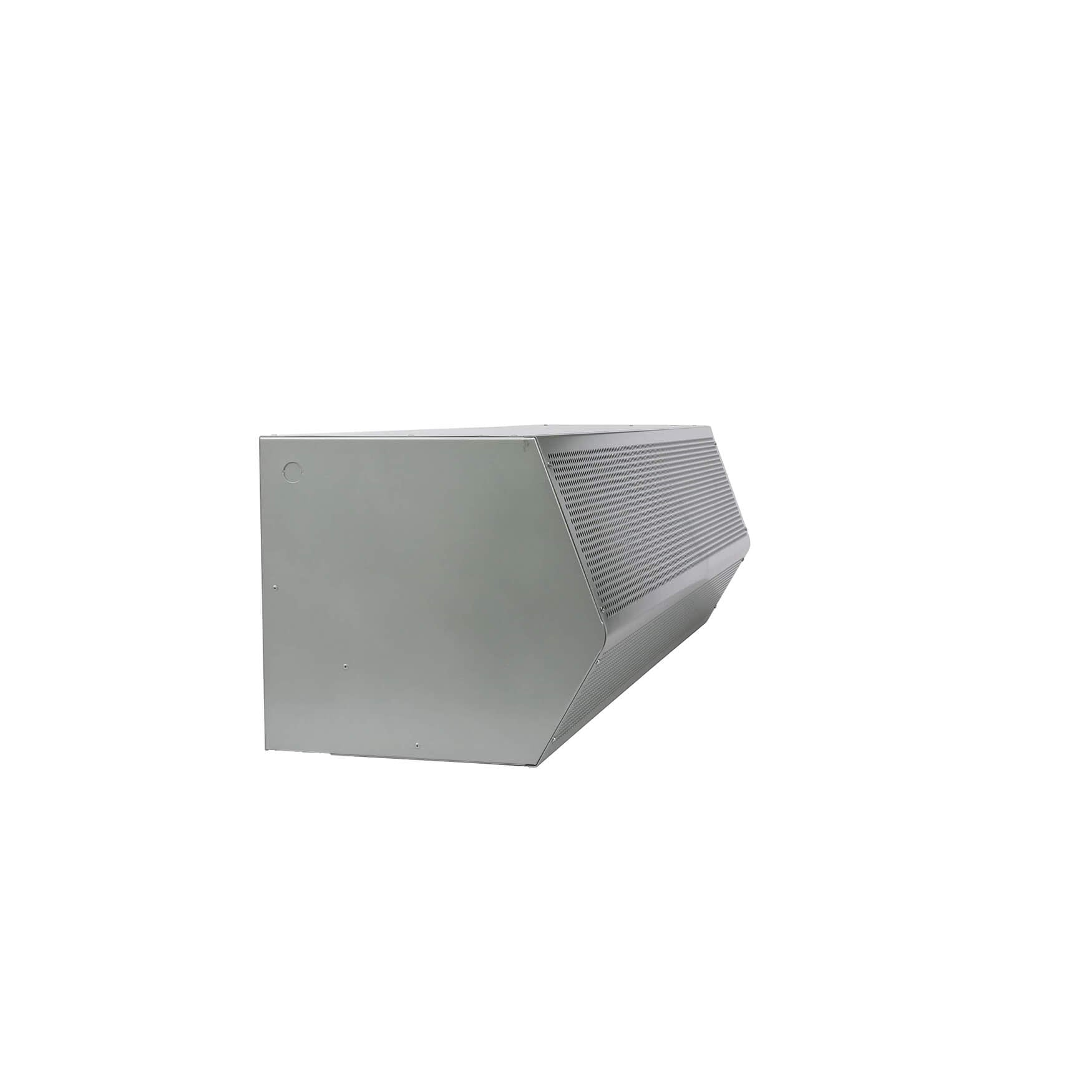

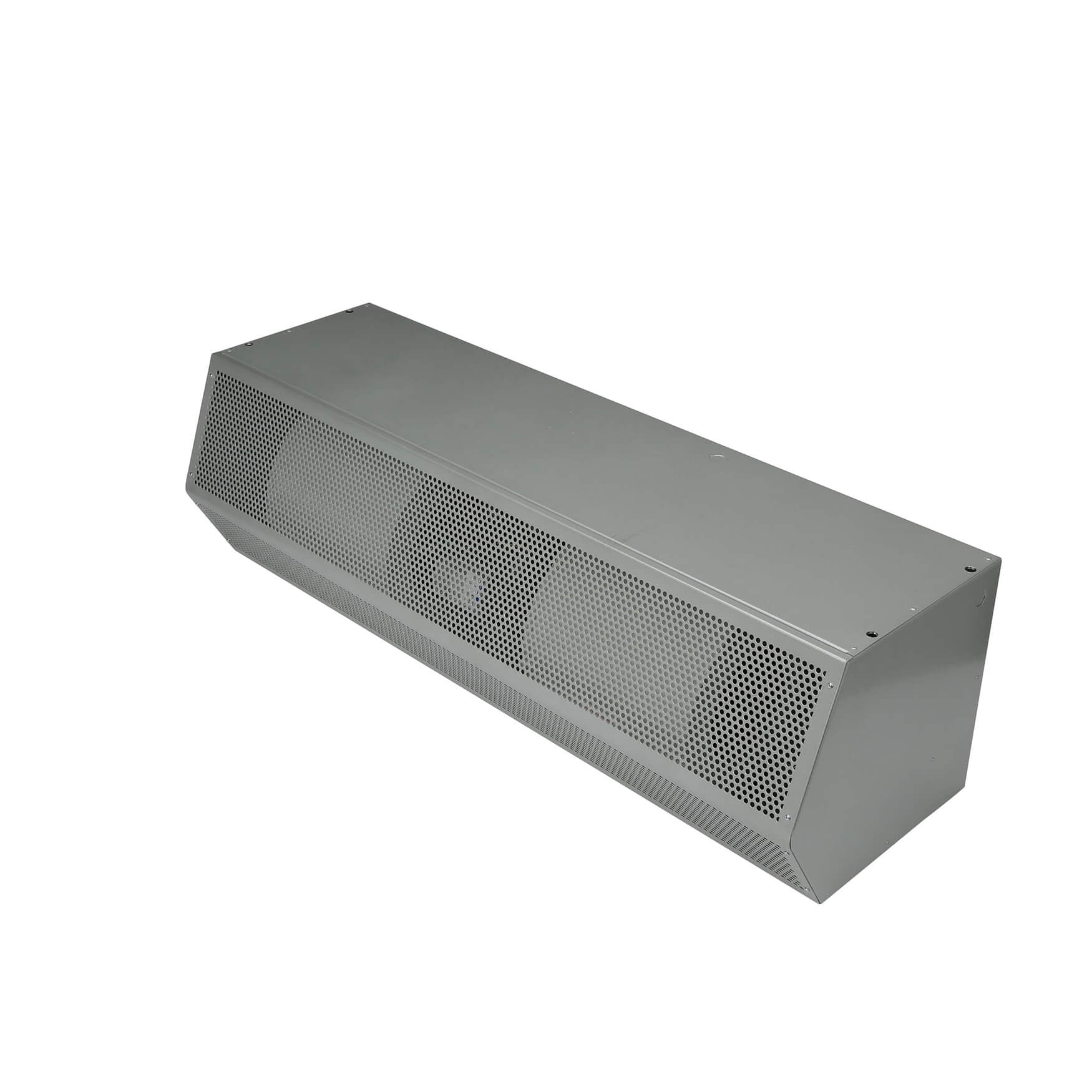

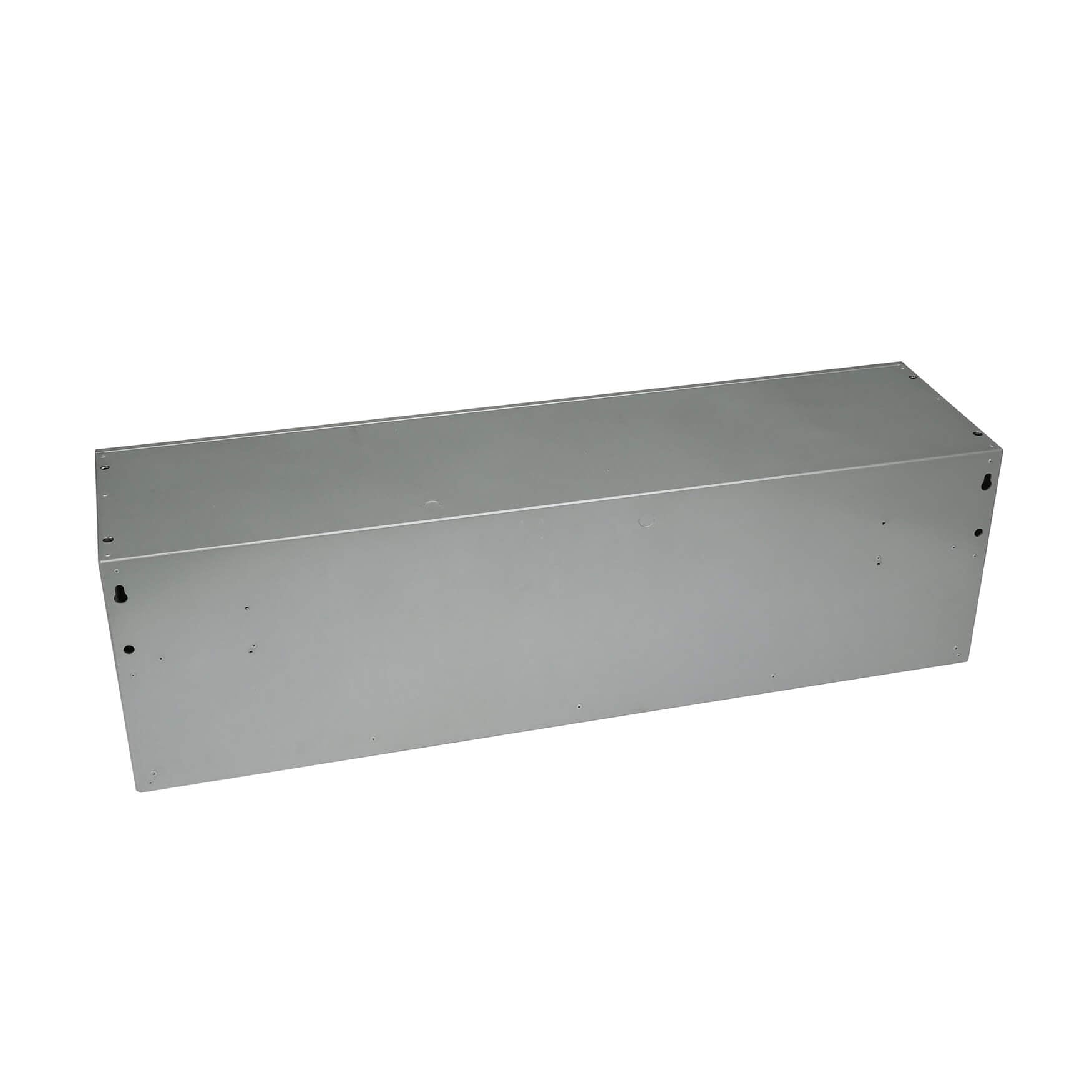

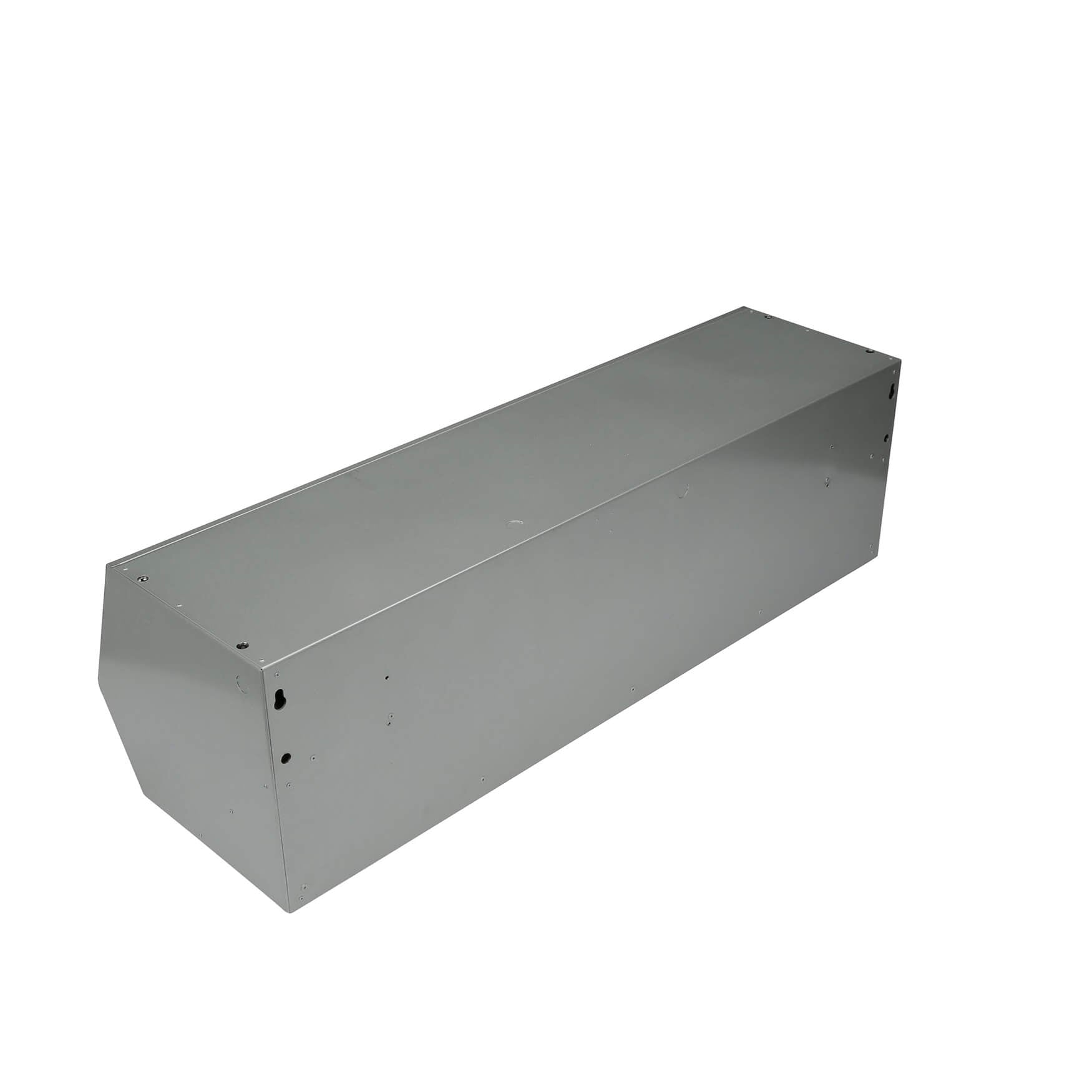

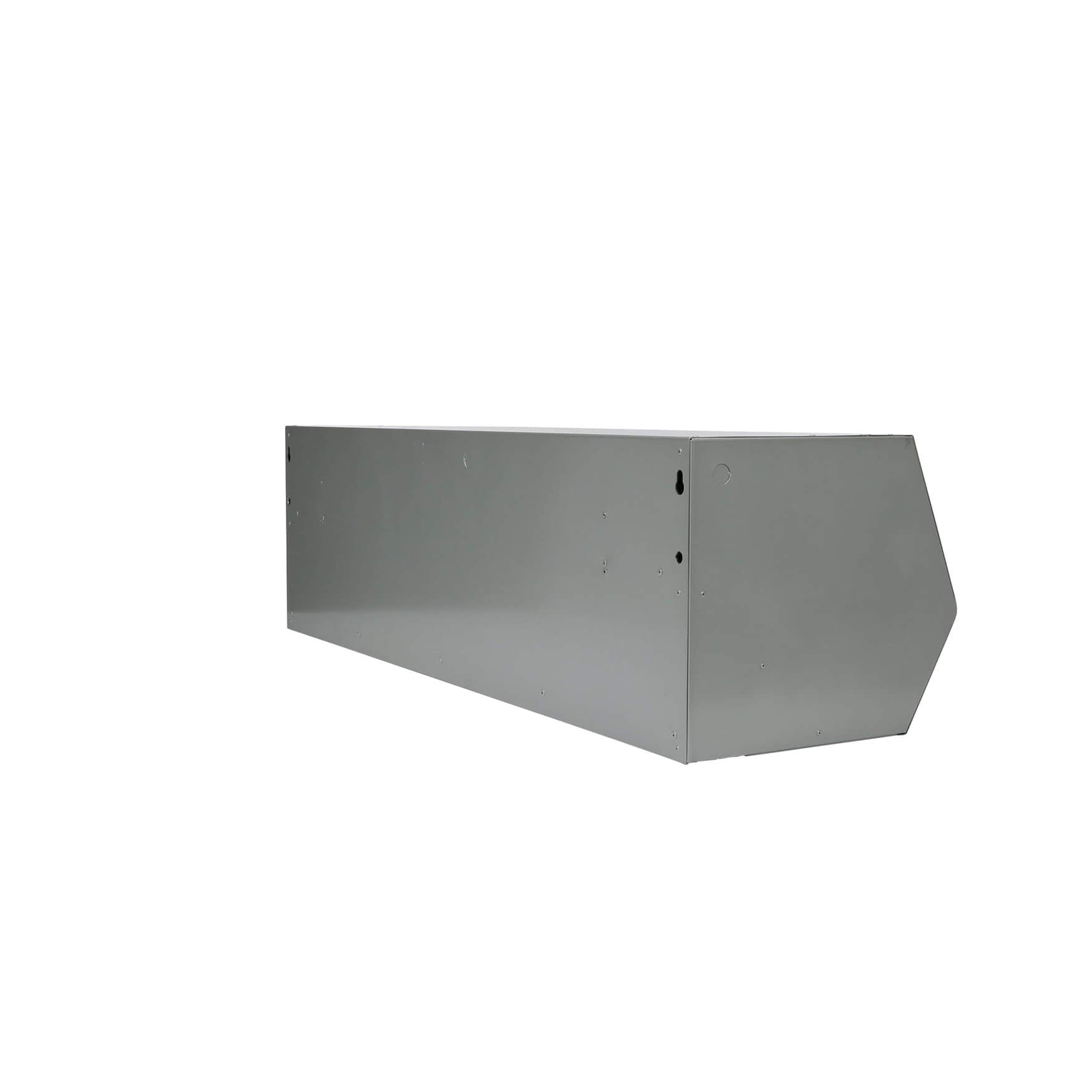

Mars HV2144-3UA-TS 144 inches Wide Door High 3 Motor Velocity Series 2 Unheated Air Curtain

Product Description

The MARS HV2144-3UA-TS is a High Velocity Series 2 air curtain featuring a 1 horsepower motor suitable for industrial applications. This unheated air curtain separates environments and protects openings with wind loads up to 12 ft. high. Designed for 144" wide doors, it helps maintain consistent interior temperatures while minimizing dirt, dust, and fumes.

• Features a 1 hp direct-drive motor.
• Durable metal construction with corrosion-resistant powder-coated finish.
• Designed for environmental protection up to 12 ft and flying-insect protection up to 10 ft.

Product Highlights

This air curtain is ideal for building entrances, shopping malls, and industrial settings, offering effective environmental control and reduced energy consumption.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: HV2144-3UA-TS
• Country of Origin: USA

Technical Specifications

• Series: HV2 Series
• Size: 144"
• Material: Galvanized Steel
• Phase: Single Phase
• Voltage: 115V
• Hertz: 60
• Type: Unheated
• Horse Power: 1
• Max Volume (CFM): 7341
• Environmental - Max Height (feet): 14
• Insect - Max Height (feet): 12
• Heating Mode: Unheated
• Nozzle Width (inches): 144
• Unit Width (inches): 144
• Unit Height (inches): 14
• Wind Stopping Capability (MPH): 12
• Motors: 3
• Air Flow Certified (AMCA): Yes
• Voltage Rating: 115/1/60
• Voltage Code: A
• Air Curtain Air Volume (CFM): 7341
• Amps: 27
• Uniformity (%): 88
• dBA: 75
• Model Number: HV2144-3UA-TS
• WIDTH (SIDE - SIDE): 144"
• HORSEPOWER PER MOTOR: 1
• Height: 14.00"
• Width: 144.00"
• Depth: 15.63"
• FLA (Ampacity): 27Amps
• Door Width (Inches): 144
• Door Height: 10' - 12'
• Number of Poles: 1
• Max Volume: 12000
• Max Velocity: 4000
• Frequency (Hertz): 60
• AMCA Uniformity: 88
• Sound dBA: 75
• HP: 1 HP
• Max Environmental Separation Height: 14 Feet
• Max Insect Blocking Height: 12 Feet
• Power: Electric
• Wattage: 4,080 Watts
• Exterior Color: Silver
• Application: Shipping & Receiving Areas
• ETL Listed: Yes
• Certifications: cETLus
