Mars HV21202EBHTS HV2 Series Air Curtain 120 inches 208 Volt

Product Description

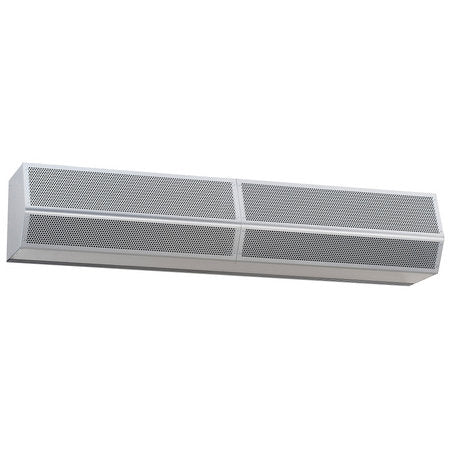

The MARS HV21202EBHTS is a 120" HV2 Series air curtain designed for door heights of 12-14'. This electric heated unit features 1 HP motors suitable for industrial applications, effectively separating environments and protecting openings. It minimizes dirt, dust, and fumes while maintaining a consistent interior temperature.

• Designed for building entrances, produce market areas, vestibules, and shopping malls.
• Features a sleek, self-contained, one-piece heavy gauge corrosion proof paint lock metal design.
• ETL Certified to conform to UL 2021 (US) and CSA 22.2 (Canada) Standards.

Product Highlights

This air curtain provides environmental separation, insect control, and reduced energy consumption. Proudly made in the USA.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: HV21202EBHTS
• Country of Origin: USA

Technical Specifications

• Air Volume (CFM): 5519
• Application: Main Entrances
• ETL Listed: Yes
• Exterior Color: Silver
• HP: 2 HP
• Max Environmental Separation Height: 14 Feet
• Max Insect Blocking Height: 12 Feet
• Motors: 2
• Phase: Single Phase
• Power: Electric
• Series: HV2 Series
• Type: Heated Air Curtains
• Volts: 208 Volts
• Wattage: 12,000 Watts
• Weight: 365 Pounds
• Product Condition: New
• Max. Door/Window Height (ft.): 14
• Max. Height Insect Block (ft.): 12
• Heat: Yes
• Horsepower: 1 (per motor)
• Depth (in.): 21.375
• Height (in.): 14
• Length (in.): 120
• Certifications: ETL Listed
• Parts Warranty: 18 Months
• Product Type: Heated
