Product Description

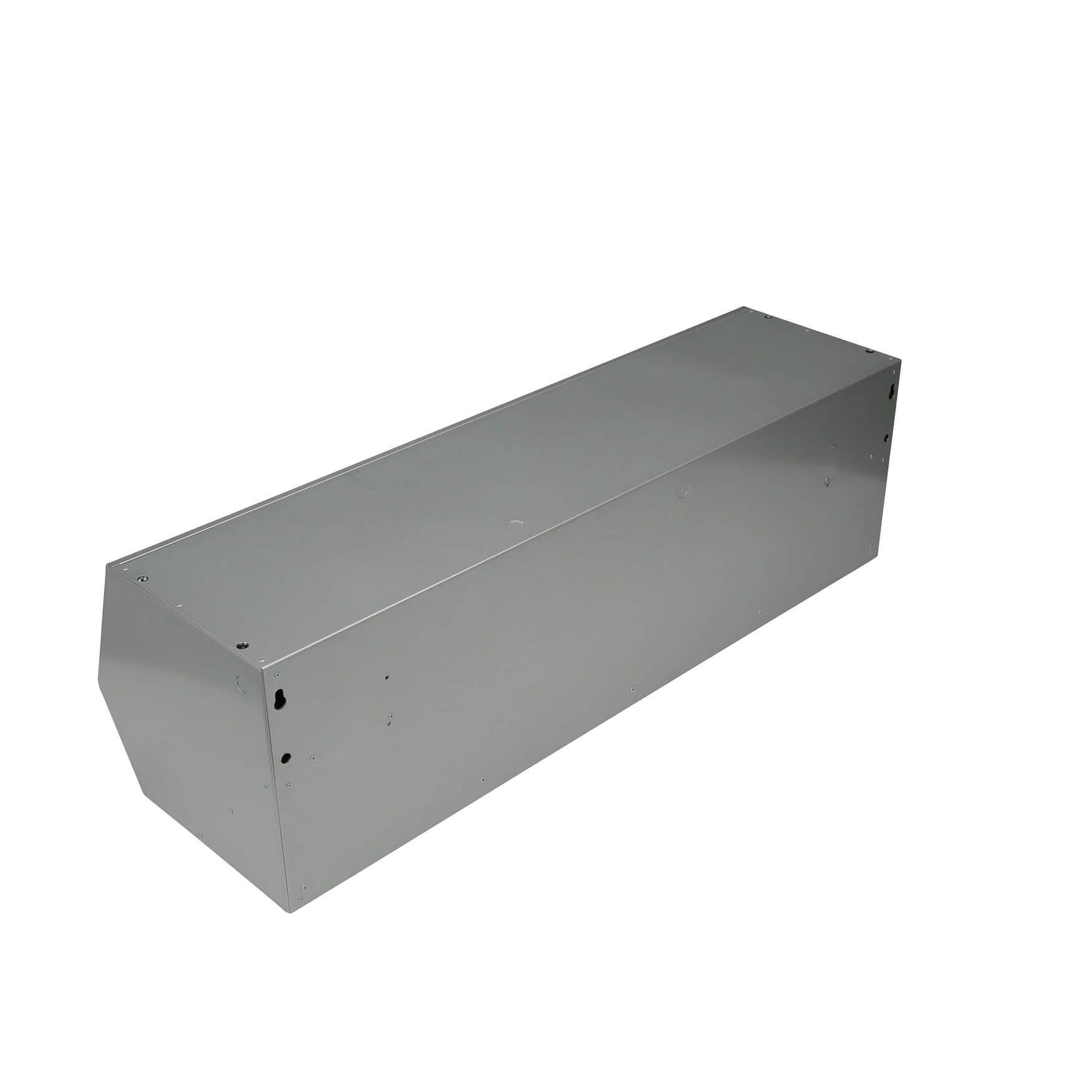

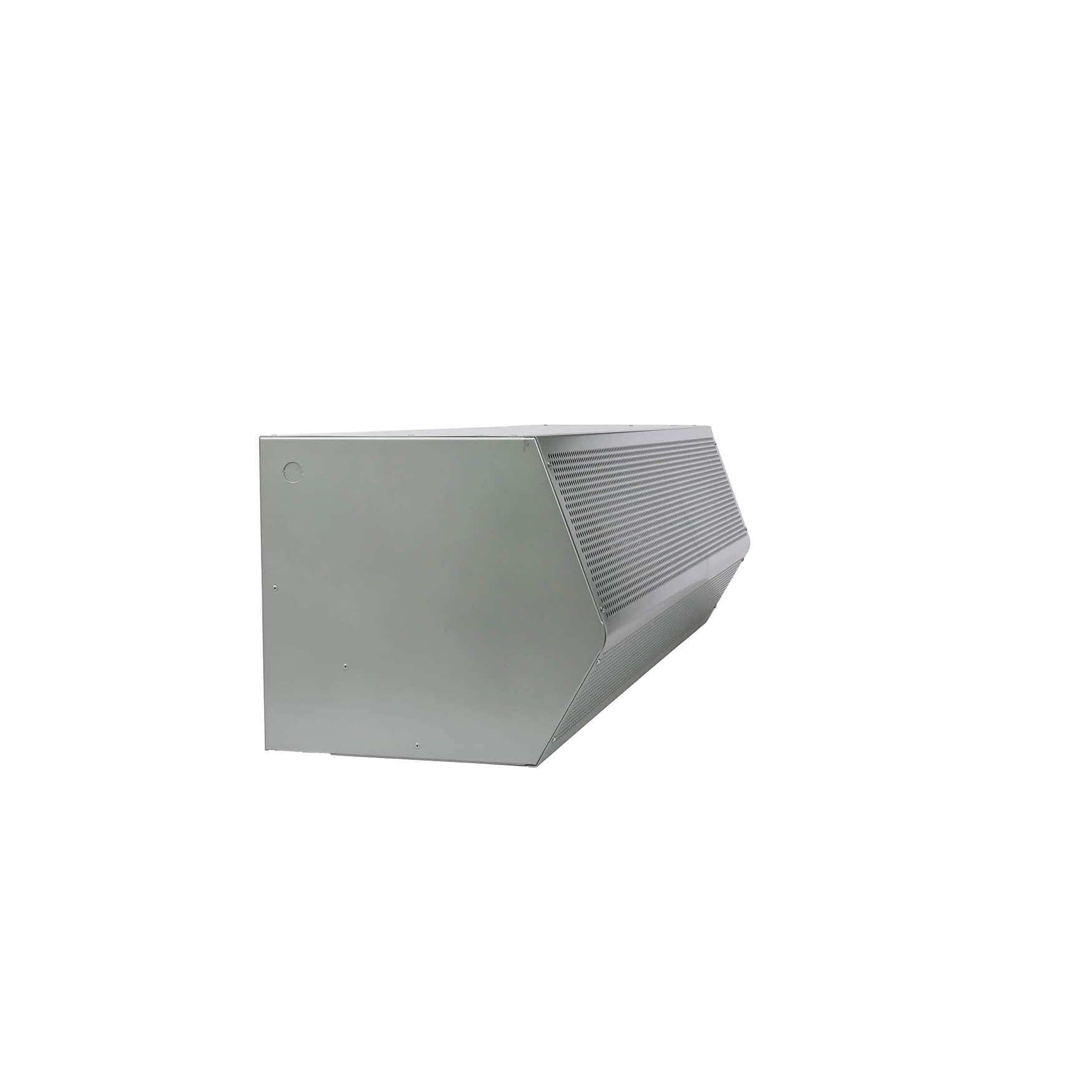

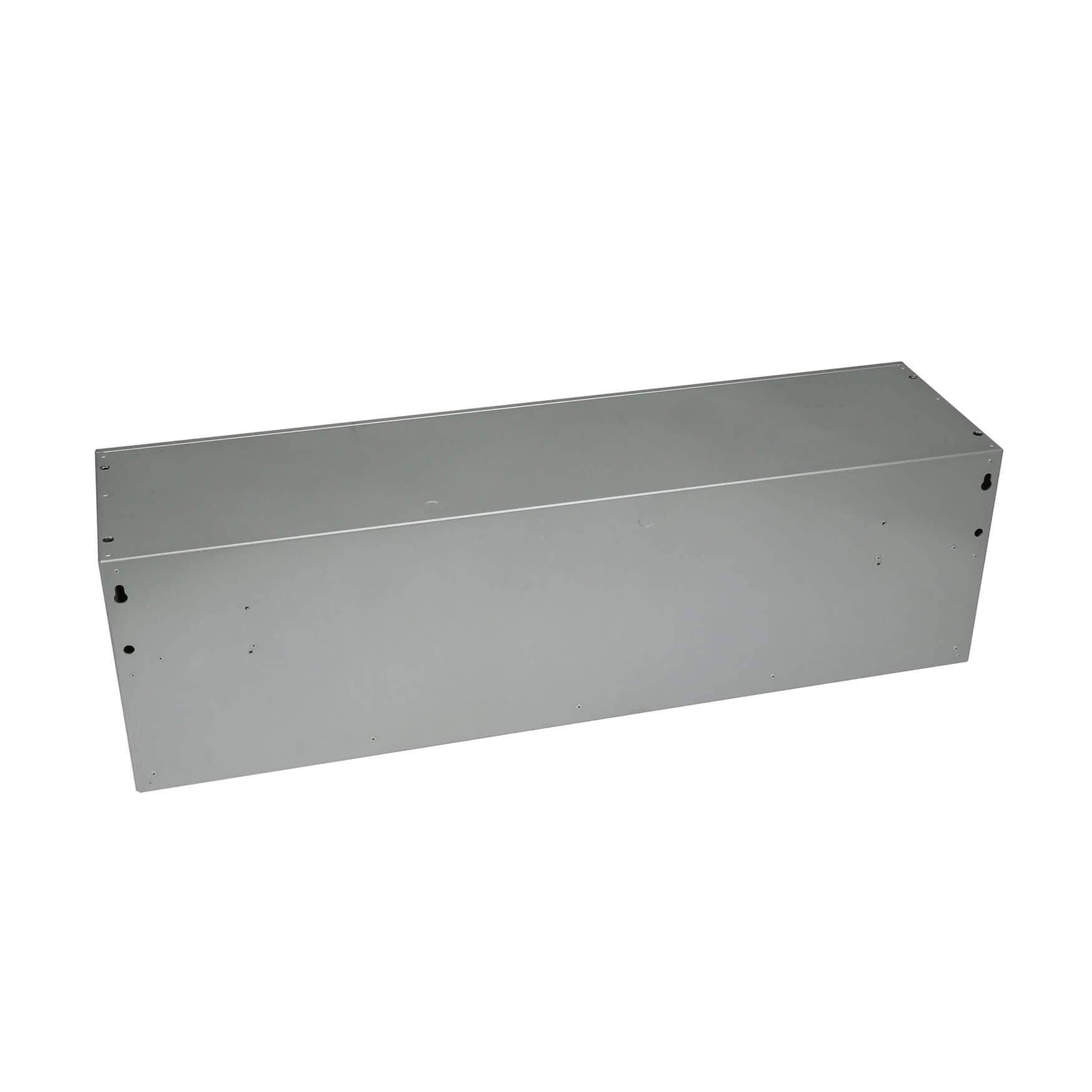

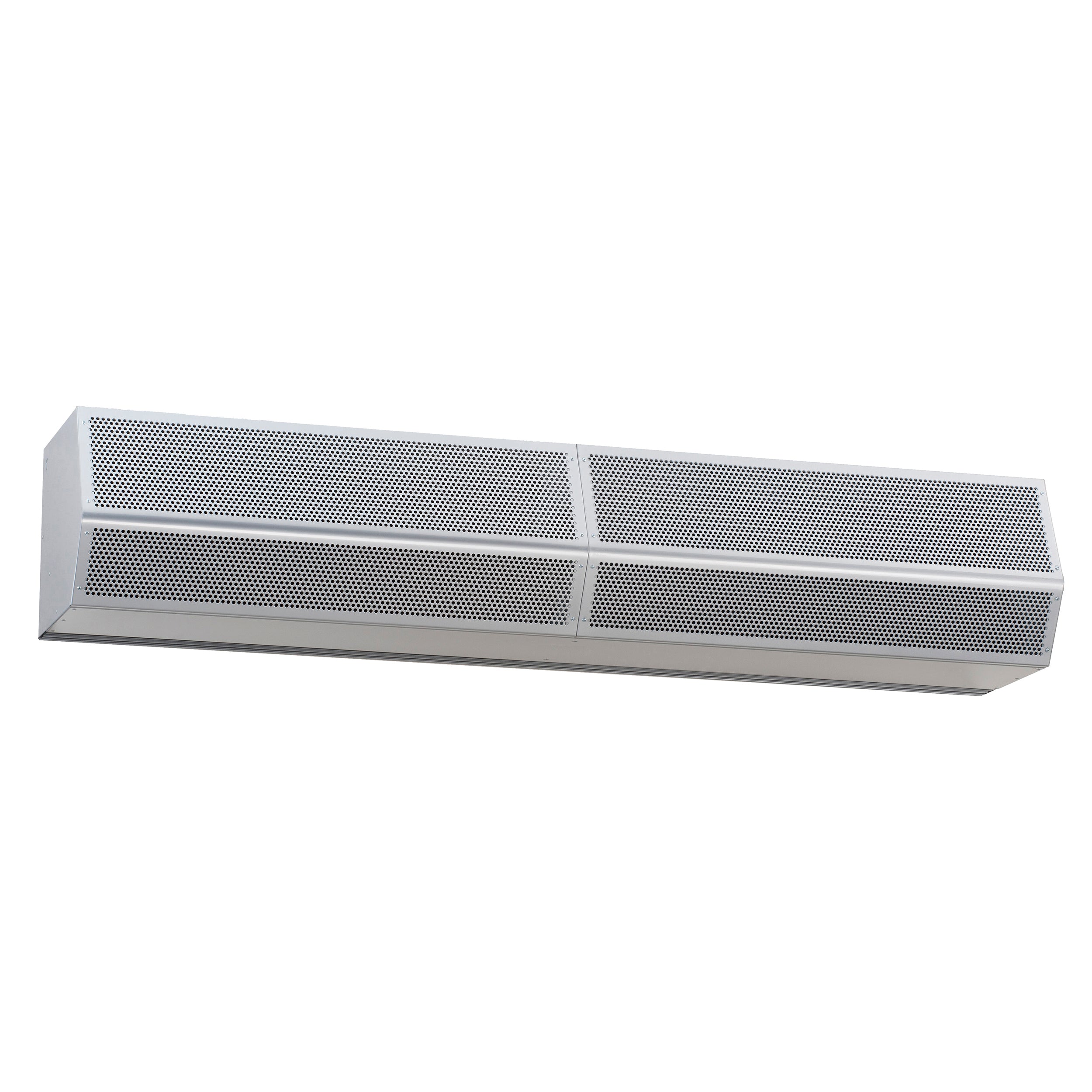

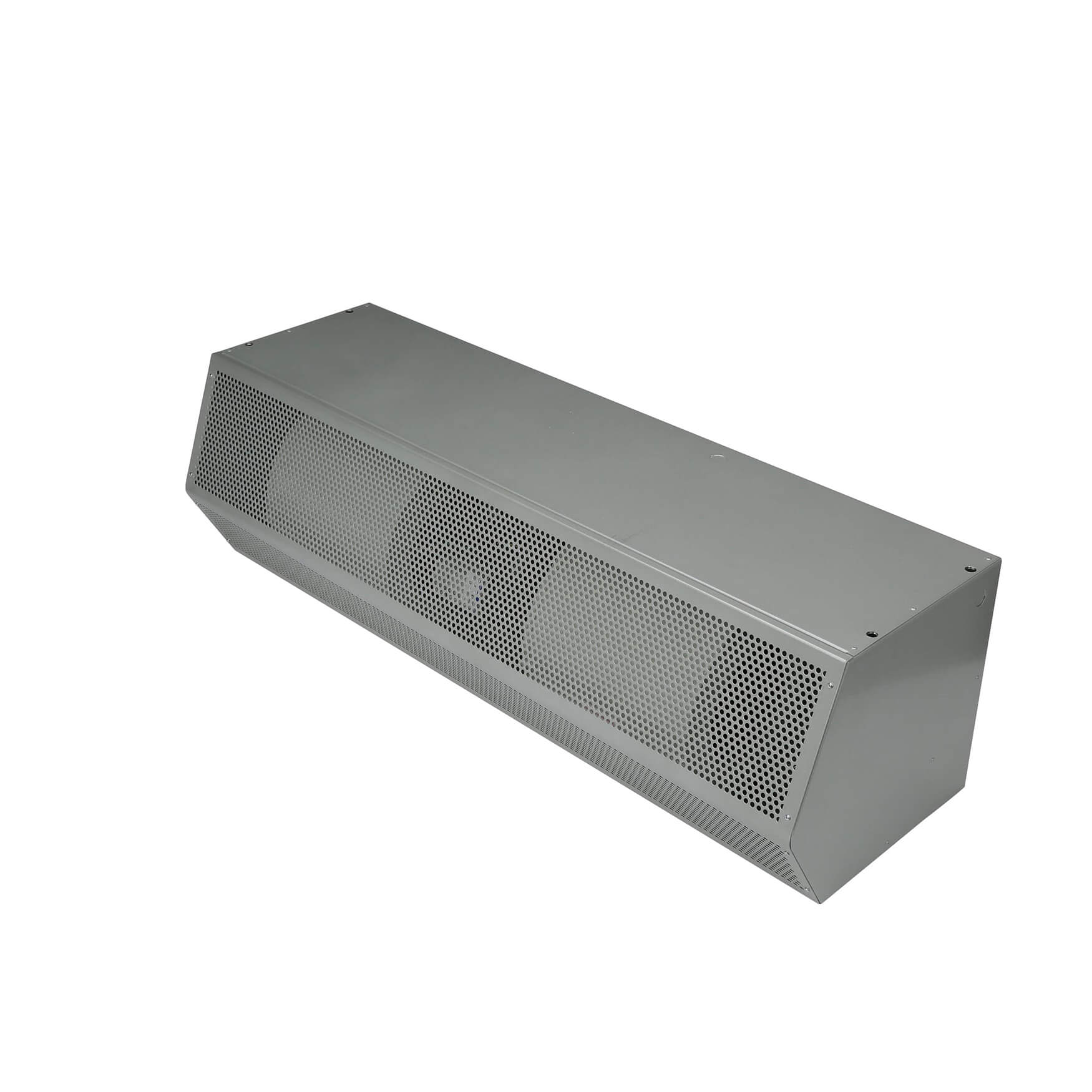

The MARS HV2120-3UH-TS air curtain is designed for multipurpose use with a 120-inch width. This unheated air curtain is constructed from steel with a galvanized, powder-coated finish and features a standard profile. It requires a motor control panel and door limit switch for operation. Operates at 460V AC, 3-Phase, 60 Hz.
- Measures 14 in H x 120 in W x 16 in D
- Maximum air velocity of 4,800 fpm and air volume of 6,693 cfm
- Features 3 motors with a maximum speed of 1,750 RPM
Product Highlights
This air curtain provides effective temperature control and insect protection for openings up to 14 ft.
Product Information
Standard Information
-
Brand: MARS
-
Manufacturer Part Number: HV2120-3UH-TS
-
Country of Origin: United States
Technical Specifications
-
Hz: 60
-
Item: Air Curtain
-
Depth: 15.625 in
-
Phase: 3
-
Width: 120 in
-
Finish: Galvanized, Powder Coated
-
Height: 14 in
-
Series: High Velocity
-
Voltage: 460
-
Max. RPM: 1,750 RPM
-
Motor HP: 1 hp
-
Requires: Motor Control Panel And Door Limit Switch
-
Washdown: No
-
Frequency: 60 Hz
-
Max. Amps: 4.8
-
Standards: ETL
-
Drive Type: Direct Drive
-
Motor Type: 3 Phase
-
Nozzle Width: 120 in
-
Profile Type: Standard Profile
-
Housing Color: Silver
-
Maximum Speed: 1,750 RPM
-
Grille Material: Steel
-
Motor Enclosure: Totally Enclosed Air Over
-
Nominal Voltage: 480V AC
-
Air Curtain Item: Air Curtain
-
Air Curtain Type: Ambient Air
-
Number of Motors: 3
-
Full Load Current: 4.8 A
-
HEPA Air Cleaning: No
-
Heated/Not Heated: Not Heated
-
Nameplate Voltage: 460V AC
-
Power Consumption: 3,615 W
-
Air Curtain Finish: Galvanized
-
Air Curtain Heated: No
-
Maximum Air Volume: 6,693 cfm
-
Sound Level @ 10 ft: 75 dBA
-
Air Temperature Rise: Not Applicable
-
Max. Mounting Height: 12 ft
-
Maximum Air Velocity: 4,800 fpm
-
Sanitation Certified: No
-
Air Curtain Air Volume: 6693 cfm
-
For Frame Opening Width: 10 ft
-
Nameplate Voltage/Phase: 460V AC - 3 Ph
-
Nominal Voltage - Phase: 480V AC - 3 Phase
-
Air Curtain Air Velocity: 4800 fpm
-
Heater Power Consumption: Not Applicable
-
Ultraviolet Air Cleaning: No
-
Air Curtain dBA @ 10 Feet: 75
-
Motor Horsepower per Motor: 1 hp
-
Air Curtain Max. Door Width: 10 ft
-
Air Curtain Housing Material: Steel
-
Mounting Height for Insect Control: 12 ft
-
Mounting Height for Temperature Control: 14 ft
-
Size: 120"
-
Material: Galvanized Steel
-
Horse Power: 1
-
Max Volume (CFM): 6693
-
Environmental - Max Height (feet): 14
-
Insect - Max Height (feet): 12
-
Heating Mode: Unheated
-
Nozzle Width (inches): 120
-
Unit Width (inches): 120
-
Unit Height (inches): 14
-
Wind Stopping Capability (MPH): 12
-
Motors: 3
-
Air Flow Certified (AMCA): Yes
-
Amps: 4.8
-
Uniformity (%): 93
-
dBA: 75
-
Max. Door/Window Height (ft.): 14
-
Max. Height Insect Block (ft.): 12
-
Heat: No
-
Horsepower: 1 (per motor)
-
Depth (in.): 15.625
-
Length (in.): 120
-
Certifications: ETL Listed, AMCA
-
Product Type: Unheated
-
Manufacturer: Mars Air Systems
-
Model Number: HV2120-3UH-TS
-
Type: un-heated
-
Horse Power Per Motor: 1 hp
-
Overall Height: 14 in
-
Overall Depth: 16 in
-
Overall Width: 120 in
-
Control Type: Motor Control Panel And Door Limit Switch
-
Housing Material: Steel
-
standard: AMCA CERTIFIED
-
Voltage Rating: 460/3/60
-
Voltage Code: H
