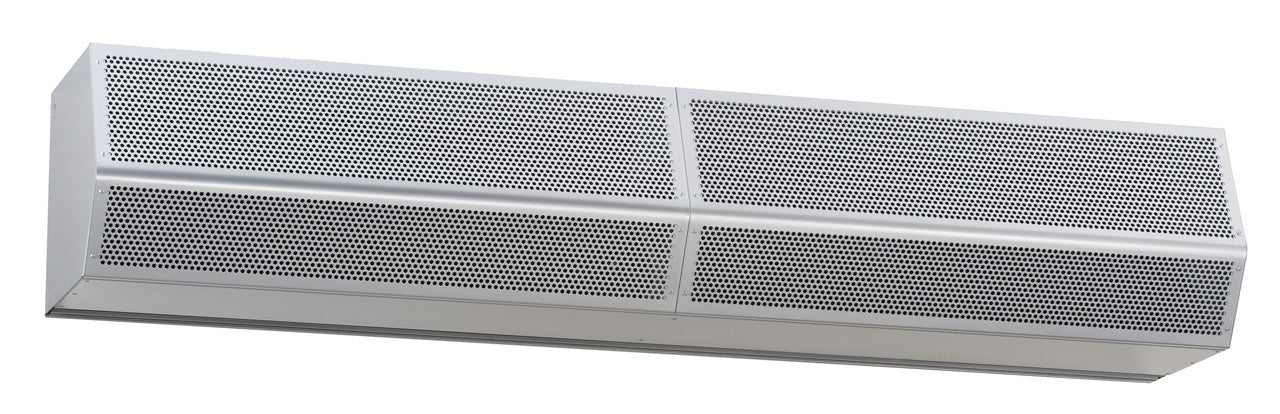

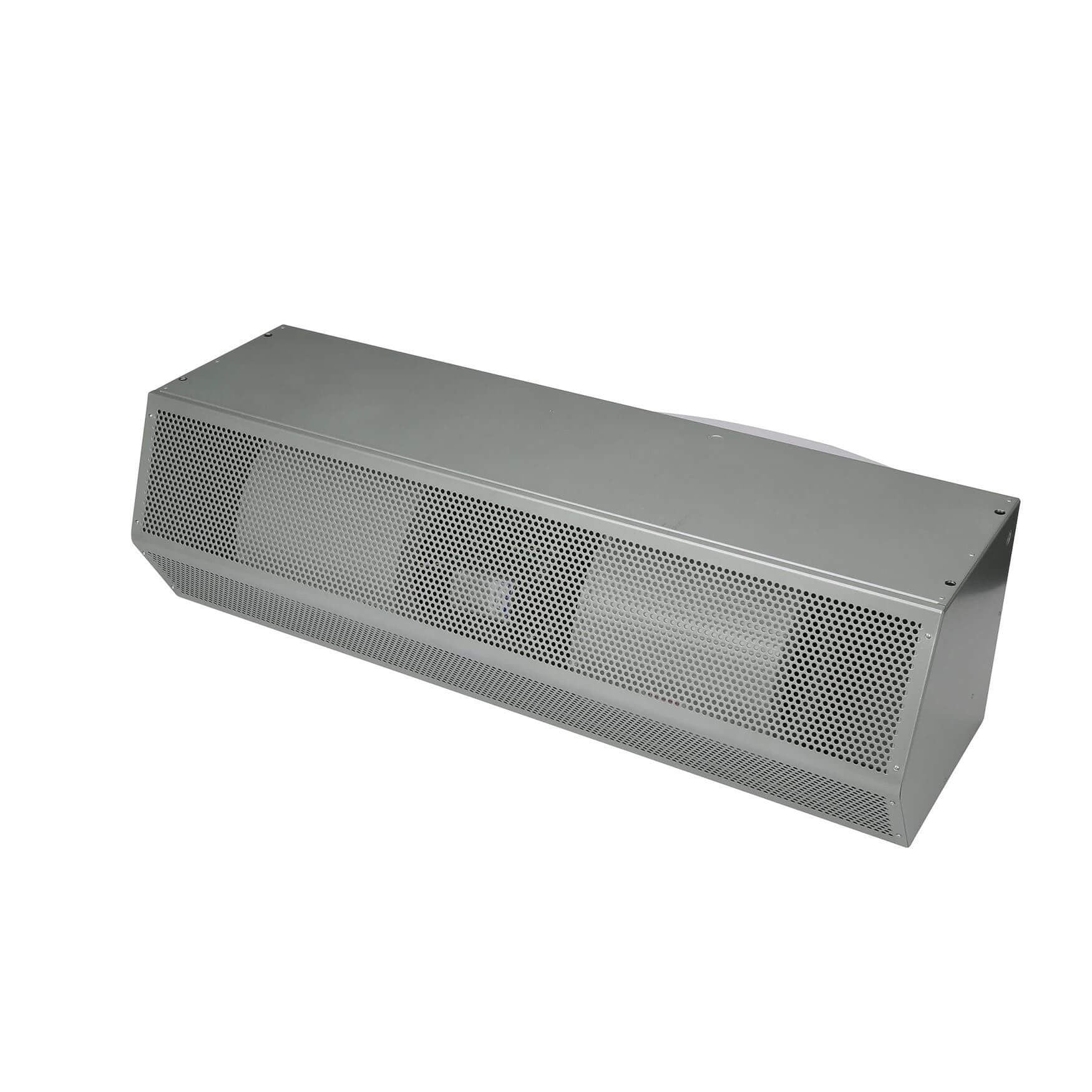

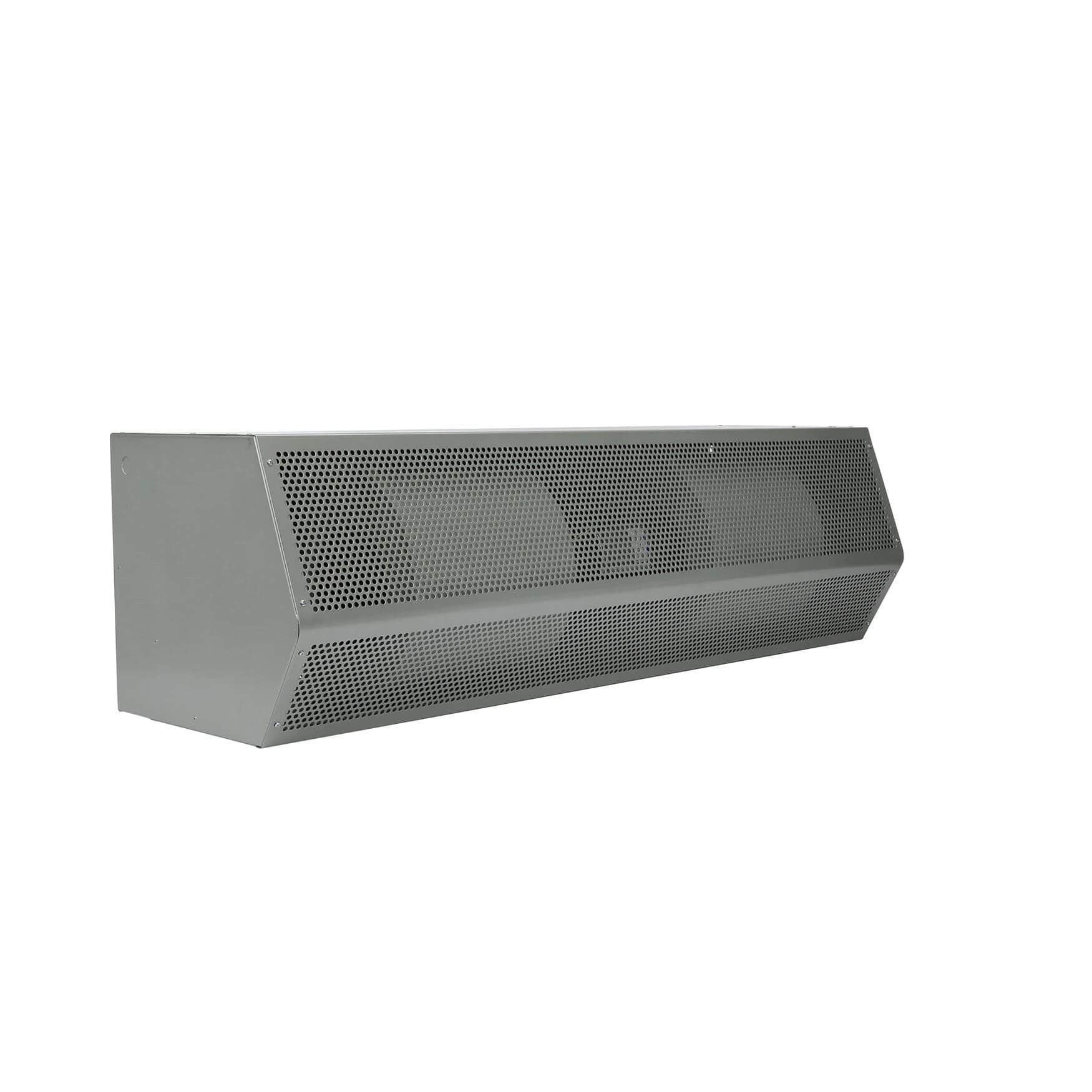

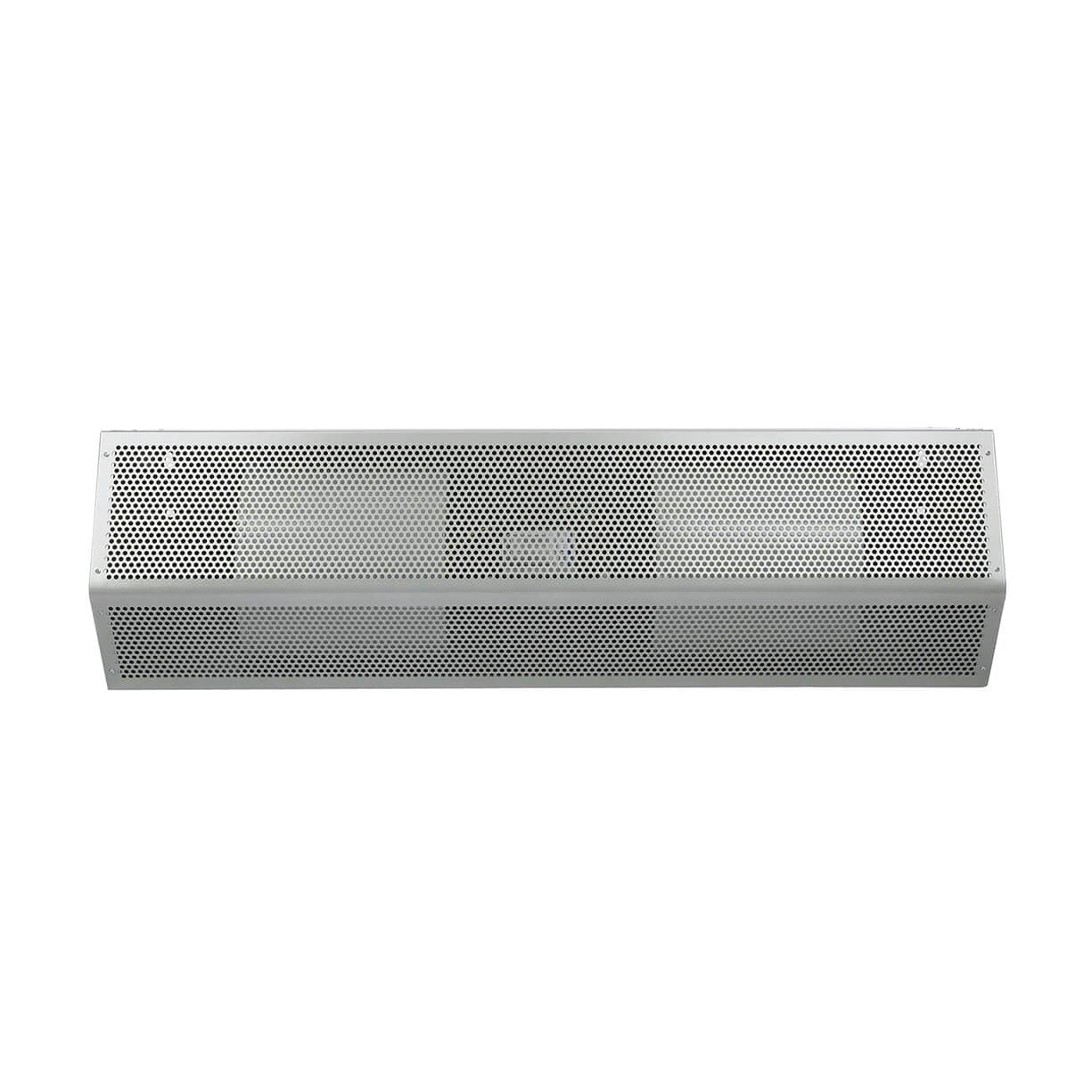

MARS HV2120-3UD-TS Mars Air Systems High Velocity Unheated Air Curtain 120inch

Product Description

The Mars Air Systems High Velocity (HV2) Unheated Air Curtain with MPN HV2120-3UD-TS provides a powerful air barrier for various applications. It operates on 208/230 volts and features three one-horsepower motors. This unit is 120 inches long, making it suitable for doorways and openings that require effective climate management.

• High velocity rated for wind loads up to fourteen feet.
• Durable metal construction with a corrosion-resistant Titanium Silver finish.
• Ideal for installation heights between ten to twelve feet.

Product Highlights

This air curtain is designed for environments needing protection against insects and outside conditions. Common installation sites include shipping doors, customer entrances, and cold storage rooms. It requires a relay or switch for operational control, enhancing convenience and efficiency.

Product Information

Standard Information

• Brand: MARS
• Voltage: 208/230 volts

Technical Specifications

• Length: 120 inches
• Motor Power: 1 HP (three motors)
• Full Load Amps: 15 amps
• Max Volume: 6693 CFM
• Weight: 345 lbs
• Sound Level: 75 dBA
• Power Rating: 3615 watts
• Uniformity: 93%
