Mars HV2120-3UA-TS 120 inches Wide Door High 3 Motor Velocity Series 2 Unheated Air Curtain

Product Description

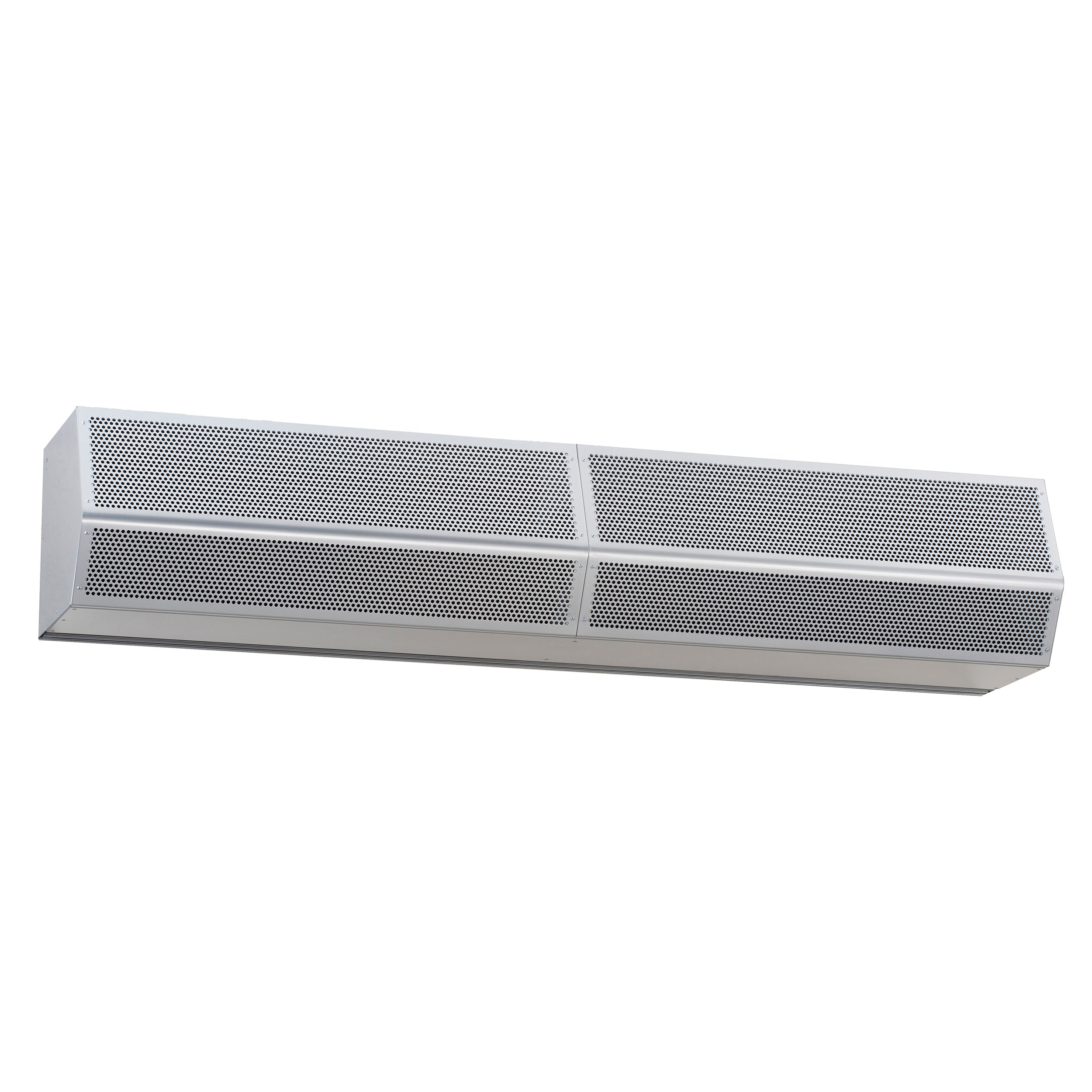

The MARS HV2120-3UA-TS is a high-velocity series 2 air curtain featuring three motors and 1 HP, designed for 120" wide doors. This unheated air curtain is suitable for industrial applications, effectively separating environments and protecting openings with significant wind loads up to 12 ft. high. It features a durable metal construction with a corrosion-resistant powder-coated finish.

• Features 1 hp direct-drive motor
• Durable Metal Construction
• Made in USA

Product Highlights

Ideal for environmental separation and insect control in restaurants, retail, manufacturing, and transportation settings.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: HV2120-3UA-TS
• Country of Origin: USA

Technical Specifications

• Size: 120"
• Series: High Velocity
• Material: Galvanized Steel
• Phase: 1
• Voltage: 115V
• Hertz: 60
• Type: Unheated
• Horse Power: 1
• Max Volume (CFM): 6693
• MPN: HV2120-3UA-TS
• Environmental - Max Height (feet): 14
• Insect - Max Height (feet): 12
• Heating Mode: Unheated
• Nozzle Width (inches): 120
• Unit Width (inches): 120
• Unit Height (inches): 14
• Wind Stopping Capability (MPH): 12
• Motors: 3
• Air Flow Certified (AMCA): Yes
• Voltage Rating: 115/1/60
• Voltage Code: A
• Air Curtain Air Volume (CFM): 6693
• Amps: 27
• Uniformity (%): 93
• dBA: 75
• FLA (Ampacity): 27Amps
• Door Width (Inches): 120
• Number of Poles: 1
• Max Velocity: 4800
• Frequency (Hertz): 60
• AMCA Uniformity: 93
• Sound dBA: 75
• Depth (in.): 15.625
• Length (in.): 120
• Certifications: ETL Listed, AMCA
• Product Type: Unheated
• Horse Power Per Motor: 1 hp
• Max Opening Height Window Door: 14 ft
• Standard Color: Titanium Silver
