Product Description

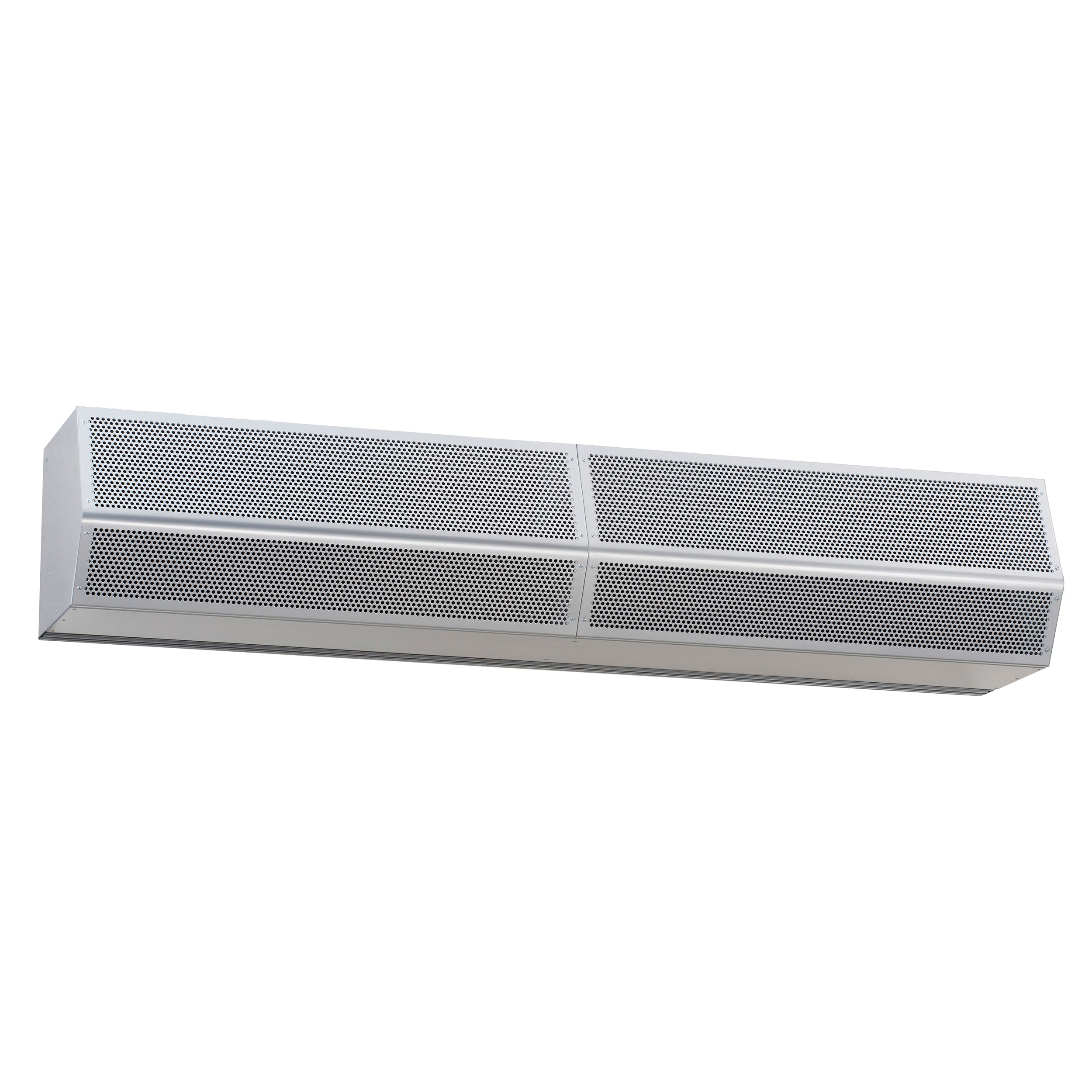

The MARS HV2108-3UH-TS High Velocity 2 (HV2) series features a 1 horsepower motor suitable for industrial applications. It separates environments and protects openings with wind loads up to 12 ft high. This unheated air curtain has a 108" nozzle width and operates at 460/3/60 voltage.
- 1 horsepower motor(s)
- Suitable for industrial applications
- Capable of separating environments
- Protects openings with significant wind loads up to 12 ft high
- Air Flow Certified (AMCA)
Product Highlights
The HV2 series is designed for insect control up to 12 feet and temperature/environmental separation up to 14 feet. It is ideal for restaurants, retail, healthcare, manufacturing, and transportation.
Product Information
Standard Information
-
Brand: MARS
-
Manufacturer Part Number: HV2108-3UH-TS
-
Country of Origin: USA
Technical Specifications
-
MPN: HV2108-3UH-TS
-
Environmental - Max Height (feet): 14
-
Insect - Max Height (feet): 12
-
Series: HV2 (High Velocity 2) Series
-
Heating Mode: Unheated
-
Nozzle Width (inches): 108
-
Unit Width (inches): 108
-
Unit Height (inches): 14
-
Wind Stopping Capability (MPH): 12
-
Horsepower: 1
-
Motors: 3
-
Air Flow Certified (AMCA): Yes
-
Voltage Rating: 460/3/60
-
Voltage Code: H
-
Air Curtain Air Volume (CFM): 6177
-
Amps: 4.8
-
Uniformity (%): 90
-
dBA: 75
-
Finish: Titanium Silver Powder Coat
-
Phase: 3-Ph
-
Hertz: 60
-
Voltage: 460V
-
FLA (Ampacity): 4.8Amps
-
Door Width (Inches): 108
-
Number of Poles: 3
-
Max Volume: 12000
-
Max Velocity: 5000
-
Sound dBA: 75
-
Application: Insect control up to 12 feet and temperature/environmental separation up to 14 feet
-
Configurations: Ambient, Electric, Steam and Hot Water
-
Suitable For: Restaurants & Food Service, Retail & Office, Convenience & Grocery, Healthcare & Hospitals, Manufacturing & Distribution, Pest Control and Transportation & Terminals
-
Horse Power Per Motor: 1 hp
-
Max Opening Height Window Door: 14 ft
-
Certifications: cETLus
-
Max. Door/Window Height (ft.): 14
-
Max. Height Insect Block (ft.): 12
-
Heat: No
-
Depth (in.): 15.625
-
Length (in.): 108
-
ETL sanitation certified to ANSI/NSF 37 standards: No
-
Product Type: Unheated
