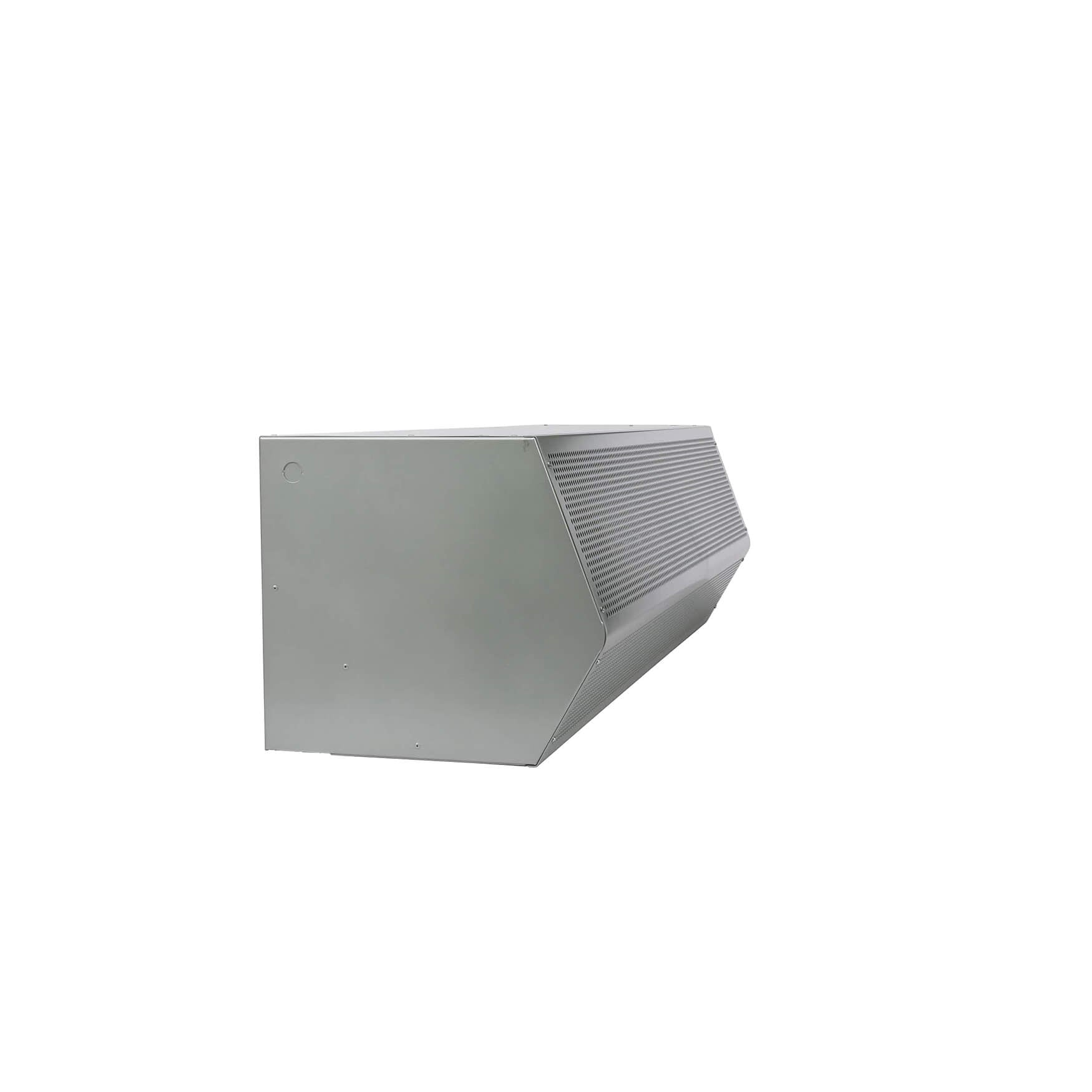

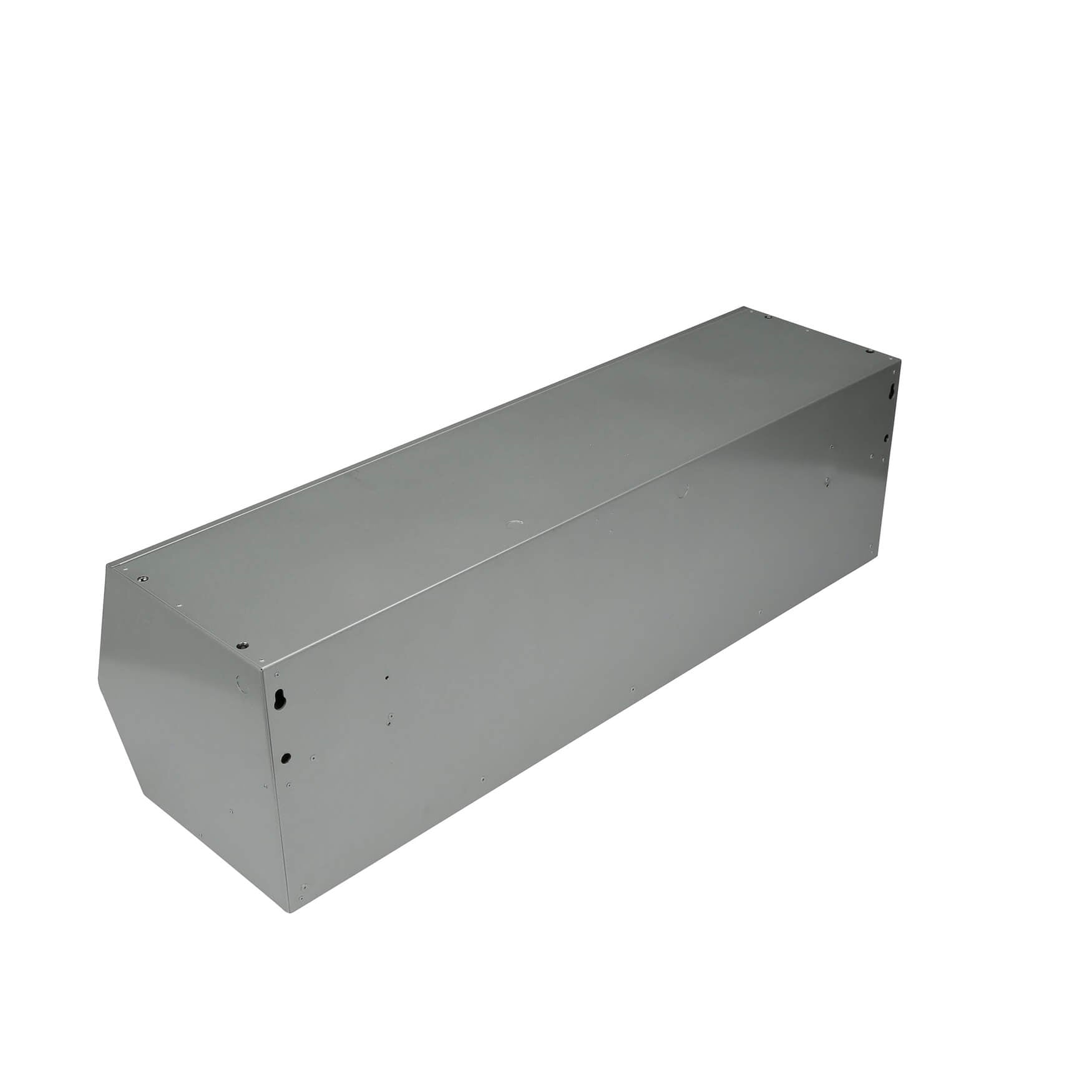

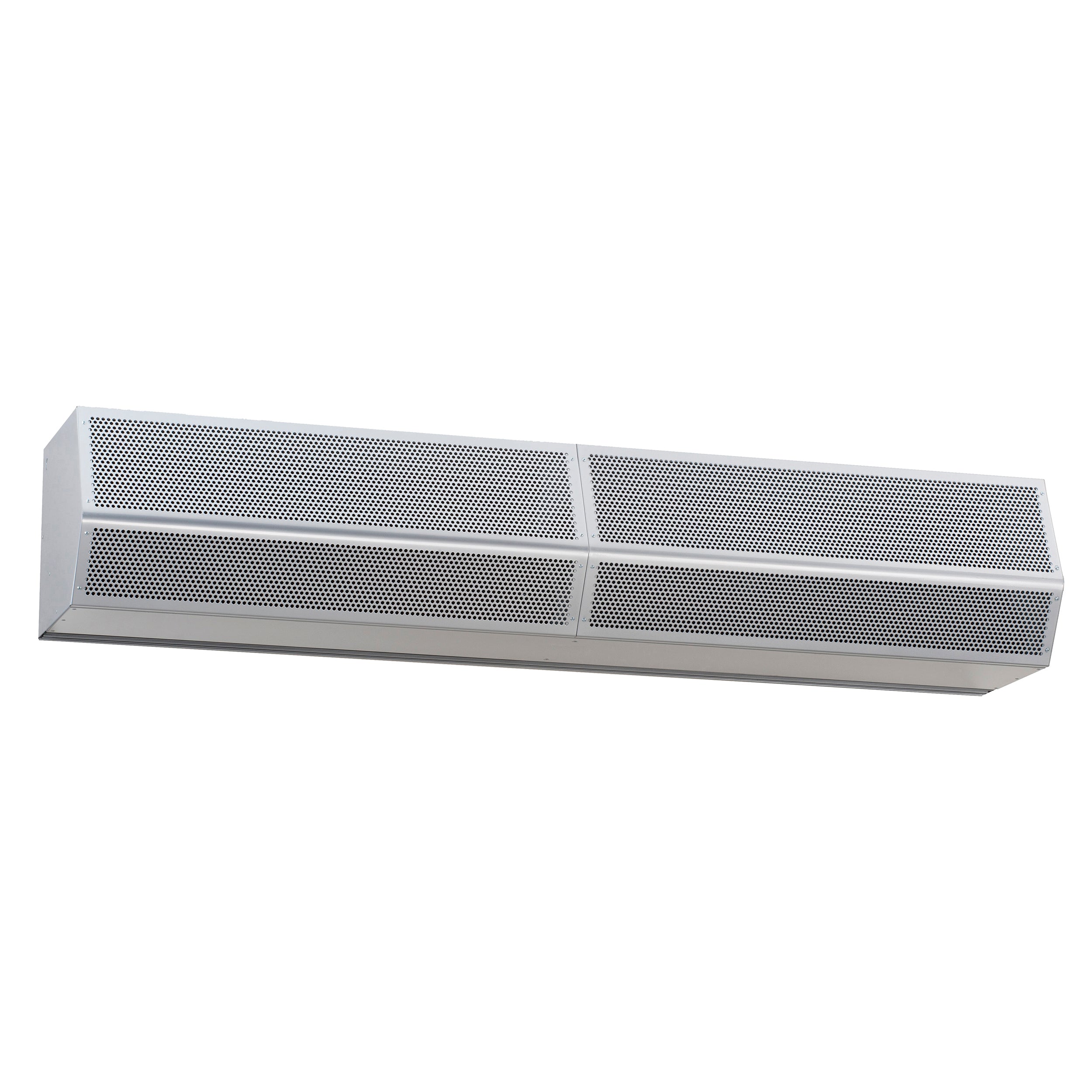

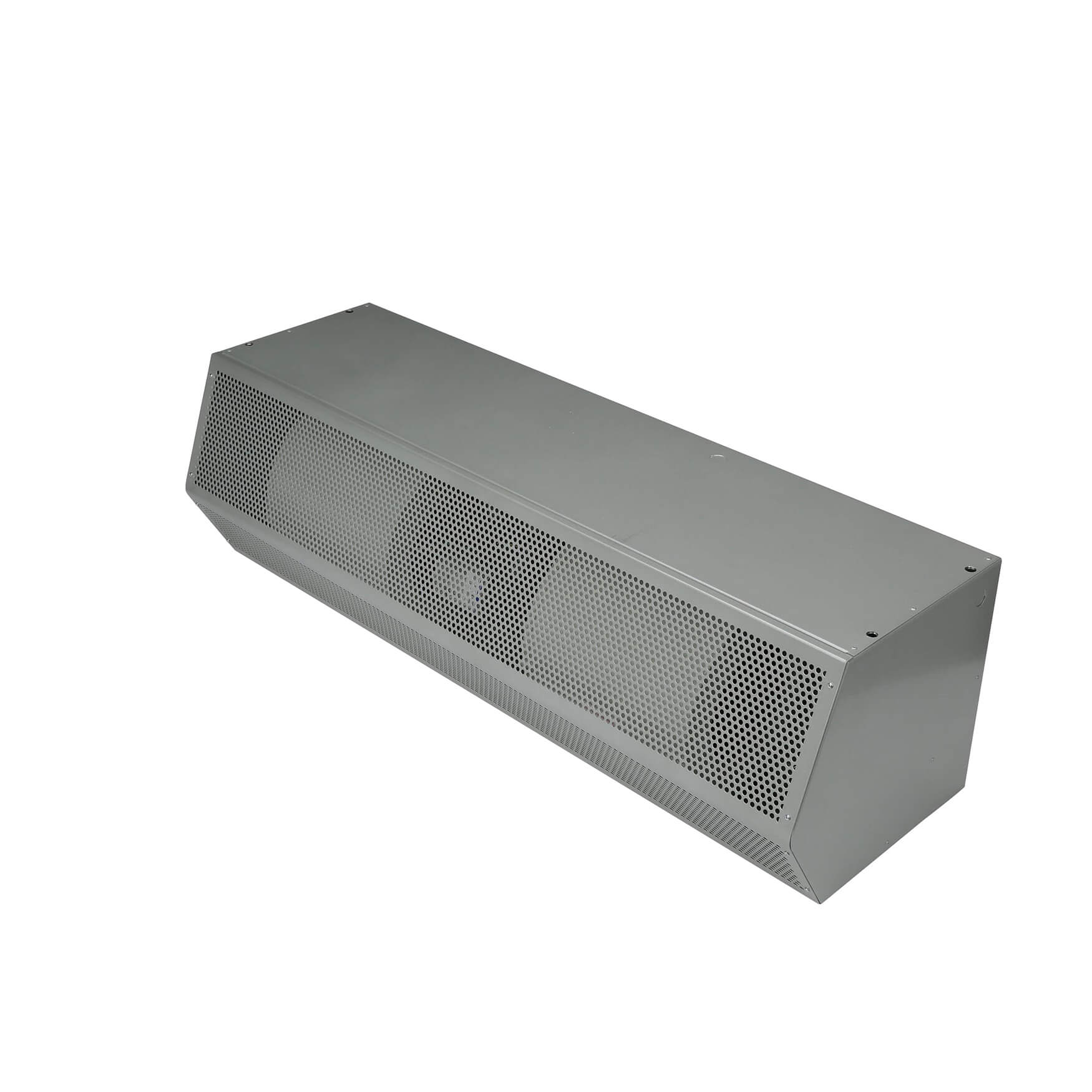

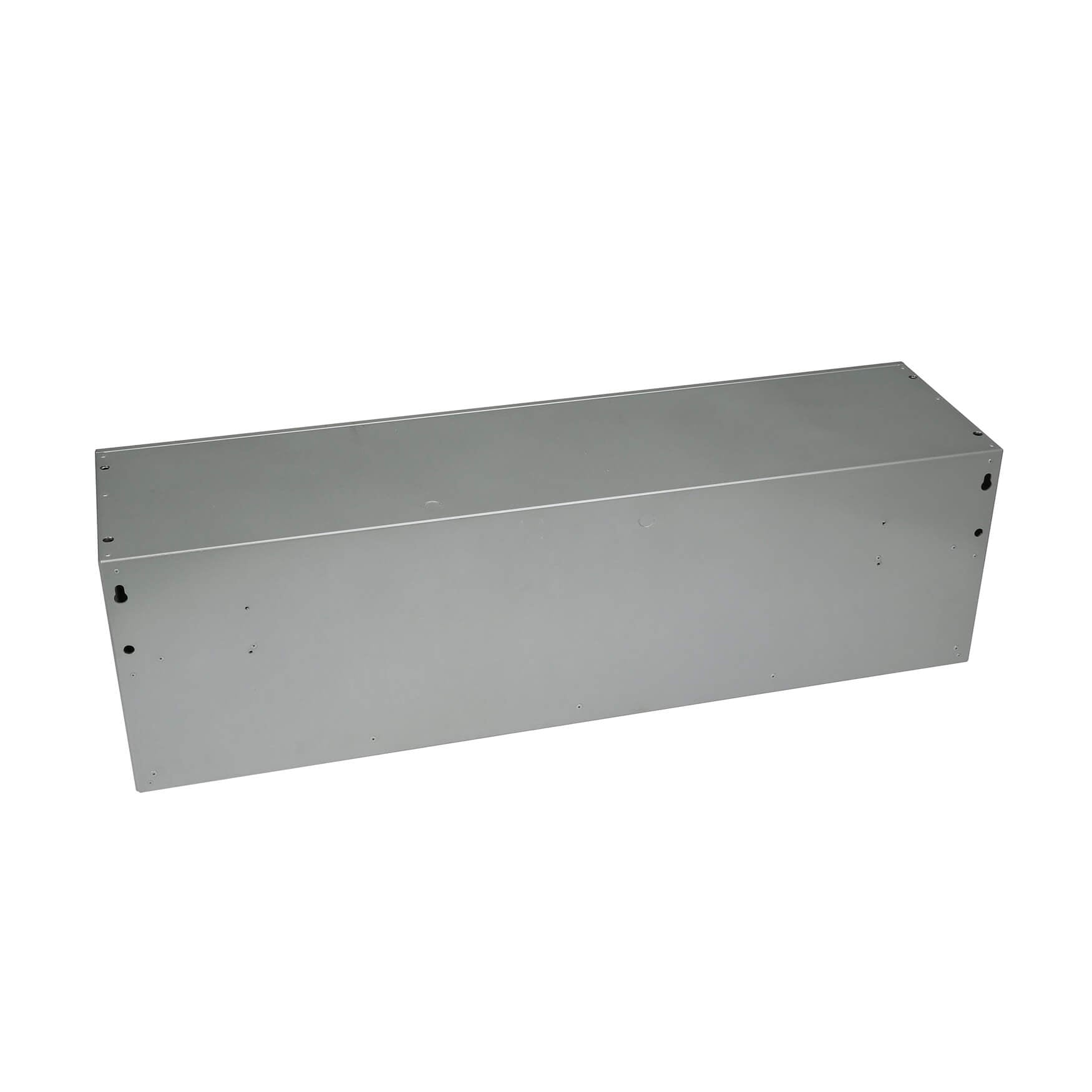

Mars HV2108-3UD-TS Series 2 High Velocity Air Curtain W/108 inches Wide Door, 12000CFM, Unheated

Product Description

The MARS HV2108-3UD-TS Series 2 High Velocity Air Curtain reduces energy costs and consumption while creating effective environmental separation. It maintains interior building temperature and minimizes dirt, dust, and fumes. Designed for doors 108" wide, this unheated air curtain features durable metal construction with a corrosion-resistant powder-coated finish. It is easy to install and requires low maintenance.

• Reduces energy costs and consumption
• Creates effective environmental separation
• Maintains interior building temperature
• Minimizes dirt, dust, and fumes
• Prevents flying insects from intruding

Product Highlights

The HV2 series features a 1 HP motor strong enough for many industrial applications. It is capable of separating environments and protecting openings with significant wind loads up to 12 ft. high.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: HV2108-3UD-TS
• Country of Origin: USA

Technical Specifications

• CFM: 12000 CFM
• Type: Standard
• Brand: Mars
• Phase: 1
• Series: High Velocity 2 Series (HV2)
• Voltage: 208 / 230 V
• Decibels: 75
• Material: Galvanized Steel
• Horsepower: 1 (per motor)
• Heating Option: Unheated
• Door Width: 108 in
• Number of Motors: 3
• Door Height: 12 ft
• Max Door Height: 12 ft
• Manufacturers Part Number: HV2108-3UD-TS
• Environmental - Max Height (feet): 14
• Insect - Max Height (feet): 12
• Nozzle Width (inches): 108
• Unit Width (inches): 108
• Unit Height (inches): 14
• Wind Stopping Capability (MPH): 12
• Motors: 3
• Voltage Rating: 208-230/1/60
• Voltage Code: D
• Air Flow Certified (AMCA): Yes
• Amps: 15
• Uniformity (%): 90
• Air Volume (CFM): 6177
• Application: Shipping & Receiving Areas
• ETL Listed: Yes
• HP: 1 HP
• Max Environmental Separation Height: 14 Feet
• Max Insect Blocking Height: 12 Feet
• Power: Electric
• Volts: 208/230 Volts
• Wattage: 3,735 Watts
• Heat: No
• Depth (in.): 15.625
• Height (in.): 14
• Length (in.): 108
• Certifications: ETL Listed, AMCA
• Product Type: Unheated
• Temperature/Environmental Separation: Up to 14 feet
• Widths: 36" to 144"
• Hertz: 60
