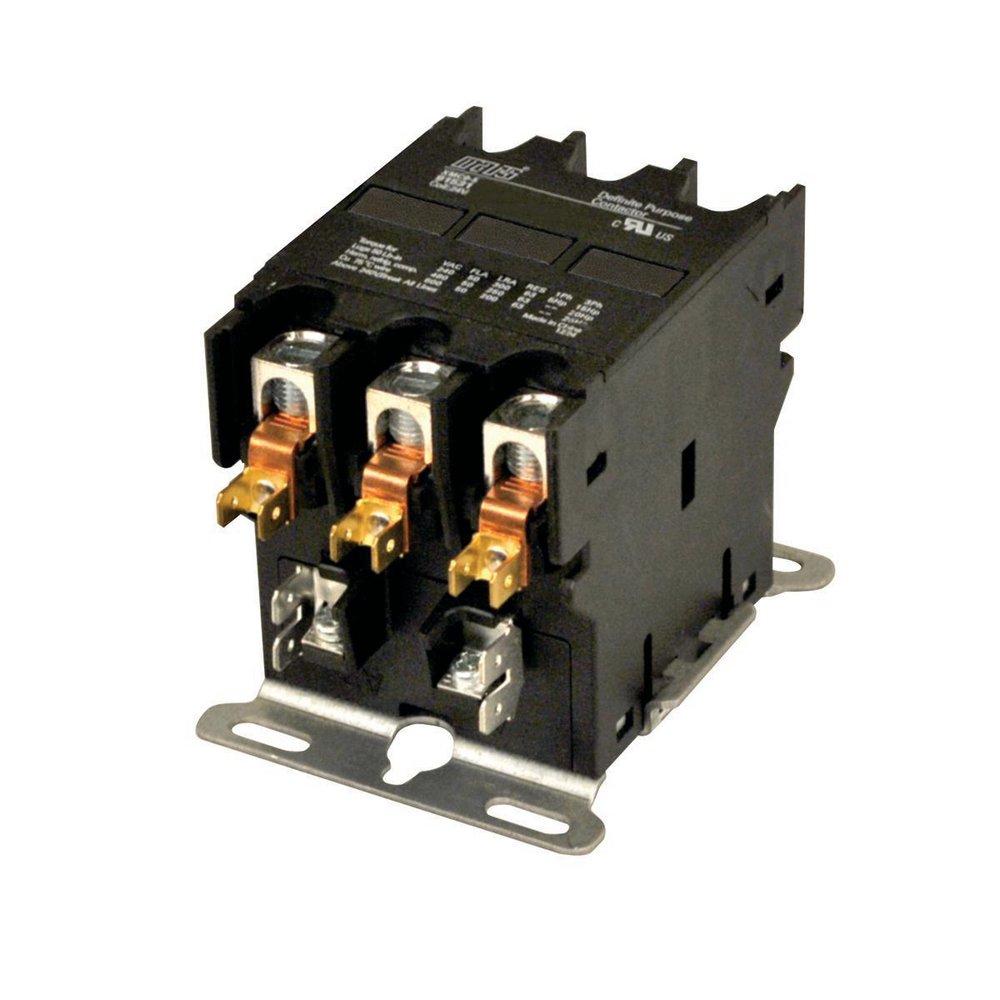

MARS 91631 Series 910 60A 24V 3 Pole Contactor

Product Description

MARS 91631 Series 910 is a 60 amp, 24 volt, 3 pole contactor. This device is suitable for use in refrigeration, air conditioning, and electric heating systems. It features a universal mounting base designed for easy installation and replacement of any contactor brand.

• Compact design
• High performance silver cadmium contacts
• Enclosed body for durability

Product Highlights

This contactor features a removable cover for full access to contacts and thermoplastic housing. It is engineered for the demanding requirements of commercial refrigeration and HVAC applications.

Product Information

Standard Information

• Brand: MARS
• MPN: 91631

Technical Specifications

• Number of Poles: 3
• Voltage Rating: 24 V AC at 50/60 Hz
• Current Rating: 60 amp inductive, 75 amp resistive
• Mechanical Life: 1,000,000 cycles
• Horsepower Rating: 1-Phase: 7.5 HP at 240 V, 20 HP at 240 V; 3-Phase: 25 HP at 480 V, 30 HP at 600 V
• Contact Material: Silver Cadmium
• Connection Type: Box Lug
• Specifications Met: cULus Listed, Meets ARI 780/790
